Belgian Railway AM 62 to 79, 54 and 56
MS 62 to 79, 54 and 56
Belgium | 1954
409 produced
AM 62 No. 196 in August 2011
AM 62 No. 196 in August 2011
Mark Ryckaert
VariantAM62, 63 and 65AM 66, 70, 73, 74, 78 and 79AM54AM56
General
Built1954-1979
ManufacturerLa Brugeoise et Nivelles, ACEC
Axle configA1-1A+A1-1A
Gauge4 ft 8 1/2 in (Standard gauge)
Seats180178185
Dimensions and Weights
Length152 ft 9 11/16 in152 ft 11 1/4 in148 ft 6 11/16 in
Wheelbase58 ft 10 11/16 in
Rigid wheelbase8 ft 2 7/16 in
Empty weight222,667 lbs236,997 lbs233,690 lbs223,769 lbs
Boiler
VariantAM62, 63 and 65AM 66, 70, 73, 74, 78 and 79AM54AM56
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V, 1,500 V
Hourly power986 hp (735 kW)1,033 hp (770 kW)831 hp (620 kW)
Top speed81 mph87 mph81 mph
Calculated Values
EMU
local
regional
Belgian Railway AM 75 to 77
AM 75 to 77
Belgium | 1975
44 produced
No. 810 in April 2014 in Charleroi
No. 810 in April 2014 in Charleroi
Smiley.toerist
General
Built1975-1979
ManufacturerLa Brugeoise et Nivelles
Axle config2-2+B-B+B-B+2-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats358
Dimensions and Weights
Length324 ft 10 3/4 in
Service weight485,678 lbs
Adhesive weight264,554 lbs
Axle load33,069 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V, 1,500 V
Hourly power2,058 hp (1,535 kW)
Continuous power1,824 hp (1,360 kW)
Top speed87 mph
Calculated Values
EMU
local
regional
Belgian Railway AM 80, 82 and 83
MS 80. 82 and 83
Belgium | 1980
140 produced

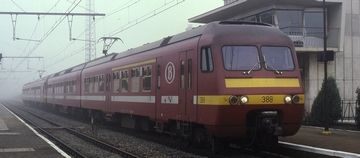

No. 388 and 386 in September 1987 in Denderleeuw
No. 388 and 386 in September 1987 in Denderleeuw
Phil Richards

In the eighties, the Belgian State Railways had 140 type AM 80 multiple units built for passenger transport at speeds of up to 160 km/h. They initially consisted of a motor car with all axles powered and a control car. The automatic couplers are only compatible with other vehicles of the same type, but allow up to six motor cars to be combined. In order to increase the capacity, additional trailers were added from 1992 and the power was increased a little. The trains are not only used in intercity and interregio traffic, but also as regular passenger trains. Even after modernization from 2009, the vehicles do not have air conditioning, which is why they have not been in high-quality service since then.

Variantas builtmodernized
General
Built1980-19851992-1995
ManufacturerLa Brugeoise et Nivelles, ACEC
Axle configB-B+2-2 B-B+2-2+2-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats171254
Dimensions and Weights
Length165 ft 3 11/16 in248 ft 8 5/8 in
Wheelbase68 ft 10 3/4 in
Rigid wheelbase9 ft 2 1/4 in
Empty weight235,894 lbs332,898 lbs
Adhesive weight132,277 lbs
Axle load33,069 lbs
Boiler
Variantas builtmodernized
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power1,663 hp (1,240 kW)1,877 hp (1,400 kW)
Top speed99 mph
Calculated Values
EMU
regional
last changed: 08/2023
Belgian Railway AM 86 to 89
MS 86 to 89
Belgium | 1988
62 produced
No. 904 in August 2013 in Rosendaal
No. 904 in August 2013 in Rosendaal
Rob Dammers
General
Built1988-1991
ManufacturerLa Brugeoise et Nivelles
Axle configB-B+2-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats174
Dimensions and Weights
Length173 ft 2 3/4 in
Service weight233,690 lbs
Adhesive weight130,073 lbs
Axle load32,628 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system3,000 V
Hourly power1,033 hp (770 kW)
Continuous power923 hp (688 kW)
Top speed75 mph
Calculated Values
EMU
local
suburban
Belgian Railway AM 96
MS 96
Belgium | 1996
120 produced

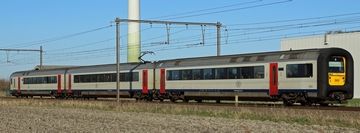

No. 560 in February 2014
No. 560 in February 2014
Mark Ryckaert
Variant441-490501-570
General
Built1996-1999
ManufacturerBombardier, Alstom
Axle config
Gauge4 ft 8 1/2 in (Standard gauge)
Seats213
Dimensions and Weights
Length259 ft 10 1/8 in
Empty weight385,808 lbs372,581 lbs
Boiler
Variant441-490501-570
Power Plant
Power
Power sourceelectric - AC/DCelectric - DC
Electric system25,000 V 50 Hz, 3,000 V3,000 V
Hourly power1,877 hp (1,400 kW)
Top speed99 mph
Calculated Values
EMU
regional
long distance
multi-system
Siemens Mobility Desiro MainLine (Belgium)
Belgian Railway AM 08 ( )
Belgium | 2011
305 produced

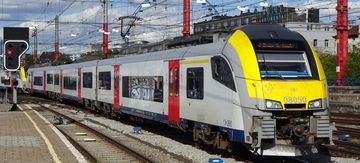

AM 08 050 in August 2018 entering Brussels Midi train station
AM 08 050 in August 2018 entering Brussels Midi train station
Stratoswift
General
Built2011-2016
ManufacturerSiemens
Axle configB-B+2-2+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats280
Dimensions and Weights
Length262 ft 1 15/16 in
Empty weight323,638 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC/DC
Electric system25,000 V 50 Hz, 3,000 V
Hourly power2,950 hp (2,200 kW)
Top speed99 mph
Calculated Values
EMU
multi-system
regional
local
Siemens Desiro
Belgian Railway Type 608
Belgium | 1939
6 produced
Type 608 on an old post card
Type 608 on an old post card

The Type 608 formed a series of six railcars with internal-combustion engines that were delivered by Forges Usines et Fonderies d'Haine-Saint-Pierre shortly before the Second World War. These vehicles were streamlined at both ends, intended for fast traffic without a trailer cars. They were built under license by Ganz in Budapest and offered ten seats in second class and 54 in third class. Both axles of each bogie were driven by an 500 hp eight-cylinder diesel engine via mechanical transmission

The six railcars were preceded by a Type 607 prototype that had been delivered in 1936. The Type 608 series vehicles were ordered together with the two-car type 553 railcars and delivered in 1939. They achieved a speed of up to 126 km/h in test drives, but were limited to 85 km/h in service. In contrast to other Belgian railcars, some of them survived the Second World War. It is thanks to this fact that the 608.05 can be visited in the railway museum in Treignes after a refurbishment and is therefore one of only two pre-war Belgian railcars that are still preserved today.

General
Built1939
ManufacturerHaine-Saint-Pierre
Axle configB-2
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length76 ft 9 1/4 in
Service weight122,136 lbs
Boiler
Power Plant
Power
Power sourcediesel-mechanic
Top speed53 mph
EngineCarels
Engine type8-cyl. diesel
Engine output496 hp (370 kW)
Calculated Values
DMU
regional
last changed: 01/2022
Belgian Railway types 553 and 554
later MW 49 and 46
Belgium | 1942
70 produced
Preserved 4602 in 2007 in Ciney
Preserved 4602 in 2007 in Ciney
Spoorjan

During the Second World War, the Belgian State Railways had 50 type 553 railbuses manufactured at Brossel. They represented the third generation of railbuses from this manufacturer and were based on a prototype from 1939, which had been designated as type 552. Although the vehicles were not much longer than the German railbuses of the post-war period, they had two bogies, each of which a powered inner axle. The power for this came from an eight-cylinder in-line engine, which, like the vehicles, came directly from Brossel.

Some of the 50 vehicles of the type 553 were destroyed during the war, which is why initially ten and later another ten of the successor type 554 were built from 1950. These differed from their predecessors not only with a different car body, but also with better insulation and the toilet. While the older vehicles were later redesignated as MW 49, the newer ones became MW 46. In the 1970s, the latter received new two-stroke diesel engines from Detroit diesel with only 178 hp instead of 226 hp. The vehicles were phased out between 1985 and 1994, some of them were later used in construction trains. Only two of the 50 units of the type 553 were preserved, while about half of the 20 units of the class 554 are still preserved today.

Variant553554554 re-engined
General
Built19421950-1952
ManufacturerBrossel
Axle config1A-A1
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length52 ft 5 5/16 in53 ft 1 13/16 in
Wheelbase37 ft 10 1/8 in38 ft 3 7/16 in
Rigid wheelbase5 ft 4 15/16 in
Empty weight73,414 lbs71,871 lbs
Boiler
Variant553554554 re-engined
Power Plant
Power
Power sourcediesel-mechanic
Top speed41 mph50 mph
EngineBrosselDetroit Diesel 8-71
Engine type8-cyl. diesel
Engine output223 hp (166 kW)176 hp (131 kW)
Calculated Values
DMU
local
last changed: 01/2022
Belgian Railway types 602 and 603
later MW 42 to 45
Belgium | 1954
36 produced
Preserved vehicle No. 4333 in 2009 in Spontin
Preserved vehicle No. 4333 in 2009 in Spontin
Noben k

In order to replace the passenger transport capacity on branch lines that was lost during the Second World War, the Belgian state railways procured four-axle diesel railcars of the types 602 and 603 from 1954. A diesel engine from Carels with an output of 400 hp was used as the power plant. The vehicles stood on two bogies, only one of which was driven on the inner axle. This limited their field of application to routes in the lowlands. The differences between the two series were limited to the design of the interior. While the Type 602 also had a first-class compartment and a luggage compartment, the Type 603 only had second-class seats.

The order included six Type 602s and 30 Type 603s. The former served as a feeder to Brussels Airport, while the others served on secondary routes. In addition to the motor cars, trailers were also ordered, which were designated as Type 732 and 734 and had two or four axles.

Types 602 and 603 were later renamed MW 42 and MW 43. After the feeder to Brussels Airport was electrified, the MW 42 were converted into MW 43. As vehicles got older, some vehicles were fitted with General Motors two-stroke diesel engines. This resulted in the MW 44 on the one hand, which was given an engine consisting of two combined four-cylinders and still only driving one axle. In addition, the MW 45 was created, which received two individual six-cylinder engines, each with 165 hp, each driving one axle of each bogie. Other vehicles were converted into railway service vehicles in the 1980s. The last remotorized vehicles were in service until 2002 and were then replaced by the MW 41.

VariantMW 42 and 43MW 44MW 45
General
Built1954-1965
ManufacturerAteliers Germain, Ateliers Métallurgiques de Nivelles
Axle config1A-2 1A-A1
Gauge4 ft 8 1/2 in (Standard gauge)
Seats7999
Dimensions and Weights
Length78 ft 1 in41 ft 11 15/16 in
Rigid wheelbase11 ft 5 13/16 in
Service weight116,183 lbs119,490 lbs
Boiler
VariantMW 42 and 43MW 44MW 45
Power Plant
Power
Power sourcediesel-hydraulic
Top speed56 mph
EngineCarelsGM Twin 6-71GM 6V 71N
Engine type6-cyl. dieselU12 diesel2x 6-cyl. diese1
Engine output394 hp (294 kW)326 hp (243 kW)
Calculated Values
DMU
local
last changed: 05/2022
Belgian Railway MW 41
Belgium | 1999
96 produced
No. 4162 in January 2006 in Ghent Sint-Pieters
No. 4162 in January 2006 in Ghent Sint-Pieters
Vitaly Volkov
General
Built1999-2004
ManufacturerAlstom
Axle config2-B+B-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats155
Dimensions and Weights
Length162 ft 8 3/4 in
Wheelbase62 ft 7 9/16 in
Rigid wheelbase7 ft 2 1/4 in
Service weight210,982 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed75 mph
EngineCummins QSK 19-R650
Engine type2x 6-cyl. diese1
Engine output1,301 hp (970 kW)
Calculated Values
DMU
local
regional
