South African class S1
go back
South Africa | 1947
37 produced

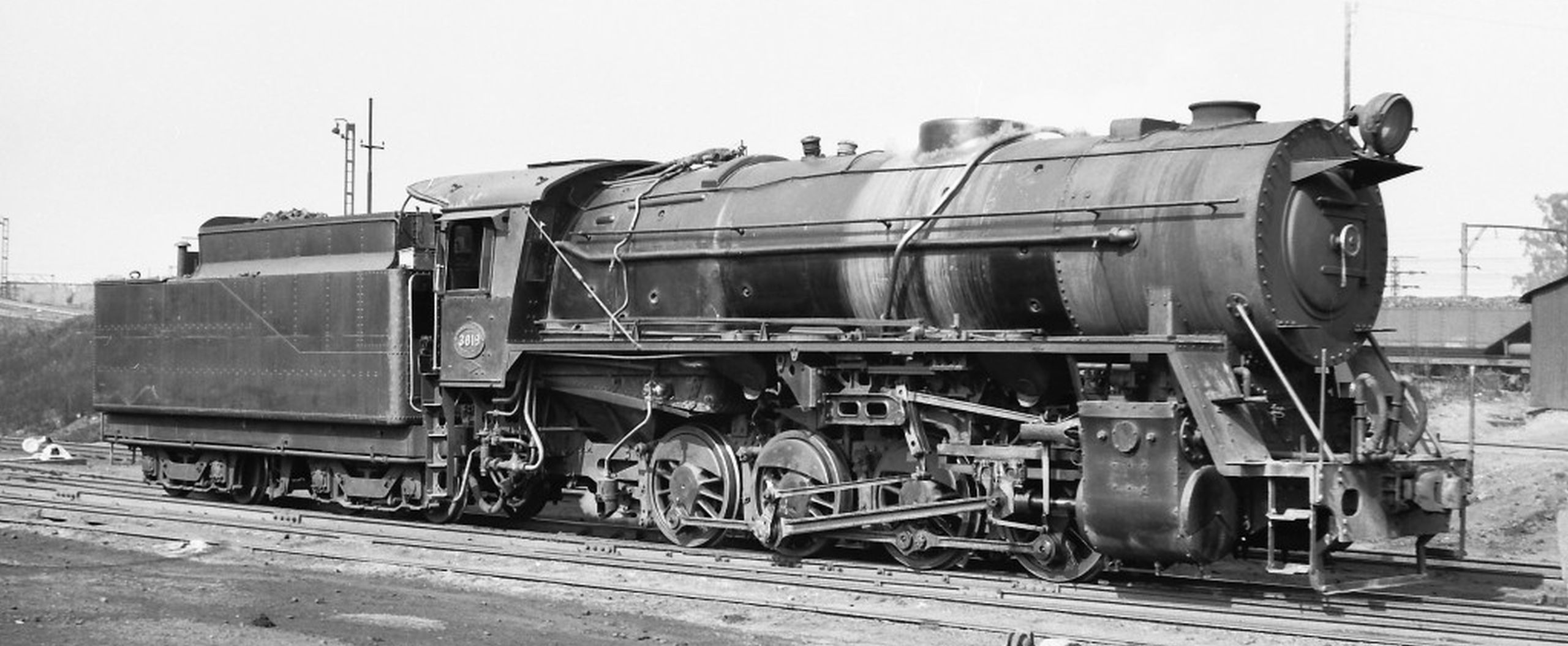

No. 3819 in June 1963 at Germiston
No. 3819 in June 1963 at Germiston
Leith Paxton

The class S1 was the most powerful steam shunter built for the South African Railways. It was designed by Dr. M.M. Loubser in World War II with the goal to produce an enforcement to the class S in the SAR's own Salt River workshops at Cape Town. Its boiler was larger than that of the class S and basically a shortened variant of the boiler that Loubser had fitted to the rebuilt class 12AR 4-8-2. Some parts, like the bar frames, tyres, superheater elements and smaller fittings still had to be imported. When completed, these locomotives were the most powerful shunting locomotives in the world which had a gauge smaller than standard gauge. They were able to move trains of up to 2,000 tons.

Due to the war, the first twelve locomotives were only built in 1947. Another order for 25 was placed with North British, these locomotives were completed in 1953 with the works numbers 27261 to 27285. Both batches can be distinguished by their running numbers, since the locomotives built in South Africa were numbered 374 to 385, while the Scottish locomotives were numbered 3801 to 3825. Originally they were spread over multiple depots, but from 1982 they could only be found at Germiston and its sub-depot at Kaserne. In the following years, all were withdrawn and only number 375 “Voortrekker” was preserved by Transnet Heritage Foundation. It is stored at Bloemfontain.

General
Built1947, 1953
ManufacturerSAR, North British
Wheel arr.0-8-0 (Eight-coupled)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length64 ft 0 1/4 in
Wheelbase14 ft 9 in
Rigid wheelbase14 ft 9 in
Total wheelbase49 ft 0 1/8 in
Service weight166,656 lbs
Adhesive weight166,656 lbs
Total weight313,712 lbs
Axle load44,576 lbs
Water capacity7,206 us gal
Fuel capacity24,640 lbs (coal)
Boiler
Grate area42 sq ft
Firebox area168 sq ft
Tube heating area1,600 sq ft
Evaporative heating area1,768 sq ft
Superheater area428 sq ft
Total heating area2,196 sq ft
Power Plant
Driver diameter48 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 23 1/4 x 27 in
Power
Power sourcesteam
Estimated power1,300 hp (969 kW)
Starting effort46,522 lbf
Calculated Values
steam locomotive
switcher
last changed: 12/2025
