Aussig-Teplitz Railway class IVc
Czechoslovak State Railways class 413.2 and German Reichsbahn class 5560
go back
Austria | 1899
22 produced

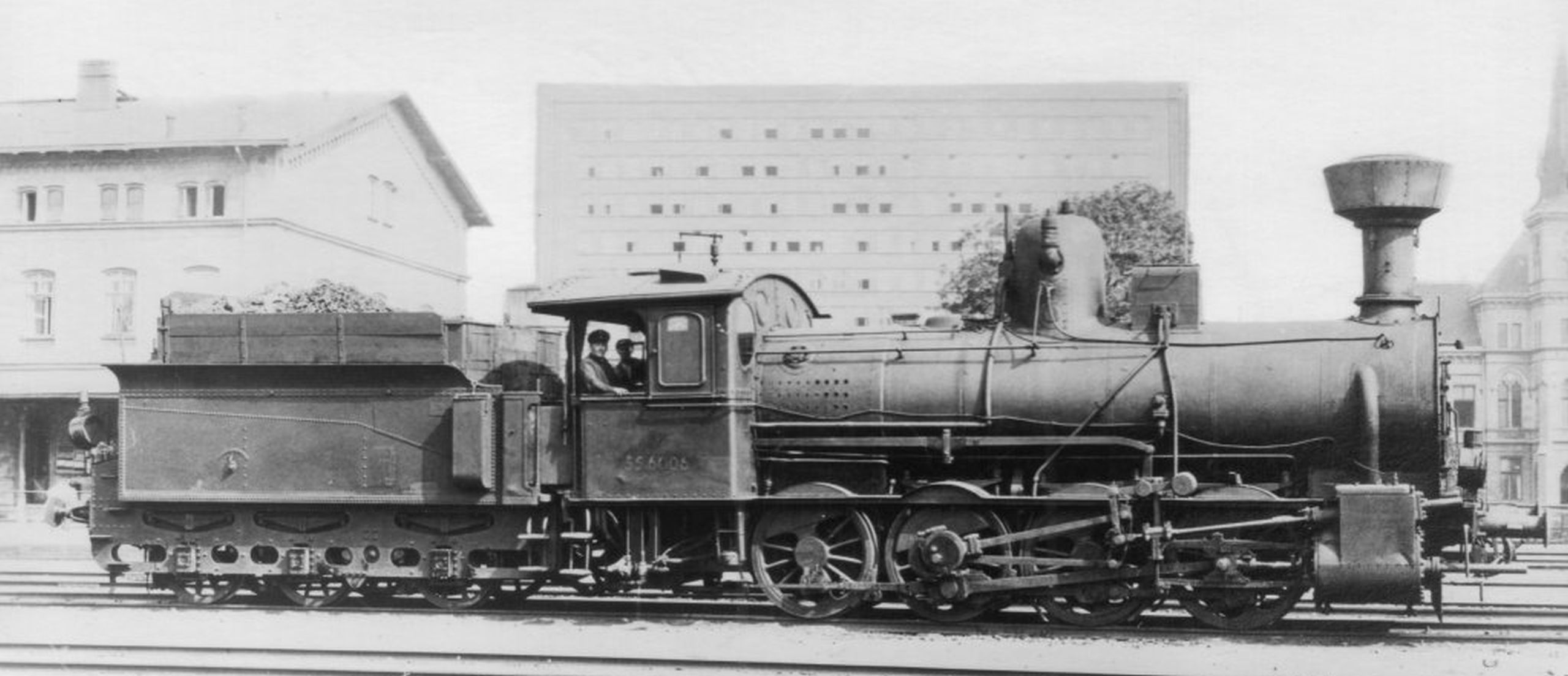

ČSD 413.206 around 1940 in Ústí nad Labem
ČSD 413.206 around 1940 in Ústí nad Labem
Carl Bellingrodt

The IVc was an 0-8-0 locomotive built for service on the line between Teplice (Teplitz) and Liberec (Reichenberg) that had inclines of 2.5 percent. Very similar locomotives had already been built in Wiener Neustadt for Turkey five years earlier. Compared to their predecessors of the type IVb, they had drivers of 1,300 instead of 1,195 mm to be able to haul passenger trains with up to 50 km/h if needed. The boiler pressure had been increased from ten to twelve bars and the diameter of the cylinders had been increased by 20 mm.

17 were delivered in 1899, followed by five more in 1909 and 1910. On 2.5 percent, they could haul trains of 250 tonnes with 20 km/h. On relatively level lines with a maximum of 0.25 percent, their maximum capacity was 610 tonnes at top speed of 50 km/h. Some passenger traffic had already been taken over by the two Id 2-6-0 locomotives introduced in 1902 and more Ie locomotives followed in 1908. Now, the IVc was only used in freight service and became ČSD class 413.2 in 1924. In World War II, they became Reichsbahn numbers 55 6001 to 6022. After the war, they were again used by the ČSD and withdrawn between 1948 and 1964.

General
Built1899, 1909-1910
ManufacturerWiener Neustadt
Wheel arr.0-8-0 (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length51 ft 11 11/16 in
Wheelbase13 ft 9 3/8 in
Rigid wheelbase13 ft 9 3/8 in
Total wheelbase37 ft 1 9/16 in
Empty weight104,389 lbs
Service weight116,845 lbs
Adhesive weight116,845 lbs
Total weight186,070 lbs
Water capacity3,170 us gal
Fuel capacity13,228 lbs (coal)
Boiler
Grate area24.8 sq ft
Firebox area111.9 sq ft
Tube heating area1,740.5 sq ft
Evaporative heating area1,852.5 sq ft
Total heating area1,852.5 sq ft
Power Plant
Driver diameter51.2 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 20 1/2 x 24 7/8 in
Power
Power sourcesteam
Estimated power771 hp (575 kW)
Top speed31 mph
Starting effort30,135 lbf
Calculated Values
steam locomotive
freight
