New Zealand Railways class EC
go back
New Zealand | 9999
6 produced

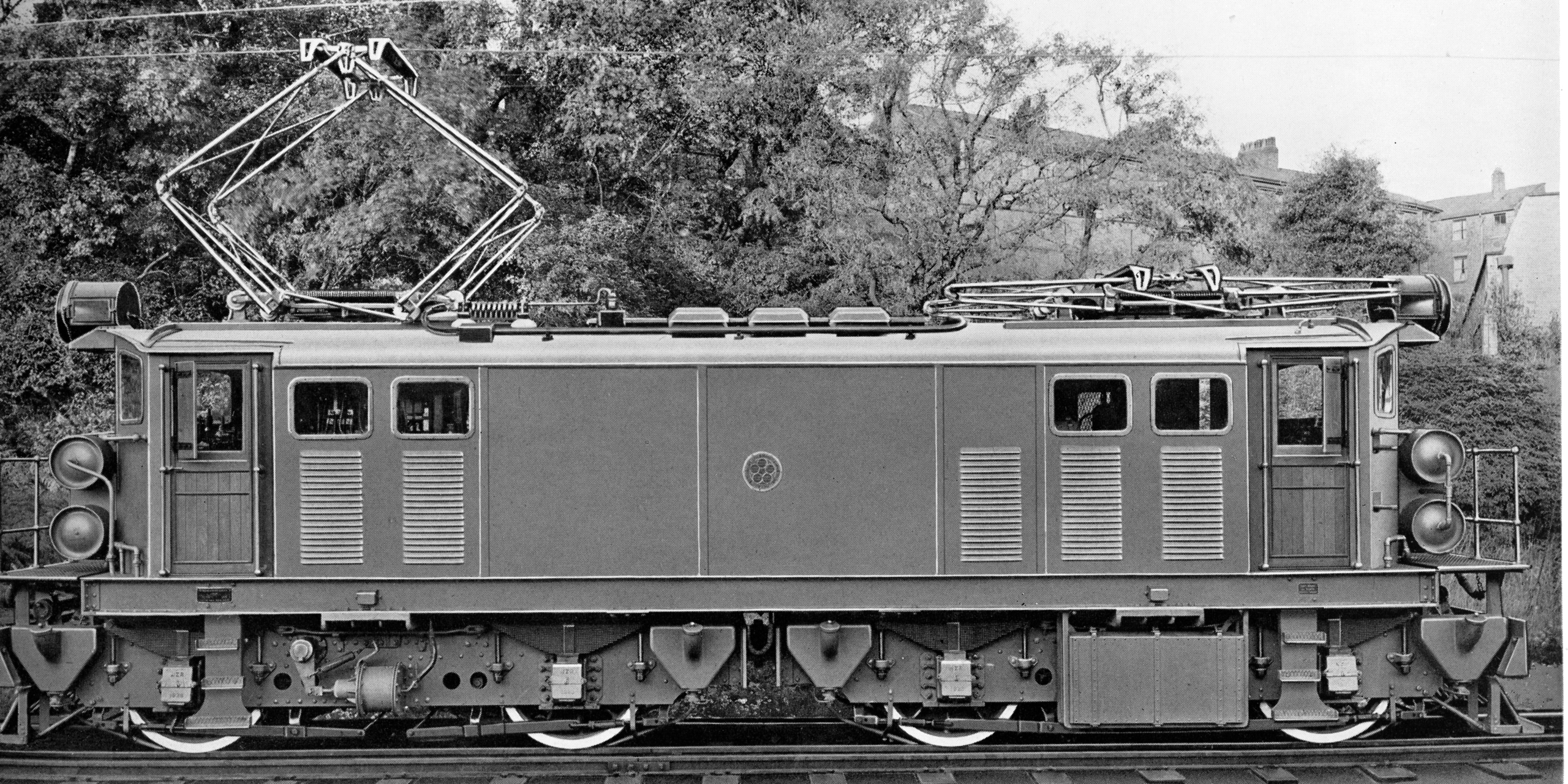

Image of locomotive
flickr/Historical Railway Images

When the NZR decided to electrify the Lyttelton tunnel near Christchurch due to the known problems with the operation of steam locomotives, they ordered six locomotives from English Electric. They were delivered in 1928 and were similar to the EO built by the same company in 1922. But in comparison to these, they had a longer wheelbase, more power and a higher gear ratio for a top speed of 53 mph or 85 km/h. They were designated EC since they were used around Christchurch.

In this tunnel, they hauled freight trains of 600 tons and boat trains of 400 tons. When the first one was withdrawn in 1967 due to its age, diesel traction was introduced on this line. By September 1970, all had been withdrawn and replaced by diesel locomotives. Soon the overhead lines were removed altogether. EC 7 was the only one that has been preserved. Today it is being operated on the Ferrymead Railway, together with EO 3.

General
Builtenglish electric
Manufacturer1928
Wheel arr.B-B
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Service weight110,208 lbs
Adhesive weight110,208 lbs
Axle load27,552 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Continuous power1,191 hp (888 kW)
Top speed85 mph
Calculated Values
electric locomotive
passenger
freight
