Metro Trains Melbourne and Valparaíso Metro X´Trapolis 100
Australia, Chile | 2002
239 produced

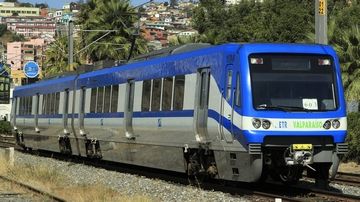

ET 10M of the Valparaíso Metro in February 2017 between Francia and Barón
ET 10M of the Valparaíso Metro in February 2017 between Francia and Barón
Falk2
VariantMelbourneValparaiso
General
Built2002-2004, 2009-20202002-2020
ManufacturerAlstom
Axle configB-B+2-2+B-B B-B+2-2
Seats216144
Dimensions and Weights
Length235 ft 2 1/16 in154 ft 11 1/16 in
Empty weight251,944 lbs173,746 lbs
Adhesive weight190,920 lbs95,460 lbs
Axle load23,810 lbs
Boiler
VariantMelbourneValparaiso
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Continuous power1,931 hp (1,440 kW)966 hp (720 kW)
Top speed81 mph75 mph
Calculated Values
EMU
suburban
New South Wales class V
Australia | 1970
246 cars built

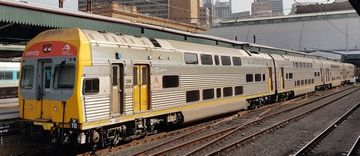

Train at Sydney Central Station in March 2019
Train at Sydney Central Station in March 2019
Maksym Kozlenko
General
Built1970-1989
ManufacturerComeng
Axle configB-B+2-2+2-2+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats416
Dimensions and Weights
Length314 ft 6 1/4 in
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Continuous power1,609 hp (1,200 kW)
Top speed70 mph
Calculated Values
EMU
twin deck
suburban
New South Wales classes 600/700, 620/720 and 660/760
Australia | 1949
18 produced

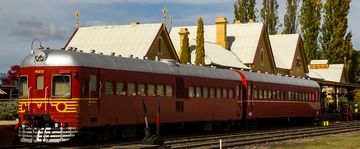

Nos. 622 and 726 converted to solar power as the “Byron Bay Train” at Temterfield Station in May 2014
Nos. 622 and 726 converted to solar power as the “Byron Bay Train” at Temterfield Station in May 2014
www.flickr.com/photos/shebalso
Variant600/700620/720 - Detroit Diesel620/720 - Rolls-Royce/Cummins660/760
General
Built1949-19501961-19681973-1975
ManufacturerChullora
Axle config1A-A1+2-2
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length122 ft 6 1/16 in
Boiler
Variant600/700620/720 - Detroit Diesel620/720 - Rolls-Royce/Cummins660/760
Power Plant
Power
Power sourcediesel-hydraulic
Top speed62 mph71 mph
EngineDetroit Diesel 6/71Detroit Diesel 6/110Rolls-Royce C8SFLH oder Cummins NHHRTO-6-B1Cummins NTA-855-R4
Engine type2x 6-cyl. diese12x 6-Zyl. Diesel oder 8-Zyl. Diesel2x 6-cyl. diese1
Engine output330 hp (246 kW)510 hp (380 kW)536 hp (400 kW)671 hp (500 kW)
Calculated Values
DMU
local
New South Wales Standard suburban carriage stock (Sydney)
Australia | 1925
600 produced

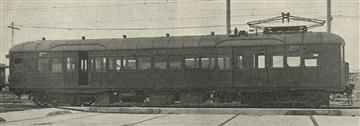

Image of locomotive
Locomotive Magazine, September 1926
Varianttwo-careight-car
General
Built1925-1937
ManufacturerLeeds Forge Company, Clyde Engineering, Walsh Island Dockyard
Axle configB-2+2-B B-2+2-2+B-2+2-2+2-2+2-B+2-2+2-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length123 ft 0 1/2 in492 ft 2 in
Boiler
Varianttwo-careight-car
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Top speed50 mph
Calculated Values
EMU
suburban
Preserved car at NSW Heritage Expo, Sydney June 2017
Preserved car at NSW Heritage Expo, Sydney June 2017
Trainsandtech
New South Wales Tulloch suburban carriage stock
Australia | 1964
120 cars built
T4873 unpowered carriage in July 2003 in Sydenham
T4873 unpowered carriage in July 2003 in Sydenham
Jason Antony
General
Built1964-1968
ManufacturerTulloch
Axle configB-B+2-2+2-2+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length255 ft 5 in
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Top speed70 mph
Calculated Values
EMU
suburban
twin deck
New South Wales Xplorer
Australia | 1993
23 cars built

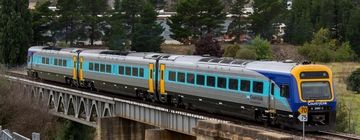

CountryLink Xplorer crossing the Queanbeyan River at Oaks Estate in January 2012
CountryLink Xplorer crossing the Queanbeyan River at Oaks Estate in January 2012
Bidgee
Varianttwo-carthree-carfour-car
General
Built1993-1995
ManufacturerABB Transportation
Axle config2-B+B-2 2-B+2-B+B-2 2-B+2-B+2-B+B-2+B-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats80146212
Dimensions and Weights
Length165 ft 8 3/16 in248 ft 6 5/16 in331 ft 4 3/8 in
Service weight251,300 lbs377,000 lbs502,650 lbs
Boiler
Varianttwo-carthree-carfour-car
Power Plant
Power
Power sourcediesel-hydraulic
Top speed90 mph
EngineCummins KTA-19R
Engine type2x 6-cyl. diese13x 6-cyl. diesel4x 6-cyl. diesel
Engine output1,027 hp (766 kW)1,541 hp (1,149 kW)2,054 hp (1,532 kW)
Calculated Values
DMU
local
South Australian Brill railcar
Australia | 1924
51 produced

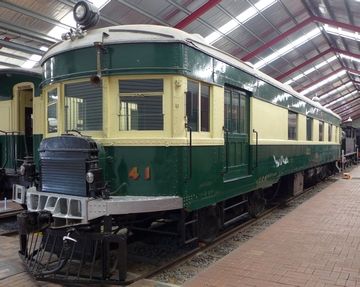

No. 41 (Model 55) at the National Railway Museum, Port Adelaide
No. 41 (Model 55) at the National Railway Museum, Port Adelaide
Bahnfrend

For rural, low-traffic lines of the South Australian Railways, J.G. Brill developed the railcars of the models 55 and 75. They differed on the one hand by different lengths and on the other hand by petrol engines with an output of 68 and 186 hp, respectively. The 75 model was also combined with a trailer. They were used almost all over South Australia and were called “Barwell Bulls”. Later, all received more powerful diesel engines. They were replaced by Bluebird and Redhen railcars in rural areas in the 1950s and then used in the suburbs of Adelaide until 1971. So far there is only a short text for this vehicle. In the future it will be described in more detail.

VariantModel 55Model 75
General
Built1924-1927
ManufacturerJ.G. Brill, Islington
Axle configB-2
Gauge3 ft 6 in (Cape gauge), 5 ft 3 in (Irish broad gauge)
Seats4363
Dimensions and Weights
Length48 ft 6 11/16 in58 ft 4 13/16 in
Boiler
VariantModel 55Model 75
Power Plant
Power
Power sourcepetrol-mechanic
EngineMidewestWinton
Engine type4-cyl. petrol
Engine output68 hp (51 kW)186 hp (139 kW)
Calculated Values
petrol railcar
local
secondary line
last changed: 08/2023
Sydney Trains class S
Australia | 1972
509 cars built

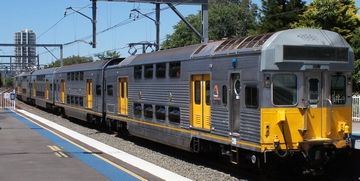

A combination with a total of eight cars in December 2013 in Erskineville
A combination with a total of eight cars in December 2013 in Erskineville
David Ansen

The class S double-decker multiple units played an important role in local transport in the Sydney area between 1972 and 2019. They were recognizable by their corrugated iron side walls and were the last Sydney Trains vehicles that were not air-conditioned. Comeng and A Goninan & Co. built 287 motor cars, 67 trailers and 85 control cars. The trains were initially used as four-car “S-sets” or two-car “T-sets”. Later, the trains were put together into other combinations and all control cars were converted into trailers. From 2012 they were replaced by the new class A and B. So far there is only a short text for this vehicle. In the future it will be described in more detail.

VariantL-Set (two-car)L-Set (three-car)S-SetR-Set
General
Built1972-1980
ManufacturerComeng, A Goninan & Co.Comeng, A Goninan & Co
Axle configB-B+2-2 B-B+2-2+B-B B-B+2-2+2-2+B-B B-B+2-2+B-B+B-B+2-2+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats242-243354-356484-486712-729
Dimensions and Weights
Length132 ft 8 in199 ft 0 in265 ft 4 in398 ft 0 in
Empty weight174,160 lbs564,368 lbs
Adhesive weight99,232 lbs198,464 lbs414,512 lbs
Axle load24,864 lbs
Boiler
VariantL-Set (two-car)L-Set (three-car)S-SetR-Set
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Continuous power800 hp (597 kW)1,600 hp (1,193 kW)3,200 hp (2,386 kW)
Top speed71 mph
Calculated Values
EMU
twin deck
suburban
last changed: 11/2023
Sydney Trains classes A and B “Waratah”
Australia | 2010
120 produced

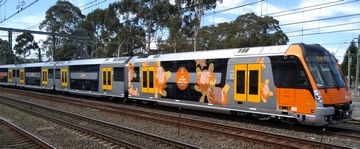

B2 in September 2018 entering Lidcombe
B2 in September 2018 entering Lidcombe
Gareth Edwards

The class A and B double-decker multiple units are the most modern vehicles in Sydney's commuter transport system. The nickname “Waratah” stands for the heraldic flower of New South Wales. They are based on class M and were developed with the help of Hitachi. Production of the car bodies is partly carried out in China by CNR and continues in Australia by Downer.

While the older Sydney Trains sets consisted of four cars each and two sets were usually coupled together, each train now consists of eight cars. Four of them are powered on all four axles. After 78 A sets, 24 B sets were built, which have modernized interiors and electronics.

General
Built2010-2014, 2017-2021
ManufacturerCNR/CRRC Changchun, Downer Rail
Axle config2-2+B-B+B-B+2-2+2-2+B-B+B-B+2-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats896
Dimensions and Weights
Length535 ft 1 1/4 in
Rigid wheelbase2300
Empty weight897,280 lbs
Boiler
Power Plant
Power
Power sourceelectric - DC
Electric system1,500 V
Top speed81 mph
Calculated Values
EMU
suburban
twin deck
last changed: 02/2024
V/Line VLocity
Australia | 2004
more than 123 produced

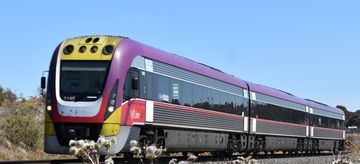

Three-car train near Melton station in October 2018
Three-car train near Melton station in October 2018
Mattinbgn

The “Regional Fast Rail” project was launched in Victoria in 2000 to significantly speed up passenger transport in rural areas and make it more attractive. The aim was to increase the line speed to 160 km/h on at least some of the lines. To this end, some routes were upgraded, including fully gated level crossings and the TPWS train control system. The order to develop the appropriate multiple units went to the German Adtranz, which operated a plant in the Melbourne suburb of Dandenong.

Adtranz, which was taken over by Bombardier a short time later, initially developed the trains known as “VLocity” as two-car units. Since the car bodies of the Endeavor trains, also built in Dandenong, were not suitable for the required 160 km/h, the more streamlined design of the Transperth B series was used. As with the Voyager diesel multiple units built by Bombardier in Europe at the same time, a Cummins QSK19 engine with 750 hp was used in each car. However, the power was not transmitted electrically, but hydraulically.

The construction of the first 29 two-car multiple units began in 2004. Due to the good reception of the new, faster connections, repeat orders were constantly being placed. Since the trains only had four instead of five seats per row compared to the earlier V/Line railcars, additional intermediate cars with an additional engine were ordered. Later more trains were built from the factory with three cars. Internally, these were given the type designations 3VL and 3VR and differed only in terms of the interior equipment. Other vehicles for use on standard-gauge routes were listed as 3VS. Production is still ongoing today, so that by May 2022 a total of 94 three-car units had been completed and 24 more had been ordered.

Variant3VL, 3VR3VS
General
Builtsince 2004
ManufacturerBombardier
Axle config2-B+2-B+B-2
Gauge5 ft 3 in (Irish broad gauge)4 ft 8 1/2 in (Standard gauge)
Seats144
Dimensions and Weights
Length248 ft 6 5/16 in
Service weight376,990 lbs
Boiler
Variant3VL, 3VR3VS
Power Plant
Power
Power sourcediesel-hydraulic
Top speed99 mph
EngineCummins QSK-19R
Engine type3x 6-cyl. diesel
Engine output2,249 hp (1,677 kW)
Calculated Values
DMU
local
last changed: 05/2022
