Imperial-Royal State Railways class 29
Austrian Federal Railways class 175, Yugoslav Railway class 116, Polish State Railways OKl11, Czechoslovak State Railways class 354.0 and German Reichsbahn class 758
go back
| 1912
36 produced

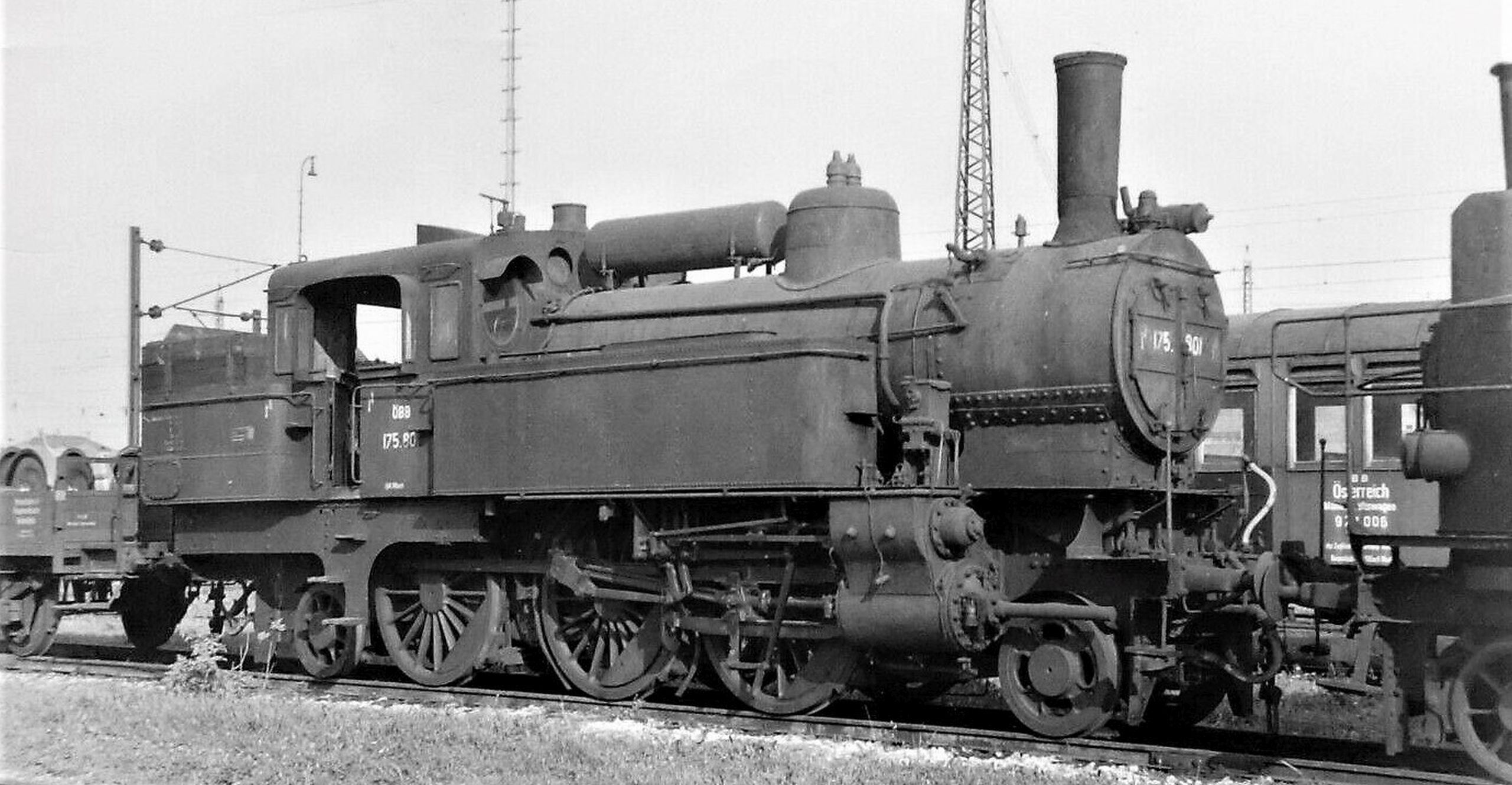

Image of locomotive
flickr/stratfordman72

The class 29 was the superheated variant of the class 229 two-cylinder compound 2-6-2T. The diameter of the high-pressure cylinder had been increased by 30 mm to account for the greater power. The water tanks had been made smaller, what was roughly offset by the lower consumption due to the superheater. They still had drivers of 1,614 mm and were approved for a speed of 80 km/h. 36 were built in 1912, 33 of these by BMMF and three in Floridsdorf. Despite their higher power and lower consumption, the kkStB kept ordering the simpler 229 until 1918.

After World War I, one came to the SHS state as 116-017 and nine became PKP OKl11. The other 26 stayed in Austria and were used by the BBÖ under the same class number 29. When Austria was annexed by the Germans in 1938, they became Reichsbahn class 758. After the Second World War, two were directly withdrawn and 34 remained. Of these, 16 stayed in Austria and became ÖBB class 175. Now five others were in Poland, seven in Yugoslavia and six in Czechoslovakia. The PKP had already withdrawn all in 1953, but the ÖBB kept the last one until 1962. Today the original 29.22 and later 175.817 can be found in the Museum at Stasshof in a badly deteriorated state.

General
Built1912
ManufacturerBMMF, Floridsdorf
Wheel arr.2-6-2ST (Prairie)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length39 ft 5 1/16 in
Wheelbase26 ft 2 15/16 in
Rigid wheelbase13 ft 1 1/2 in
Empty weight116,845 lbs
Service weight152,780 lbs
Adhesive weight95,240 lbs
Axle load31,747 lbs
Water capacity2,193 us gal
Fuel capacity6,834 lbs (coal)
Boiler
Grate area21.5 sq ft
Firebox area101.2 sq ft
Tube heating area847.1 sq ft
Evaporative heating area948.3 sq ft
Superheater area202.4 sq ft
Total heating area1,150.7 sq ft
Power Plant
Driver diameter63.5 in
Boiler pressure203 psi
Expansion typecompound
Cylinderstwo, HP: 17 11/16 x 28 3/8 in
and LP: 25 9/16 x 28 3/8 in
Power
Power sourcesteam
Estimated power872 hp (650 kW)
Top speed50 mph
Starting effort16,341 lbf
with start valve19,609 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
Karl Gölsdorf
