Medium Diesel-Hydraulic Shunting Locomotives[Inhalt]
Belgian Railway types 73 and 74
Belgium | 1965
105 produced

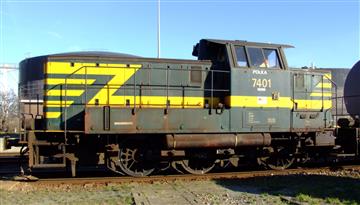

Some class 73 locomotives after being retired in April 2010 at the Stockem works
Some class 73 locomotives after being retired in April 2010 at the Stockem works
Noben k
Variant7374
General
Built1965-19771977
ManufacturerLa Brugeoise et Nivelles
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length37 ft 5 in
Service weight123,459 lbs130,073 lbs
Adhesive weight123,459 lbs130,073 lbs
Axle load41,226 lbs43,431 lbs
Boiler
Variant7374
Power Plant
Power
Power sourcediesel-hydraulic
Top speed37 mph
EngineCockerill 6TH695SA oder 6T240COABC
Engine type6-cyl. diesel
Engine output607 hp (453 kW)738 hp (550 kW)
Calculated Values
diesel locomotive
switcher
British Rail class 14
originally D9500
Great Britain | 1964
56 produced

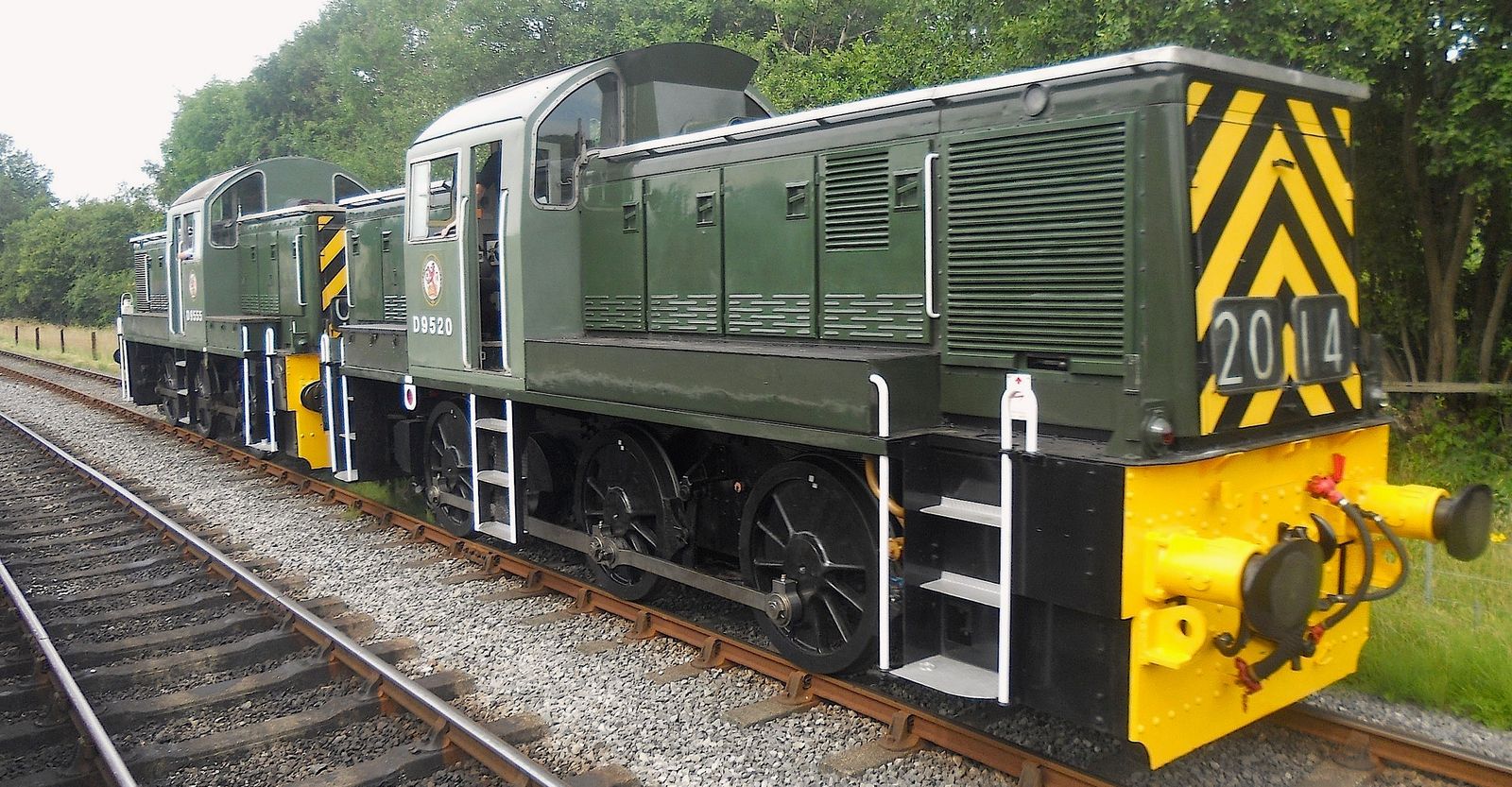

D9555 and D9520 in July 2014 at Rawtenstall
D9555 and D9520 in July 2014 at Rawtenstall
PeterSkuce
General
Built1964-1965
ManufacturerSwindon
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length34 ft 7 in
Service weight108,640 lbs
Adhesive weight108,640 lbs
Axle load36,213 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed40 mph
Starting effort31,000 lbf
EnginePaxman Ventura 6YJXL
Engine type6-cyl. diesel
Engine output650 hp (485 kW)
Calculated Values
diesel locomotive
freight
switcher
German Federal Railway V 60
later classes 260, 261 and 360 to 365
Germany | 1955
942 produced

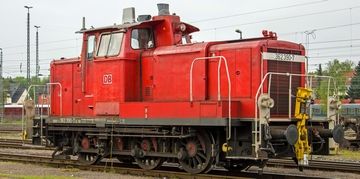

362 390 in April 2014 in Oberhausen-Osterfeld
362 390 in April 2014 in Oberhausen-Osterfeld
Rob Dammers

In the 1950s, the Bundesbahn needed a shunting locomotive to replace six- and eight-coupled steam locomotives in this role. Development began in 1951 with the participation of all well-known manufacturers, who were to divide production among themselves. Finally, in 1955, a total of four prototypes were built by Krupp, Krauss-Maffei, MaK and Henschel with different engines.

The Maybach engine ultimately used in the series was a development of the GO 6, which had been used in the pre-war period in the SVT 137 series express DMUs. In contrast to the engines of shunting locomotives from other countries, this was turbocharged, but the boost pressure was limited to a moderate 0.4 bars. The hydraulic transmission did not transmit the power to the axles via individual cardan shafts as in the V 80, but to all axles via a single jackshaft and coupling rods. Despite the coupling rods, the middle axle could be shifted sideways by 30 mm for better running through curves.

Identical or at least very similar locomotives were sold to Belgium, Greece and Turkey. Just one year after the start of series production, the locomotives received approval for one-man operation. They were used not only in shunting service, but also in light line service. Of a total of 942 V 60s built, 319 were given a reinforced frame to increase traction, which increased the weight by almost five tonnes. These could be weighed down by a further six tonnes with additional ballast. In the 1960s, the locomotives with lighter frames showed that the frames were too light and had to be reinforced afterwards.

With the renumbering in 1968, the lighter version became the class 260 and the heavier one became the class 261. In the 1980s, some industrial locomotives were tested as possible successors to the V 60, but none were adopted. Nevertheless, at the same time there were already many decommissionings, with some locomotives being sold to private railways. Others were sold to state or private railways in Norway, Yugoslavia, the Netherlands, Algeria, Italy and Switzerland. To save on personnel costs, the locomotives were classified as light locomotives in 1987 to be able to use less trained personell and the class numbers were changed to 360 and 361, respectively.

In the 1990s, many locomotives from the classes 360 and 361 were equipped with remote controls and were thus redesignated as classes 364 and 365. They also received automatic shunting couplers and Caterpillar engines. The unconverted locomotives were retired by 2003. In 2015, 221 of the converted ones were still available.

Variantstandard variantreinforced framere-engined
General
Built1955-1963from 1997
ManufacturerMaK, Krupp, Henschel, Krauss-Maffei, Jung, Esslingen, KHD, Gmeinder
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length34 ft 3 7/16 in
Wheelbase14 ft 5 1/4 in
Rigid wheelbase14 ft 5 1/4 in
Service weight106,483 lbs116,845 lbs106,483 lbs
Adhesive weight106,483 lbs116,845 lbs106,483 lbs
Axle load35,494 lbs39,683 lbs35,494 lbs
Boiler
Variantstandard variantreinforced framere-engined
Power Plant
Power
Power sourcediesel-hydraulic
Top speed37 mph
Starting effort26,527 lbf29,675 lbf26,527 lbf
EngineMaybach GTO 6/6ACaterpillar 3412E DI-TTA
Engine typeV12 diesel
Fuel396 us gal (diesel)476 us gal (diesel)396 us gal (diesel)
Engine output641 hp (478 kW)624 hp (465 kW)
Calculated Values
diesel locomotive
switcher
last changed: 02/2023
German Reichsbahn V 60
later classes 105 and 106 and DB AG classes 344 to 347
Germany | 1959
2,256 produced

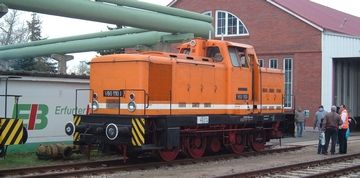

V 60 1100 of the Arnstadt Railway Museum in March 2012 in Erfurt
V 60 1100 of the Arnstadt Railway Museum in March 2012 in Erfurt
Spatzenmann

In the GDR's diesel locomotive program, a 650-hp locomotive was planned for medium shunting services, of which two prototypes were manufactured in 1959 as the V 60. It also had to be able to be used on tight radii and not only be used by the Reichsbahn, but also in industrial combines and, if possible, also be exported. The required axle load of a maximum of 15 tonnes made four axles necessary, which had to be in one frame because of the drive via coupling rods. Two axles were connected to each other with a Beugniot frame in order to enable the axles to be moved sideways.

The prototypes were powered by a turbocharged V8, which, however, did not prove itself with the frequent load changes in shunting. Instead, the larger V12 from the V 100 and V 180 was used in production, which still achieved the required 650 hp after the omission of the turbocharger. The first 163 prodction engines of the V 6010 weighed 55 tonnes, the others were equipped with five tonnes of ballast and designated as V 6012. Production was soon relocated from Babelsberg to Hennigsdorf, with a total of 2,256 units built by 1982. The engines were listed as class 106 from 1968. After the completion of more than 1,000 engines, the class numbers 104 and 105 were used to comply with the three-digit serial numbers, since the 107 was already occupied by the V 75.

As planned, the V 60 was also used by a large number of industrial companies, even if the Reichsbahn later bought some of them. For the ferry port of Mukran on the island of Rügen, 14 examples were converted to a gauge of 1,520 mm and central buffer coupling in order to be able to take over the Soviet freight cars arriving there. Exports took place to Egypt, Bulgaria, Algeria and others.

After reunification, the locomotives were assigned to the classes 344 to 347. Many were gradually sold off, since the West German V 60 was more economical to use and some had already been equipped with remote control by the Bundesbahn. Even the fact that at that time some locomotives had already been rebuilt with a de-rated engine and a single-gear transmission to improve efficiency did not change that. The industry bought many more locomotives and in some cases used them for a longer period of time.

VariantV 6010V 6012
General
Built1959, 1962-19641964-1982
ManufacturerLKM Babelsberg, LEW Hennigsdorf
Axle configD
Dimensions and Weights
Length35 ft 8 3/8 in
Wheelbase18 ft 4 1/2 in
Service weight121,254 lbs132,277 lbs
Adhesive weight121,254 lbs132,277 lbs
Axle load30,314 lbs33,069 lbs
Boiler
VariantV 6010V 6012
Power Plant
Power
Power sourcediesel-hydraulic
Top speed34 mph37 mph
EngineJohannisthal 12 KVD 18/21
Engine typeV12 diesel
Engine output641 hp (478 kW)
Calculated Values
diesel locomotive
switcher
last changed: 03/2022
Henschel DH 440 and DH 500
Germany | 1955
19 produced

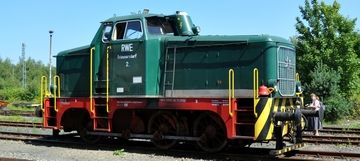

DH 440 of the RWE power plant Frimmersdorf in the Rhenish Industrial Railway Museum
DH 440 of the RWE power plant Frimmersdorf in the Rhenish Industrial Railway Museum
MPW57

The three-axle models of the second Henschel post-war generation started with the DH 390 and shortly afterwards the weaker DH 360. Soon the engine power was increased to 440 and finally 500 hp thanks to new engines. The engine used in the DH 440 was the MAN W 8 V 17.5/22 A with a displacement of 42 liters and eight cylinders, which reached its rated output at 1,100 rpm. The DH 500, on the other hand, received the Mercedes-Benz MB 836 Bb with a displacement of just under 30 liters from six cylinders, which, however, with 1,500 rpm was already one of the high-speed engines and was turbocharged

The DH 440 only reached a quantity of six, half of which went to various companies and half to the Danish State Railways. However, the latter had 120 copies built by Frichs as MH (II) without licensing. The DH 500 was offered from 1956 as a „Hüttenlok” (smelter locomotive) because it was a suitable locomotive for the narrow tracks of the metallurgical works with sufficient power for the heavy loads. This was partly thanks to the shorter overall length due to the smaller engine. It could anticipate some improvements that led to the DH 500 Ca from Henschel's third generation.

VariantDH 440DH 500
General
Built1956-19581955-1956
ManufacturerHenschel
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length30 ft 11 5/8 in27 ft 2 3/4 in
Service weight89,287 lbs119,049 lbs
Adhesive weight89,287 lbs119,049 lbs
Axle load30,865 lbs39,683 lbs
Boiler
VariantDH 440DH 500
Power Plant
Power
Power sourcediesel-hydraulic
Top speed37 mph
EngineMAN W 8 V 17,5/22 AMercedes-Benz MB 836 Bb
Engine type8-cyl. diesel6-cyl. diesel
Fuel291 us gal (diesel)
Engine output434 hp (324 kW)493 hp (368 kW)
Calculated Values
diesel locomotive
switcher
industry
last changed: 03/2022
Henschel DH 360 Ca and DH 500 Ca
Germany | 1958
107 produced

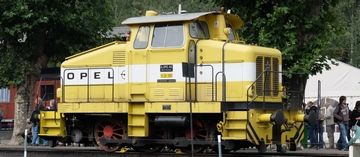

DH 500 Ca, formerly Adam Opel AG, in the Bochum-Dahlhausen Railway Museum
DH 500 Ca, formerly Adam Opel AG, in the Bochum-Dahlhausen Railway Museum
Manfred Kopka

The third post-war generation of Henschel shunting locomotives was based directly on the second, but used a larger number of standardized assemblies. There were again two- to four-axle locomotives, the engine power of which sometimes overlapped and made it necessary to include the wheel arrangement in the designation.

The DH 360 Ca and DH 500 Ca models were therefore three-axle locomotives with 360 and 500 hp respectively. The weaker variant used a V12 diesel from Henschel that was not turbocharged. The variant with 500 hp received the Mercedes-Benz MB 836 Bb, which already powered the previous series. Overall, the third-generation locomotives were available with 120 to 850 hp, with the three-axle models later also being offered with 700 hp

No locomotives of this generation were delivered to the Bundesbahn ex works and customers were primarily found in the mining industry. The DH 500 Ca also found customers in Spain, Switzerland, Norway, Sudan and Ghana. A total of 18 DH 360 Ca and 89 DH 500 Ca were built.

VariantDH 360 CaDH 500 Ca
General
Built1958-19641959-1971
ManufacturerHenschel
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length29 ft 2 3/8 in
Service weight119,049 lbs
Adhesive weight119,049 lbs
Axle load39,683 lbs
Boiler
VariantDH 360 CaDH 500 Ca
Power Plant
Power
Power sourcediesel-hydraulic
Top speed37 mph
EngineHenschel 12 V 1416Mercedes-Benz MB 836 Bb
Engine typeV12 diesel6-cyl. diesel
Fuel291 us gal (diesel)
Engine output355 hp (265 kW)493 hp (368 kW)
Calculated Values
diesel locomotive
switcher
industry
last changed: 03/2022

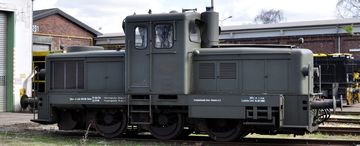

Jung R 42 C
Germany | 1955
32 produced
R 42 C of the Bundeswehr in the Vossloh Service Center in Moers
R 42 C of the Bundeswehr in the Vossloh Service Center in Moers
MPW57

The Arnold Jung Lokomotivfabrik also offered some diesel-hydraulic shunting locomotives in the 1950s, which were based on the Wehrmacht diesel locomotives. Two-axle vehicles with 300 hp, three-axle vehicles with 300, 400 and 440 hp and a four-axle vehicle with 600 hp were available. The designation of these locomotives consisted of an R for “shunting locomotive”, a number that indicated the approximate horsepower in tens and the letter B, C or D for the number of axles. There were also the RK 12 B and RK 20 B with chain drive. Although these were the first successful young diesel locomotives of the post-war period, the manufacturer referred to these locomotives as the “third generation” with regard to the former models from earlier times.

The R 42 C was the most successful variant of the series with 29 units. In reality, it had an output of 440 hp, which came from an eight-cylinder in-line MAN engine. This was the same engine like that used in the competing 440 hp Henschel and Krauss-Maffei locomotives. The Bundeswehr was the largest customer with seven vehicles. In contrast to their competitors, the young locomotives found fewer sales in industrial companies and were used more often on light and district railways.

General
Built1955-1962
ManufacturerJung
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length30 ft 5 9/16 in
Wheelbase11 ft 1 7/8 in
Rigid wheelbase11 ft 1 7/8 in
Service weight99,208 lbs
Adhesive weight99,208 lbs
Axle load33,069 lbs
Boiler
Power Plant
Power
Power sourcediesel-hydraulic
Top speed37 mph
EngineMAN W 8 V 17,5/22 A
Engine type8-cyl. diesel
Fuel217 us gal (diesel)
Engine output434 hp (324 kW)
Calculated Values
diesel locomotive
switcher
industry
last changed: 03/2022

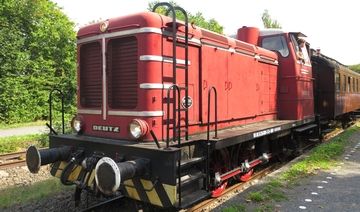

Klöckner-Humboldt-Deutz V6M 436 R and V6M 536 R
Germany | 1948
62 produced
Former Volkswagen locomotive V6M 436 R of the second series in Gliesmarode
Former Volkswagen locomotive V6M 436 R of the second series in Gliesmarode
TeWeBs

After the end of the war, Klöckner-Humboldt-Deutz was one of the first locomotive builders to be able to resume full-scale production. The first newly developed model was the V6M 436 R, which, however, was based directly on the WR 360 C 14. The designation actually stood for the engine and meant “four-stroke, 6 cylinders, water-cooled, 4th generation, 36 cm piston stroke, standard gauge” and also referred to the locomotive. The transmission was still via a Voith torque converter on a jackshaft between the second and third axle, which in turn drove coupling rods. The 536 R already used a fifth-generation engine that produced 450 hp. From 1955, both had a higher driver's cab, which improved the view to the front.

The 436 R was built a total of 27 times from 1948 to 1958 and was mainly sold to customers in Germany. The Bundesbahn, Bundespost, Volkswagen and the ports of Hanover each ordered two to four locomotives, otherwise all other customers only ordered one example. The 536 R was built a total of 35 times from 1952 and was mainly used directly abroad. The export customers were in Sweden, the Netherlands and Luxembourg. In Luxembourg they were run by the CFL as class 450. Two pieces were delivered to the US Army in Europe and one to the British Army of the Rhine.

VariantV6M 436 RV6M 536 R
General
Built1948-1958
ManufacturerKHD
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length31 ft 0 1/16 in31 ft 4 3/4 in
Service weight92,594 lbs105,822 lbs
Adhesive weight92,594 lbs105,822 lbs
Axle load30,865 lbs35,274 lbs
Boiler
VariantV6M 436 RV6M 536 R
Power Plant
Power
Power sourcediesel-hydraulic
Top speed31 mph
EngineKHD V6M 436 RKHD V6M 536 R
Engine type6-cyl. diesel
Fuel396 us gal (diesel)
Engine output355 hp (265 kW)444 hp (331 kW)
Calculated Values
diesel locomotive
switcher
industry
last changed: 03/2022
Krauss-Maffei ML 440 C and ML 500 C
Germany | 1954
109 produced

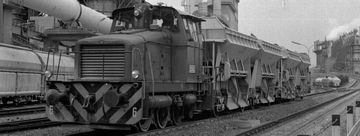

An ML 500 C in its typical working environment
An ML 500 C in its typical working environment

The ML 440 C and ML 500 C were industrial diesel locomotives based in part on the mass-built Wehrmacht WR 360 C 14 or V 36 locomotives, respectively. This connects them with the comparable models from Henschel and Jung. The manufacturer's designation allows conclusions to be drawn about the installed engine power of 440 or 500 hp and the wheel arrangement C. The four-axle ML 550 D was also offered. Also because of the engine power, the two ML 500 Cs that came from the Wilhelmsburg Industrial Railway to the Bundesbahn were given the designation V 50.

Compared to the V 36, the systems were arranged differently in order to be able to move the driver's cab a little in the middle. This provided a better overview in both directions and gave it a typical shunting locomotive appearance with a long and a short hood. Early in production, the locomotives were given hoods that sloped forwards, which provided even better visibility.

The power transmission onto the three axles was still done by a jackshaft and coupling rods. It is noteworthy that both locomotives received engines from different manufacturers, but the ML 440 C had the same engine as the Henschel DH 440 and the Jung R 42 C, while the ML 550 C had the same engine as the Henschel DH 500 C. Two gears allow the two locomotives to have a selectable top speed of 28/55 km/h and 29/58 km/h.

A total of 53 and 56 engines were built from each of the two models, some of which achieved a long service life, as is usual with industrial railways, and some are still in use. The Augsburger Localbahn continues to use some of their ML 440 C, which have had radio remote control since the 1980s.

VariantML 440 CML 500 C
General
Built1954-1966
ManufacturerKrauss-Maffei
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length27 ft 6 11/16 in28 ft 6 1/2 in
Wheelbase9 ft 10 1/8 in
Rigid wheelbase9 ft 10 1/8 in
Service weight95,901 lbs119,049 lbs
Adhesive weight95,901 lbs119,049 lbs
Axle load31,967 lbs39,683 lbs
Boiler
VariantML 440 CML 500 C
Power Plant
Power
Power sourcediesel-hydraulic
Top speed34 mph36 mph
EngineMAN W 8 V 17,5/22 AMercedes-Benz MB 836 Bb
Engine type8-cyl. diesel6-cyl. diesel
Fuel343 us gal (diesel)
Engine output434 hp (324 kW)493 hp (368 kW)
Calculated Values
diesel locomotive
switcher
industry
last changed: 03/2022

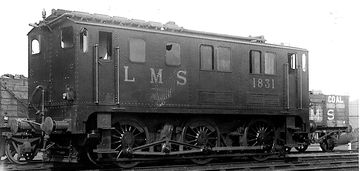

London, Midland & Scottish No. 1831
Great Britain | 1931
only one produced
Lens of Sutton
Variantas builtrebuilt
General
Built1931
ManufacturerDerby
Axle configC
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length30 ft 3 3/4 in
Wheelbase15 ft 8 in
Rigid wheelbase15 ft 8 in
Service weight101,025 lbs
Adhesive weight101,025 lbs
Axle load33,676 lbs
Boiler
Variantas builtrebuilt
Power Plant
Power
Power sourcediesel-hydraulic
Top speed25 mph
Starting effort22,400 lbf20,000 lbf
EngineDavey Paxman
Engine type6-cyl. diesel
Fuel168 us gal (diesel)
Engine output400 hp (298 kW)300 hp (224 kW)
Calculated Values
diesel locomotive
switcher
prototype
