Burma Railways class As
Burma | 1916
8 produced
Image of locomotive
flickr/Historical Railway Images

The Burma Railways class As was built in 1916 by Beyer, Peacock & Co. for light suburban passenger traffic. These eight tank locomotives had the wheel arrangement 4-6-4T and a slender boiler. The Belpaire firebox was located between the second and third driving axle, but was concealed by the water tanks which went forward up to the smokebox. No. 144 is now on display at the main station in the former Capital Yangon. It now carries the letters “MR” instead of “BR”, since the country has been renamed to Myanmar. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1916
ManufacturerBeyer, Peacock & Co.
Axle config4-6-4T (Hudson)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase30 ft 2 in
Rigid wheelbase12 ft
Service weight135,296 lbs
Adhesive weight66,528 lbs
Axle load22,176 lbs
Water capacity1,321 us gal
Fuel capacity6,720 lbs (coal)
Boiler
Grate area15.4 sq ft
Firebox area100 sq ft
Tube heating area682 sq ft
Evaporative heating area782 sq ft
Superheater area156 sq ft
Total heating area938 sq ft
Power Plant
Driver diameter48 in
Boiler pressure185 psi
Expansion typesimple
Cylinderstwo, 15 x 22 in
Power
Power sourcesteam
Estimated power700 hp (522 kW)
Starting effort16,216 lbf
Calculated Values
Optimal speed28 mph
steam locomotive
tank locomotive
passenger
last changed: 04/2024
Burma Railways class C
Burma | 1896
4 produced
Image of locomotive
flickr/Historical Railway Images

In 1896, Neilson & Co. delivered two small 4-4-4T tank locomotives to the Burma Railways, which were designated class C. These had a axle load of less than eight tons and were fairly flexible with two two-axle bogies. They were oil-fired, but also had a small coal reserve. Their large firebox in relation to the tube heating surface indicates that they were well suited for commuter traffic with rapid acceleration and many stops. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1896
ManufacturerNeilson & Co.
Axle config4-4-4T (Reading)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase26 ft 2 in
Rigid wheelbase6 ft 7 in
Service weight81,872 lbs
Adhesive weight34,608 lbs
Axle load17,808 lbs
Water capacity1,153 us gal
Fuel capacity896 lbs (Kohle) und 1,950 us gal (Öl)
Boiler
Grate area12 sq ft
Firebox area105 sq ft
Tube heating area545 sq ft
Evaporative heating area650 sq ft
Total heating area650 sq ft
Power Plant
Driver diameter53 in
Boiler pressure150 psi
Expansion typesimple
Cylinderstwo, 14 x 20 in
Power
Power sourcesteam
Estimated power350 hp (261 kW)
Starting effort9,430 lbf
Calculated Values
Optimal speed24 mph
steam locomotive
tank locomotive
passenger
last changed: 05/2024
Burma Railways classes K and Ks
Burma | 1905
109 produced
Image of locomotive
flickr/Historical Railway Images

Starting in 1904, Burma Railways received two classes of 4-6-0 locomotives with BESA standard boilers. While class J was built for mixed traffic, class K shown here was intended only for goods traffic. Up to 1914, a total of 75 class K locomotives were built by Nasmyth Wilson, North British and Stephenson. In World War I, 13 were sent to Mesopotamia and never returned to Burma.

From 1920, 34 superheated Ks have been built, of which seven were built in Germany by Rheinmetall. Also many locomotives of the original class K were superheated. With a total of 109, they were the second most numerous class of Burmese steam locomotives after class F. After World War II, around 30 were still in service. So far there is only a short text for this vehicle. In the future it will be described in more detail.

VariantKKs
General
Built1905-19141920-1925
ManufacturerNasmyth, Wilson & Co., North British, Robert Stephenson & Co.Nasmyth, Wilson & Co., North British, Rheinmetall
Axle config4-6-0 (Ten-wheeler)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length52 ft 8 5/16 in
Wheelbase21 ft 1 in
Rigid wheelbase12 ft
Total wheelbase43 ft 1 3/4 in
Empty weight69,216 lbs
Service weight79,520 lbs
Adhesive weight60,480 lbs
Total weight137,424 lbs137,200 lbs
Axle load20,160 lbs
Water capacity2,222 us gal
Fuel capacity15,680 lbs (coal)1,568 lbs (coal)
Boiler
Grate area15.3 sq ft
Firebox area108 sq ft
Tube heating area948 sq ft676 sq ft
Evaporative heating area1,056 sq ft784 sq ft
Superheater area111 sq ft
Total heating area1,056 sq ft895 sq ft
VariantKKs
Power Plant
Driver diameter48 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 15 x 22 in
Power
Power sourcesteam
Estimated power550 hp (410 kW)
Starting effort15,778 lbf
Calculated Values
Optimal speed22 mph
steam locomotive
freight
last changed: 05/2024
Image of locomotive
flickr/Historical Railway Images
Burma Railways classes N and Ns
Burma | 1911
22 produced
Image of locomotive
flickr/Historical Railway Images

The class N of the Burma Railways designated 17 Mallets built by North British in four batches between 1911 and 1921. With an 0-6-6-0 wheel arrangement, they had all weight available for traction. Nevertheless, they were not only intended for freight service, but also for passenger service.

Their area of operation was the Lashio branch and the Southern Shan states. Even though they had a huge pulling power, they had to be assisted by 2-6-2T locomotives on steeper sections. In 1924 Beardmore built five superheated Ns class locomotives and the 17 others were rebuilt in the same form. It didn't take long until they were superseded by the Garratts starting with the GA.I.

VariantNNs
General
Built1911-1915, 19211924
ManufacturerNorth BritishBeardmore
Axle config0-6-6-0 (Erie)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length62 ft 2 1/2 in
Wheelbase24 ft 3 in
Rigid wheelbase8 ft 3 in
Total wheelbase48 ft 7 in
Service weight130,368 lbs135,520 lbs
Adhesive weight130,368 lbs135,520 lbs
Total weight200,480 lbs351,344 lbs
Water capacity2,402 us gal
Fuel capacity13,440 lbs (coal)24,640 lbs (coal)
Boiler
Grate area33 sq ft
Firebox area115 sq ft
Tube heating area1,398 sq ft1,071 sq ft
Evaporative heating area1,513 sq ft1,082 sq ft
Superheater area309 sq ft
Total heating area1,513 sq ft1,391 sq ft
VariantNNs
Power Plant
Driver diameter39 in
Boiler pressure180 psi
Expansion typecompound
Cylindersfour, HP: 15 1/2 x 20 in
and LP: 24 1/4 x 20 in
four, HP: 16 x 20 in
and LP: 24 1/4 x 20 in
Power
Power sourcesteam
Estimated power800 hp (597 kW)1,000 hp (746 kW)
Starting effort26,766 lbf27,988 lbf
with start valve32,119 lbf33,586 lbf
Calculated Values
Optimal speed19 mph23 mph
steam locomotive
freight
passenger
Mallet
last changed: 05/2024

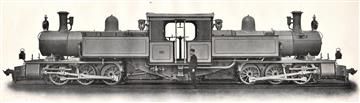

Burma Railways Fairlie No. 209 to 213
Burma | 1900
5 produced
Image of locomotive
flickr/Historical Railway Images

In 1900, Burma Railways received five meter-gauge Fairlie locomotives from Vulcan Foundry. They had two bogies, each consisting of three coupled axles with same-size cylinders. Their difference compared to earlier Double Fairlies was that they had two separate boilers which were not joined by a common firebox. This layout was sometimes called “modified Fairlie” in this time, but had nothing in common with the Modified Fairlies built for the South African Railways more than 20 years later.

Their fireboxes were of the Belpaire type and had Drummond cross water tubes which further increased their heating surface. Each firebox was fed by one fireman, so that three people worked in the cab. Most of the time, the locomotives took a separate water tender with them.

General
Built1900
ManufacturerVulcan Foundry
Axle config0-6-6-0T (Double Fairlie)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase35 ft 7 1/2 in
Rigid wheelbase7 ft 7 in
Service weight135,520 lbs
Adhesive weight135,520 lbs
Water capacity600 us gal
Fuel capacity5,600 lbs (coal)
Boiler
Grate area26 sq ft
Firebox area266 sq ft
Tube heating area1,132 sq ft
Evaporative heating area1,398 sq ft
Total heating area1,398 sq ft
Power Plant
Driver diameter39 in
Boiler pressure180 psi
Expansion typesimple
Cylindersfour, 14 x 20 in
Power
Power sourcesteam
Estimated power750 hp (559 kW)
Starting effort30,757 lbf
Calculated Values
Optimal speed16 mph
steam locomotive
freight
double Fairlie
last changed: 05/2024
Burma Railways GA.I to GA.IV
Myanmar | 1924
16 produced
GA.II No. 208, the only one with compound cylinders
GA.II No. 208, the only one with compound cylinders
flickr/Historical Railway Images

On the line from Mandalay to Lashio, Burma Railways not only had curve radii starting at 330 ft (100 m), but also a long gradient of four percent. For this purpose, four class GA.I Garratts were built in 1924 as Double Consolidation, i.e. with the wheel arrangement 2-8-0+0-8-2. At the time they were put into service, they were probably the most powerful meter-gauge locomotives in the world.

Due to the narrow curve radii, the innermost driving axle had a lateral displacement of 3/8 inches (9.5 mm) in both directions. On the four percent steep gradient, the GA.Is were able to reach 9 mph or 14.5 km/h with a 200-ton train.

In 1927, a single compound locomotive was ordered for comparison and was designated GA.II. This also only had two cylinders at each end, with the high-pressure cylinders located behind the cab and the low-pressure cylinders in front of the smoke box. Since the additional complexity apparently didn't pay off, the other locomotives were built with simple expansion.

Three GA.IIIs followed in 1927, which were largely similar to the GA.I, but had the smaller superheater of the GA.II. In 1929 Krupp delivered eight GA.IVs, which were similar to the previous locomotives but again had a larger superheater. According to A.E. Durrant, all four classes were retired due to damage during World War II.

VariantGA.IGA.IIGA.IIIGA.IV
General
Built192419271929
ManufacturerBeyer, Peacock & Co.Krupp
Axle config2-8-0+0-8-2T (Double Consolidation (Garratt))
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase59 ft 7 in
Rigid wheelbase7 ft 4 in
Service weight221,984 lbs231,504 lbs227,584 lbs234,192 lbs
Adhesive weight179,872 lbs189,168 lbs187,712 lbs189,392 lbs
Axle load22,624 lbs23,856 lbs23,520 lbs24,416 lbs
Water capacity2,402 us gal1,777 us gal2,402 us gal
Fuel capacity11,200 lbs (coal)9,184 lbs (coal)11,200 lbs (coal)
Boiler
Grate area43.9 sq ft
Firebox area183.5 sq ft
Tube heating area1,551.5 sq ft1,552.5 sq ft
Evaporative heating area1,735 sq ft1,736 sq ft
Superheater area365 sq ft319 sq ft409 sq ft
Total heating area2,100 sq ft2,054 sq ft2,145 sq ft
VariantGA.IGA.IIGA.IIIGA.IV
Power Plant
Driver diameter39 in
Boiler pressure180 psi205 psi200 psi205 psi
Expansion typesimplecompoundsimple
Cylindersfour, 15 1/2 x 20 infour, HP: 17 1/2 x 26 in
and LP: 26 1/2 x 26 in
four, 15 1/2 x 20 in
Power
Power sourcesteam
Estimated power1,250 hp (932 kW)1,325 hp (988 kW)1,300 hp (969 kW)1,350 hp (1,007 kW)
Starting effort37,701 lbf49,545 lbf41,890 lbf42,937 lbf
with start valve59,454 lbf
Calculated Values
Optimal speed21 mph17 mph20 mph
steam locomotive
tank locomotive
Garratt
last changed: 04/2024
Standard variant with four equal cylinders
Standard variant with four equal cylinders
flickr/Historical Railway Images
Federated Malay States class G
Malaysia | 1898
34 produced
Image of locomotive
flickr/Historical Railway Images

From 1898 onwards, both the Selangor Government Railway and the Perak Government Railway in Malaysia received 13 and eight ten-wheelers respectively, which were built by various British manufacturers and hardly differed from each other. When the Federated Malay States Railways was founded, these became class G and were supplemented by eleven others. Two more came from the Malacca Railway, which only later joined the FMSR.

All but two locomotives were retired before World War II. These two were likely used by the British troops to form an armored train during the war. One of these is also said to have been brought to Siam and Burma by the Japanese. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1898-1903
ManufacturerKitson & Co., Hunslet, Neilson, Reid & Co., Robert Stephenson & Co.
Axle config4-6-0 (Ten-wheeler)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Service weight65,520 lbs
Adhesive weight49,056 lbs
Total weight114,576 lbs
Axle load16,352 lbs
Fuel capacitywood
Boiler
Evaporative heating area736 sq ft
Total heating area736 sq ft
Power Plant
Driver diameter51.5 in
Boiler pressure150 psi
Expansion typesimple
Cylinderstwo, 14 1/2 x 20 in
Power
Power sourcesteam
Starting effort10,410 lbf
Calculated Values
steam locomotive
passenger
freight
last changed: 04//2024
Federated Malay States class H
Malayan State Railway class 501
Malaysia | 1906
60 produced
H<sup>2</sup> No. 118
H2 No. 118
flickr/Historical Railway Images

The class H of the Federated Malay States Railway refers to a total of 60 light, meter-gauge Pacifics. The first seven were built by Kitson from November 1906. Others followed from Nasmyth, Wilson & Co., six of which went to the Johore State Railway. While the latter were also handed over to the FMSR, further series were created by Kitson and Robert Stephenson.

Since the later deliveries were somewhat heavier due to stronger frames and had further differences in details, the three series were subsequently named H1, H2 and H3. The H1 were withdrawn between 1929 and 1934. Of the newer machines, many were classified as class 501 by the Malayan Railways in 1946. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1906-1913
ManufacturerKitson & Co., Nasmyth, Wilson & Co., Robert Stephenson & Co.
Axle config4-6-2 (Pacific)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase25 ft 1 in
Rigid wheelbase9 ft 5 in
Total wheelbase48 ft 0 1/2 in
Service weight106,400 lbs
Adhesive weight67,200 lbs
Total weight172,256 lbs
Axle load22,400 lbs
Water capacity2,402 us gal
Fuel capacitycoal
Boiler
Grate area18.5 sq ft
Firebox area82.5 sq ft
Tube heating area1,152.5 sq ft
Evaporative heating area1,235 sq ft
Total heating area1,235 sq ft
Power Plant
Driver diameter54 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 15 1/2 x 21 in
Power
Power sourcesteam
Estimated power550 hp (410 kW)
Starting effort14,295 lbf
Calculated Values
Optimal speed25 mph
steam locomotive
express
last changed: 02/2024
Federated Malay States class L
Malayan State Railway class 531
Malaysia | 1921
20 produced
Image of locomotive
flickr/Historical Railway Images

To eliminate the need for double-heading express trains, the FMSR ordered 20 Pacifics from Kitson, which were delivered in 1921. They had a superheated boiler with Belpaire firebox and were among the more powerful meter gauge Pacifics.

During World War II, the Japanese brought five of the locomotives to Burma, but they returned after the war ended. They soon became class 531 and some remained in service until 1971. The 531.01 was the only one that was preserved and is now in front of the National Museum in Kuala Lumpur. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1921
ManufacturerKitson & Co.
Axle config4-6-2 (Pacific)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length56 ft 4 in
Rigid wheelbase9 ft 5 in
Service weight198,016 lbs
Adhesive weight80,640 lbs
Total weight124,544 lbs
Axle load26,880 lbs
Water capacity3,002 us gal
Fuel capacity13,552 lbs (coal)
Boiler
Grate area24.3 sq ft
Evaporative heating area1,485 sq ft
Total heating area1,485 sq ft
Power Plant
Driver diameter54 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 17 x 24 in
Power
Power sourcesteam
Estimated power1,000 hp (746 kW)
Starting effort19,652 lbf
Calculated Values
Optimal speed32 mph
steam locomotive
passenger
last changed: 03/2024
Federated Malay States classes K1 and K2
Malayan State Railway classes 541 and 542
Malaysia | 1927
11 produced
Beyer-Peacock variant
Beyer-Peacock variant
flickr/Historical Railway Images

The classes K1 and K2 refer to a total of eleven Pacifics of the Federated Malay States Railways, which were built in 1927 and 1929. They were basically an improved version of the class L which had been delivered by Kitson in 1921. In 1927, Beyer, Peacock & Co. delivered seven and two years later Robert Stephenson & Co. delivered four more.

Since the letter K had been occupied by a single other locomotive until recently, the class was initially called “New K”. Later the two series became K1 and K2. During the Second World War, six were probably brought to Siam by the occupiers. The remaining Beyer locomotives were decommissioned in 1958 and 1959, the Stephenson ones only in the 1970s with the end of steam traction in Malaysia.

General
Built1927, 1929
ManufacturerBeyer, Peacock & Co., Robert Stephenson & Co.
Axle config4-6-2 (Pacific)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length56 ft 4 in
Rigid wheelbase9 ft 11 in
Service weight124,320 lbs
Adhesive weight85,680 lbs
Total weight204,512 lbs
Axle load28,560 lbs
Water capacity3,002 us gal
Fuel capacity15,680 lbs (coal)
Boiler
Grate area24.6 sq ft
Firebox area129 sq ft
Tube heating area1,316 sq ft
Evaporative heating area1,445 sq ft
Total heating area1,445 sq ft
Power Plant
Driver diameter54 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 17 x 24 in
Power
Power sourcesteam
Estimated power1,075 hp (802 kW)
Starting effort19,652 lbf
Calculated Values
Optimal speed35 mph
steam locomotive
express
last changed: 01/2024
Robert Stephenson variant
Robert Stephenson variant
flickr/Historical Railway Images
Showing 1 to 10 of 16
Search
loadding loading...

We use cookies to save the following settings:

  • selected navigation structure
  • selected language
  • preferred units
  • spelling of railway company names

If you refuse the use of cookies, the settings will only be retained for the current session and will be reset to the default values the next time you visit the site.

Display of units

Here you can set the desired unit system for the technical data.

  • Metric: Lengths in meters, weights in tonnes, and volumes in cubic meters
  • Imperial (UK): Lengths in feet/inches, weights in long tons and volumes in imperial gallons
  • Imperial (US): Lengths in feet/inches, weights in pounds, and volumes in US gallons
  • Individual: Depends on the country of origin of each locomotive
Operator names

Here you can set the display of railway company names.

  • Short: Abbreviation or short form of the name
  • Standard: commonly used name, partially translated to English
  • Complete: full name in local language
