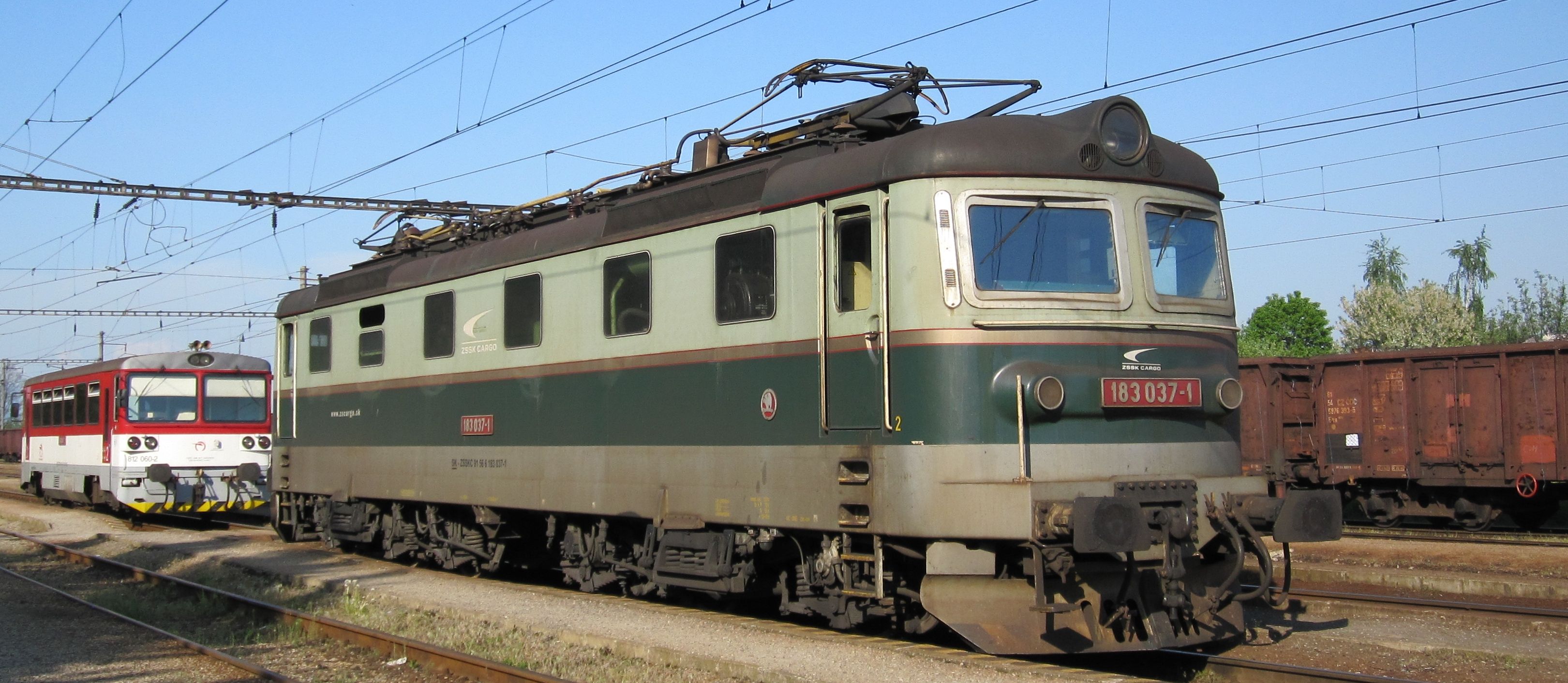

loco-info.com - Tschechoslowakische Staatsbahnen Reihen E 669.0 bis E 669.3

Maße und Gewichte
Länge	61 ft 8 3/16 in			62 ft 1 11/16 in
Dienstmasse	262,350 lbs	273,814 lbs	264,554 lbs
Reibungsmasse	262,350 lbs	273,814 lbs	264,554 lbs
Achslast	42,990 lbs	45,636 lbs	44,092 lbs

Kessel

Kessel

Variante	E 669.0001	E 669.1001-1080	E 669.1081-1150	E 669.2, E 669.3

Triebwerk

Triebwerk

Antrieb
Antrieb	Elektro - Gleichstrom
Stromsystem	3.000 V	3.000 V, 1.500 V	3.000 V
Dauerleistung	4,087 hp (3,048 kW)	3,500 hp (2,610 kW)	3,741 hp (2,790 kW)
Max. Geschwindigkeit	75 mph	56 mph
Anfahrzugkraft	51,931 lbf	77,559 lbf

Berechnete Werte
Adhäsionskoeffizient	1 : 5.05	1 : 3.53	1 : 3.41
Leistungsgewicht	0.0156 hp/lb	0.0128 hp/lb	0.0141 hp/lb
Reibungsmasse/Gesamt	1 : 1.00

E-Lok

Güterzug
