General Electric U25B und U25C
zurück
USA | 1959
591 Stück

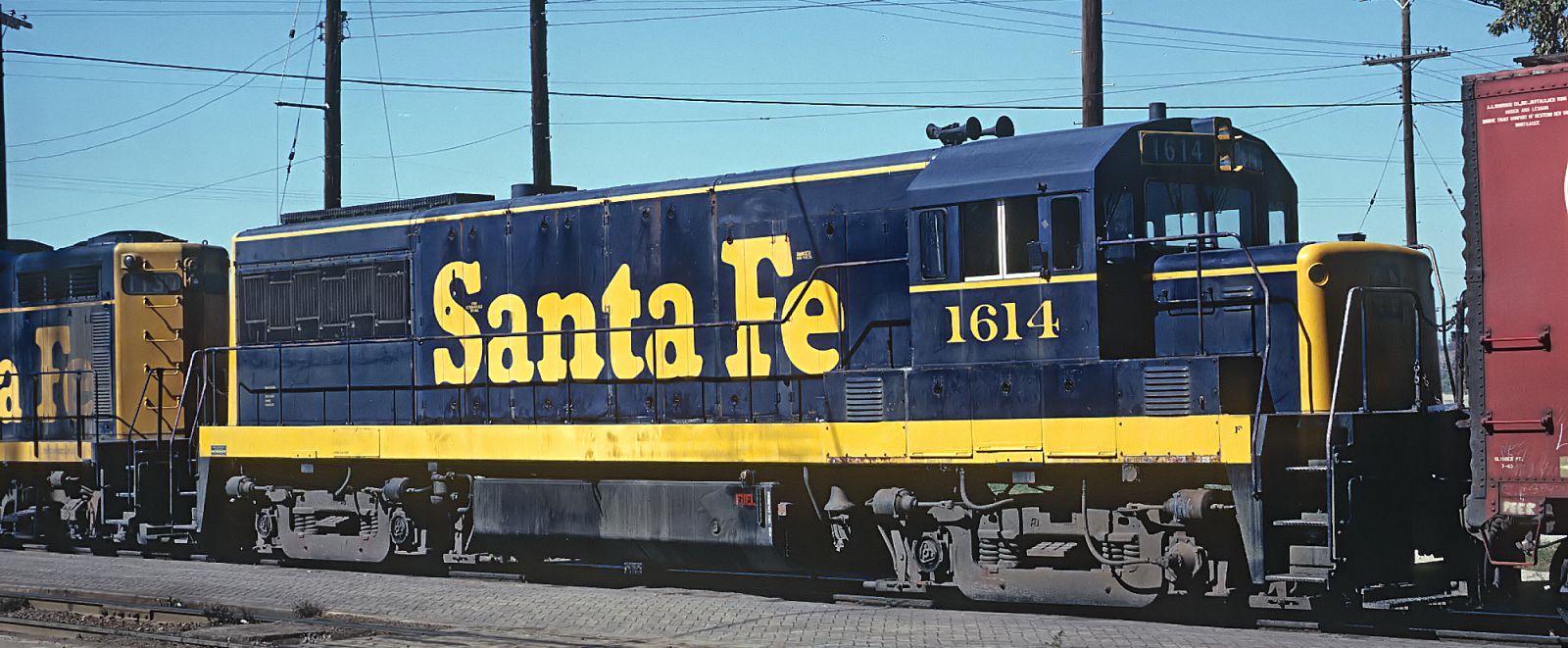

ATSF Nr. 1614 im Oktober 1966 in Chillicothe, Illinois
ATSF Nr. 1614 im Oktober 1966 in Chillicothe, Illinois
Roger Puta
VarianteU25BU25C
Allgemein
Bauzeit1959-19661963-1965
HerstellerGeneral Electric
AchsfolgeB-B C-C
Spurweite4 ft 8 1/2 in (Normalspur)
Maße und Gewichte
Länge60 ft 2 in64 ft 6 in
Radstand45 ft 6 in51 ft 4 in
Fester Radstand9 ft 4 in13 ft
Dienstmasse252,000 lbs348,000 lbs
Reibungsmasse252,000 lbs348,000 lbs
Achslast63,000 lbs58,000 lbs
Kessel
VarianteU25BU25C
Triebwerk
Antrieb
Antriebdieselelektrisch
Max. Geschwindigkeit70 mph
Anfahrzugkraft75,000 lbf92,000 lbf
MotorGE 7FDL-16
Tankinhalt1,700 us gal (Diesel)2,900 us gal (Diesel)
Motorleistung2,500 hp (1,864 kW)
Berechnete Werte
Diesellok
Güterzug
GE Universal
