Freight Electric Locomotives without Carrying Axles[Inhalt]
Bavarian EG 1 (EG 4x1/1)
German Reichsbahn E 730
Germany | 1914
2 produced

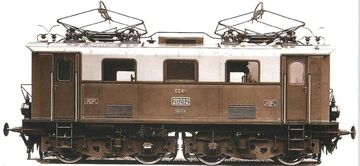

No. 20202 on a Bergmann works photo
No. 20202 on a Bergmann works photo
Eisenbahn-Journal, Jahrgang 1999
General
Built1914
Manufacturermechanical part: Krauss, electrical part: Bergmann
Axle configB-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length36 ft 0 11/16 in
Wheelbase22 ft 11 9/16 in
Service weight123,459 lbs
Adhesive weight123,459 lbs
Axle load30,865 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power1,059 hp (790 kW)
Continuous power751 hp (560 kW)
Top speed31 mph
Starting effort20,458 lbf
Calculated Values
electric locomotive
freight
China Railway SS1
originally 6Y1
China | 1958
826 produced

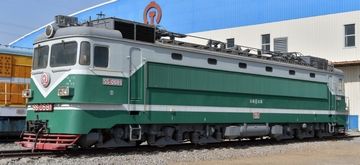

SS<sub>1</sub>-0681 at the China Railway Museum
SS1-0681 at the China Railway Museum
Tyg728

The SS1 was the first mainline electric locomotive to be manufactured in China. The “SS” stood for “Shaoshan”, Mao’s birthplace. The first seven prototypes with the designation 6Y1 were built between 1958 and 1966 with Soviet help and were based on the ВЛ60. In the area of electronics, experience from the 6Y2 supplied by Alsthom was also incorporated.

In the years that followed, the prototypes were continuously improved. The actual production locomotives were ultimately only built between 1980 and 1988. Including all prototypes, 826 SS1s were built, which were used for various types of trains and the first of which had reached the end of their service life after almost 30 years. The last one ran for the last time on September 19, 2014.

General
Built1958-1988
ManufacturerZhuzhou Electric Locomotive Works
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length66 ft 9 7/8 in
Rigid wheelbase15 ft 1 1/8 in
Service weight304,238 lbs
Adhesive weight304,238 lbs
Axle load50,706 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Hourly power5,632 hp (4,200 kW)
Continuous power5,069 hp (3,780 kW)
Top speed56 mph
Starting effort109,482 lbf
Calculated Values
electric locomotive
freight
passenger
last changed: 12/2023
China Railway SS4
China | 1985
1,577 produced

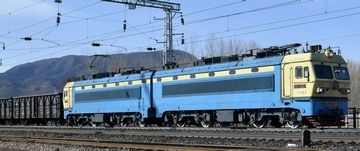

SS4-7193 in February 2018 with a coal train on the Daqin Line in Cha Wu
SS4-7193 in February 2018 with a coal train on the Daqin Line in Cha Wu
Tyg728
General
Built1985-2006
ManufacturerDatong, Zhuzhou Electric Locomotive Works, Ziyang, Dalian
Axle configB-B+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length107 ft 8 5/8 in
Service weight405,650 lbs
Adhesive weight405,650 lbs
Axle load50,706 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Continuous power8,583 hp (6,400 kW)
Top speed62 mph
Starting effort141,180 lbf
Calculated Values
electric locomotive
freight
two-section
China Railway 8K
China | 1987
150 produced

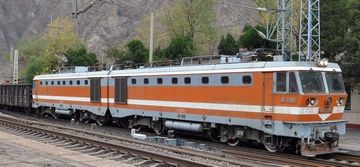

8K No. 100 in 2011 with a freight train on the Fengsha line
8K No. 100 in 2011 with a freight train on the Fengsha line
Yí Yuán Xinju

Another type of electric locomotives imported from abroad in the 1980s was the 8K, supplied by Alstom. The reason for ordering a heavy goods train locomotive was the lack of capacity to haul large quantities of coal, which was urgently needed in Shanxi Province in particular. In order to be able to achieve sufficient traction with two-axle bogies, the 8K was designed as a double locomotive with two four-axle sections. The basis used was the BB 15000, which had been used by the SNCF since 1971. 148 units were delivered from France and two more were built in the Zhuzhou locomotive works in order to gain knowledge of modern technology.

Visually, the locomotives built for China differed from their originals in that they lacked the “Nez Cassé”, i.e. the bent fronts. In terms of power train technology, the biggest difference was that each axle had its own motor and not the typical French monomotor bogies were used. As with the 6K, traction motors with 800 kW each were used, resulting in a total output of 6,400 kW. The top speed was also set at 100 km/h.

As planned, the locomotives were mainly used to pull coal trains, which usually weighed around 4,000 tonnes. Later, train weights of 6,000 tonnes with one locomotive or 10,000 tonnes with two locomotives were tested. Although the power of the locomotives was sufficient, only the tests with 6,000 tonne trains were successful. With the heavier trains, it had been shown that the couplings were not up to the loads. Outside of their normal area of operation, the 8Ks were also used to haul passenger trains during the Chinese New Year celebrations, when passenger traffic was extremely high. The retirement took place between 2010 and 2015 due to the increasingly serious lack of spare parts. Four examples have been preserved for posterity, but not in working condition.

General
Built1987-1989
ManufacturerAlstom, Zhuzhou Electric Locomotive Works
Axle configB-B+B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length118 ft 10 5/16 in
Service weight405,650 lbs
Adhesive weight405,650 lbs
Axle load50,706 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system25,000 V 50 Hz
Continuous power8,583 hp (6,400 kW)
Top speed62 mph
Starting effort141,180 lbf
Calculated Values
electric locomotive
freight
two-section
last changed: 03/2022
German Federal Railway E 50
later class 150
Germany | 1957
194 produced

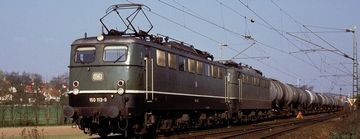

150 113 and 150 150 double-headed in April 1991 near Illingen
150 113 and 150 150 double-headed in April 1991 near Illingen
Werner & Hansjörg Brutzer

The E 50 was developed from 1950 as a heavy freight locomotive to have a modern successor to the E 94. A lot of experience from the development and operation of the E 94 was brought in, but it was created as a standard electric locomotive together with the E 10 and used the same modern components and production methods.

To ensure sufficient traction and tractive power, the locomotive was designed with six axles. This means that the power per traction motor could also be slightly lower compared to the E 10 in order to achieve cheaper production and a longer service life. Since there was not much confidence in the new power transmission via rubber ring springs for heavy freight train use at the beginning of production, the motors in the first 25 engines built were designed with nose-suspended motors and only then was the new technology used. It's not surprising that the early examples didn't fare any worse when you consider that most locomotives up to 160 km/h are now being built with nose-suspended motors. In order to prevent the front bogie from lifting when starting off with a heavy train, the bogies were connected with a cross coupler. In order to reduce wear on the rails, however, this coupling was no longer used in the last series and instead replaced by adjustments to the bogies themselves.

Production ended in 1973 after 194 units, after the locomotive now known as class 150 had a successor in the form of the 151. It proved to be a reliable workhorse, even if reduced performance in the upper speed range became apparent over time due to the simplified traction motors compared to the E 10. The more powerful and faster 151 was initially only able to compete for part of its missions, until it was increasingly pushed out of route service by the modern 152. In the end it was only used for pushing on ramps and for maneuvering and was retired in 2003. Lacking the prestige of an express train loco, all but two were scrapped within a short period of time.

General
Built1957-1973
Manufacturermechanical part: Krupp, Henschel, Krauss-Maffei, electrical part: SSW, BBC, AEG
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length63 ft 11 5/16 in
Wheelbase46 ft 1 9/16 in
Rigid wheelbase14 ft 3 5/8 in
Service weight282,191 lbs
Adhesive weight282,191 lbs
Axle load46,958 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power6,035 hp (4,500 kW)
Continuous power5,914 hp (4,410 kW)
Top speed62 mph
Starting effort98,466 lbf
Calculated Values
electric locomotive
freight
last changed: 02/2022
German Federal Railway class 151
Germany | 1972
170 produced

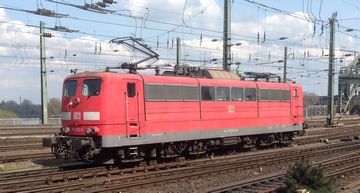

151 052 in April 2016 at the Südbrücke in Cologne
151 052 in April 2016 at the Südbrücke in Cologne
Andrew Bone

When the demand for high-speed freight locomotives increased in the 1960s, a further development of the E 50 was examined. The requirements stipulated on gradients of 0.5 percent to run express freight trains with 120 km/h and 1.000 tonnes or regular freight trains with 80 km/h and 2.000 tonnes. A change in the gear ratio of the E 50 failed because its traction motors, which were weaker than those of other standard electric locomotives, would not have been sufficient at higher speeds. However, a completely new development was ruled out due to time constraints. The solution now consisted of finding a compromise between the proven technology of standard locomotives and more modern assemblies.

Since the traction motors of the E 50 were not suitable for a larger increase in output, the traction motors from the E 10 and E 40 were further developed. With a total of six of these traction motors, an hourly output of 6,288 kW and a braking power of 6,600 kW over a short period could be achieved. Since the bogies and the electrical equipment of the E 50 were not suitable for this power, the technology of the class 103 was used. To facilitate maintenance, new design principles were used, which had also been used with the 103. The entire paneling of the engine room consisted of three large hoods, which, like the driver's cabs, could be removed as a whole. Compared to the previous class, the interior of the driver's cabs has been modernized in terms of comfort and ergonomics.

According to their design, the locomotives were used almost exclusively in front of fast or heavy freight trains. Nevertheless, they had the necessary equipment to be able to pull passenger trains when there was a shortage of locomotives. Only on the Franconian Forest ramp they were used in front of scheduled passenger trains, which has not been permitted since 2003 due to the lack of door blocking.

The heaviest freight trains used in Germany were ore trains, initially weighing 4,000 and later 6,000 tonnes, which ran from the North Sea ports to the steelworks inland and were each pulled by two class 151 locomotives. Since these loads were too great for the screw couplings common in Central Europe, 20 locomotives and a sufficient number of freight cars were equipped with central buffer couplings. When these services were discontinued in the 1990s, the locomotives were fitted with screw couplings again and assigned to other areas of application.

In contrast to the other standard locomotives, most of the locomotives remained painted in their original chrome oxide green color scheme into the 1990s. Their importance decreased with the increasing number of four-axle three-phase current locomotives for freight train use, since the DB wanted to quickly part with locomotives with three-axle bogies due to the increased wear on wheels and rails.

Since 2003, they have mostly only been used to push vehicles up ramps. At the same time, sales began to private companies, who will continue to use the locomotives for longer due to their performance and reliability. The largest customer was a consortium of Railpool and Toshiba, which signed the contract for the purchase of 100 of the 170 machines manufactured in 2017. At Deutsche Bahn, the locomotives are now being phased out when the maintenance deadlines expire.

General
Built1972-1978
Manufacturermechanical part: Krupp, Henschel, Krauss-Maffei, electrical part: Siemens, BBC, AEG
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length63 ft 11 5/16 in
Wheelbase47 ft 11 3/16 in
Rigid wheelbase14 ft 7 3/16 in
Service weight260,145 lbs
Adhesive weight260,145 lbs
Axle load43,431 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power8,432 hp (6,288 kW)
Continuous power8,022 hp (5,982 kW)
Top speed75 mph
Starting effort88,800 lbf
Calculated Values
electric locomotive
freight
last changed: 05/2022
German Reichsbahn E 927
originally prussian EG 571 ab to 579 ab
Germany | 1923
9 produced

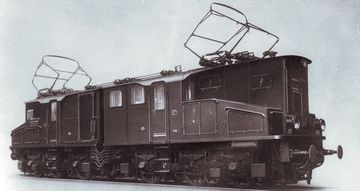

Builder's photo of Siemens-Schuckert-Werke
Builder's photo of Siemens-Schuckert-Werke

The E 927 was an electric locomotive for the Silesian mountain routes, which the Prussian State Railways ordered before the First World War. Due to the war, they were not put into operation until 1923, when the Deutsche Reichsbahn already existed. Their original designation was EG 571 ab to EG 579 ab, with the “ab” indicating that they were double locomotives.

The specifications stipulated that the locomotive should be able to pull 1,200 tonnes at a gradient of one percent and 500 tonnes at two percent, and at the same speeds that the steam locomotives of the time could reach. In order to meet these requirements, the then still new technology of the axle bearing single axle drive was used.

Both halves of the locomotive had a driver's cab in the middle, in front of which was a narrower hood with a transformer and other equipment. This arrangement restricted visibility considerably, since the driver could only look past the hood through narrow windows. Behind the driver's cabs were luggage compartments, which also contained some electrical equipment. The transition between the locomotive halves was closed with bellows.

In use on the Silesian Mountain Railway, the machines proved themselves despite the many gradients of up to two percent and tight curve radii of up to 184 meters. In February 1945 they were moved to Central Germany because of the approaching Soviet troops. After the war, eight of the nine examples came to the Reichsbahn, where they initially had to be handed over to the Soviet Union. After six returned, they were used until 1962.

Variantas builtenhanced top speed
General
Built1923-1925
Manufacturermechanical part: Linke-Hofmann, electrical part: SSW
Axle configC+C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length56 ft 8 3/8 in
Service weight251,327 lbs
Adhesive weight251,327 lbs
Axle load41,888 lbs
Boiler
Variantas builtenhanced top speed
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power1,140 hp (850 kW)
Continuous power1,033 hp (770 kW)
Top speed31 mph37 mph
Starting effort46,311 lbf
Calculated Values
electric locomotive
freight
last changed: 02/2022
German Reichsbahn E 93
German Federal Railway class 193
Germany | 1933
18 produced

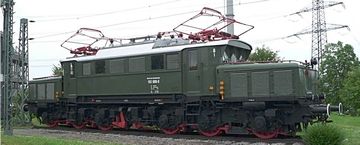

193 008 in May 2005 at the Neckarwestheim nuclear power plant
193 008 in May 2005 at the Neckarwestheim nuclear power plant
Heinz Seehagel

The E 93 was developed to be able to increase the train weights on the Geislinger Steige to 1,200 tonnes. Like the E 44 it had nose-suspended motors but was designed as a crocodile with the main machinery room and driver's cabs on a bridge frame and large hoods mounted on the bogies. It formed the basis for the more well-known E 94. The use in regular service on the Bundesbahn ended in 1976 and the last locomotives were used as helper locomotives until 1984, still on the Geislinger Steige.

VariantE 93 01 to 04E 93 05 to 18
General
Built1933-1939
ManufacturerAEG
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length58 ft 0 7/8 in
Service weight258,381 lbs259,263 lbs
Adhesive weight258,381 lbs259,263 lbs
Axle load43,211 lbs43,431 lbs
Boiler
VariantE 93 01 to 04E 93 05 to 18
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power3,355 hp (2,502 kW)
Continuous power2,969 hp (2,214 kW)
Top speed40 mph43 mph
Starting effort79,358 lbf
Calculated Values
electric locomotive
freight
crocodile
last changed: 02/2023
German Reichsbahn E 94
German Federal Railway class 194, German Reichsbahn class 254 and Austrian Federal Railways class 1020
Germany | 1940
200 produced

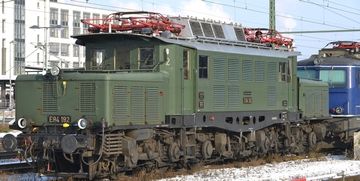

The former E 94 192 in December 2012 in Munich East station
The former E 94 192 in December 2012 in Munich East station
Fentriss

The E 94 was developed directly from the E 93 and was to be used on difficult mountain ramps not only in Germany but also in Austria, which had just been annexed. Externally, it differed from the E 93 mainly in the perforated longitudinal beams of the bridge frame. As a war electric locomotive, domestic materials were increasingly used in production. The Bundesbahn took over most of them and used them in southern Germany until 1988. In the 1950s, even 43 new locomotives were built with a significantly increased hourly output. While the Reichsbahn had only received a few locomotives, the ÖBB still had 44 units. These were later modernized and some were used until 1995.

VariantE 94 001 to 140from E 94 141E 945
General
Built1940-19451954-1956
ManufacturerAEG, SSW, Krauss-Maffei, Krupp, Henschel, WLF
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length61 ft 0 5/16 in
Wheelbase44 ft 11 3/8 in
Rigid wheelbase15 ft 1 1/8 in
Service weight261,688 lbs266,759 lbs
Adhesive weight261,688 lbs266,759 lbs
Axle load43,651 lbs44,533 lbs
Boiler
VariantE 94 001 to 140from E 94 141E 945
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power4,425 hp (3,300 kW)6,276 hp (4,680 kW)
Continuous power4,023 hp (3,000 kW)
Top speed56 mph62 mph
Starting effort81,606 lbf
Calculated Values
electric locomotive
freight
crocodile
last changed: 02/2023
German Reichsbahn class 250
DB AG class 155
Germany | 1974
273 produced

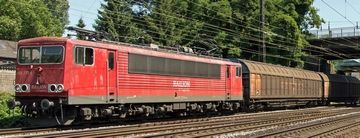

155 273 in Railion livery in July 2013 in Oberhausen-Osterfeld
155 273 in Railion livery in July 2013 in Oberhausen-Osterfeld
Rob Dammers

The Reichsbahn had the class 250 manufactured for universal use in front of heavy passenger and freight trains. It was designed with a LEW conical spring drive for a speed of 160 km/h, but was only approved for 125 km/h due to the infrastructure in the GDR. The locomotives, which were also otherwise developed according to then modern points of view, were taken over by the DB AG in 1994 as the class 155 and initially continued to be used to pull heavy passenger trains, too. They came to DB Cargo during the railway reform and were only used there in front of freight trains until the last locomotives were phased out in 2019.

General
Built1974, 1977-1984
ManufacturerLEW Hennigsdorf
Axle configC-C
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length64 ft 3 5/8 in
Wheelbase47 ft 6 7/8 in
Rigid wheelbase10 ft 9 15/16 in
Service weight271,168 lbs
Adhesive weight271,168 lbs
Axle load45,195 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power7,242 hp (5,400 kW)
Continuous power6,839 hp (5,100 kW)
Top speed78 mph
Starting effort107,908 lbf
Calculated Values
electric locomotive
freight
passenger
last changed: 02/2023
