French Eastern Railway series 11S No. 103 to 280
French State Railway 1-230 K
go back
France | 1932
178 produced

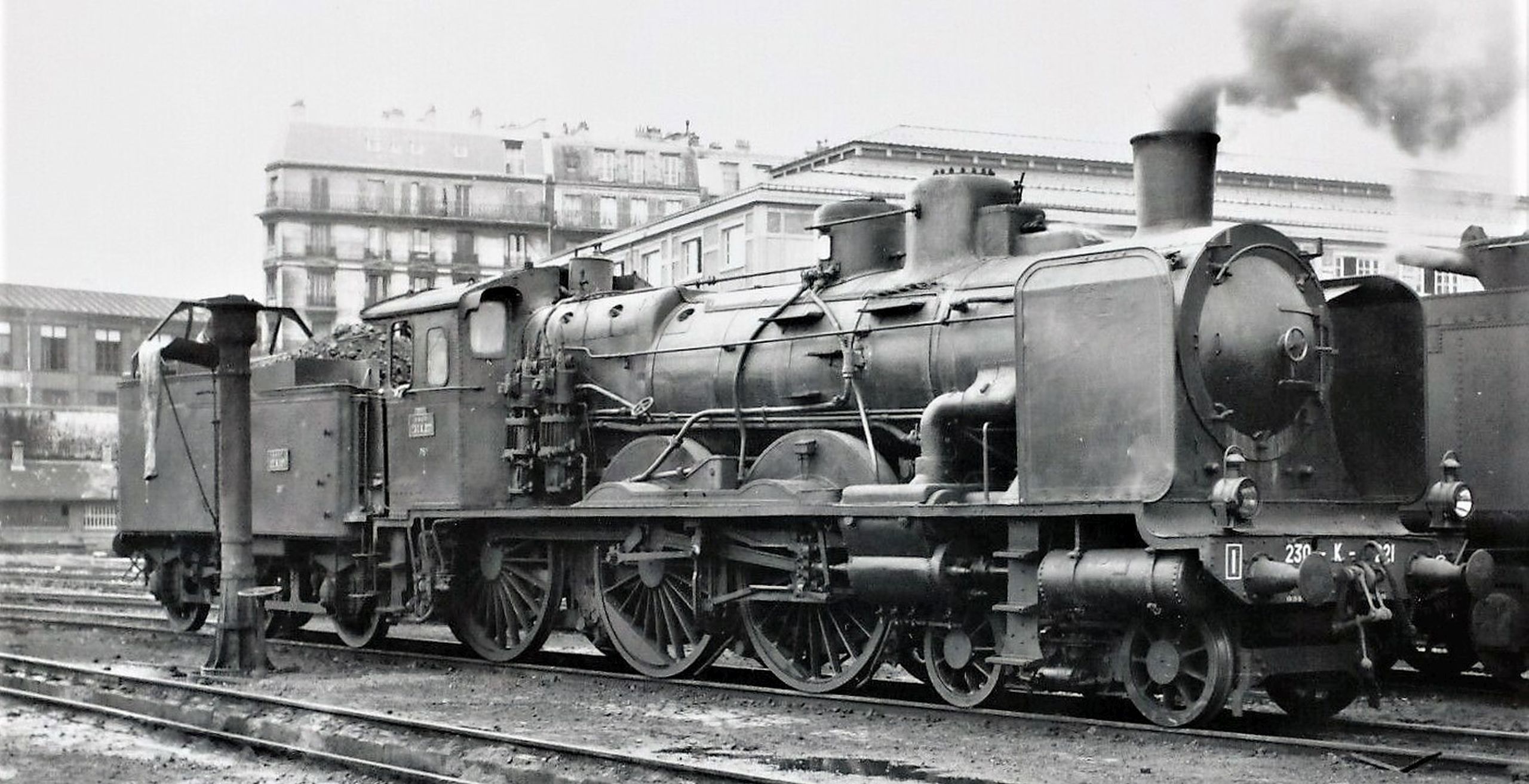

SNCF 230 K 221 taking water
SNCF 230 K 221 taking water
flickr/stratfordman72

In 1932, the Est started to modernize their ten-wheelers of the series 11S, originally numbered 3103 to 3280. The most visible changes were rectangular smoke deflectors, a chimney with greater cross section and four-axle bogie tenders. On the inside, there were changes between the individual locomotives. Most had received Worthington feed water heaters, others from ACFI and some from Dabeg. Concerning the injectors, some had them from Metcalfe and others from Thermix. The boiler pressure was increased from 16 to 18 bars. Now they had an indicated output of 1,250 kW or 1,700 hp at the wheels.

The rebuild of the complete series of 178 locomotives was finished in 1946. The non-rebuilt locomotives were designated 1-230 J and became 1-230 K when they had been rebuilt. Thanks to their axle load of less than 20 tonnes, they could be used nearly everywhere. While the first withdrawals began in 1950, twelve were further modernized, converted to oil firing and provided with a streamlined fairing for the special rubber-tyred Drapeaux express trains between Paris and Strasbourg. They covered the 504 km in five and a quarter hours. Soon they were replaced by Pacifics. The last ones were withdrawn in 1965.

General
Built1932-1946
ManufacturerÉpernay
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length38 ft 7 3/4 in
Empty weight167,551 lbs
Service weight185,188 lbs
Adhesive weight127,868 lbs
Total weight370,376 lbs
Water capacity9,246 us gal
Fuel capacity22,046 lbs (coal)
Boiler
Grate area34 sq ft
Tube heating area1,458.5 sq ft
Superheater area583.4 sq ft
Power Plant
Driver diameter82.3 in
Boiler pressure261 psi
Expansion typecompound
Cylindersfour, HP: 14 9/16 x 26 3/4 in
and LP: 23 1/4 x 26 3/4 in
Power
Power sourcesteam
Indicated power1,676 hp (1,250 kW)
Top speed75 mph
Starting effort21,995 lbf
with start valve26,394 lbf
Calculated Values
steam locomotive
express
streamline
De Glehn compound
last changed: 02/2026

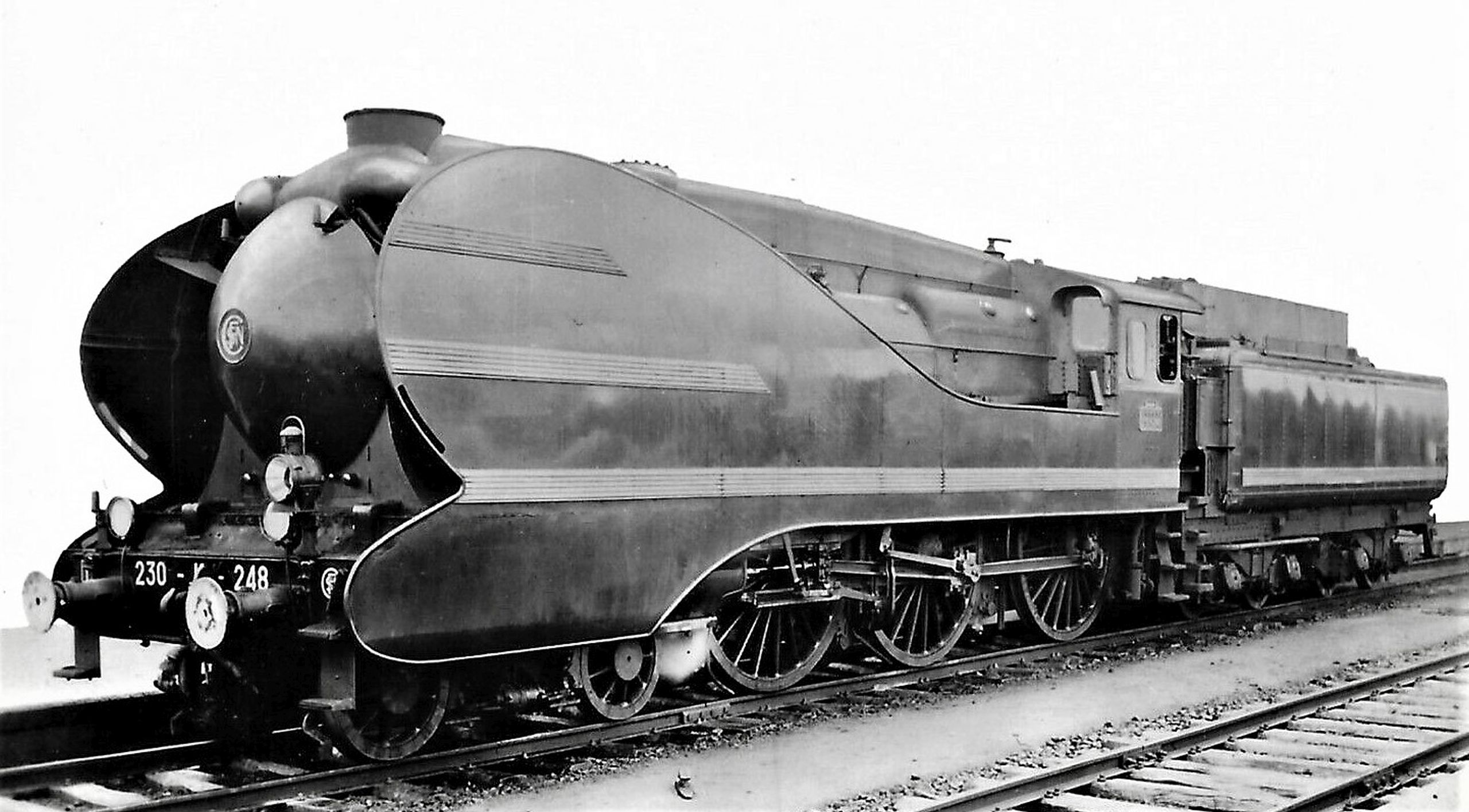

The streamlined 230 K 248
The streamlined 230 K 248
flickr/stratfordman72
