Seaboard Air Line class T60-I4
go back
United States | 1896
17 produced

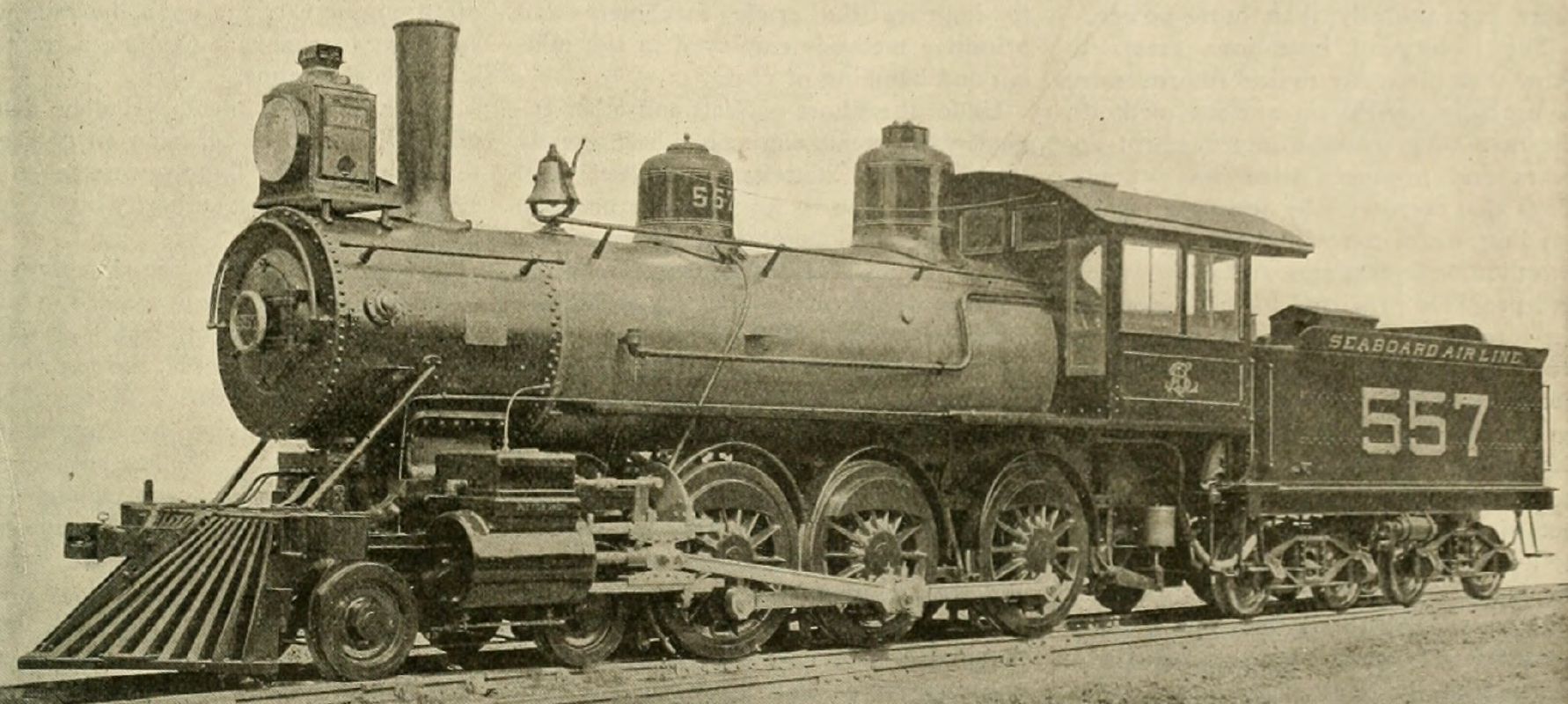

Image of locomotive
Railway and Locomotive Engineering, January 1897

The class T60-I4, numbered 552 to 568, were 17 4-6-0 freight locomotives built by the Pittsburgh Locomotive Works in 1896. Designed by W.T. Reed, they had small drivers of 58 inches and cylinders of 19 by 24 inches. No. 559 was sold to the Raleigh & Charleston in 1917. Of the other 16 locomotives, around one half was retired in 1922 and 1923 and the rest between 1928 to 1930.

General
Built1896
ManufacturerPittsburgh
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase21 ft 11 in
Rigid wheelbase11 ft 9 in
Total wheelbase48 ft 3 in
Service weight131,150 lbs
Adhesive weight104,800 lbs
Total weight211,950 lbs
Axle load39,900 lbs
Water capacity4,000 us gal
Fuel capacitycoal
Boiler
Grate area23.4 sq ft
Firebox area144 sq ft
Tube heating area1,448 sq ft
Evaporative heating area1,592 sq ft
Total heating area1,592 sq ft
Power Plant
Driver diameter58 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 19 x 24 in
Power
Power sourcesteam
Estimated power800 hp (597 kW)
Starting effort22,855 lbf
Calculated Values
steam locomotive
freight
