Long-Bell Lumber No. 1000 and 1001
go back
United States | 1924
2 produced

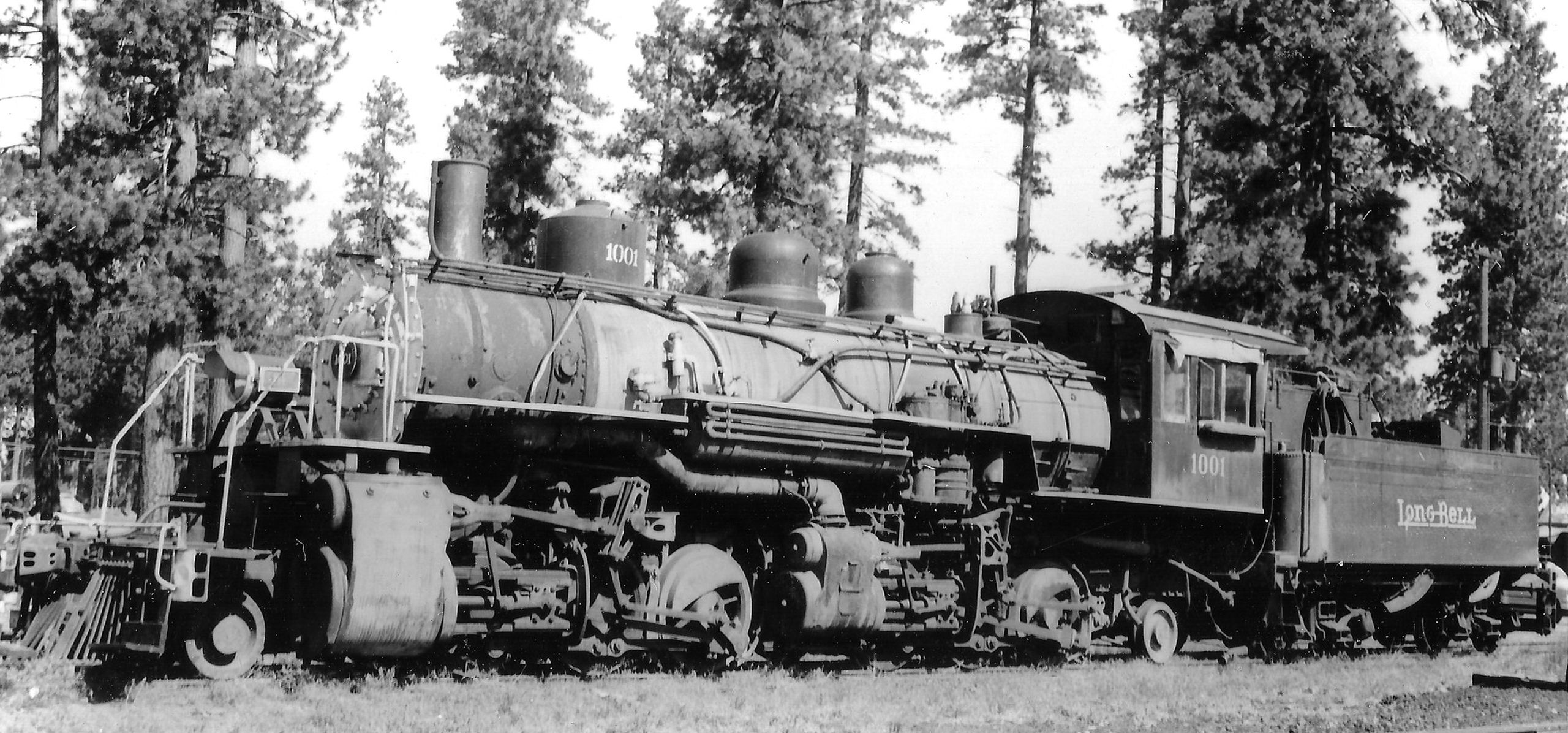

No. 1001 in 1952 at Tennant, California
No. 1001 in 1952 at Tennant, California
Taylor Rush/Max Miller collection

Baldwin works numbers 57597 and 57598 were built in 1924 for the Long-Bell Lumber Company. The requirements included that they had to run through 40-degree curves, what meant a radius of 44.5 meters, while being able to haul heavy lumber trains up grades of six to seven percent. The solution was a 2-6-6-2 Mallet that was called Baldwin type 16 30/50 1/4 DD. They had cylinders with diameters of 18 and 28 inches and a stroke of 24 inches. The drivers measured only 44 inches for maximum tractive effort.

The locomotives were numbered 1000 and 1001 and coupled to tenders with 1,500 gallons of oil and 5,000 gallons of water. In the first two decades, they hauled the fir wood from the Long-Bell properties around Longview, Washington. In 1946, at least No. 1001 was transferred to Northern California and hauled pine wood around Tennant. What is sure is that both were scrapped in the mid-fifties. Today the bell of 1001 can sill be found in the fire hall in Tennant.

General
Built1924
ManufacturerBaldwin
Wheel arr.2-6-6-2 (Mallet Mogul)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase37 ft 3 in
Rigid wheelbase8 ft
Total wheelbase64 ft 0 3/4 in
Service weight209,670 lbs
Adhesive weight180,010 lbs
Total weight308,670 lbs
Water capacity5,000 us gal
Fuel capacity1,500 lbs (oil)
Boiler
Grate area31.5 sq ft
Firebox area160 sq ft
Tube heating area1,767 sq ft
Evaporative heating area1,927 sq ft
Superheater area465 sq ft
Total heating area2,392 sq ft
Power Plant
Driver diameter44 in
Boiler pressure200 psi
Expansion typecompound
Cylindersfour, HP: 18 x 24 in
and LP: 28 x 24 in
Power
Power sourcesteam
Estimated power1,500 hp (1,119 kW)
Starting effort42,517 lbf
with start valve51,020 lbf
Calculated Values
steam locomotive
freight
Mallet
last changed: 05/2026
