South African Klasse MJ
zurück
Südafrika | 1914
18 Stück

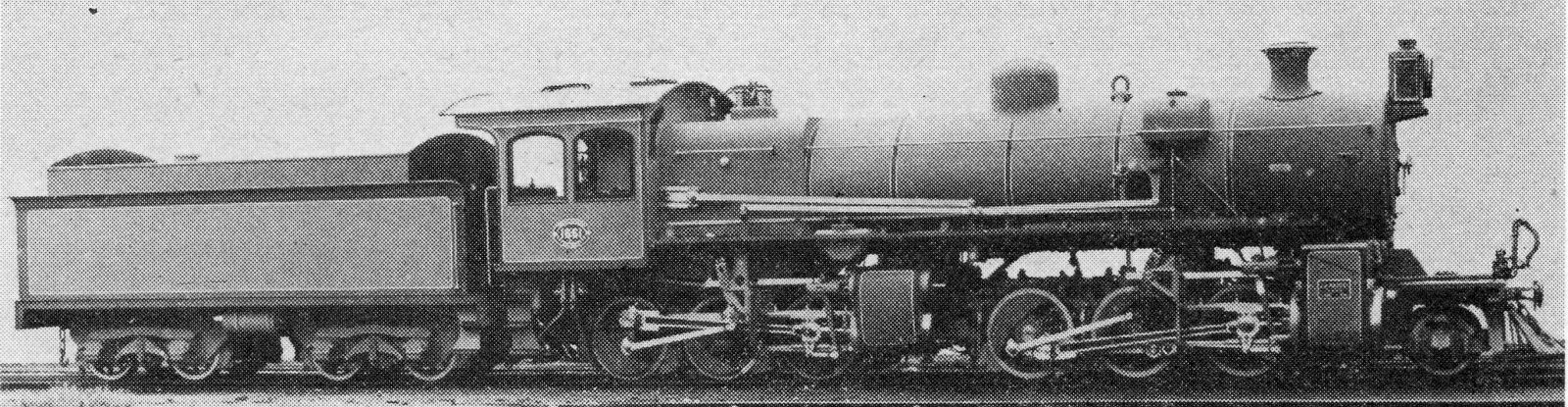

Nr. 1651
Nr. 1651
SAR Archives / Sammlung Frank Holland
VarianteAuslieferungszustandmodernisiert
Allgemein
Bauzeit1914-19211939
HerstellerMaffei, North British
Achsfolge2-6-6-0
Spurweite3 ft 6 in (Kapspur)
Maße und Gewichte
Länge67 ft 5 1/8 in
Radstand32 ft 8 in
Fester Radstand8 ft 4 in
Gesamtradstand58 ft 11 1/2 in
Dienstmasse188,160 lbs
Reibungsmasse170,576 lbs
Gesamtmasse309,232 lbs
Achslast30,800 lbs
Wasservorrat5,104 us gal
Brennstoff22,400 lbs (Kohle)
Kessel
Rostfläche40 sq ft
Strahlungsheizfläche130 sq ft133 sq ft
Rohrheizfläche1,783 sq ft1,780 sq ft
Verdampfungsheizfläche1,913 sq ft
Überhitzerfläche343 sq ft350 sq ft
Gesamtheizfläche2,256 sq ft2,263 sq ft
VarianteAuslieferungszustandmodernisiert
Triebwerk
Ø Treibräder42.8 in
Kesseldruck200 psi
DampfdehnungVerbund
Zylindervier, HD: 16 1/2 x 24 in
und ND: 26 x 24 in
Antrieb
AntriebDampf
Geschätzte Leistung1,250 hp (932 kW)
Opt. Geschwindigkeit22 mph
Anfahrzugkraft37,046 lbf
mit Anfahrschaltung44,455 lbf
