Buenos Aires Great Southern class 8A
go back
Argentina | 1906
34 produced

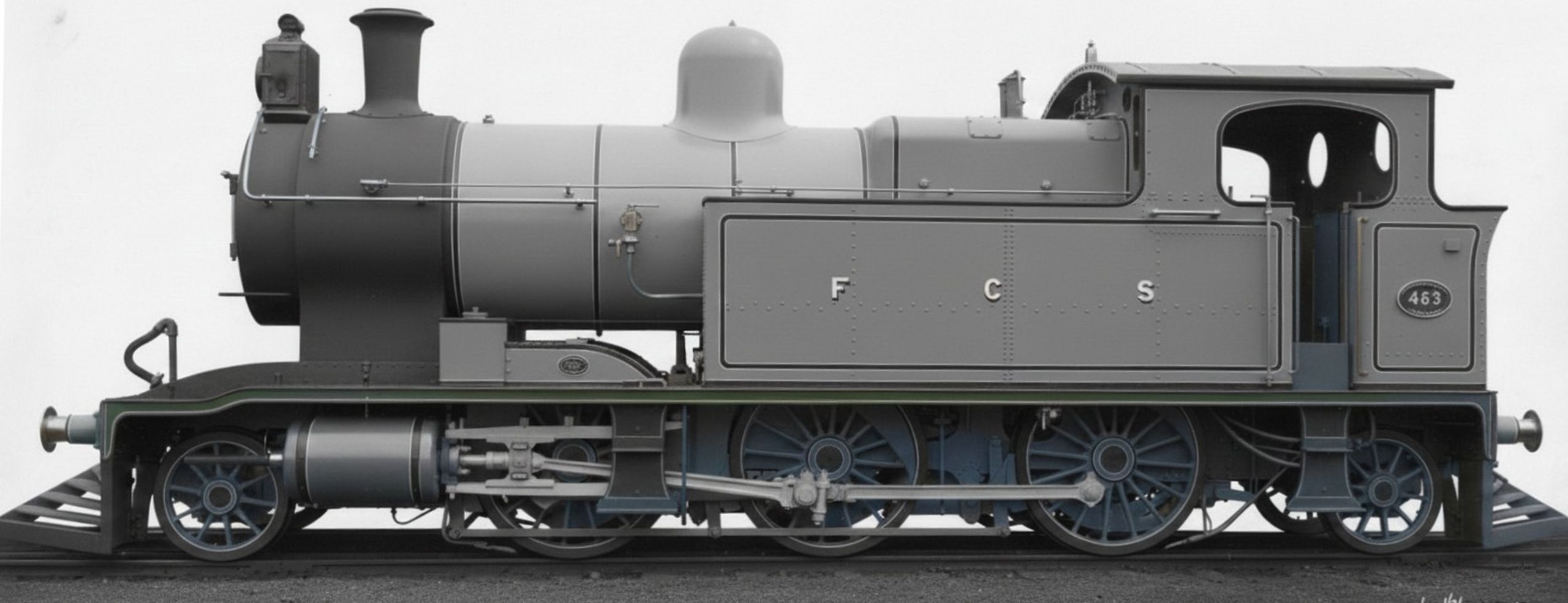

Image of locomotive
Facebook/Tren Rodante

In 1906, North British built 34 2-6-2T tank locomotives of the class 8A for the Ferrocarril del Sud, or Buenos Aires Great Southern. These locomotives had an oil fired boiler with Belpaire firebox, outside cylinders and inside Stephenson valve gear. With drivers of 62 inches and relatively small water tanks of 1,200 gallons, they were mainly intended for suburban service, but delivered good performances with almost all train types if needed. At the beginning, they were numbered 394 to 415 and 456 to 467. From 1913, they carried numbers between 3321 and 3354. Over the years, the shops of the BAGS rebuilt 26 of the 34 locomotives with superheated boilers.

Variantas builtsuperheated
General
Built1906
ManufacturerNorth British
Wheel arr.2-6-2T (Prairie) 2-6-2ST (Prairie)
Gauge5 ft 6 in (Indian broad gauge)
Dimensions and Weights
Wheelbase30 ft 2 in
Rigid wheelbase14 ft
Service weight163,362 lbs
Adhesive weight109,647 lbs
Axle load36,960 lbs
Water capacity1,441 us gal
Fuel capacity631 us gal (oil)
Boiler
Grate area27 sq ft
Firebox area143 sq ft
Tube heating area1,517.1 sq ft1,137.1 sq ft
Evaporative heating area1,660 sq ft1,280 sq ft
Superheater area264 sq ft
Total heating area1,660 sq ft1,544 sq ft
Variantas builtsuperheated
Power Plant
Driver diameter62 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 18 x 26 intwo, 19 x 26 in
Power
Power sourcesteam
Estimated power900 hp (671 kW)1,100 hp (820 kW)
Starting effort20,788 lbf23,162 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
freight
