Shevlin-Hixon Co. Baldwin 2-8-2
go back
United States | 1916
5 produced

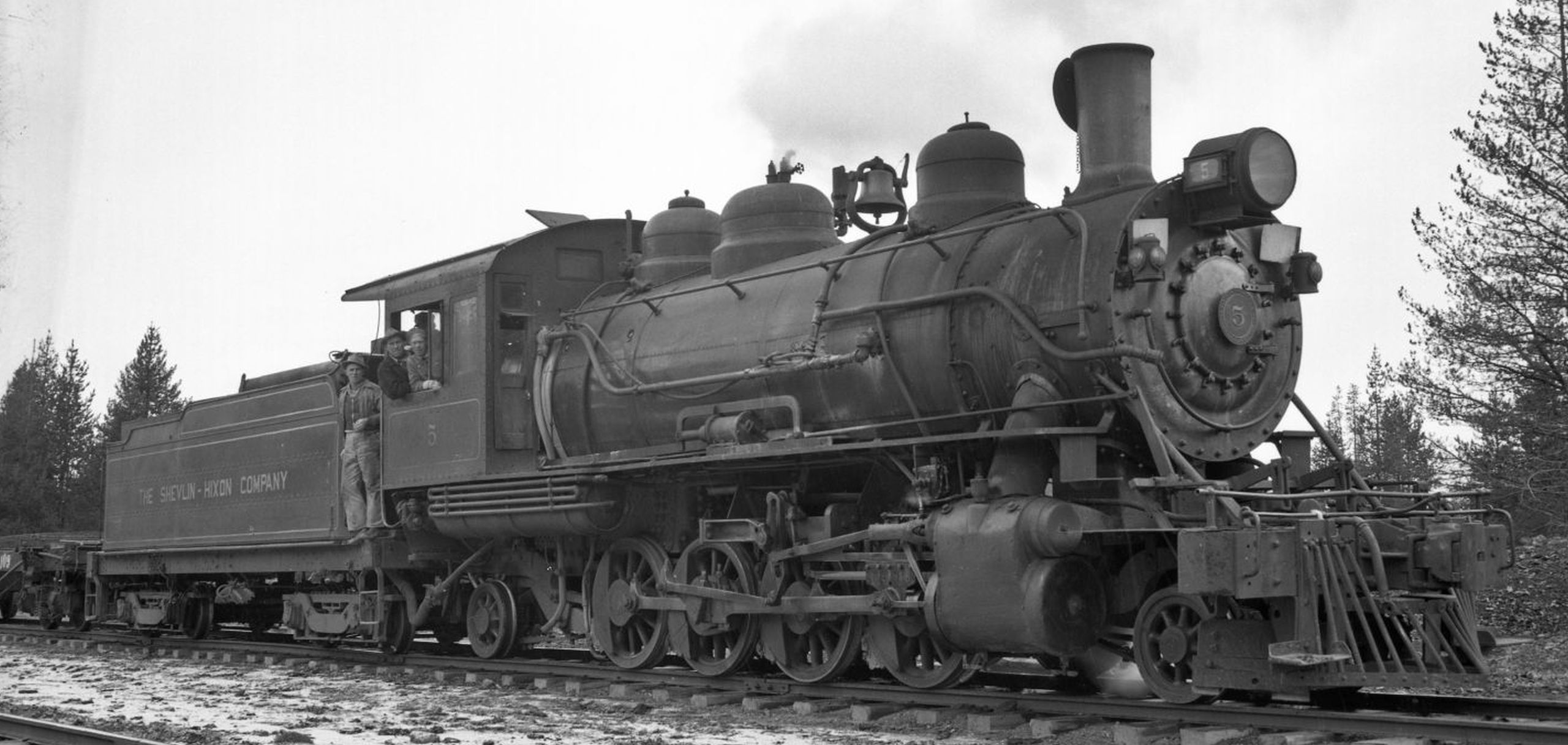

No. 5 in April 1948 at Chemult, Oregon
No. 5 in April 1948 at Chemult, Oregon
Martin E. Hansen collection

In 1916, the Shevlin-Hixon Lumber Co. built one of the world's largest sawmills in Bend, Oregon. It was connected to a standard gauge rail network with 60 pounds per yard rails, five percent grades and 25-degree curves, what corresponds to a radius of 70 meters. The most significant part of their locomotive roster were five Mikados built by Baldwin between 1916 and 1924. All burned oil for better fire protection while working in the forest.

The first one was No. 2 with drivers of 44 inches and cylinders of 18 by 24 inches. No. 4, built three years later, had a boiler that was around 50 percent larger. Also the drivers were larger at 48 inches, while the cylinders measured 20.5 by 28 inches. Numbers 5 and 6, built in 1922, had basically the same smaller dimensions as No. 2, but were superheated. No. 8, the last one, again had basically the same larger dimensions as No. 4, but was also superheated

Also the first two were fitted with superheaters and piston valves in the thirties. At the same time, Shevlin-Hixon obtained trackage rights for 60 miles of the Great Northern main line. Now the tenders were enlarged of replaced by bigger ones to provide sufficient range. After the company had been bought by Brooks-Scanlon in 1950, the sawmill was closed and all locomotives scrapped.

Variant245, 68
General
Built1916191919221924
ManufacturerBaldwin
Wheel arr.2-8-2 (Mikado)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase27 ft 3 in27 ft27 ft 27 ft 1 in
Rigid wheelbase12 ft 1 in13 ft 1 in12 ft13 ft 1 in
Total wheelbase49 ft 11 1/2 in54 ft 7 in51 ft 0 1/4 in54 ft 6 1/4 in
Service weight139,000 lbs175,500 lbs143,000 lbs181,000 lbs
Adhesive weight111,000 lbs136,500 lbs116,000 lbs143,000 lbs
Total weight209,000 lbs255,500 lbs233,500 lbs261,000 lbs
Water capacity3,500 us gal4,000 us gal
Fuel capacity1,600 lbs (oil)2,000 lbs (oil)
Boiler
Grate area25.5 sq ft41.3 sq ft25.5 sq ft41.3 sq ft
Firebox area140 sq ft149 sq ft141 sq ft154 sq ft
Tube heating area1,968 sq ft3,008 sq ft1,435 sq ft2,322 sq ft
Evaporative heating area2,108 sq ft3,157 sq ft1,576 sq ft2,476 sq ft
Superheater area328 sq ft553 sq ft
Total heating area2,108 sq ft3,157 sq ft1,904 sq ft3,029 sq ft
Variant245, 68
Power Plant
Driver diameter44 in48 in44 in48 in
Boiler pressure180 psi170 psi185 psi170 psi
Expansion typesimple
Cylinderstwo, 18 x 24 intwo, 20 1/2 x 28 intwo, 18 x 24 intwo, 20 1/2 x 28 in
Power
Power sourcesteam
Estimated power950 hp (708 kW)1,300 hp (969 kW)1,050 hp (783 kW)1,450 hp (1,081 kW)
Starting effort27,039 lbf35,424 lbf27,790 lbf35,424 lbf
Calculated Values
steam locomotive
freight
last changed: 06/2026
