Swiss Railcars and Multiple Units[Inhalt]
Bern-Lötschberg-Simplon Railway Ce 2/4 and Ce 4/4
Switzerland | 1910
3 produced
The first vehicle built, No. 781
The first vehicle built, No. 781

The three Ce 2/4 were the first railcars that the BLS procured in 1910. They were four-axle, each with two bogies, and one of their requirements was to also carry passenger cars. The requirement was that 45 km/h could be achieved either with a 160-tonne train at 2.7 percent or with a 240-tonne train at 1.55 percent. The car body construction part came from the Swiss wagon factory Schlieren, while the electrical part came from Oerlikon and Siemens-Schuckert. The construction was based on the vehicles of the Hamburg-Altona city and suburban railway. Although it was technically planned to equip both bogies with two traction motors each, the construction was carried out with only two traction motors in one of the bogies for reasons of weight. When used on the Spiez-Frutigen test track, they were the first railcars to be used on high-voltage alternating current.

The car body was made of wood with metal paneling. The toilet room was in the middle and behind the driver's cabs was an open vestibule. There were front doors for connecting to the train, and a second railcar could also be entered with them when operating in double. In 1936, all three railcars were converted to the Ce 4/4, which had become possible as a result of advances in electrical engineering. Four traction motors with a total of 590 instead of the previous 330 kW could now be installed, which were lighter overall than the two old motors, and the two new transformers were now significantly smaller and lighter. At the same time, the chassis was modernized and the running characteristics improved. Another modernization took place in 1950, in which the nose-suspended motors were replaced by quills. Nevertheless, their use ended in 1953 and 1954, but some parts of the electrical equipment installed in 1936 were installed in the newly built BCFe 4/8.

VariantCe 2/4rebuilt Ce 4/4
General
Built19101936
Manufacturermechanical part: SWS, electrical part: Oerlikon, SSW
Axle configB-2 B-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length66 ft 7 3/16 in
Service weight126,766 lbs
Adhesive weight70,548 lbs126,766 lbs
Axle load35,274 lbs
Boiler
VariantCe 2/4rebuilt Ce 4/4
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power443 hp (330 kW)791 hp (590 kW)
Top speed40 mph
Calculated Values
EMU
local
last changed: 02/2022
Bern-Lötschberg-Simplon Railway BCFe 4/8 and ABDe 4/8
Switzerland | 1945
13 produced

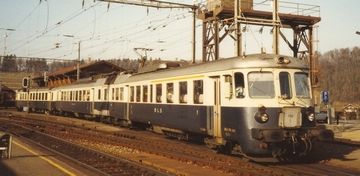

ABDe 4/8 No. 750 in Spiez
ABDe 4/8 No. 750 in Spiez
J.J.Smit
VariantBCFe 4/8ABDe 4/8
General
Built1945-1964
ManufacturerSIG, BBC, SAAS, BLS
Axle config
Gauge4 ft 8 1/2 in (Standard gauge)
Seats144128
Dimensions and Weights
Length153 ft 6 1/2 in156 ft 9 7/8 in
Wheelbase140 ft 5 1/16 in156 ft 9 7/8 in
Service weight187,393 lbs211,644 lbs
Adhesive weight121,254 lbs136,686 lbs
Axle load30,424 lbs34,172 lbs
Boiler
VariantBCFe 4/8ABDe 4/8
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power947 hp (706 kW)1,578 hp (1,177 kW)
Top speed68 mph78 mph
Starting effort13,264 lbf22,031 lbf
Calculated Values
EMU
local
regional
Bern-Lötschberg-Simplon Railway RABe 525 “NINA”
Switzerland | 1998
41 produced
The four-car RABe 525 022 and 020 in April 2007 in multiple
The four-car RABe 525 022 and 020 in April 2007 in multiple
Heitersberg

Between 1998 and 2995, the BLS got 36 lightweight three-car electric multiple units which were designated RABe 525. They got the name “NINA”, what stands for “Niederflur-Nahverkehrszug” (low floor commuter train) since most of the length of the train has a low floor thanks to space-saving Jakobs bogies

They were built by Vevey Technologies and Talbot, which both later came to Bombardier. The electric part came from Holec, what later became Alstom/Traxis. In 2007, 13 sets got an additional car to make them four-car trains. There were also two other private railways which ordered five sets in total. The successor of the RABe 525 is the RABe 535, what stands out with large panoramic windows.

Variantthree-carfour-car
General
Built1998-20052007
ManufacturerVevey Technologies, Bombardier, Alstom
Axle configB-2-2-B B-2-2-2-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats134179
Dimensions and Weights
Length156 ft 7 1/2 in203 ft 1 in
Empty weight127,868 lbs171,960 lbs
Boiler
Variantthree-carfour-car
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Continuous power1,341 hp (1,000 kW)
Top speed87 mph
Starting effort23,605 lbf
Calculated Values
EMU
local
Bombardier multiple unit
last changed: 08/2024
Bern-Lötschberg-Simplon Railway RABe 535 “Lötschberger”
Switzerland | 2008
25 produced

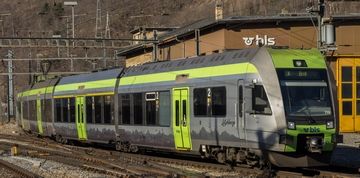

RABe 535 119 in February 2016 in Brig
RABe 535 119 in February 2016 in Brig
Markus Eigenheer / flybyeigenheer

Between 2008 and 2012, the BLS received a total of 25 RABe 535 electric multiple units from Bombardier in three batches. The first batch had been ordered for the RegioExpress Bern-Brig “Lötschberger”, so the trains got the same nickname. Each set consists of four cars which are connected with Jakobs bogies and most of the length has a low floor.

They got automatic Scharfenberg couplers to connect and disconnect individual sets while in service. As a direct development of the RABe 525 “NINA”, they can also be coupled with these. After Stadler had delivered the RABe 528 “MIKA” to the BLS, a modernization program was started in 2024 that also alters the exterior of the RABe 535 to match the RABe 528.

General
Built2008-2012
ManufacturerVevey Technologies, Bombardier
Axle configB-2-2-2-B
Gauge4 ft 8 1/2 in (Standard gauge)
Seats171
Dimensions and Weights
Length205 ft 8 7/8 in
Wheelbase55 ft 4 3/16 in
Rigid wheelbase8 ft 10 5/16 in
Total wheelbase188 ft 1 1/2 in
Empty weight231,485 lbs
Service weight297,624 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Continuous power1,341 hp (1,000 kW)
Top speed99 mph
Starting effort27,651 lbf
Calculated Values
EMU
local
regional
Bombardier multiple unit
last changed: 08/2024
Bombardier Twindexx Express
Swiss Federal Railways RABDe 502 and RABe 502
Switzerland | 2012
62 produced

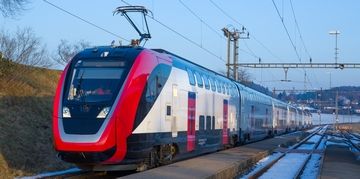

RABe 502 203 as IR 200 variant in January 2016 in Ossingen
RABe 502 203 as IR 200 variant in January 2016 in Ossingen
Kabelleger / David Gubler
VariantIR100IR200IC200
General
Builtsince 2012
ManufacturerBombardier
Axle config2-B+2-B+2-2+B-2 2-B+2-B+2-2+2-2+B-2+B-2+B-2+B-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats330682606
Dimensions and Weights
Length331 ft 4 3/8 in658 ft 1 5/8 in
Rigid wheelbase8 ft 2 7/16 in
Empty weight507,063 lbs998,693 lbs
Service weight595,247 lbs1,188,290 lbs
Axle load39,683 lbs
Boiler
VariantIR100IR200IC200
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power5,029 hp (3,750 kW)10,058 hp (7,500 kW)
Top speed124 mph
Starting effort54,179 lbf108,358 lbf
Calculated Values
EMU
regional
long distance
twin deck
Bombardier multiple unit
Bombardier Twindexx
Rhaetian Railway ABe 4/4 II
Switzerland | 1964
9 produced
Two ABe 4/4 II in August 2004 on the Bernina Railway in front of the Morteratsch Glacier
Two ABe 4/4 II in August 2004 on the Bernina Railway in front of the Morteratsch Glacier
Rainer Göttlinger
Variant41-4647-49
General
Built1964-19651972
ManufacturerSWS, SAAS, BBC
Axle configB-B
Gauge3 ft 3 3/8 in (Meter gauge)
Seats40
Dimensions and Weights
Length53 ft 11 5/8 in55 ft 4 13/16 in
Service weight90,389 lbs94,799 lbs
Adhesive weight90,389 lbs94,799 lbs
Axle load22,708 lbs23,810 lbs
Boiler
Variant41-4647-49
Power Plant
Power
Power sourceelectric - DC
Electric system1,000 V
Hourly power908 hp (677 kW)
Top speed40 mph
Starting effort31,923 lbf
Calculated Values
EMU
local
Rhaetian Railway ABe 4/16 and ABe 8/12 “Allegra”
Switzerland | 2009
20 produced
ABe 8/12 with attached passenger carriages in July 2015 at Ospizio Bernina
ABe 8/12 with attached passenger carriages in July 2015 at Ospizio Bernina
Erich Westendarp

“Allegra”, what is a greeting phrase in the Rhaeto-Romance language, denotes electric multiple units developed by Stadler for the Rhaetian Railway. Even though they were designed to meet very hard requirements, they even exceed the specifications by a considerable margin. The main batch of 15 sets was built for the steep mountain passes of the RhB.

Since the Bernina line is being operated at 1,000 Volts DC instead of the 11,000 Volts AC used on the rest of the RhB network, the trains had to be capable to be used under both systems. To haul up to seven additional passenger cars or even freight cars on gradients of up to seven percent, Stadler installed eight traction motors instead of four as specified. This led to the designation ABe 8/12 and a continuous output of 2,320 kW (3,110 hp). When operated in the AC network, they can even deliver up to 2,800 kW (3,755 hp) for a limited time.

For flatter lines with more passengers, Stadler also delivered five four-car units called ABe 4/16. As with the ABe 8/12, Stadler installed four instead of two traction motors. So one end car is similar to one of the two powered end cars of the ABe 8/12, while the other one is just an unpowered control car. Since they are not used on the Bernina line, they only have the equipment for the AC network. They were complemented by the much larger number of the newer “Capricorn” sets, which are also called ABe 4/16 due to their general layout.

VariantABe 8/12ABe 4/16
General
Built2009-20102011-2012
ManufacturerStadler
Axle configB-B+2-2+B-B B-B+2-2+2-2+2-2
Gauge3 ft 3 3/8 in (Meter gauge)
Seats114202
Dimensions and Weights
Length162 ft 4 13/16 in245 ft 2 15/16 in
Rigid wheelbase6 ft 6 3/4 in
Empty weight233,690 lbs249,122 lbs
Service weight268,964 lbs286,601 lbs
Adhesive weight194,007 lbs97,003 lbs
Axle load24,251 lbs
Boiler
VariantABe 8/12ABe 4/16
Power Plant
Power
Power sourceelectric - AC/DC
Electric system11.000 V 16⅔ Hz, 1,000 V
Hourly power3,755 hp (2,800 kW)1,877 hp (1,400 kW)
Continuous power3,111 hp (2,320 kW)1,556 hp (1,160 kW)
Top speed62 mph
Starting effort62,947 lbf31,473 lbf
Calculated Values
EMU
local
regional
multi-system
Stadler multiple unit
last changed: 08/2024
View on YouTube
Rhaetian Railway ABe 4/16 “Capricorn”
Switzerland | 2019
56 produced
No. 3117 in February 2021 in Samedan
No. 3117 in February 2021 in Samedan
Markus Giger
General
Builtsince 2019
ManufacturerStadler
Axle configB-B+2-2+2-2+2-2
Gauge3 ft 3 3/8 in (Meter gauge)
Seats182
Dimensions and Weights
Length250 ft 9 1/8 in
Wheelbase48 ft 7 7/8 in
Rigid wheelbase6 ft 6 3/4 in
Service weight286,601 lbs
Boiler
Power Plant
Power
Power sourceelectric - AC
Electric system11.000 V 16⅔ Hz
Hourly power1,877 hp (1,400 kW)
Continuous power1,341 hp (1,000 kW)
Top speed75 mph
Starting effort33,721 lbf
Calculated Values
EMU
local
regional
Stadler multiple unit
Swiss Federal Railways Ce 4/6
later Be 4/6
Switzerland | 1923
19 produced
Ce 4/6 9808 in September 1925 at Lake Geneva
Ce 4/6 9808 in September 1925 at Lake Geneva
C. Jeanmaire: „Die elektrischen und Dieseltriebfahrzeuge Schweizerischer Eisenbahnen. Die Triebwagen der Schweizerischen Bundesbahnen (SBB)”
VariantCe 4/6 (wood)Be 4/6 (steel)
General
Built1923-1925, 19271957, 1961-1966
ManufacturerSIG, SWS, SAAS
Axle configA1A-A1A
Gauge4 ft 8 1/2 in (Standard gauge)
Seats7256
Dimensions and Weights
Length65 ft 7 3/8 in
Empty weight175,929 lbs158,733 lbs
Service weight188,054 lbs189,597 lbs
Adhesive weight128,309 lbs114,640 lbs
Axle load32,187 lbs28,660 lbs
Boiler
VariantCe 4/6 (wood)Be 4/6 (steel)
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power770 hp (574 kW)845 hp (630 kW)
Top speed47 mph56 mph
Starting effort19,851 lbf
Calculated Values
EMU
suburban
local
Swiss Federal Railways CLe 2/4
later RCe 2/4 and RAe 2/4
Switzerland | 1935
7 produced
RAe 2/4 1002
RAe 2/4 1002
SBB Historic
Variantas builtrebuilt RCe 2/4rebuilt RAe 2/4
General
Built193519441952
ManufacturerSLM, Oerlikon, BBC, SAASSBB
Axle configB-2
Gauge4 ft 8 1/2 in (Standard gauge)
Seats7060
Dimensions and Weights
Length70 ft 6 7/16 in73 ft 5 7/8 in82 ft 8 1/8 in
Wheelbase61 ft 8 3/16 in
Rigid wheelbase8 ft 2 7/16 in
Service weight71,871 lbs83,776 lbs90,389 lbs
Adhesive weight35,715 lbs46,738 lbs
Axle load18,739 lbs23,369 lbs
Boiler
Variantas builtrebuilt RCe 2/4rebuilt RAe 2/4
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz
Hourly power542 hp (404 kW)
Continuous power422 hp (315 kW)
Top speed78 mph
Calculated Values
EMU
regional
long distance
tourist train
