Southern Railway (USA) class F-14
go back
United States | 1902
38 produced

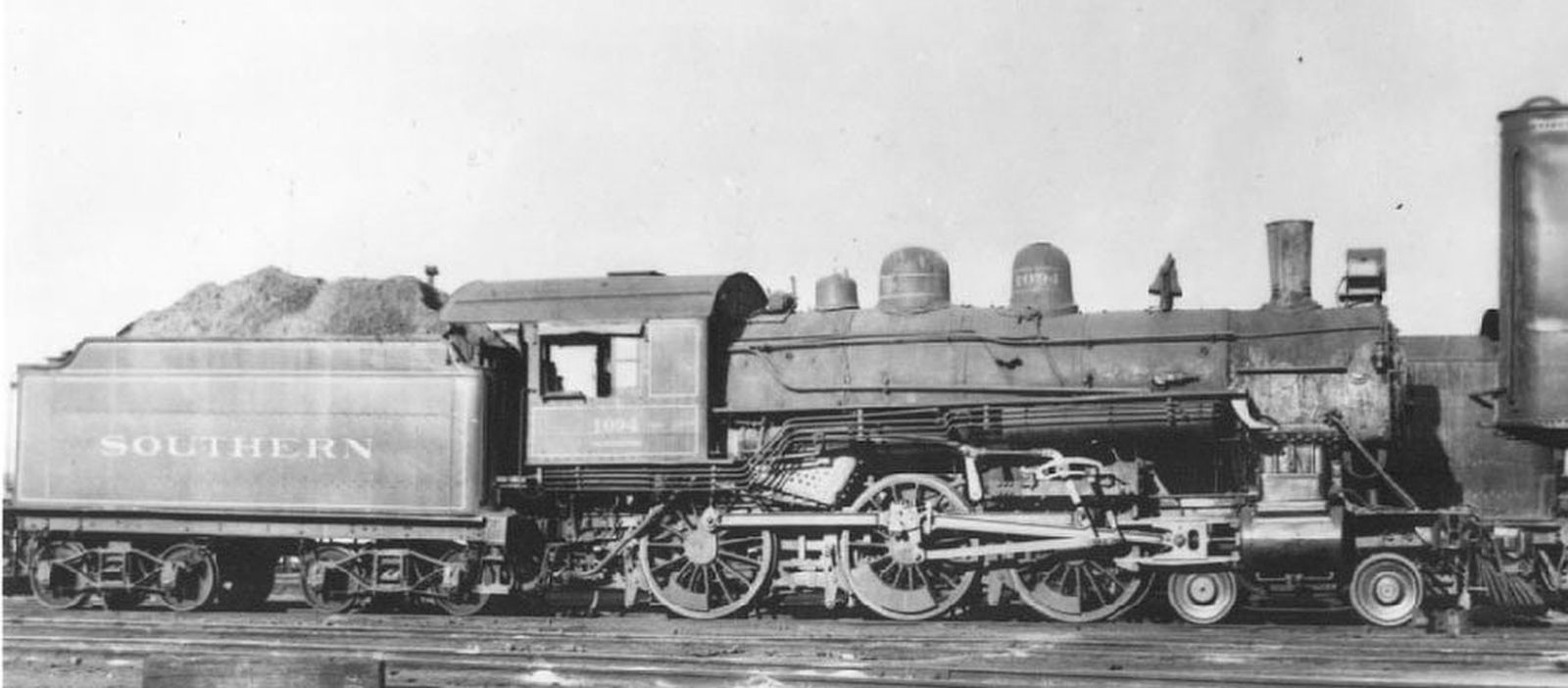

Variant with 72 inch Wheels
Variant with 72 inch Wheels
Bud Laws

The first ten F-14 class locomotives were the successors to the class F-12 and were built from the end of 1902. They had a wide firebox that was situated above the driving wheels. From June 1903, 28 more locomotives were built of a variant in which the drivers had been reduced from 72 to 68 inches. Later, only three received a superheater, becoming the class Fs-14. Despite this, the service life of the F-14 only ended between 1933 and 1948.

Variant72 inches68 inches
General
Built1902-19031903-1904
ManufacturerBaldwin
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase26 ft 8 in
Rigid wheelbase15 ft
Total wheelbase55 ft 3 in
Service weight170,920 lbs166,060 lbs
Adhesive weight128,670 lbs124,400 lbs
Total weight279,220 lbs274,360 lbs
Axle load42,890 lbs41,470 lbs
Water capacity5,000 us gal
Fuel capacity24,000 lbs (coal)
Boiler
Grate area44 sq ft
Firebox area136.3 sq ft137 sq ft
Tube heating area2,518.7 sq ft2,519 sq ft
Evaporative heating area2,655 sq ft2,656 sq ft
Total heating area2,655 sq ft2,656 sq ft
Variant72 inches68 inches
Power Plant
Driver diameter72 in68 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 21 x 28 in
Power
Power sourcesteam
Estimated power1,350 hp (1,007 kW)
Starting effort29,155 lbf30,870 lbf
Calculated Values
steam locomotive
express
passenger
