FC Cerro de Pasco No. 1 to 8
go back
Peru | 1916
8 produced
Image of locomotive
Martin Coombs / www.railwaysofthefarsouth.co.uk

After the Cerro de Pasco Railway & Mining Co. had taken over the line between La Oroya and Cerro de Pasco in 1915, they needed powerful freight locomotives. Large parts of the line were situated at an altitude above 4,000 meters (13,123 feet), had inclines of 2.5 percent and curve radii of 110 m (360 feet). Over a total of 14 years, they received eight Consolidations from several ALCO works. The first two came from Brooks in 1916, followed by two from Cooke in 1919. Brooks again delivered two in 1925. The last two came from Schenectady in 1930, were oil-fired and had Worthington feedwater heaters

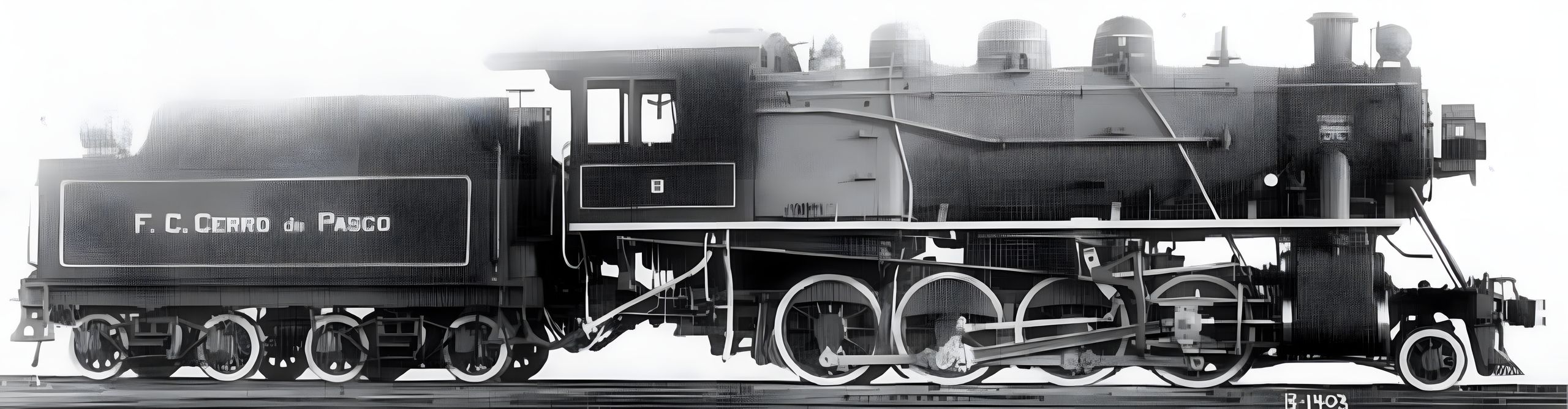

On the outside the different batches could be distinguished by details like the position of the domes, the headlight and the tubes on the outside of the boiler. They had received numbers between 1 and 8, six of which were re-used from earlier ones, so they were not in consecutive order. This explains why No. 8 shown in the photo was one of the locomotives built in 1919. Later they were renumbered 61 to 68. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1916-1930
ManufacturerALCO
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Fuel capacitycoal
Boiler
Power Plant
Driver diameter52 in
Expansion typesimple
Cylinderstwo, 21 x 28 in
Power
Power sourcesteam
Calculated Values
steam locomotive
freight
last changed: 09/2025
