Queensland Railways class B13
originally class F
go back
Australia | 1883
112 produced

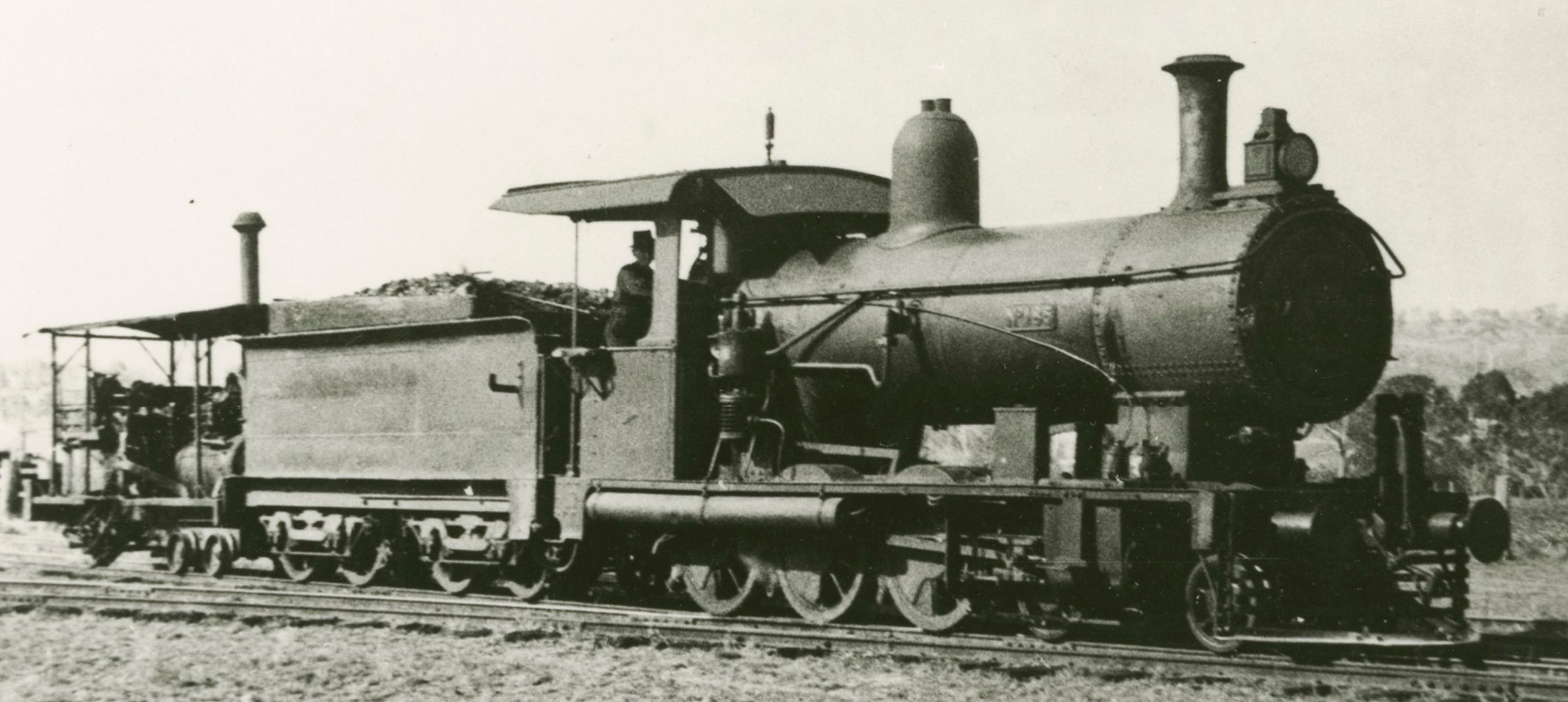

Image of locomotive
State Library of Queensland

Between 1883 and 1895, Dübs, Kitson and Phoenix Foundry built 112 4-6-0 locomotives for Queensland Railways. They were designated class F and renamed to B13 in 1890. The had drivers with a diameter of only three feet and three inches and the axle load was seven tons. There were two variants, one with a narrow and deep firebox and the other with a wide firebox. Some were fired with wood.

In the early 1900s they were rebuilt with new boilers which had a higher pressure. Since the locomotives with a deep firebox performed better, the new boilers were only built with this type of firebox. Between 1913 and 1918, six were sold to the Commonwealth Railways and became class NG. The QR withdrew a large number in the late twenties. Many of these were sold to small operators. The last locomotive in QR service was withdrawn in 1954. The last two were operated by the Bingera Sugar Mill until 1969. Three have been preserved.

Variantdeep fireboxwide firebox
General
Built1883-1895
ManufacturerDübs & Co., Kitson & Co., Phoenix Foundry
Wheel arr.4-6-0 (Ten-wheeler)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length38 ft 3 in
Service weight62,328 lbs61,040 lbs
Adhesive weight46,480 lbs45,480 lbs
Total weight11,272 lbs111,400 lbs
Axle load15,680 lbs
Water capacity1,681 us gal
Fuel capacity8,960 lbs (coal)
Boiler
Grate area11.3 sq ft18.8 sq ft
Firebox area62 sq ft
Tube heating area654 sq ft581 sq ft
Evaporative heating area716 sq ft643 sq ft
Total heating area716 sq ft643 sq ft
Variantdeep fireboxwide firebox
Power Plant
Driver diameter39 in
Boiler pressure140 psi
Expansion typesimple
Cylinderstwo, 13 x 20 in
Power
Power sourcesteam
Estimated power200 hp (149 kW)
Starting effort10,313 lbf
Calculated Values
steam locomotive
passenger
freight
last changed: 02/2026
