Austrian Federal Railways class 1063
go back
Austria | 1982
50 produced

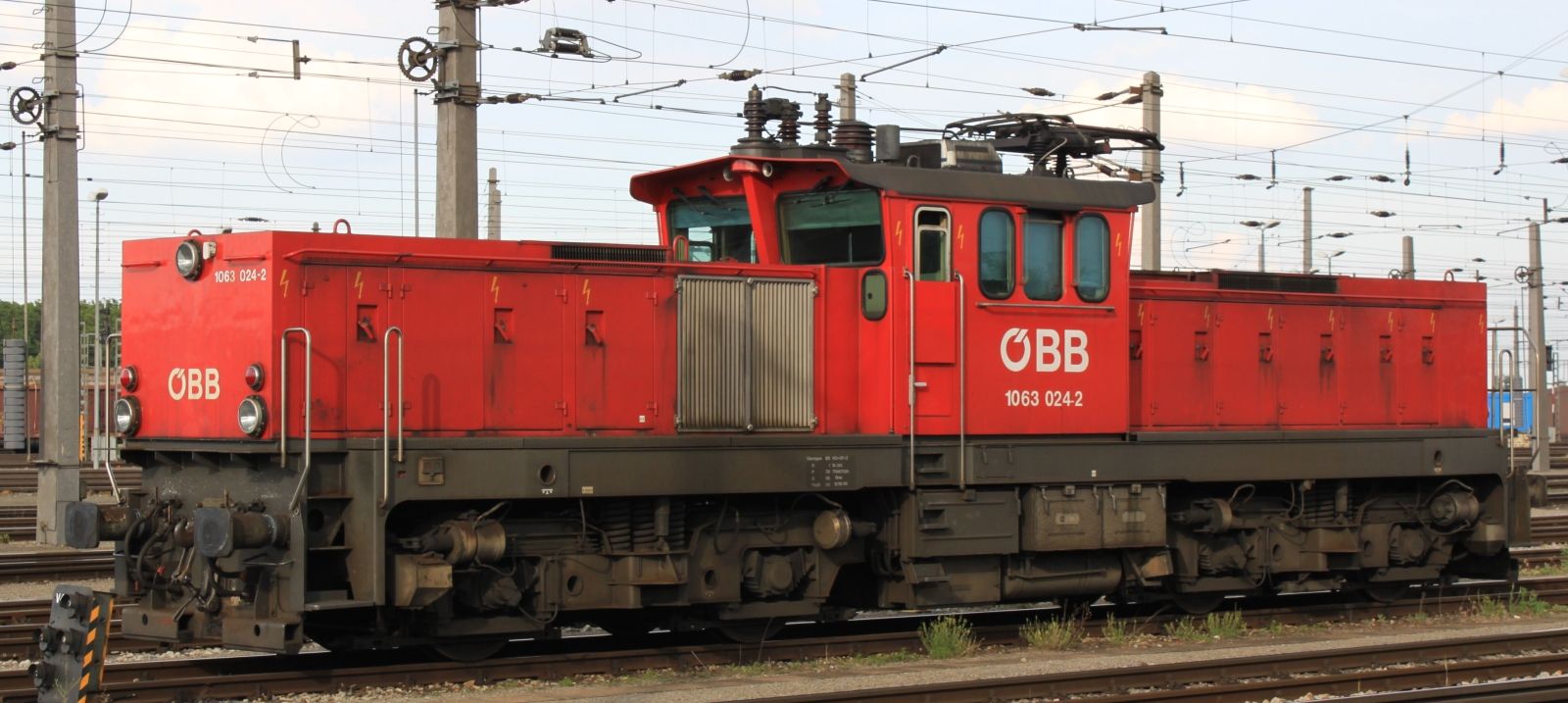

1063.024 in June 2011 at the Vienna-Kledering freight yard
1063.024 in June 2011 at the Vienna-Kledering freight yard
DerHHO

In the seventies, ÖBB tried to increasingly electrify shunting service, which was partly due to the oil crisis. To test a locomotive with three-phase traction motors, they loaned the E 1200 built by Henschel for the Ruhrkohle AG. Since the trials on Austrian lines like the Semmering were successful, SGP designed the class 1063 on the basis of the E 1200.

It stood on two two-axle bogies and had a central cab with a pantograph on the roof. The first five delivered 1,520 kW and the remaining 45 had an increased output of 2,000 kW. The first 37 were not only equipped for 15 kW and 16.7 Hz, but also for 25 kV and 50 Hz. Thanks to their top speed of 80 or 100 km/h, they are not only being used for shunting, but also for short-distance freight trains.

A development of the 1063 is the class 1163 introduced in 1994. In 2018, the ÖBB planned to modify the 1063 for use in areas where not all tracks are electrified. After some tests with batteries and hydrogen fuel cells, the rebuilding of 25 locomotives with batteries was envisaged. But as the demand for shunters dropped, this plan was not implemented. Meanhwile, some have already been retired.

Variant1063.001-005103.006-050
General
Built1982-1991
Manufacturermechanical part: SGP Graz, electrical part: BBC, ELIN, Siemens
Axle configB-B
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length51 ft 0 5/8 in
Service weight171,960 lbs180,779 lbs
Adhesive weight171,960 lbs180,779 lbs
Axle load42,990 lbs45,195 lbs
Boiler
Variant1063.001-005103.006-050
Power Plant
Power
Power sourceelectric - AC
Electric system15.000 V 16⅔ Hz, 25,000 V 50 Hz
Continuous power2,038 hp (1,520 kW)2,682 hp (2,000 kW)
Top speed50 mph62 mph
Starting effort58,450 lbf
Calculated Values
electric locomotive
switcher
freight
three-phase AC
multi-system
