Boston & Maine No. 54 to 61
later class A
go back
United States | 1872
8 produced

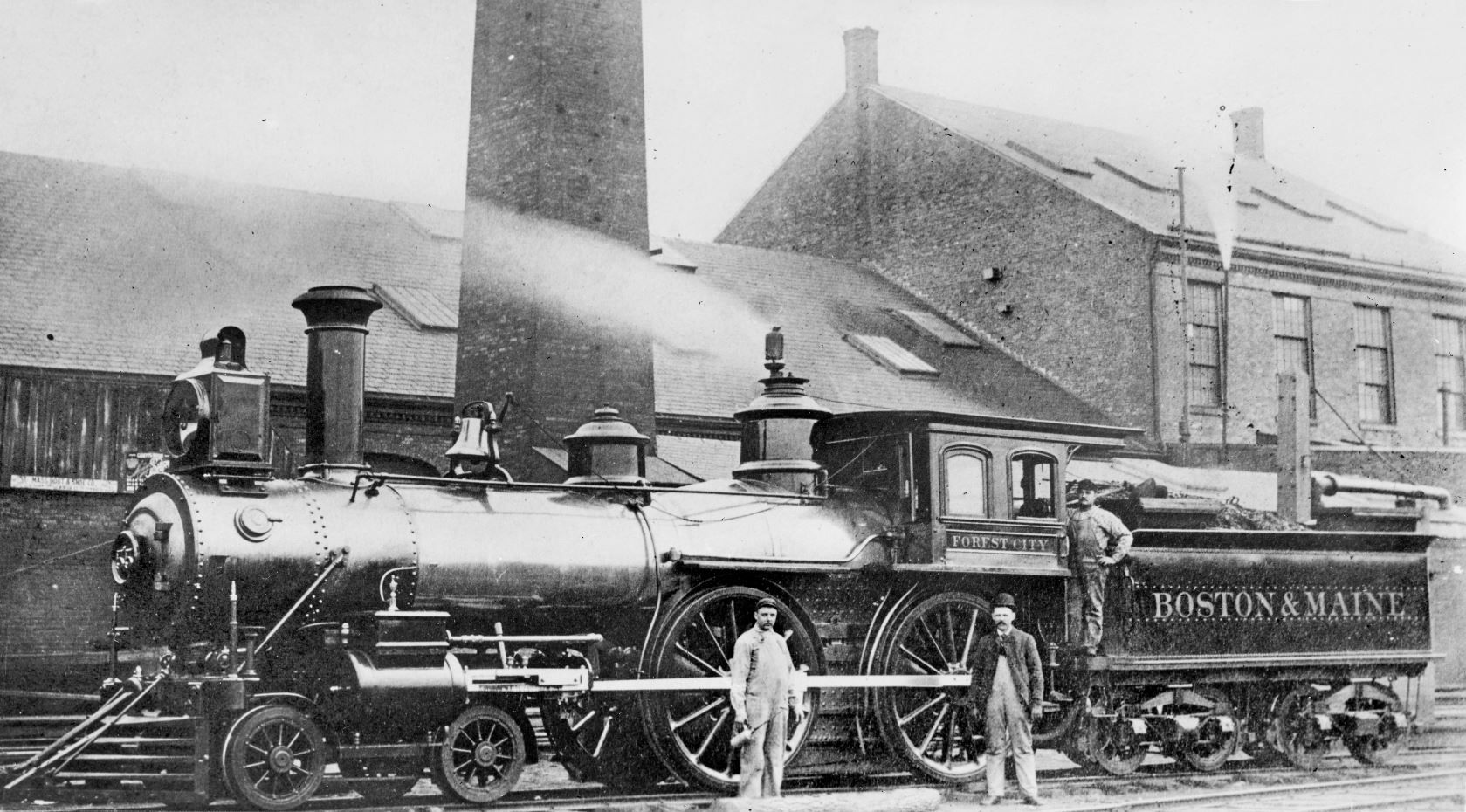

No. 55 “Forest City”
No. 55 “Forest City”

In 1872 and 1873, Manchester Locomotive Works built eight 4-4-0 locomotives for the Boston & Maine. They carried the works numbers 455 to 462 and received the running numbers 54 to 61. The names of these individual locomotives did not follow a common rule and were “Sachem”, “Forest City”, “Francis Cogswell”, “Minerva”, “William Merritt”, “Columbia”, “Pepperell” and “Old Orchard”.

At 66 inches, the drivers were in the same range to those found on most 4-4-0 of the Boston and Maine. The cylinders measured 17 by 22 inches. All were later reboilered, the first one in 1885. When they were renumbered in 1911, one had already been scrapped and the others received the numbers 641 to 647. After this it did not take long until the rest was scrapped and by 1915, all were gone.

General
Built1872-1873
ManufacturerManchester Locomotive Works
Wheel arr.4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Rigid wheelbase8 ft
Service weight85,000 lbs
Adhesive weight55,000 lbs
Total weight135,000 lbs
Axle load27,500 lbs
Water capacity2,700 us gal
Fuel capacity12,000 lbs (coal)
Boiler
Grate area16.2 sq ft
Firebox area137.5 sq ft
Tube heating area1,042.5 sq ft
Evaporative heating area1,180 sq ft
Total heating area1,180 sq ft
Power Plant
Driver diameter66 in
Boiler pressure150 psi
Expansion typesimple
Cylinderstwo, 17 x 22 in
Power
Power sourcesteam
Estimated power400 hp (298 kW)
Starting effort12,282 lbf
Calculated Values
steam locomotive
passenger
last changed: 10/2025
