London & North Eastern Peppercorn class A2
go back
Great Britain | 1947
15 produced

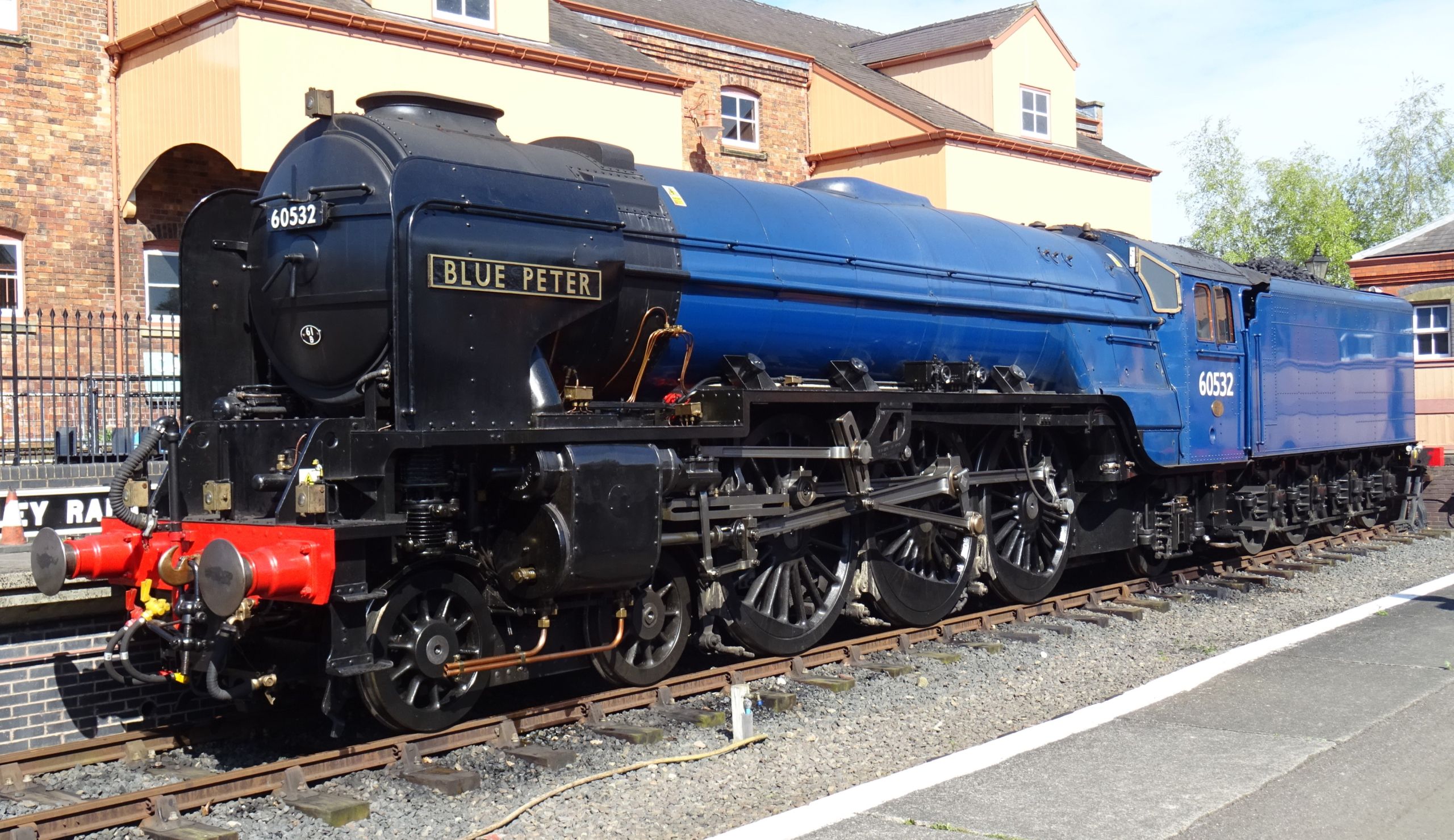

60532 “Blue Peter” in April 2024 at Kidderminster
60532 “Blue Peter” in April 2024 at Kidderminster
BWard 1997

The Peppercorn class A2 was a Pacific locomotive designed in the last years of the LNER and inspired by the Thompson class A2/2. Like Thompson's locomotives, it had three cylinders and 6 ft 2 in (1,880 mm) drivers, as opposed to the 6 ft 8 in (2,032 mm) of other LNER Pacifics. This made it suited for lines with inclines, like branches of the East Coast Main Line and lines in Scotland. The first locomotive, No. 525, was built in 1947 at Doncaster and delivered to the LNER in December. It was named “A.H. Peppercorn” after its designer and last Chief Mechanical Engineer of the LNER. The next 14 locomotives were directly delivered to British Railways and named after race horses.

Compared to the A2/3, the new A2 had its outside cylinders moved towards the front and had lost its Kylchap exhaust. The cylinders still measured 19 inches in diameter and 26 inches in stroke and the boiler pressure was unchanged at 250 psi. This resulted in a starting tractive effort of 40,430 pounds. No. 60539 “Bronzino”, the last one, was delivered with a Kylchap exhaust. In 1949, five more were also fitted with this type of exhaust. In comparison with the bigger-wheeled Gresley Pacifics with larger grates, they had a higher consumption when running at high speeds.

British Railways put them in power class 8P7F, what meant that they could also be used like a class 7F freight locomotive if needed. In England, all were withdrawn in 1962 and 1963. In Scotland the last ones were only withdrawn in 1966. The only one that was preserved was 60532 “Blue Peter”. It was steamed up for the first time again in 1974 and received its main line certificate in 1992 after a second restoration. The main line certificate expired in 2001, followed the boiler certificate that expired in 2002. A larger overhaul started in 2015 and in 2024, it became operational again.

General
Built1947-1948
ManufacturerDoncaster
Wheel arr.4-6-2 (Pacific)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length71 ft 0 1/2 in
Wheelbase34 ft 4 in
Rigid wheelbase13 ft
Total wheelbase60 ft 6 in
Service weight226,240 lbs
Total weight359,520 lbs
Axle load49,280 lbs
Water capacity6,005 us gal
Fuel capacity20,160 lbs (coal)
Boiler
Grate area50 sq ft
Firebox area245 sq ft
Tube heating area2,217 sq ft
Evaporative heating area2,462 sq ft
Superheater area680 sq ft
Total heating area3,142 sq ft
Power Plant
Driver diameter74 in
Boiler pressure250 psi
Expansion typesimple
Cylindersthree, 19 x 26 in
Power
Power sourcesteam
Estimated power3,000 hp (2,237 kW)
Starting effort40,430 lbf
Calculated Values
steam locomotive
express
Arthur Henry Peppercorn
last changed: 03/2026

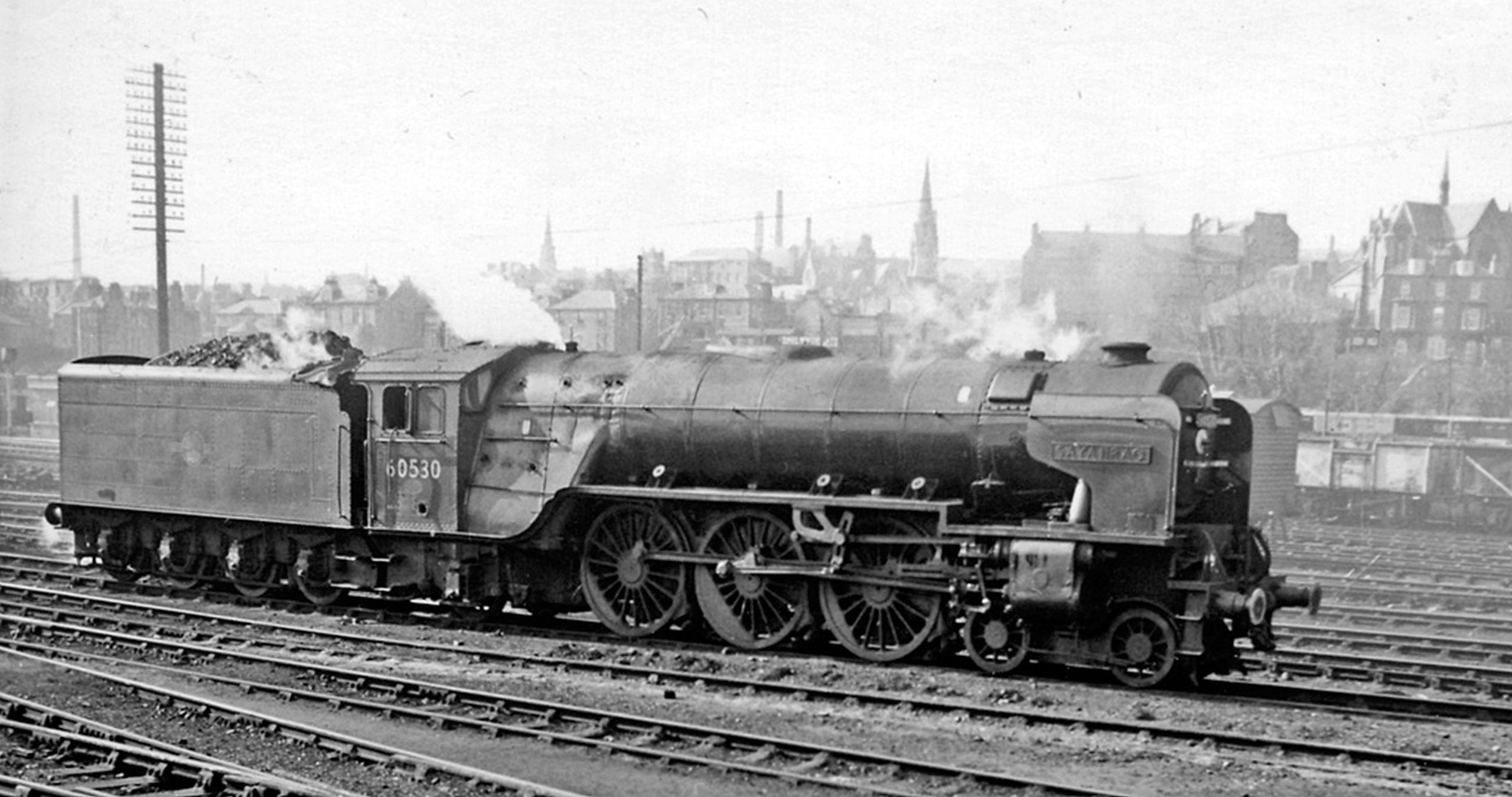

60530 “Sayajirao” in April 1966 at Dundee Tay Bridge Station
60530 “Sayajirao” in April 1966 at Dundee Tay Bridge Station
Ben Brooksbank
