Japanese Government Railways class C51, originally class 18900
China Railway SL9
go back
Japan | 1919
289 produced

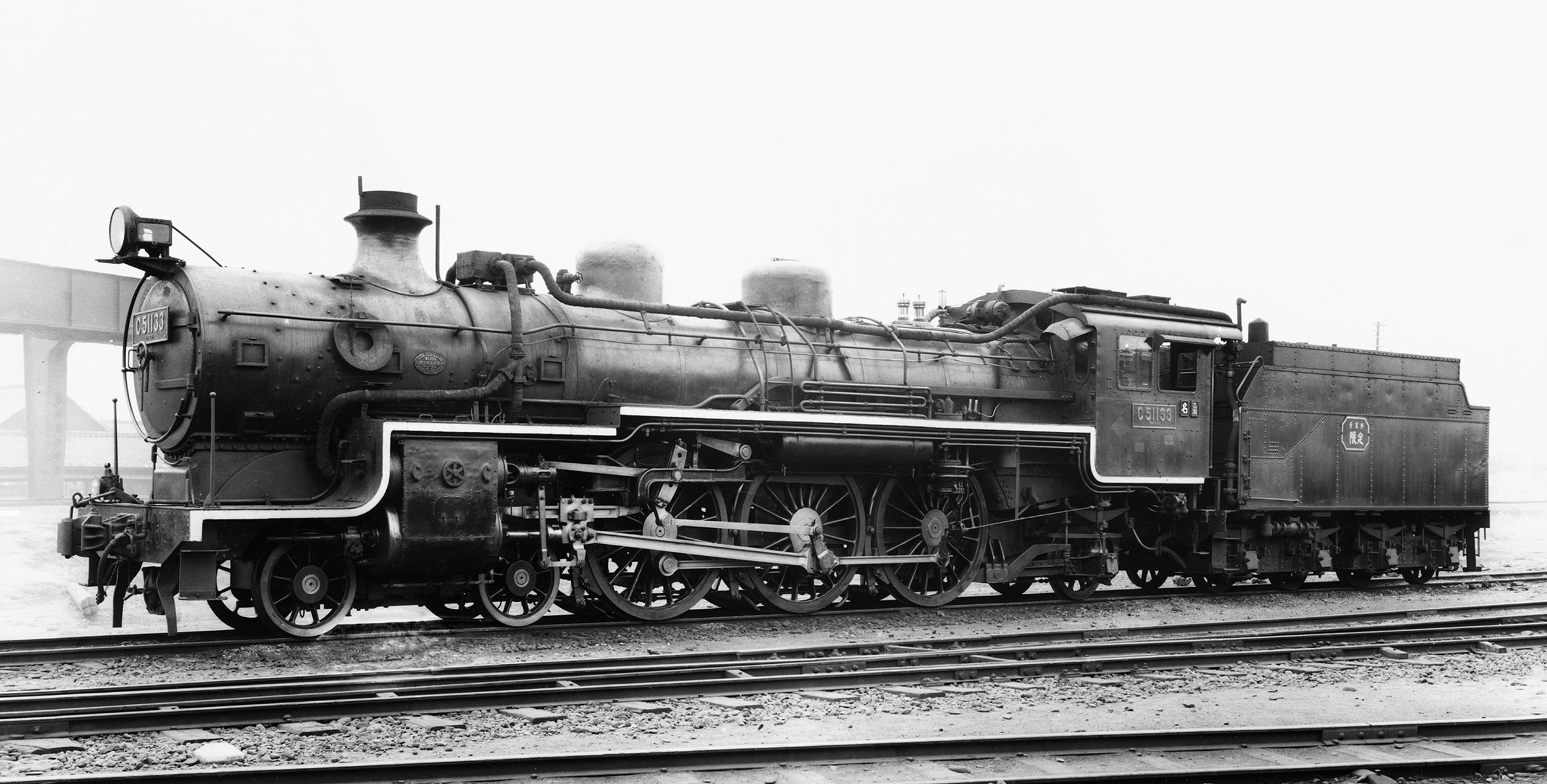

Image of locomotive

The locomotive later known as class C51 was introduced in 1919 to increase the speed of long-distance express trains. Following suggestions of German engineers to keep the rotational speed of the drivers below 300 rpm, the driver diameter chosen for a design speed of 100 km/h was 1,750 mm. This was not only a large value compared to the Cape gauge of 1,067 mm, they were also the largest drivers for a narrow gauge locomotive at this time. The boiler was large and benefitted of the trailing axle that allowed for a large firebox that also had arch tubes. They were originally numbered in the range from 18900 and became class C51 in 1928.

The first 18 were built by the JGR itself. Parts came from different workshops and were assembled at Hamamatsu. The biggest part of the production came from Kisha Seizō which delivered 249. Finally, Mitsubishi started to build a batch of 22 in 1924. Approved for a speed of 95 km/h, one managed to reach 120 km/h on a test run with two coaches. Over the years, individual locomotives were fitted with measures to increase their efficiency. These included extended smoke boxes, double chimneys and partial streamlining, but all were later removed again.

From 1930, the C51 also hauled the famous Tsubame (Swallow) express between Tokyo and Kōbe in nine hours. In 1939, 16 locomotives were rebuilt to standard gauge and brought to the Japanese-controlled Central China Railway to remedy a severe locomotive shortage. These were called “Pashina” and later became the China Railway SL9 to be withdrawn only in 1990. In Japan, they were mainly used on regional main lines after the war. The last ones were withdrawn in 1966 and five were preserved, four of which are still existing on static display.

General
Built1919-1928
ManufacturerKisha Seizō, Mitsubishi, Hamamatsu
Wheel arr.4-6-2 (Pacific)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length65 ft 7 3/16 in
Wheelbase32 ft 9 11/16 in
Rigid wheelbase12 ft 5 5/8 in
Total wheelbase58 ft 3 5/8 in
Service weight149,363 lbs
Adhesive weight96,717 lbs
Total weight246,080 lbs
Axle load32,209 lbs
Water capacity4,491 us gal
Fuel capacity17,637 lbs (coal)
Boiler
Grate area27.2 sq ft
Firebox area133.5 sq ft
Tube heating area1,237.8 sq ft
Evaporative heating area1,371.3 sq ft
Superheater area445.6 sq ft
Total heating area1,816.9 sq ft
Power Plant
Driver diameter68.9 in
Boiler pressure188 psi
Expansion typesimple
Cylinderstwo, 20 7/8 x 26 in
Power
Power sourcesteam
Indicated power1,159 hp (864 kW)
Top speed59 mph
Starting effort26,309 lbf
Calculated Values
steam locomotive
express
