Queensland Railways class BB18¼
go back
Australia | 1950
55 produced

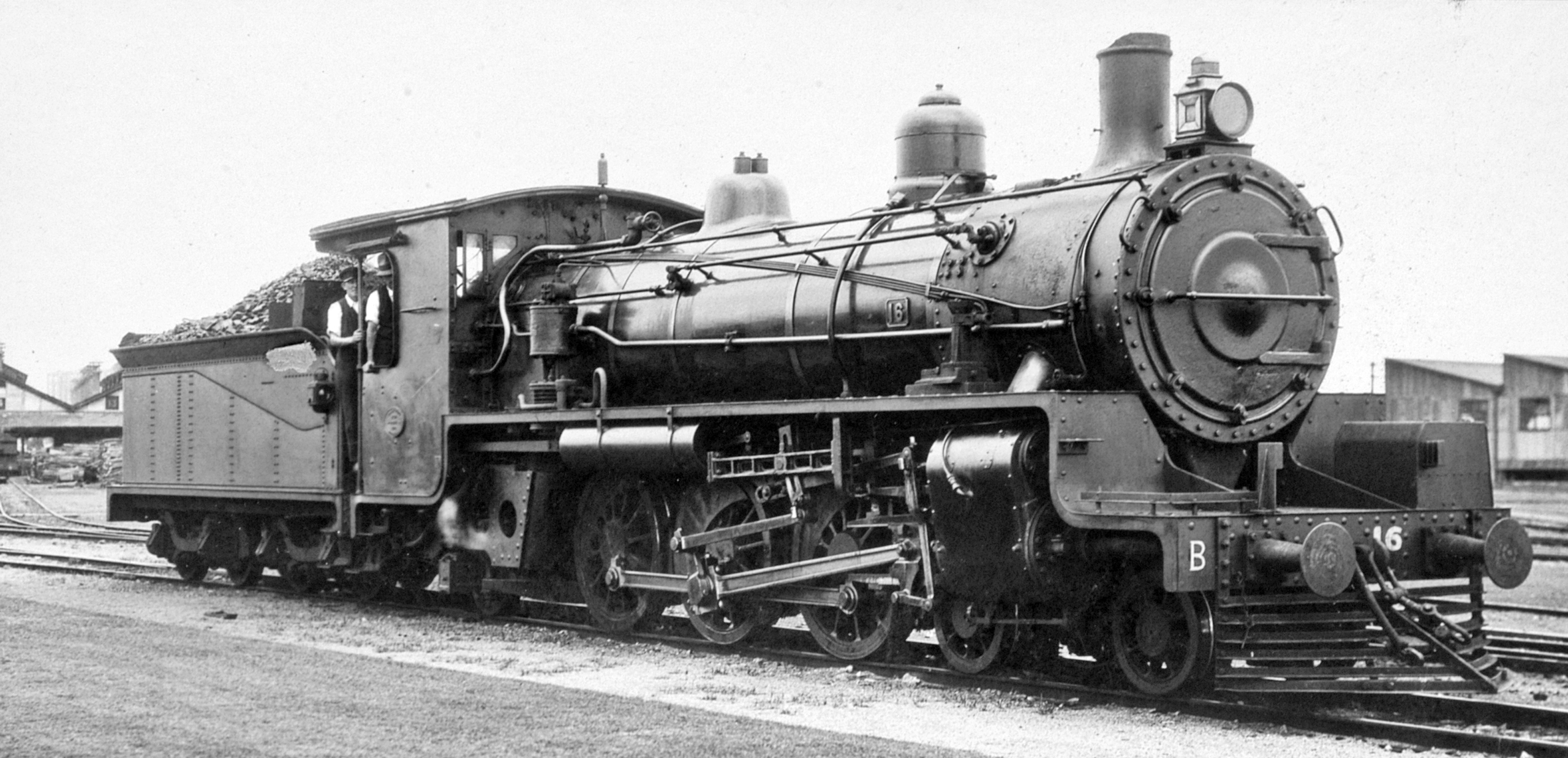

Image of locomotive
Queensland State Archives

The BB18¼ was a light 4-6-2 “Pacific” for mixed traffic that was ordered by the Queensland Railways after World War II from Vulcan Foundry in England. While the B in the designation stood for three coupled axles and the 18¼ denoted the cylinder diameter in inches, the second B was added to distinguish it from the earlier class B18¼ Pacific. The first 35 were built by Vulcan Foundry in 1950 and 1951. 20 more followed from Walkers Limited between 1955 and 1958. No. 1089 was the last steam locomotive placed into mainline service by any Australian railway company.

They had similar tasks as their predecessors, what included goods, suburban and long distance passenger traffic. Although they had a fairly low axle load, some bridges in the QR network were reinforced in the fifties to further increase their route availability. While long distance passenger services dominated their tasks in the first years, these were later taken over by diesel locomotives. Six have been preserved and 1037 is still in working condition. It is being owned by DownsSteam in Toowoomba.

General
Built1950-1951, 1955-1958
ManufacturerVulcan Foundry, Walkers
Wheel arr.4-6-2 (Pacific)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Length60 ft 2 in
Wheelbase27 ft 2 in
Rigid wheelbase11 ft
Total wheelbase46 ft 5 1/2 in
Service weight129,808 lbs
Adhesive weight80,326 lbs
Total weight226,576 lbs
Axle load26,880 lbs
Water capacity4,203 us gal
Fuel capacity23,072 lbs (coal)
Boiler
Grate area25 sq ft
Firebox area106 sq ft
Tube heating area1,418 sq ft
Evaporative heating area1,524 sq ft
Superheater area334 sq ft
Total heating area1,858 sq ft
Power Plant
Driver diameter51 in
Boiler pressure170 psi
Expansion typesimple
Cylinderstwo, 18 1/4 x 24 in
Power
Power sourcesteam
Estimated power1,100 hp (820 kW)
Starting effort22,648 lbf
Calculated Values
steam locomotive
passenger
freight
