Imperial Russian Railways series Л
go back
Russia | 1914
66 produced

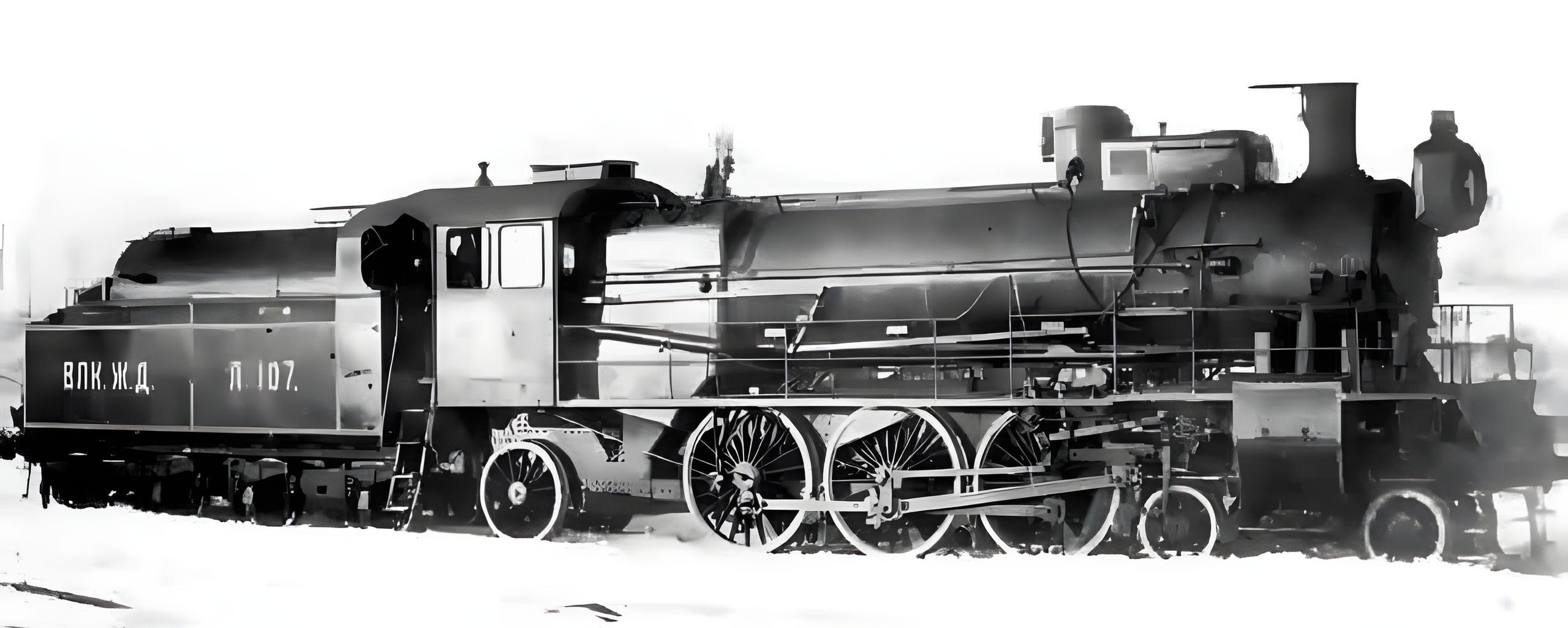

Image of locomotive

The Л (L) was the only Pacific tender locomotive in Russia. It was built by Putilov for the Vladikavkas Railway that needed a more powerful express locomotive for their line between Rostov and Vladikavkas. Designed by Vazlav Lopushinski (hence the designation L), it had four cylinders to decrease the stress for the rails. All four cylinders worked on the second driving axle. They were fired with oil, or naphtha as it is referred to in Russian sources. Later they were converted to coal burning.

18 locomotives were built for the Vladikavkas between 1914 and 1918. When the October Railway between Moscow and Leningrad (St. Petersburg) needed similar locomotives, 48 more were built between 1923 and 1926. These were transferred to the Vladikavkas in 1937 when the October Railway had received new locomotives. From 1947 they were designated ЛП (LP) when the new Л freight locomotives had been introduced. Their withdrawals came in the fifties.

General
Built1914-1918, 1923-1926
ManufacturerPutilov
Wheel arr.4-6-2 (Pacific)
Gauge4 ft 11 13/16 in (Russian broad gauge)
Dimensions and Weights
Length73 ft 11 1/2 in
Length loco45 ft 11 3/16 in
Wheelbase37 ft 9 1/8 in
Rigid wheelbase12 ft 11 7/8 in
Empty weight188,715 lbs
Service weight213,187 lbs
Adhesive weight114,420 lbs
Total weight357,589 lbs
Axle load38,140 lbs
Water capacity7,397 us gal
Fuel capacity4,755 us gal (oil)
Boiler
Grate area50.1 sq ft
Firebox area189.4 sq ft
Tube heating area2,712.5 sq ft
Evaporative heating area2,901.9 sq ft
Superheater area920.3 sq ft
Total heating area3,822.3 sq ft
Power Plant
Driver diameter72.4 in
Boiler pressure174 psi
Expansion typesimple
Cylindersfour, 18 1/8 x 25 9/16 in
Power
Power sourcesteam
Estimated power1,877 hp (1,400 kW)
Top speed75 mph
Starting effort34,272 lbf
Calculated Values
steam locomotive
express
