Louisville & Nashville No. 67 to 76 and 83 to 87
later class D-0
go back
United States | 1870
15 produced

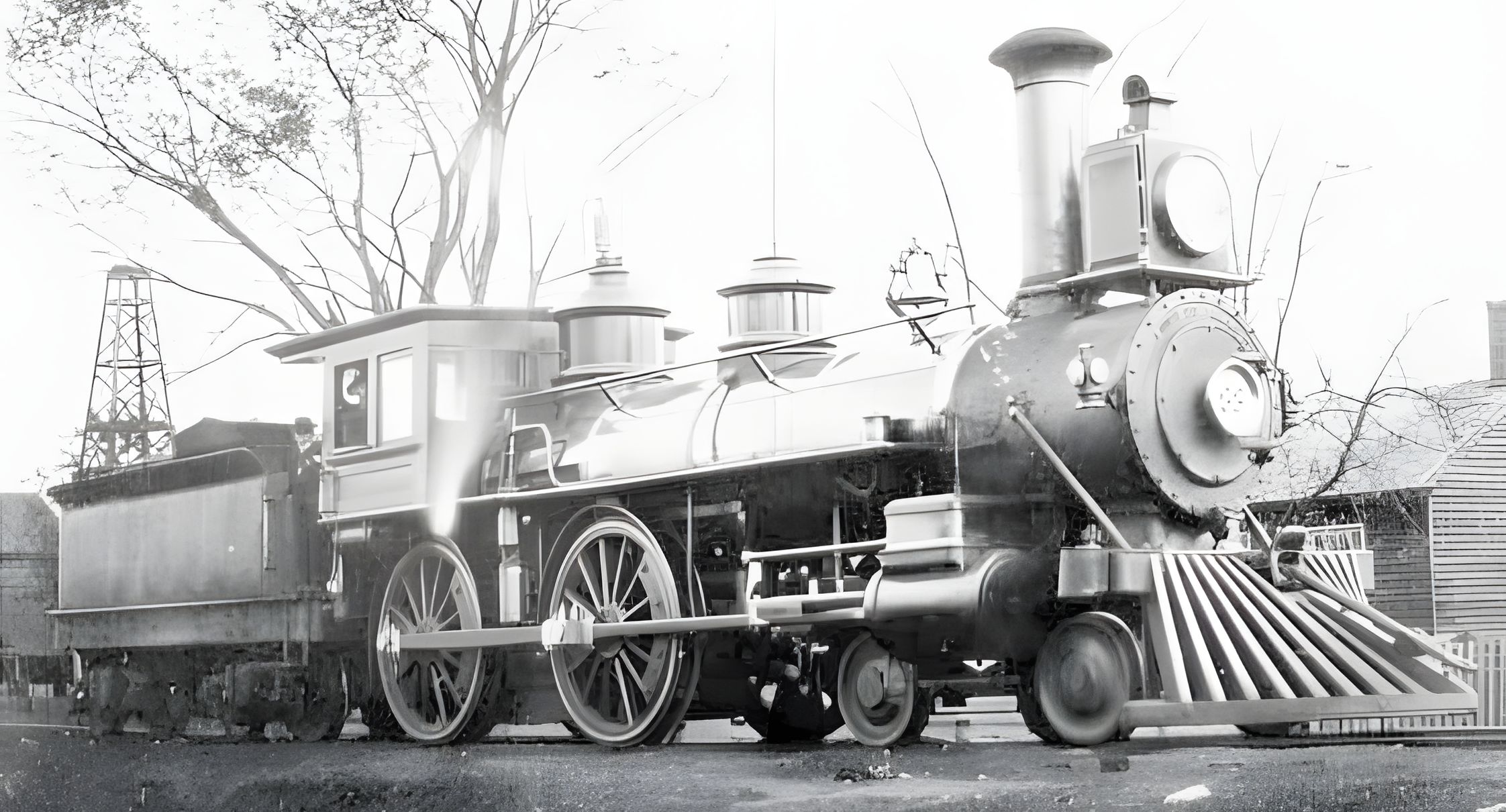

No. 83, later No. 24
No. 83, later No. 24

Among the L&N's 4-4-0 locomotives with smaller drivers were 15 built in 1869 and 1870 by Baldwin. The first batch built in 1869 was numbered 67 to 76 and the second batch of 1870 became numbers 83 to 87. In 1873, two were rebuilt and two years later, No. 76 received three new driving axles with smaller drivers. In 1897, they were renumbered to 17 to 31.

General
Built1870
ManufacturerBaldwin
Wheel arr.4-4-0 (American)
Gauge5 ft (Broad gauge)
Dimensions and Weights
Wheelbase22 ft 7 in
Rigid wheelbase8 ft
Total wheelbase46 ft 10 in
Service weight90 lbs
Adhesive weight56,000 lbs
Total weight165,200 lbs
Axle load29,300 lbs
Water capacity3,500 us gal
Fuel capacity14,000 lbs (coal)
Boiler
Grate area15.5 sq ft
Firebox area100 sq ft
Tube heating area968 sq ft
Evaporative heating area1,068 sq ft
Total heating area1,068 sq ft
Power Plant
Driver diameter62 in
Boiler pressure150 psi
Expansion typesimple
Cylinderstwo, 17 x 24 in
Power
Power sourcesteam
Estimated power375 hp (280 kW)
Starting effort14,264 lbf
Calculated Values
steam locomotive
passenger
