Indian Railways class YC
go back
India | 1928
38 produced

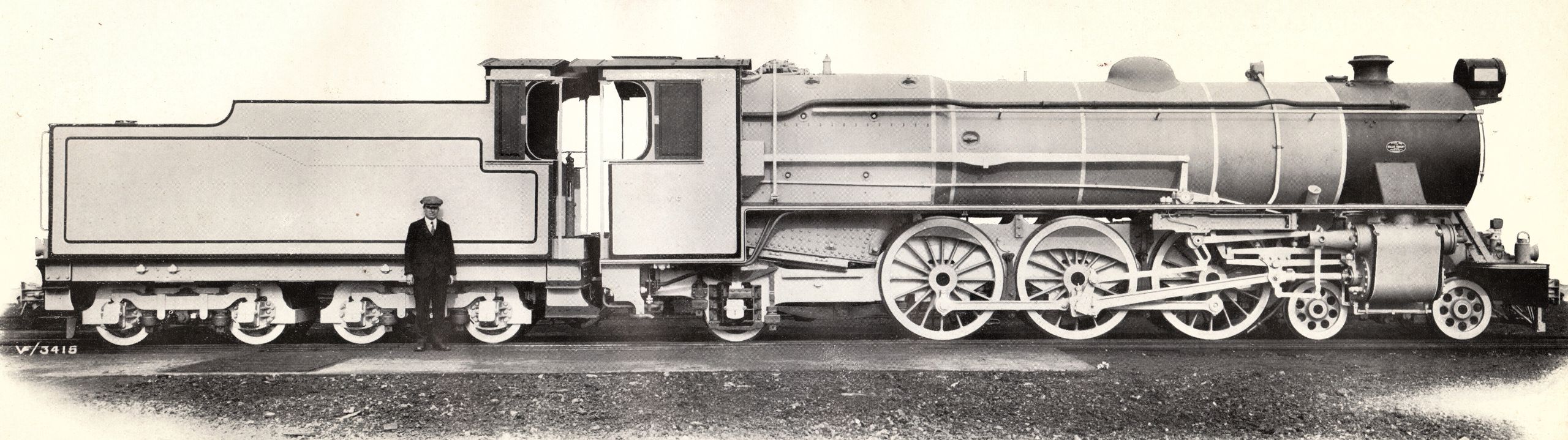

Variant built by Vulcan Foundry
Variant built by Vulcan Foundry
Vulcan Foundry catalog

The YC was an IRS standard design of Pacific passenger locomotives built for metre gauge. Compared to the YB, it also had drivers with a diameter of 57 inches, but was somewhat larger. The cylinders had a diameter of 17.5 inches and a stroke of 24 inches. Between 1928 and 1932, Nasmyth, Wilson & Co., Škoda and Vulcan Foundry built 28 locomotives which made the design less successful than the YB. Two of these went to the Bombay, Baroda and Central India Railway, 13 to the Madras and Southern Mahratta Railway and 13 to Burma Railways. After World War II, Burma Railways ordered ten more from Vulcan Foundry which brought the total number to 38. With the founding of Indian Railways in 1951, the 15 locomotives from Indian operators came to the Southern Railway zone. In 1975, all were gone. The only two which were preserved are two from the post-war batch for Burma.

General
Built1928-1948
ManufacturerNasmyth, Wilson & Co., Škoda, Vulcan Foundry
Wheel arr.4-6-2 (Pacific)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length60 ft 10 3/4 in
Wheelbase28 ft 4 in
Rigid wheelbase10 ft 6 in
Total wheelbase51 ft 8 in
Service weight127,232 lbs
Adhesive weight80,192 lbs
Total weight203,840 lbs
Water capacity3,603 us gal
Fuel capacity10,080 lbs (coal)
Boiler
Grate area31 sq ft
Firebox area148 sq ft
Tube heating area1,300 sq ft
Evaporative heating area1,448 sq ft
Superheater area322 sq ft
Total heating area1,770 sq ft
Power Plant
Driver diameter57 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 17 1/2 x 24 in
Power
Power sourcesteam
Estimated power1,200 hp (895 kW)
Starting effort19,729 lbf
Calculated Values
steam locomotive
passenger
last changed: 08/2026

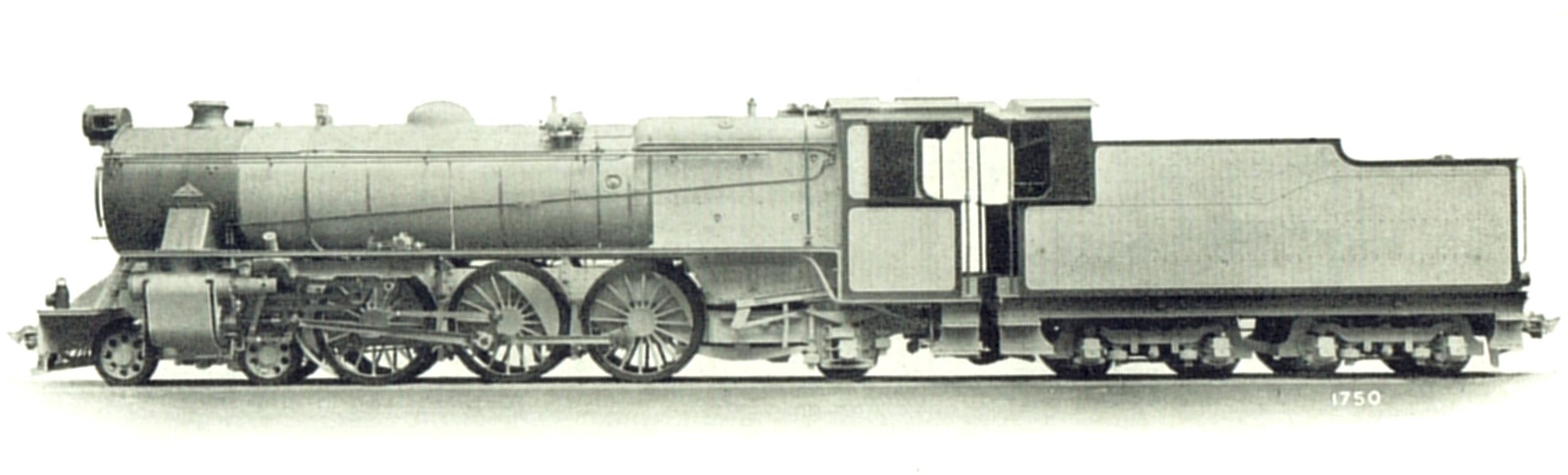

Variant built by Nasmyth, Wilson & Co.
Variant built by Nasmyth, Wilson & Co.
