War Department Austerity 2-8-0
Dutch Railways series 4300 and Swedish State Railways G11
go back
Great Britain | 1943
935 produced

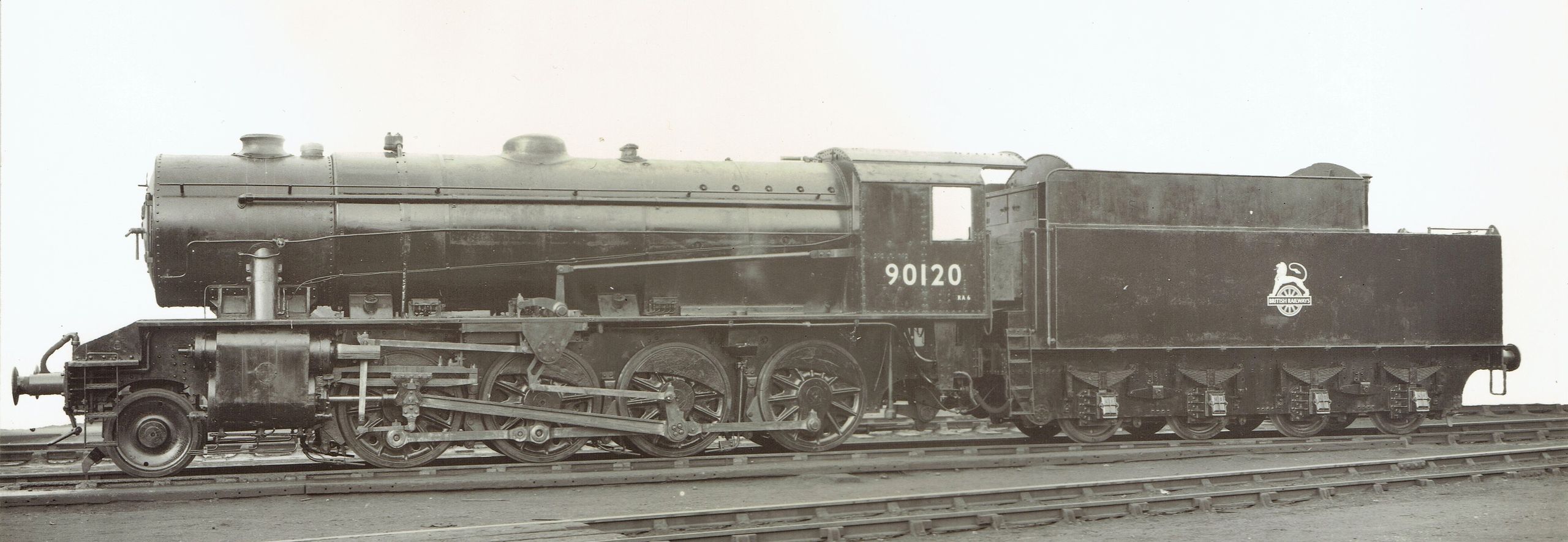

Image of locomotive
flickr/Historical Railway Images

The Austerity 2-8-0 was a freight locomotive designed by Robert Riddles for service in World War II. It was based on Stanier's LMS 8F, but was modified to save both costs and time in manufacturing and maintenance. The main change was a parallel boiler with round-topped steel firebox instead of the tapered boiler of the 8F with copper Belpaire firebox. The cab was simplified with only one window on each side. In general, many castings and fittings were also simplified. Additionally, provisions were made to quickly convert the locomotives from coal to oil burning.

In the result, the manufacturing of one locomotive now only required 27,000 instead of 33,000 man-hours and the costs were greatly reduced. Between 1943 and 1945, two manufacturers completed 935 locomotives. North British contributed the major part, which were 545 which had been built in their Queen's Park and Hyde Park works in Glasgow. The other 390 had been built by Vulcan Foundry in Newton-le-Willows.

They played a major role in the liberation of Europe and all but three were operated on the European mainland after D-Day. After the war, only three had been lost and only two stayed in service with the War Department. These came to the Longmoor Military Railway. The remainder of 930 soon came to different railway companies.

200 of these were immediately sold to the LNER after the war ended and 533 more came to British Railways when they were founded in 1948. Later, half of the 733 BR locomotives always operated on the ex-LNER territory. They were almost exclusively operated in freight service and withdrawals in larger numbers commenced in 1962. In 1967, the last one was gone.

Another large customer was the Dutch NS. After the war, they bought 184 locomotives which became series 4300. Two of these were again sold to Sweden and became the SJ G11. Twelve were sold to the Kowloon-Canton Railway in Hong Kong and one to the US Army Transportation Corps. One of the two Swedish locomotives later returned to the UK and came to the Keighley and Worth Valley Railway. There, it is in working condition again since 2007.

General
Built1943-1945
ManufacturerNorth British, Vulcan Foundry
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft 10 in
Rigid wheelbase16 ft 3 in
Total wheelbase53 ft 2 in
Service weight161,280 lbs
Adhesive weight138,880 lbs
Total weight286,720 lbs
Axle load34,720 lbs
Water capacity6,005 us gal
Fuel capacity20,160 lbs (coal)
Boiler
Grate area28.6 sq ft
Firebox area168 sq ft
Tube heating area1,512 sq ft
Evaporative heating area1,680 sq ft
Superheater area310 sq ft
Total heating area1,990 sq ft
Power Plant
Driver diameter56.5 in
Boiler pressure225 psi
Expansion typesimple
Cylinderstwo, 19 x 26 in
Power
Power sourcesteam
Estimated power1,750 hp (1,305 kW)
Starting effort31,771 lbf
Calculated Values
steam locomotive
freight
war locomotive
Robert Arthur Riddles
