Sierra Railway No. 24
go back
United States | 1912
only one produced

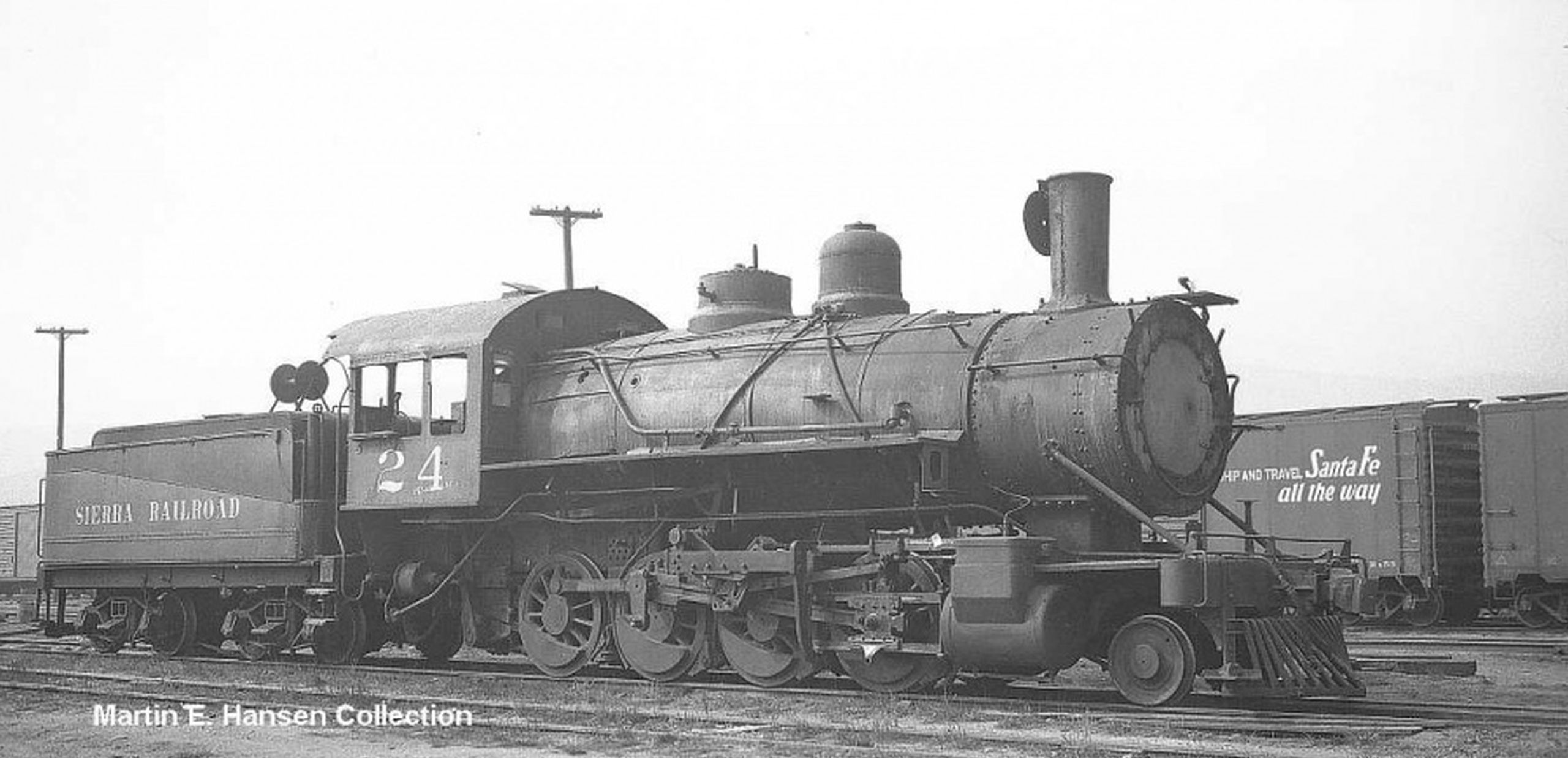

Shortly before her scrapping in 1955 in Bayshore, California
Shortly before her scrapping in 1955 in Bayshore, California
Doug Richter / collection Martin E. Hansen

The locomotive that spent most of its life as Sierra Railway No. 24 was originally operated by the Nevada Copper Belt as their No. 3. After these mines had started to work in 1904, they opened a 42-mile rail network to bring a rising quantity of copper ore from the mines at Yerington and Mason to the smelter plant at Thompson in 1909. Delivered by Baldwin in 1912, this locomotive was a oil-burning Consolidation with a service weight of 163,000 pounds. It was not superheated, but had its firebox completely lined with firebrick to utilize more of the heat from the oil.

The Sierra Railway bought this locomotive in 1921, when it was only nine years old. There it was the largest 2-8-0 by a large margin. In 1955 this company, now called Sierra Railroad, made the switch from steam to diesel. But while other steam locomotives were preserved for movie and excursion service, No. 24 was scrapped in the same year. The photo shows it on its way to the scrapyard when all ornaments and the cylinder rods had already been removed.

General
Built1912
ManufacturerBaldwin
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase22 ft 7 in
Rigid wheelbase14 ft
Total wheelbase52 ft 3 1/2 in
Service weight163,000 lbs
Adhesive weight146,000 lbs
Total weight263,000 lbs
Axle load36,500 lbs
Water capacity5,000 us gal
Fuel capacity2,400 us gal (oil)
Boiler
Grate area32.7 sq ft
Firebox area170 sq ft
Tube heating area2,388 sq ft
Evaporative heating area2,558 sq ft
Total heating area2,558 sq ft
Power Plant
Driver diameter50 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 20 x 26 in
Power
Power sourcesteam
Estimated power1,100 hp (820 kW)
Starting effort35,360 lbf
Calculated Values
steam locomotive
freight
