Atlanta & West Point class P-74
go back
United States | 1926
2 produced
Image of locomotive
collection Josh Scott

The closely linked Atlanta & West Point and the Western Railway of Alabama had to pull the Southern Railway's "Crescent" between Atlanta, Georgia and Montgomery, Alabama. So they each ordered one locomotive, which was given the numbers 290 (AWP) and 190 (WRA). Like the Southern Ps-4, they were based on the USRA Heavy Pacific, but like them also had smaller drivers. The diameter was initially 73 inches and was later increased to 74 inches with thicker tires, which explains the designation P-74.

Both machines were operated together. While one hauled the northbound Crescent, the other simultaneously took over the southbound one. They were retired in 1954, after which the 190 was scrapped. The 290 was saved by the “290 club”, but remained non-operational for the time being. It was finally refurbished between 1986 and 1989 and was used until 1992, when maintenance work on the running gear was required. It now resides at the Southeastern Railway Museum in Duluth, Georgia, awaiting visual restoration. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1926
ManufacturerLima
Wheel arr.4-6-2 (Pacific)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase37 ft
Rigid wheelbase14 ft
Total wheelbase72 ft 5 in
Service weight303,500 lbs
Adhesive weight192,500 lbs
Total weight504,000 lbs
Axle load64,500 lbs
Water capacity11,000 us gal
Fuel capacity30,000 lbs (coal)
Boiler
Grate area70.8 sq ft
Firebox area327 sq ft
Tube heating area3,342 sq ft
Evaporative heating area3,669 sq ft
Superheater area990 sq ft
Total heating area4,659 sq ft
Power Plant
Driver diameter74 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 27 x 28 in
Power
Power sourcesteam
Estimated power3,200 hp (2,386 kW)
Starting effort46,892 lbf
Calculated Values
steam locomotive
express
last changed: 01/2024

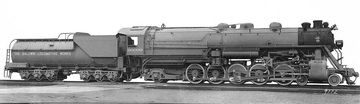

Baldwin No. 60000
go back
United States | 1926
only one produced
Image of locomotive

The Baldwin locomotive with the works number 60000 was a prototype that was built at their own expense in 1926 and with which the company wanted to set the course for locomotive construction of the future. It had the 4-10-2 wheel arrangement and a three-cylinder compound engine with three cylinders of the same size, the inner one serving as high-pressure cylinder.

What was special about the boiler was that the sides of the firebox were made of four-inch water pipes. They were connected at the top with 26-inch horizontal pipes that continued into the boiler barrel. The pressure was 350 psi (24.1 bars), which was significantly higher than conventional locomotives. In addition, a Worthington 4-BL feedwater heater was used.

The 60000 was intended to pull trains of up to 7,000 short tons and achieved an output of 4,515 hp at the drawbar. It was loaned to the PRR, B&O, Burlington Route, ATSF and Southern Pacific for trials and was even temporarily converted to oil firing by the SP. Although it performed very well and pulled up to 7,700 short tons, the railroads found the maintenance too expensive and no orders were placed. Today the 60000 is in the Franklin Institute Science Museum in Philadelphia.

General
Built1926
ManufacturerBaldwin
Wheel arr.4-10-2 (Reid Tenwheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase45 ft 2 in
Rigid wheelbase22 ft 10 in
Total wheelbase86 ft 11 1/4 in
Service weight457,500 lbs
Adhesive weight338,400 lbs
Total weight700,900 lbs
Axle load68,000 lbs
Water capacity12,000 us gal
Fuel capacity32,000 lbs (coal)
Boiler
Grate area82.5 sq ft
Firebox area772 sq ft
Tube heating area4,420 sq ft
Evaporative heating area5,192 sq ft
Superheater area1,357 sq ft
Total heating area6,549 sq ft
Power Plant
Driver diameter63.5 in
Boiler pressure350 psi
Expansion typecompound
Cylindersthree, HP: 27 x 32 in
and LP: 27 x 32 in
Power
Power sourcesteam
Estimated power5,200 hp (3,878 kW)
Top speed70 mph
Starting effort82,500 lbf
with start valve99,000 lbf
Calculated Values
steam locomotive
freight
prototype
last changed: 12/2023
Bell's Gap Railroad No. 1
go back
United States | 1872
only one produced
Image of locomotive

The Bell's Gap Railroad was a 8.5 mile line in Cambria County, Pennsylvania. Built in three-foot gauge, it was opened in June 1873. The line had grades of up to three percent and multiple long curves with a radius of 206 feet. Their first locomotive was a 0-6-0 built by Baldwin in July 1872, costing 8,250 dollars and designated class 11 D 1 by its manufacturer. For the first half year of operation of the line, No. 1 was the only locomotive. It went to the Houston East & West Texas Railway in 1881, two years before the line was converted to standard gauge

General
Built1872
ManufacturerBaldwin
Wheel arr.0-6-0 (Six-coupled)
Gauge3 ft (Three feet)
Dimensions and Weights
Service weight31,000 lbs
Fuel capacitycoal
Boiler
Power Plant
Driver diameter36 in
Expansion typesimple
Power
Power sourcesteam
Calculated Values
steam locomotive
freight
narrow gauge
last changed: 06/2025

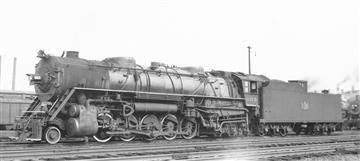

Bessemer & Lake Erie class H1
go back
United States | 1929
47 produced
H-1b No. 603
H-1b No. 603
LaMar M. Kelley / collection Taylor Rush

In the late twenties, the Bessemer & Lake Erie as a part of U.S. Steel needed more powerful locomotives to move their heavy ore trains from the Lake Erie port of Conneaut, Ohio to Pittsburgh, Pennsylvania over grades of up to one percent. Since they didn't like articulated locomotives and wanted a proven non-articulated design, they ordered a 2-10-4 from Baldwin that was delivered in 1929.

This locomotive, numbered 601, was based on the Burlington class M-4 and was one of the heaviest and most powerful non-articulated locomotives of the time at a service weight of 502,630 pounds without a tender. It had drivers of 64 inches (1,626 mm) and cylinders of 31 by 32 inches. Together with its trailing truck booster, it developed a tractive effort of 115,206 pounds. Its boiler produced up to 4,690 hp

The prototype was designated class H1A and was the first of a total of 47 locomotives. The subclasses H1B to H1G were created with several batches following in the years 1930, 1936, 1937 and 1941 to 1944. With the exception of ten H1D built by ALCO in 1937, all were built by Baldwin. Over time, they got heavier with the last batches weighing 524,440 pounds. The axle loading rose from 72,100 pounds, what was already high, to 75,984 pounds. Together with tender, they exceeded a total weight of 450 tons.

In Service, three locomotives each were used to haul 13,000 ton ore trains over the one percent grade. When the B&LE dieselized in the early fifties, 18 were sold to the Duluth, Missabe & Iron Range Railway, which was also a part of U.S. Steel. There they became classes E-4 to E-7 and were used until 1961. The B&LE already retired the others in 1952. The only one that survived is H1G No. 643 that today is being located at the Age of Steam Roundhouse at Sugarcreek, Ohio.

General
Built1929-1944
ManufacturerBaldwin, ALCO
Wheel arr.2-10-4 (Texas)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase45 ft 6 in
Rigid wheelbase22 ft 4 in
Total wheelbase95 ft 3 in
Empty weight436,650 lbs
Service weight519,840 lbs
Adhesive weight371,000 lbs
Total weight906,840 lbs
Axle load75,500 lbs
Water capacity23,000 us gal
Fuel capacity52,000 lbs (coal)
Boiler
Grate area106.5 sq ft
Firebox area570 sq ft
Tube heating area5,342 sq ft
Evaporative heating area5,912 sq ft
Superheater area2,487 sq ft
Total heating area8,399 sq ft
Power Plant
Driver diameter64 in
Boiler pressure250 psi
Expansion typesimple
Cylinderstwo, 31 x 32 in
Power
Power sourcesteam
Indicated power4,715 hp (3,516 kW)
Top speed50 mph
Starting effort102,106 lbf
Booster13,235 lbf
Calculated Values
steam locomotive
freight
booster
last changed: 09/2024
Bessemer & Lake Erie classes D1A and D1B
go back
United States | 1916
20 produced
No. 507 in February 1938 at Albion, Pennsylvania
No. 507 in February 1938 at Albion, Pennsylvania
Paul W. Prescott / Taylor Rush collection

The B&LE used two types of 2-10-2 “Santa Fe” locomotives. The 20 locomotives designed by Baldwin for this railroad were the D1A shown here, while five of the Heavy USRA design were delivered in 1919 as D2A. The D1A had drivers of 60 inches and cylinders with a diameter of 30 inches and a stroke of 32 inches. When delivered between August and November 1916, they carried different works numbers between 43950 and 44208. The B&LE numbered them 501 to 520.

Originally the firebox had a surface of 259 square feet in its walls and 129 in the combustion chamber. Additionally, the arch tubes had a surface of 42 square feet. Their four-axle Vanderbilt tenders had a capacity of 10,000 gallons of water and 16 tons of coal. In the thirties, some were equipped with massive six-axle tenders which carried 22,000 gallons and 23 tons. These weighed around 400,000 pounds and brought the total weight to nearly 800,000 pounds. No. 505 got the same tender, but with two booster engines, each of which powered two axles in each truck. Both together added 26,250 pounds of tractive effort, for a total of more than 110,000 pounds

To increase the power, they got thermic syphons around 1940. These added 99 square feet to the direct heating surface, what increased their boiler output to 3,947 hp. At least three locomotives also received overfire steam jets. These added fresh air to the fire, resulting in a cleaner combustion and reducing smoke. They were retired between 1948 and 1951.

Variantas builtwith thermic syphonsD1B
General
Built1916
ManufacturerBaldwin
Wheel arr.2-10-2 (Santa Fé)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length88 ft 6 3/8 in103 ft 3 in
Wheelbase40 ft 7 in
Rigid wheelbase21 ft 4 in
Total wheelbase77 ft 8 1/4 in77 ft 8 1/2 in91 ft 3 1/2 in
Empty weight361,100 lbs362,100 lbs
Service weight404,250 lbs411,550 lbs412,550 lbs
Adhesive weight332,700 lbs336,830 lbs337,430 lbs
Total weight585,000 lbs602,300 lbs813,700 lbs
Axle load60,300 lbs60,400 lbs
Water capacity10,000 us gal22,000 us gal
Fuel capacity32,000 lbs (coal)40,000 lbs (coal)46,000 lbs (coal)
Boiler
Grate area88 sq ft
Firebox area431 sq ft514 sq ft
Tube heating area4,760 sq ft4,738 sq ft
Evaporative heating area5,191 sq ft5,252 sq ft
Superheater area1,237 sq ft
Total heating area6,428 sq ft6,489 sq ft
Variantas builtwith thermic syphonsD1B
Power Plant
Driver diameter60 in
Boiler pressure210 psi
Expansion typesimple
Cylinderstwo, 30 x 32 in
Power
Power sourcesteam
Indicated power3,947 hp (2,943 kW)
Estimated power3,400 hp (2,535 kW)
Starting effort85,680 lbf
Booster26,250 lbf
Calculated Values
steam locomotive
freight
powered tender
last changed: 04/2026
Central Vermont class T-3a
go back
United States | 1928
10 produced
No. 702 on a works photo
No. 702 on a works photo
collection Taylor Rush

In 1928, ALCO-Schenectady delivered ten 2-10-4 “Texas” locomotives to the Central Vermont which were relatively light for their wheel arrangement. But at 419,000 pounds for the locomotive and a total with tender of 688,600 pounds, they were still the heaviest locomotives ever in service in New England. So there are reports that they shook the ground and damaged the rails. They carried the numbers 700 to 709.

Even though the starting tractive effort calculated using the usual formula was 82,620 pounds, ALCO gives 76,800 pounds due to the limited cutoff. Additionally, the booster provided 13,100 pounds. They had thermic syphons, arch tubes and an Elasco K-50 feed water heater. They were retired between 1954 and 1959.

General
Built1928
ManufacturerALCO
Wheel arr.2-10-4 (Texas)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase44 ft 2 in
Rigid wheelbase22 ft
Total wheelbase82 ft 2 1/4 in
Service weight419,000 lbs
Adhesive weight285,000 lbs
Total weight57,000 lbs
Axle load688,600 lbs
Water capacity13,500 us gal
Fuel capacity40,000 lbs (coal)
Boiler
Grate area84.4 sq ft
Firebox area423 sq ft
Tube heating area4,280 sq ft
Evaporative heating area4,703 sq ft
Superheater area2,208 sq ft
Total heating area6,911 sq ft
Power Plant
Driver diameter60 in
Boiler pressure250 psi
Expansion typesimple
Cylinderstwo, 27 x 32 in
Power
Power sourcesteam
Estimated power4,200 hp (3,132 kW)
Starting effort82,620 lbf
Booster13,100 lbf
Calculated Values
steam locomotive
freight
booster
last changed: 01/2025
Central Vermont class U-1a
go back
United States | 1927
4 produced
No. 603 in 1952 with the “Ambassador”
No. 603 in 1952 with the “Ambassador”
Taylor Rush collection

The Central Vermont operated four 4-8-2 “Mountain” locomotives which had been ordered by the parent Canadian National and leased to this railroad. Built in May 1927 by ALCO-Schenectady, they had the works numbers 67335 to 67338 and got the running numbers 600 to 603. With a driver diameter of 73 inches, they were intended for passenger trains like the “Ambassador”, but sometimes also had to haul freight trains. The 384 square feet of the firebox included a combustion chamber of 54 inches in length, 14 square feet of arch tubes and two thermic syphons with a total of 76 square feet

They featured Walschaerts valve gear, a stoker built by the Standard Stoker Co. and a Coffin feed water heater. The boiler pressure was later raised from 200 to 210 psi. Originally they had tenders which carried 10,000 gallons of water and 14 tons of coal. Later, they had new or modified tenders with only 9,550 gallons of water, but 18 tons of coal. Three were retired in 1956 and the fourth one in 1957.

General
Built1927
ManufacturerALCO
Wheel arr.4-8-2 (Mountain)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length87 ft 7 3/4 in
Wheelbase42 ft 1 in
Rigid wheelbase19 ft 7 in
Total wheelbase76 ft 11 1/2 in
Empty weight293,200 lbs
Service weight326,100 lbs
Adhesive weight215,500 lbs
Total weight526,160 lbs
Water capacity9,550 us gal
Fuel capacity36,000 lbs (coal)
Boiler
Grate area66.8 sq ft
Firebox area384 sq ft
Tube heating area3,472 sq ft
Evaporative heating area3,856 sq ft
Superheater area968 sq ft
Total heating area4,824 sq ft
Power Plant
Driver diameter73 in
Boiler pressure210 psi
Expansion typesimple
Cylinderstwo, 26 x 28 in
Power
Power sourcesteam
Estimated power3,250 hp (2,424 kW)
Starting effort46,283 lbf
Calculated Values
steam locomotive
passenger
express
last changed: 04/2026
Schematic drawing
Schematic drawing
Central Vermont 1957 Loco Diagrams
Clinchfield class L-3
US Railroad Administration Heavy Mallet (copy)
go back
United States | 1923
10 produced
Image of locomotive
collection Taylor Rush

When the Clinchfield needed more 2-8-8-2 Mallets in 1923, they had two earlier classes to take as a basis: either the L-1 built by Baldwin in 1919 after their own design or the USRA standard design built by Baldwin in the same year that was called class L-2. They decided to order ten nearly exact USRA copies, which were now built by ALCO-Brooks and designated class L-3. They were used to haul heavy coal trains over the Appalachian mountains. One suffered a boiler explosion in 1948 and was scrapped. While the L-1 was retired by 1950, the L-3 and their L-2 sisters were only retired between 1950 and 1952. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1923
ManufacturerALCO
Wheel arr.2-8-8-2 (Mikado Mallet)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase58 ft
Rigid wheelbase15 ft 9 in
Total wheelbase94 ft 6 in
Service weight541,000 lbs
Adhesive weight486,500 lbs
Total weight750,000 lbs
Axle load62,000 lbs
Water capacity12,000 us gal
Fuel capacity32,000 lbs (coal)
Boiler
Grate area96 sq ft
Firebox area435 sq ft
Tube heating area5,685 sq ft
Evaporative heating area6,120 sq ft
Superheater area1,475 sq ft
Total heating area7,595 sq ft
Power Plant
Driver diameter57 in
Boiler pressure240 psi
Expansion typecompound
Cylindersfour, HP: 25 x 32 in
and LP: 39 x 32 in
Power
Power sourcesteam
Estimated power3,900 hp (2,908 kW)
Starting effort101,465 lbf
with start valve121,758 lbf
Calculated Values
steam locomotive
freight
Mallet
last changed: 10/2024
Clinchfield classes G-1 and G-2
go back
United States | 1905
5 produced
G-2 No. 100
G-2 No. 100
Railway and Locomotive Engineering, March 1909

Although the Clinchfield and its predecessors had their focus on coal transport, they still needed a limited number of passenger locomotives. So a single 4-6-0 was ordered by the South & Western Railroad from Baldwin in 1905. It became their Number 1 and had drivers of 63 inches. Its low rank in the railroad's roster could be determined by the fact that it was still built after the same principles as typical 19th century designs, with slide valves and Stephenson valve gear. When the railroad became the Carolina, Clinchfield and Ohio in 1908, it was renumbered to 99.

While it appears that the 99 was only used for occasional passenger trains, the introduction of regular passenger service in 1909 created the need for more locomotives. These were again ordered from the same manufacturer and also had 63-inch drivers, but were considerably heavier. Service weight was now 163,600 pounds, compared to 137,700 pounds for the G-1. They had Walschaerts valve gear and the cylinder diameter had been increased by one inch. Designated class G-2, they carried the numbers 100 to 103. At the same time Baldwin also supplied 15 Consolidations of the class H-4 and many parts were designed to be interchangeable between both classes.

All were never superheated due to the low significance of passenger service on the Clinchfield. No. 103 was already retired in 1932 and the rest of class G-2 was scrapped in 1938. No. 99 worked on until the early fifties and was sold to the Black Mountain Railroad in 1953. There it became No. 3, but was retired only three years later. Then it came to the Casey Jones Museum in Jackson, Tennessee where it can still be found today. There it received the historically incorrect lettering as Illinois Central No. 382 to stand in as the locomotive that Casey Jones was running when the fatal accident happened.

VariantG-1G-2
General
Built19051909
ManufacturerBaldwin
Wheel arr.4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length58 ft 0 5/18 in68 ft 10 5/8 in
Wheelbase24 ft 6 in26 ft 5 in
Rigid wheelbase13 ft 4 in15 ft
Total wheelbase49 ft 1 7/16 in59 ft 5 1/8 in
Service weight137,700 lbs163,600 lbs
Adhesive weight98,000 lbs125,300 lbs
Total weight237,000 lbs302,200 lbs
Axle load32,700 lbs43,250 lbs
Water capacity4,500 us gal6,000 us gal
Fuel capacity25,000 lbs (coal)24,000 lbs (coal)
Boiler
Grate area29.2 sq ft33.3 sq ft
Firebox area142 sq ft174 sq ft
Tube heating area1,997 sq ft2,343 sq ft
Evaporative heating area2,139 sq ft2,517 sq ft
Total heating area2,139 sq ft2,517 sq ft
VariantG-1G-2
Power Plant
Driver diameter63 in
Boiler pressure200 psi190 psi
Expansion typesimple
Cylinderstwo, 19 x 26 intwo, 20 x 26 in
Power
Power sourcesteam
Estimated power900 hp (671 kW)1,000 hp (746 kW)
Starting effort25,327 lbf26,660 lbf
Calculated Values
steam locomotive
passenger
last changed: 02/2026
G-1 No. 99 standing in as ICRR No. 382 in the Casey Jones Museum
G-1 No. 99 standing in as ICRR No. 382 in the Casey Jones Museum
Uli Slovig
East Broad Top No. 12
go back
United States | 1911
only one produced
In June 1961 in Rockhill Furnace, Pennsylvania
In June 1961 in Rockhill Furnace, Pennsylvania
collection Taylor Rush

The East Broad Top operated six Mikados, all of which survive to this day. The oldest of these is No. 12, which was christened “Millie”. Like her newer sisters, she had 48-inch diameter drivers, but was lighter and had smaller cylinders. When the EBT was reopened in 1960 as a complete heritage railway with all its equipment, number 12 remained in service with three of her sisters until she had to be retired in 2000 due to wear and tear. After the railroad had reopened in 2020 under new ownership, the locomotive remains inoperable and it remains to be seen if she will be refurbished. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1911
ManufacturerBaldwin
Wheel arr.2-8-2 (Mikado)
Gauge3 ft (Three feet)
Dimensions and Weights
Wheelbase26 ft 2 in
Rigid wheelbase13 ft
Total wheelbase48 ft 10 1/2 in
Service weight112,000 lbs
Adhesive weight88,000 lbs
Total weight172,000 lbs
Axle load22,000 lbs
Water capacity3,000 us gal
Fuel capacity12,000 lbs (coal)
Boiler
Grate area32.2 sq ft
Firebox area110 sq ft
Tube heating area1,576 sq ft
Evaporative heating area1,686 sq ft
Total heating area1,686 sq ft
Power Plant
Driver diameter48 in
Boiler pressure180 psi
Expansion typesimple
Cylinderstwo, 17 x 24 in
Power
Power sourcesteam
Estimated power800 hp (597 kW)
Starting effort22,108 lbf
Calculated Values
steam locomotive
freight
narrow gauge
last changed: 08/2023
Showing 1 to 10 of 23
Search
loadding loading...

We use cookies to save the following settings:

  • selected navigation structure
  • selected language
  • preferred units
  • spelling of railway company names

If you refuse the use of cookies, the settings will only be retained for the current session and will be reset to the default values the next time you visit the site.

Display of units

Here you can set the desired unit system for the technical data.

  • Metric: Lengths in meters, weights in tonnes, and volumes in cubic meters
  • Imperial (UK): Lengths in feet/inches, weights in long tons and volumes in imperial gallons
  • Imperial (US): Lengths in feet/inches, weights in pounds, and volumes in US gallons
  • Individual: Depends on the country of origin of each locomotive
Operator names

Here you can set the display of railway company names.

  • Short: Abbreviation or short form of the name
  • Standard: commonly used name, partially translated to English
  • Complete: full name in local language
