Camden & Amboy Railroad “John Bull”
United States | 1831
only one produced
“John Bull” after installing the leading truck, but still without the driver's cab
“John Bull” after installing the leading truck, but still without the driver's cab
Library of Congress

The “John Bull” was a locomotive built by Robert Stephenson & Co. in England and was among the first to be used in the United States. It was built in 1831, initially as a 0-4-0 and was shipped disassembled to New Jersey. There it was reassembled by the Camden & Amboy and christened “John Bull”, which was a personification of England. Since only horses were used in the construction of the railroad, the locomotive was not used until 1833, after it opened.

It initially had no cab and the tender was a home-made design that used a whiskey barrel as a water tank. After it derailed several times on the cheaper laid American tracks, a leading axle including a cow catcher was added, which gave it its well-known, distinctive appearance. The coupling rods were removed, meaning only the last axle was powered. Later it received a real tender and then a cab.

This nickname was soon officially adopted, so the name “Stevens” fell out of use. Its active service with the Camden & Amboy lasted until 1866. After the PRR purchased the C&A in 1871, it was restored and used for various public demonstrations. It came into the possession of the Smithsonian in 1884 and was not moved for a long time. After the PRR had a working replica built in 1939, the original was moved again under its own power in 1981 for its 150th birthday, making it the oldest operational locomotive in the world.

Variantas builtrebuilt
General
Built1831
ManufacturerRobert Stephenson & Co.Camden & Amboy
Axle config0-4-0 (Four-coupled) 4-2-0
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase4 ft 11 in
Rigid wheelbase4 ft 11 in
Service weight20,000 lbs
Fuel capacitywood
Boiler
Grate area10.1 sq ft
Firebox area34.8 sq ft
Tube heating area262.2 sq ft
Evaporative heating area297 sq ft
Total heating area297 sq ft
Variantas builtrebuilt
Power Plant
Driver diameter54 in
Boiler pressure40 psi
Expansion typesimple
Cylinderstwo, 9 x 20 in
Power
Power sourcesteam
Estimated power50 hp (37 kW)
Starting effort1,020 lbf
Calculated Values
Optimal speed31 mph
steam locomotive
passenger
freight
prototype
last changed: 03/2024
Drawing of the original appearance with two cars
Drawing of the original appearance with two cars
Railway and Locomotive Engineering, March 1891
Cumberland Valley No. 13 “Pioneer”
United States | 1851
4 produced
“Pioneer” at the 1948 Chicago Railroad Fair
“Pioneer” at the 1948 Chicago Railroad Fair
Dudley W. Thickens / collection Taylor Rush

In 1851, the Cumberland Valley had a tank locomotive built by Seth Wilmarth, which was intended for passenger trains with a small number of passengers. The basic idea was to keep the ratio of the empty weight of the locomotive to the weight of the train as advantageous as possible in order to save costs. It had the wheel arrangement 2-2-2, which was generally very rare in tank locomotives and was hardly found in the USA, even with tender locomotives. In addition to the “Pioneer” there was also the almost identical “Jenny Lind” and two other very similar locomotives.

The “Pioneer” could accelerate a train of four passenger cars to 40 mph and achieved a high mileage for several years for its standards. After the Civil War, it was used to haul work trains because its power was no longer sufficient for modern passenger trains. Although it was later put into storage, it officially remained in service until 1901. It was then donated to the Smithsonian Institution and used as a working display at appropriate events.

General
Built1851
ManufacturerSeth Wilmarth
Axle config2-2-2T (Jenny Lind)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase13 ft 7 in
Rigid wheelbase13 ft 7 in
Service weight25,000 lbs
Water capacity600 us gal
Fuel capacitywood
Boiler
Grate area5.3 sq ft
Firebox area41.1 sq ft
Tube heating area219 sq ft
Evaporative heating area260 sq ft
Total heating area260 sq ft
Power Plant
Driver diameter54 in
Boiler pressure100 psi
Expansion typesimple
Cylinderstwo, 8 1/2 x 14 in
Power
Power sourcesteam
Estimated power40 hp (30 kW)
Starting effort1,592 lbf
Calculated Values
Optimal speed16 mph
steam locomotive
tank locomotive
passenger
last changed: 09/2022
Schematic drawing
Schematic drawing
Railway and Locomotive Engineering, October 1903
Pennsylvania class AAn
later classes D7 and D7a
United States | 1882
119 produced
D7a No. 953 in an Altoona Works factory photograph
D7a No. 953 in an Altoona Works factory photograph
Pennsylvania Railroad

In order to be able to burn anthracite coal efficiently, class AAn was developed from class K (later D6). The K already had a wide firebox above the drivers, which was optimized here for the use of anthracite. There were 58 locomotives with a coupling wheel diameter of 68 inches, which became class D7 from 1895, and 61 with a coupling wheel diameter of 62 inches, which became class D7a.

VariantD7D7a
General
Built1882-1891
ManufacturerAltoona
Axle config4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length58 ft 0 9/16 in
Wheelbase22 ft 8 in
Rigid wheelbase7 ft 9 in
Total wheelbase48 ft 6 in
Service weight93,350 lbs96,330 lbs
Adhesive weight64,000 lbs65,180 lbs
Total weight153,350 lbs156,330 lbs
Axle load33,100 lbs32,650 lbs
Water capacity2,400 us gal
Fuel capacity12,000 lbs (coal)
Boiler
Grate area34.8 sq ft
Firebox area155 sq ft
Tube heating area1,134 sq ft
Evaporative heating area1,289 sq ft
Total heating area1,289 sq ft
VariantD7D7a
Power Plant
Driver diameter68 in62 in
Boiler pressure140 psi
Expansion typesimple
Cylinderstwo, 17 x 24 in
Power
Power sourcesteam
Estimated power700 hp (522 kW)
Starting effort12,138 lbf13,313 lbf
Calculated Values
Optimal speed37 mph34 mph
steam locomotive
freight
passenger
last changed: 03/2023
Pennsylvania class B6
United States | 1902
372 produced
B6sb No. 4148 between two sisters probably in Alton, Illinois
B6sb No. 4148 between two sisters probably in Alton, Illinois
collection Taylor Rush

When it came to switchers, here called “shifters”, the PRR stuck to locomotives with a maximum of three axles, but still sufficient tractive power until the mid-20s. The most successful class here was the B6, of which a total of 372 were built between 1902 and 1920. It started with 79 of the basic B6, which were operated with saturated steam and had the Belpaire firebox typical of the PRR.

From 1913 onwards, 55 B6sa followed, which had a round firebox and were factory-built with a superheater. The largest number was reached by the B6sb with 238, which again had a Belpaire firebox. The B6 were also later rebuilt with superheaters and referred to as B6s. Today there are still two B6sa and B6sb, both of which are not operational. So far there is only a short text for this vehicle. In the future it will be described in more detail.

VariantB6B6saB6sb
General
Built1902-19131913-19141916-1920
ManufacturerAltoona, Baldwin, LimaAltoona
Axle config0-6-0 (Six-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase11 ft 6 in
Rigid wheelbase11 ft 6 in
Service weight170,000 lbs180,000 lbs
Adhesive weight170,000 lbs180,000 lbs
Axle load56,667 lbs60,000 lbs
Fuel capacitycoal
Boiler
Grate area41.2 sq ft62 sq ft61.6 sq ft
Evaporative heating area2,459 sq ft1,883 sq ft1,907 sq ft
Superheater area678 sq ft464 sq ft
Total heating area2,459 sq ft2,561 sq ft2,371 sq ft
VariantB6B6saB6sb
Power Plant
Driver diameter56 in
Boiler pressure205 psi
Expansion typesimple
Cylinderstwo, 22 x 24 in
Power
Power sourcesteam
Estimated power900 hp (671 kW)1,400 hp (1,044 kW)1,300 hp (969 kW)
Starting effort36,144 lbf
Calculated Values
Optimal speed16 mph25 mph23 mph
steam locomotive
switcher
last changed: 03/2024
B6sb No. 1670 at the Railroad Museum of Pennsylvania, Strasburg
B6sb No. 1670 at the Railroad Museum of Pennsylvania, Strasburg
James St. John / Pennsylvania Railroad # 1670 steam locomotive (0-6-0) 1
Pennsylvania class C1
United States | 1925
90 produced
No. 6583 in July 1940 in Cleveland, Ohio
No. 6583 in July 1940 in Cleveland, Ohio

The Pennsylvania Railroad's class C1 was the heaviest 0-8-0 locomotive ever built. It had a service weight of 278,000 pounds and a maximum axle load of 74,000 pounds on the first axle. Due to its long wheelbase of 15 ft 9 in, however, the tracks were damaged and there were also frequent derailments. As far as possible, only switching locomotives with a 0-6-0 wheel arrangement were used. Nevertheless, the C1 was able to demonstrate its high tractive power on hump yards. The 90 locomotives were retired between 1948 and 1953. So far there is only a short text for this vehicle. In the future it will be described in more detail.

General
Built1925, 1927
ManufacturerAltoona
Axle config0-8-0 (Eight-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase15 ft 9 in
Rigid wheelbase15 ft 9 in
Service weight278,000 lbs
Adhesive weight278,000 lbs
Axle load74,000 lbs
Fuel capacitycoal
Boiler
Grate area61.7 sq ft
Evaporative heating area3,921 sq ft
Superheater area1,194 sq ft
Total heating area5,115 sq ft
Power Plant
Driver diameter56 in
Boiler pressure250 psi
Expansion typesimple
Cylinderstwo, 27 x 30 in
Power
Power sourcesteam
Estimated power2,500 hp (1,864 kW)
Starting effort82,989 lbf
Calculated Values
Optimal speed19 mph
steam locomotive
switcher
last changed: 08/2023
Pennsylvania class D
United States | 1852
11 produced
Schematic drawing as built
Schematic drawing as built
Locomotive Engineering, February 1898

In principle, the PRR class D can be described as the first Moguls, but the leading axle was fixed in the frame. The driving axles with small wheel diameters were well spaced within the frame. The tender already had four axles, but only the first two were in a movable bogie and the rear ones were fixed in the frame.

Although the locomotives were generally described as being a good design, the smooth running was apparently not entirely convincing. This is the way to explain why the chassis was later rebuilt. Some locomotives were rebuilt to 4-4-0 with larger wheels. A third driving axle was installed later again, resulting in a 4-6-0 wheel arrangement. They were scrapped in the late 1860s.

General
Built1852-1853
ManufacturerBaldwin
Axle config2-6-0 (Mogul)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase18 ft
Rigid wheelbase13 ft
Service weight65,500 lbs
Adhesive weight46,700 lbs
Axle load18,800 lbs
Boiler
Grate area14.1 sq ft
Power Plant
Driver diameter44 in
Boiler pressure75 psi
Cylinderstwo, 18 x 22 in
Power
Calculated Values
steam locomotive
freight
last changed: 03/2023
After the rebuild to a 4-6-0
After the rebuild to a 4-6-0
Railway and Locomotive Engineering, January 1905
Pennsylvania class E1
United States | 1899
3 produced
Image of locomotive
collection Taylor Rush

The Pennsylvania Railroad wanted to accommodate a larger grate area in Atlantic locomotives in order to be able to burn anthracite and fragments thereof. For this purpose, three locomotives were procured on a trial basis, which had a combination of Wootten and Belpaire fireboxes and were designed as Camelbacks. The special shape of the firebox and the combustion chamber resulted in 218 square feet of direct heating surface and a grate surface of nearly 70 square feet. A visual highlight was the common cover of the steam dome and the sandpit, which looked like a huge steam dome

The approximately 410-ton express trains between Philadelphia and Atlantic City could be transported over longer sections at an average speed of around 55 mph. With only 260 tons on the hook, an average speed of 70 mph was achieved on the 58 miles long, slightly descending section from Camden to Atlantic City.

Ultimately, however, the PRR was bothered by the fact that the engine driver and the fireman had difficulty communicating. Hundreds of other Atlantics were procured as a result, but all of them with a conventional firebox and cab at the rear end. The three engines were sold to the Long Island Railroad in 1901 and scrapped in 1911.

General
Built1899
ManufacturerAltoona
Axle config4-4-2 (Atlantic)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase27 ft 9 ín
Rigid wheelbase7 ft 5 in
Service weight173,450 lbs
Adhesive weight101,550 lbs
Total weight263,450 lbs
Axle load50,775 lbs
Water capacity4,000 us gal
Fuel capacity12,000 lbs (coal)
Boiler
Grate area69.2 sq ft
Firebox area218 sq ft
Tube heating area2,102 sq ft
Evaporative heating area2,320 sq ft
Total heating area2,320 sq ft
Power Plant
Driver diameter80 in
Boiler pressure185 psi
Expansion typesimple
Cylinderstwo, 20 1/2 x 26 in
Power
Power sourcesteam
Estimated power1,400 hp (1,044 kW)
Starting effort21,477 lbf
Calculated Values
Optimal speed42 mph
steam locomotive
express
camelback
last changed: 07/2022
Pennsylvania class E2
United States | 1901
299 produced
The first built E2 No. 269
The first built E2 No. 269
Railway and Locomotive Engineering, January 1900

To overcome the disadvantages of the class E1 Camelback Atlantics, the E2 was developed in a conventional arrangement. The elimination of the Wootten firebox reduced the grate area from 69 to 51 square feet and eliminated the combustion chamber, but increased the heating area from 2,320 to 2,430 square feet. The dimensions of the cylinders and wheels remained the same, and the same three-axle tender was used. Only the later variants received four-axle tenders.

After 82 of the class E2 built at Altoona, a total of 93 of the class E2a were built from 1902. They differed from the original model mainly in the Belpaire firebox and 32 of them came from ALCO-Schenectady. In 1903 and 1904, 70 E2b were built, which still had Stephenson valve gear, but now had piston instead of slide valves. Four of them formed the basis for the E28 and E29 class compound locomotives. Parallel to the E2b, 22 E2c were built, which again had slide valves. Finally, between 1906 and 1908, 32 E2d followed, which now had Walschaert valve gear and piston valves. In order to achieve a higher adhesive weight, the three carrying axles were loaded by a total of around five tons less than on the E2c.

A large number of locomotives of the various E2 variants were later superheated. This included the E2sd class, which compared to the E2d showed hardly any differences apart from the superheater. Others were rebuilt to different variants of the E3 and E7. These had larger cylinders and some smaller coupled wheels.

VariantE2E2aE2dE2sd
General
Built1901-19021902-19051906-19081913
ManufacturerAltoonaAltoona, ALCOAltoona
Axle config4-4-2 (Atlantic)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase30 ft 10 in30 ft 9 1/2 in
Rigid wheelbase7 ft 6 in7 ft 5 in
Total wheelbase53 ft 9 1/2 in60 ft 2 1/2 in60 ft 6 1/2 in
Service weight169,350 lbs184,167 lbs190,400 lbs193,200 lbs
Adhesive weight110,630 lbs110,001 lbs122,900 lbs125,800 lbs
Total weight318,667 lbs325,400 lbs345,100 lbs
Axle load51,105 lbs56,667 lbs62,300 lbs63,300 lbs
Water capacity4,000 us gal7,000 us gal5,800 us gal
Fuel capacity13,000 lbs (coal)20,000 lbs (coal)27,200 lbs (coal)31,200 lbs (coal)
Boiler
Grate area51 sq ft55.5 sq ft
Firebox area152 sq ft165.7 sq ft166 sq ft187 sq ft
Tube heating area2,278 sq ft2,474.3 sq ft2,474 sq ft1,854 sq ft
Evaporative heating area2,430 sq ft2,640 sq ft2,041 sq ft
Superheater area412 sq ft
Total heating area2,430 sq ft2,640 sq ft2,453 sq ft
VariantE2E2aE2dE2sd
Power Plant
Driver diameter80 in
Boiler pressure185 psi205 psi195 psi
Expansion typesimple
Cylinderstwo, 20 1/2 x 26 in
Power
Power sourcesteam
Estimated power1,400 hp (1,044 kW)1,600 hp (1,193 kW)1,750 hp (1,305 kW)
Starting effort21,477 lbf23,799 lbf22,638 lbf
Calculated Values
Optimal speed42 mph43 mph49 mph
steam locomotive
express
last changed: 09/2022
E2b No. 8478 with Belpaire firebox
E2b No. 8478 with Belpaire firebox
Railway and Locomotive Engineering, August 1904
Pennsylvania class E3
United States | 1903
178 produced
E3sd No. 2985, a former E3a, at Oyster Bay, New York
E3sd No. 2985, a former E3a, at Oyster Bay, New York
George B. Ritz / collection Taylor Rush

The E3 was an Atlantic that was built by the PRR parallel to its E2 that was largely similar, but had larger cylinders. Between 1901 and 1910, a total of eight E3, 114 E3a and 56 E3d were built in the Juniata shops at Altoona. With 80 inch drivers they could not produce a high tractive effort, but with the introduction of steel passenger cars this was offset by operating them double-headed.

After the more powerful E6 Atlantics had been introduced, the E2 and E3 were called “Light Atlantics”. Beginning in 1912 they were superheated and their boiler pressure was reduced from 205 to 195 psi. In this process, a total of 90 E2a, E2d, E3a and E3d became the E3sd. They were used until the thirties and all were scrapped.

VariantE3arebuilt E3sd
General
Built1903-19051912-1914
ManufacturerAltoona
Axle config4-4-2 (Atlantic)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase30 ft 9 1/2 in
Rigid wheelbase7 ft 5 in
Total wheelbase60 ft 2 1/2 in60 ft 6 1/2 in
Service weight190,000 lbs208,700 lbs
Adhesive weight118,400 lbs128,900 lbs
Total weight325,000 lbs360,600 lbs
Axle load61,700 lbs67,400 lbs
Water capacity5,800 us gal
Fuel capacity26,000 lbs (coal)28,000 lbs (coal)
Boiler
Grate area55.5 sq ft
Firebox area165.7 sq ft187 sq ft
Tube heating area2,473.3 sq ft1,854 sq ft
Evaporative heating area2,639 sq ft2,041 sq ft
Superheater area412 sq ft
Total heating area2,639 sq ft2,453 sq ft
VariantE3arebuilt E3sd
Power Plant
Driver diameter80 in
Boiler pressure205 psi195 psi
Expansion typesimple
Cylinderstwo, 22 x 26 in
Power
Power sourcesteam
Estimated power1,600 hp (1,193 kW)1,700 hp (1,268 kW)
Starting effort27,410 lbf26,072 lbf
Calculated Values
Optimal speed37 mph42 mph
steam locomotive
express
last changed: 11/2024
Pennsylvania class G5s
United States | 1923
90 produced

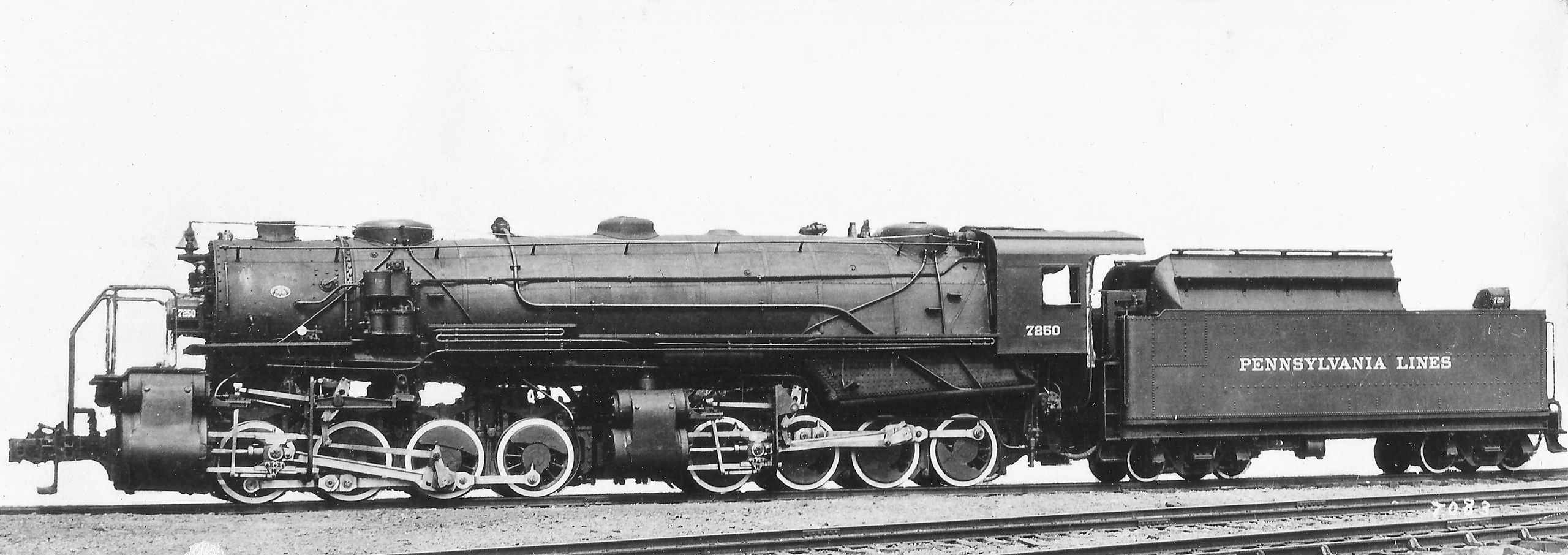

Image of locomotive
Railway and Locomotive Engineering, November 1923

For local service, the PRR needed a locomotive with great tractive effort and fast acceleration, as there were many grades. In order to be able to prevent double heading with locomotives with two driving axles, a locomotive with three driving axles was required. The choice fell on a ten-wheeler, i.e. on the wheel arrangement 4-6-0. The boiler could be taken from the class E-6s Atlantic and the class H-10s Consolidation

The mass balancing was designed as good as possible and moving parts were constructed as light as possible without sacrificing strength. Despite a wheel diameter of only 68 inches, a top speed of 70 mph could be approved.

The Altoona workshops made 90 locomotives for the PRR and 31 identical ones for the Long Island Railroad. The locomotives apparently fulfilled their purpose, since they achieved the required acceleration performance and could easily keep to the timetables. Despite this, it was reported that they had insufficient running smoothness and a high consumption of coal and water. However, they remained in service as long as there was steam service on the PRR.

General
Built1923-1924
ManufacturerAltoona
Axle config4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase26 ft 6 in
Rigid wheelbase14 ft 3 in
Total wheelbase64 ft 11 1/2 in
Service weight237,000 lbs
Adhesive weight178,000 lbs
Total weight413,000 lbs
Axle load63,000 lbs
Water capacity7,800 us gal
Fuel capacity26,000 lbs (coal)
Boiler
Grate area55.1 sq ft
Firebox area177 sq ft
Tube heating area2,678 sq ft
Evaporative heating area2,855 sq ft
Superheater area613 sq ft
Total heating area3,468 sq ft
Power Plant
Driver diameter68 in
Boiler pressure205 psi
Expansion typesimple
Cylinderstwo, 24 x 28 in
Power
Power sourcesteam
Estimated power2,100 hp (1,566 kW)
Top speed70 mph
Starting effort41,328 lbf
Calculated Values
Optimal speed32 mph
steam locomotive
passenger
last changed: 04/2023
Showing 1 to 10 of 27
Search
loadding loading...

We use cookies to save the following settings:

  • selected navigation structure
  • selected language
  • preferred units
  • spelling of railway company names

If you refuse the use of cookies, the settings will only be retained for the current session and will be reset to the default values the next time you visit the site.

Display of units

Here you can set the desired unit system for the technical data.

  • Metric: Lengths in meters, weights in tonnes, and volumes in cubic meters
  • Imperial (UK): Lengths in feet/inches, weights in long tons and volumes in imperial gallons
  • Imperial (US): Lengths in feet/inches, weights in pounds, and volumes in US gallons
  • Individual: Depends on the country of origin of each locomotive
Operator names

Here you can set the display of railway company names.

  • Short: Abbreviation or short form of the name
  • Standard: commonly used name, partially translated to English
  • Complete: full name in local language
