Rhaetian Railway G 4/5
go back
| 1904
29 produced

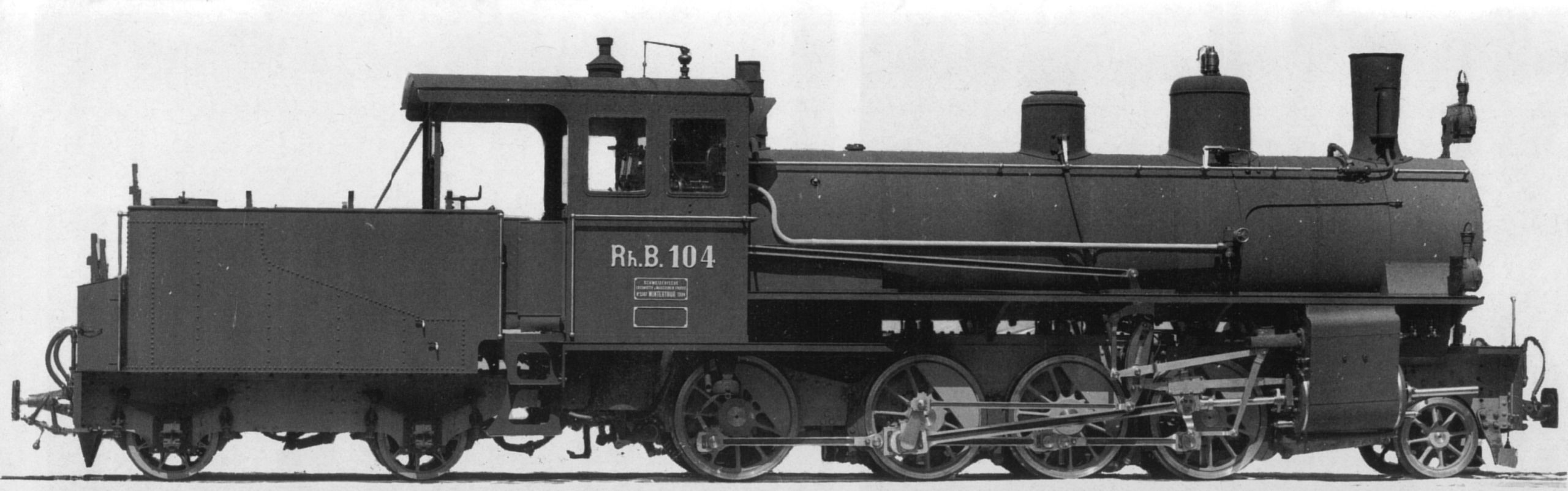

Image of locomotive
SLM

The G 4/5 was created in 1904 after a saturated two-cylinder compound 2-8-0 built by SLM for the Ethiopian CFE in 1902 had been tested on the RhB network. The RhB received the first four, numbered 101 to 104, in 1904 which were largely identical to the Ethiopian locomotives. The second and fourth driving axles had lateral play of 40 mm. Although top speed was only 45 km/h, they had to haul both freight and passenger trains on the steep passes. Initially the requirements included that the G 4/5 had to haul a train of 90 tonnes up an incline of 3.5 percent with 18 km/h, but in the result they accomplished this with 22 km/h.

From the next order of four that was built in 1906, only the first two were built as saturated two-cylinder compounds. The other two, numbers 107 and 108, were built as superheated simples. All these four had tenders with 9,800 litres of water and 2.5 tonnes of coal, since the original two-axle tenders with 5,000 litres and 2 tonnes were too small. Production was completed in 1915 when a total of 29 had made them the largest class of locomotives on the RhB, of which 23 were superheated. No 129, the last one, was special in that it had a feed water heater.

The most of the time they were used on the Albula line. The RhB had already begun to electrify their network in 1914 and by 1919, this work was completed. Starting in 1920, seven were sold to the Ferrocarril de La Robla in Spain where they were used until around 1970. Two were sold to Brazil and with 18, the largest number came to Thailand. After their withdrawal in the sixties, the original numbers 118 and 123 are still on display in Thailand. The RhB had kept their last ones, numbers 107 and 108, as reserve locomotives which were independent of the overhead line. Both were preserved and are still in working order.

Variant101-106107-129
General
Built1904-19061906-1915
ManufacturerSLM
Wheel arr.2-8-0 (Consolidation)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length43 ft 4 1/2 in45 ft 10 in
Wheelbase20 ft 0 3/16 in
Rigid wheelbase8 ft 0 7/16 in
Total wheelbase35 ft 6 15/16 in37 ft 1 11/16 in
Empty weight92,594 lbs
Service weight101,413 lbs104,058 lbs
Adhesive weight90,169 lbs91,712 lbs
Total weight129,191 lbs148,812 lbs
Water capacity1,321 us gal2,589 us gal
Fuel capacity4,409 lbs (coal)5,512 lbs (coal)
Boiler
Grate area20.5 sq ft22.6 sq ft
Firebox area81.8 sq ft90.4 sq ft
Tube heating area1,265.8 sq ft1,431.6 sq ft
Evaporative heating area1,347.6 sq ft1,522 sq ft
Superheater area296 sq ft
Total heating area1,347.6 sq ft1,818 sq ft
Variant101-106107-129
Power Plant
Driver diameter41.3 in
Boiler pressure188 psi174 psi
Expansion typecompoundsimple
Cylinderstwo, HP: 17 5/16 x 22 13/16 in
and LP: 26 x 22 13/16 in
two, 18 1/8 x 22 13/16 in
Power
Power sourcesteam
Estimated power536 hp (400 kW)805 hp (600 kW)
Top speed28 mph
Starting effort18,387 lbf26,795 lbf
with start valve22,064 lbf
Calculated Values
steam locomotive
freight
passenger
narrow gauge
