Finnish Railway classes K1 and K2 “Satikka”
later classes Tk1 and Tk2
go back
Finland | 1899
54 produced

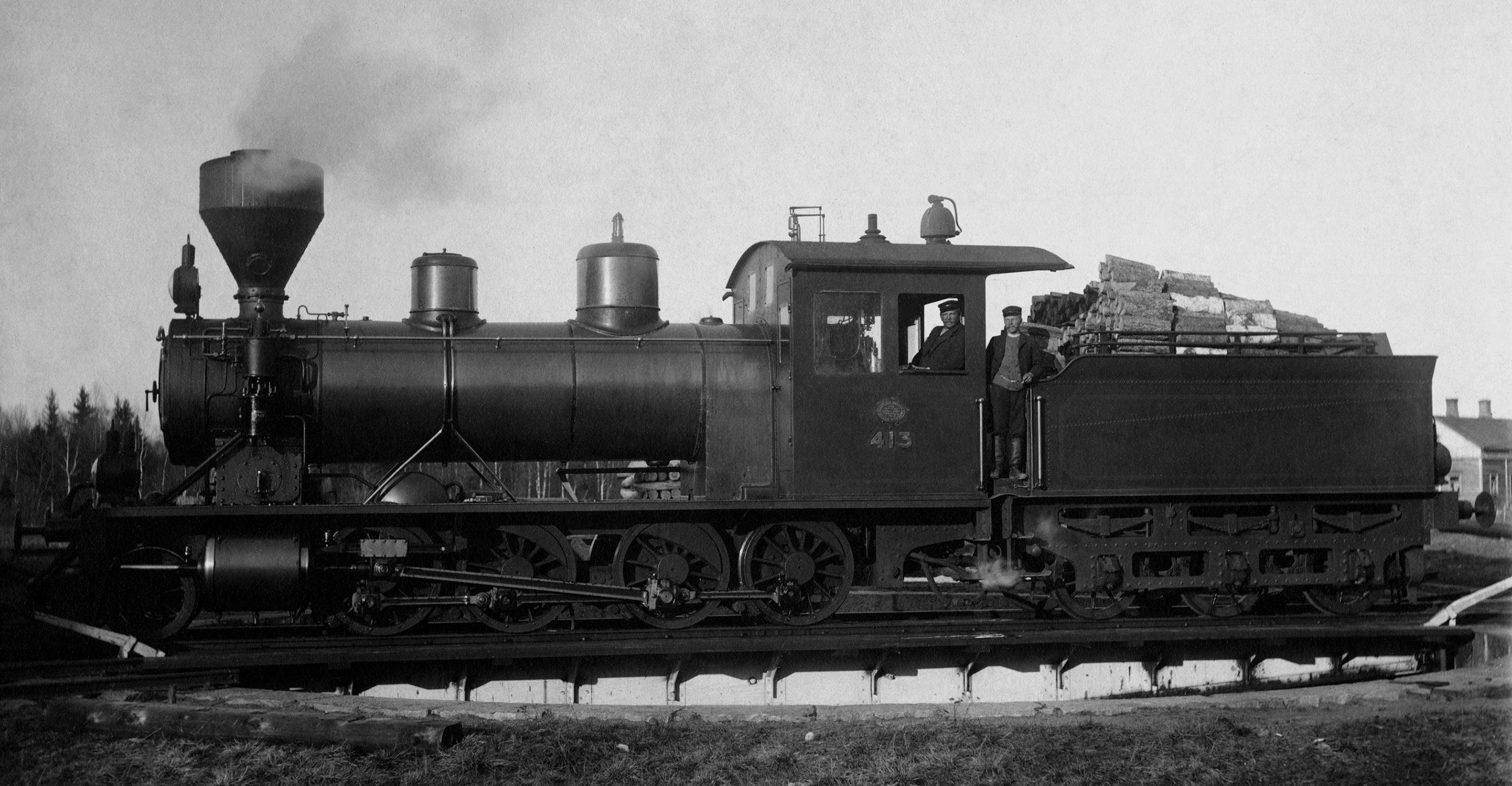

No. 413, possibly in Sortavala
No. 413, possibly in Sortavala
finna.fi / Helsingin kaupunginmuseo

The first 2-8-0 locomotives built for Finland came from the USA. Baldwin delivered 20 in 1899 and 1900 which were called class K1 and got the nickname “Satikka”. They had very small drivers with a diameter of 1,120 mm and their cylinders measured 406 by 508 mm, or 16 by 20 inches. They were designed in a way so that many parts were interchangeable with other steam locomotive classes built by Baldwin for the VR. Between 1903 and 1906, Tampella built 34 in Finland which were designated K2. These were modified to metric dimensions and had larger cylinders. From 1942, the K1 became the Tk1 and the K2 became the Tk2. The Tk1 was withdrawn in 1959 and the Tk2 followed in 1960. Tk2 No. 418 can today be found on static display in Junction City, Oregon.

VariantK1 / Tk1K2 / Tk2
General
Built1899-19001903-1906
ManufacturerBaldwinTampella
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 11 13/16 in (Russian broad gauge)
Dimensions and Weights
Wheelbase19 ft 0 in
Rigid wheelbase12 ft 6 in
Service weight82,673 lbs82,453 lbs
Adhesive weight71,994 lbs
Axle load18,298 lbs
Water capacity2,008 us gal1,981 us gal
Boiler
Grate area14.7 sq ft15.1 sq ft
Firebox area70.6 sq ft
Tube heating area796.2 sq ft
Evaporative heating area866.8 sq ft900.3 sq ft
Total heating area866.8 sq ft900.3 sq ft
VariantK1 / Tk1K2 / Tk2
Power Plant
Driver diameter44.1 in
Boiler pressure180 psi181 psi
Cylinderstwo, 16 x 20 intwo, 16 1/8 x 23 1/4 in
Power
Calculated Values
steam locomotive
freight
last changed: 05/2026

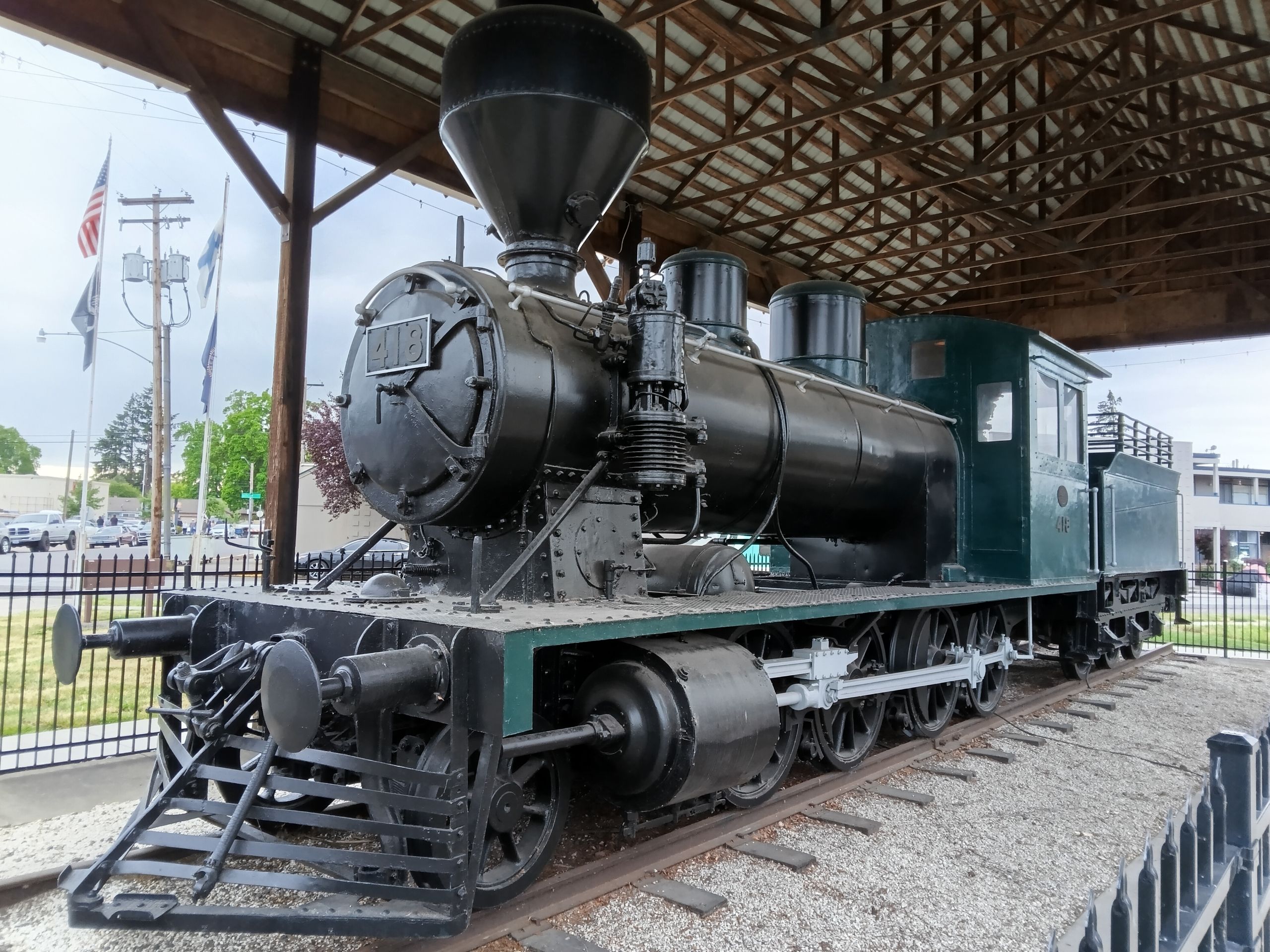

No. 418 at Junction City, Oregon
No. 418 at Junction City, Oregon
Will Jenkins
