Bavarian G 4/5 N
German Reichsbahn class 564 and Polish State Railways Tr102
go back
Germany | 1905
7 produced
Image of locomotive
Die Lokomotive, January 1906

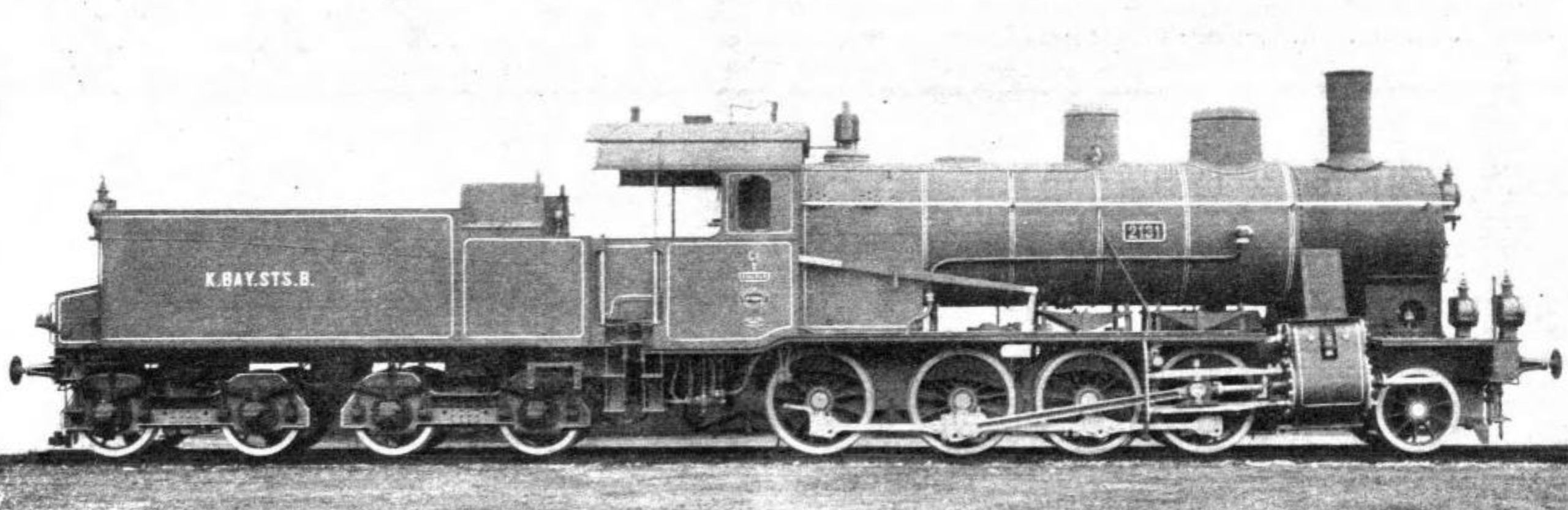

The G 4/5 N was a small class of Consolidations derived from the E I. Although it also used experiences from the two Vauclain E I built by Baldwin, it was a two-cylinder simple. It had a high pitched boiler with a firebox that stood on top of the frames. Krauss delivered seven in 1904 and 1905 which were among the first Bavarian locomotives to be designated in the new scheme. The later superheated four-cylinder compound G 4/5 H was not a direct successor. After World War I, four G 4/5 N remained in Germany and became Reichsbahn 56 401 to 56 404. Two others came to the PKP and became Tr102. The Reichsbahn withdrew their locomotives in 1927 and in Poland, they were gone before 1936.

General
Built1905-1906
ManufacturerKrauss
Wheel arr.2-8-0 (Consolidation)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length60 ft 0 7/8 in
Wheelbase23 ft 3 1/2 in
Total wheelbase50 ft 10 in
Empty weight130,073 lbs
Service weight142,859 lbs
Adhesive weight123,238 lbs
Total weight242,508 lbs
Axle load31,747 lbs
Water capacity4,808 us gal
Fuel capacity13,228 lbs (coal)
Boiler
Grate area30.7 sq ft
Firebox area118.1 sq ft
Tube heating area1,819.1 sq ft
Evaporative heating area1,937.2 sq ft
Total heating area1,937.2 sq ft
Power Plant
Driver diameter50 in
Boiler pressure174 psi
Expansion typesimple
Cylinderstwo, 21 1/4 x 24 in
Power
Power sourcesteam
Estimated power939 hp (700 kW)
Starting effort32,109 lbf
Calculated Values
steam locomotive
freight
last changed: 03/2026
