Ethiopian Railway No. 21 to 33
go back
Ethiopia | 1902
13 produced

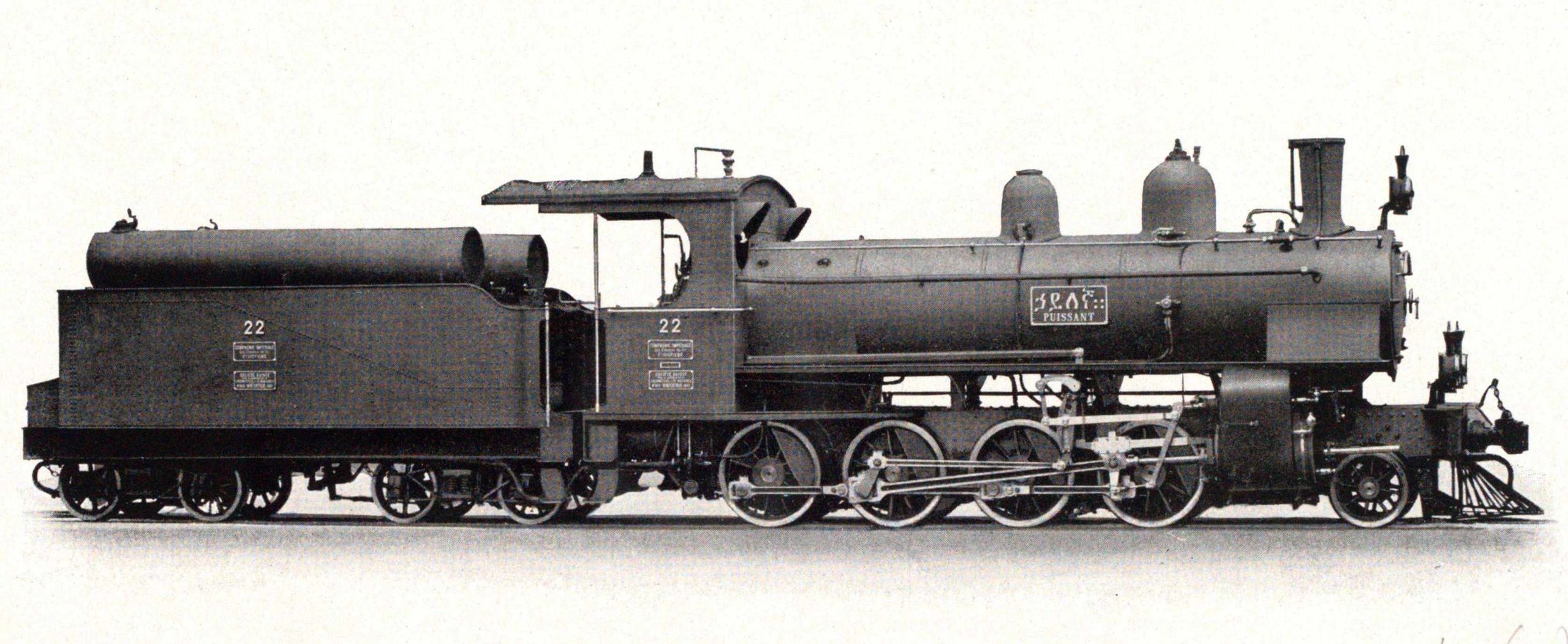

No. 22, built by SLM
No. 22, built by SLM
SBB Historic

The first four Consolidations No. 21 to 24 delivered to Ethiopia had been ordered by the Swiss Alfred Ilg from the SLM in 1902 and 1903. They were metre-gauge, two-cylinder cross-compound locomotives with a driver diameter of 1,000 mm. After one of these was tested on the RhB network in Switzerland, this railway also ordered a similar type that was to become the G 4/5.

After construction of the line was continued with French support, eight more were ordered from SACM. These were built in 1910 after the same basic design and received the numbers 25 to 32. SACM designated them type UG 181 and from 1913, they introduced the superheated two-cylinder simple of the type UG 190 that was numbered 121 to 129 on the CFE. In 1914, a single additional locomotive of the original design was delivered by the SLM and numbered 33.

General
Built1902-1903, 1914
ManufacturerSLM, SACM
Wheel arr.2-8-0 (Consolidation)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Length loco28 ft 2 3/16 in
Wheelbase18 ft 2 7/8 in
Rigid wheelbase7 ft 10 1/2 in
Empty weight70,548 lbs
Service weight79,366 lbs
Adhesive weight65,257 lbs
Total weight131,682 lbs
Axle load16,314 lbs
Water capacity2,774 us gal
Fuel capacity7,716 lbs (coal)
Boiler
Grate area13.9 sq ft
Firebox area64.6 sq ft
Tube heating area727.6 sq ft
Evaporative heating area792.2 sq ft
Total heating area792.2 sq ft
Power Plant
Driver diameter39.4 in
Boiler pressure188 psi
Expansion typecompound
Cylinderstwo, HP: 16 9/16 x 21 5/8 in
and LP: 24 13/16 x 21 5/8 in
Power
Power sourcesteam
Estimated power335 hp (250 kW)
Starting effort16,681 lbf
with start valve20,017 lbf
Calculated Values
steam locomotive
freight
last changed: 03/2026
