York & North Midland No. 33
North Eastern No. 273
go back
Great Britain | 1850
only one produced

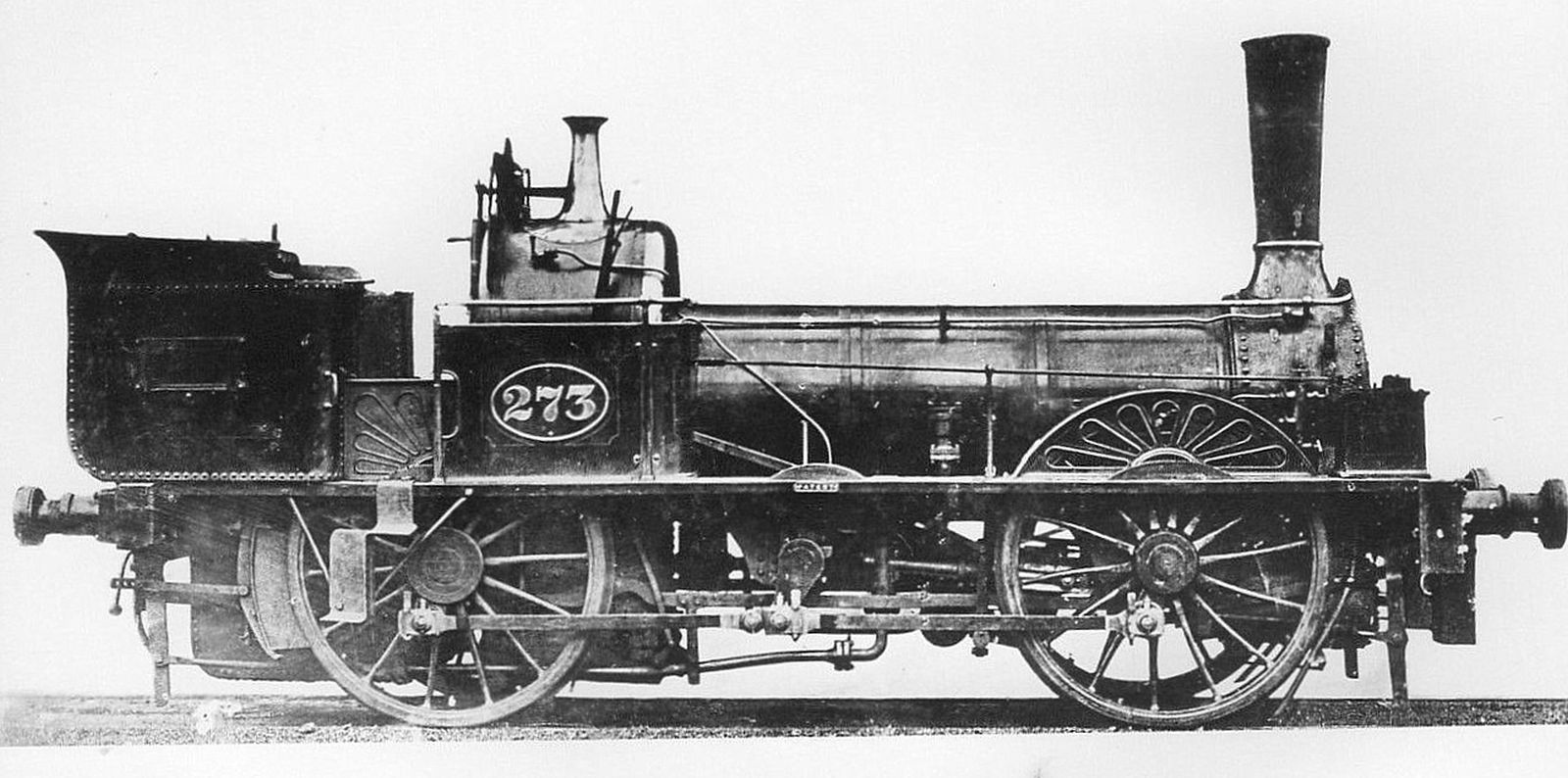

Image of locomotive

Around 1850, E.B. Wilson & Co. built some tank locomotives with a special form of power transmission for several railways. One of these was No. 33 of the York & North Midland Railway that became North Eastern Railway No. 273 in 1854. The nickname “Little Mail” given by David Joy suggests that it was used for light mail trains. With four driving wheels with a diameter of five feet, top speed is said to have been 43 mph or 70 km/h.

It had two cylinders of 11 by 18 inches which were mounted at the front inside of the frames. These powered a crank axle that was located in the middle of the locomotive, similar to that seen on some Cramptons. From that, coupling rods drove both axles. This wheel arrangement resembles a 0-4-0, but since both axles are not directly coupled it is more often called 0-2-2-0. It was later rebuilt into a 0-4-0WT and withdrawn in 1978.

General
Built1850
ManufacturerE. B. Wilson and Co.
Wheel arr.0-2-2-0WT
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length22 ft 4 in
Wheelbase10 ft 11 in
Rigid wheelbase10 ft 11 in
Water capacity270 us gal
Fuel capacity2,240 lbs (coal)
Boiler
Evaporative heating area576 sq ft
Total heating area576 sq ft
Power Plant
Driver diameter60 in
Boiler pressure100 psi
Expansion typesimple
Cylinderstwo, 11 x 18 in
Power
Power sourcesteam
Top speed43 mph
Starting effort3,086 lbf
Calculated Values
steam locomotive
tank locomotive
passenger
last changed: 12/2025
