Chilean State Railway grupo 20
later tipo R
go back
Chile | 1897
10 produced
No. 3087 on display at Quinta Normal
No. 3087 on display at Quinta Normal
Martin Coombs / www.railwaysofthefarsouth.co.uk

In 1897, W.R. Grace ordered four metre-gauge Consolidations from Rogers for the Chilean State Railways to be used on the Red Norte. They were originally numbered 19 to 22 and were followed by numbers 33 to 38 in 1900. Both batches had some differences, most notably in the shape of the windows and roof of the cab. The class was soon known as grupo 20 and later became tipo R.

As early as in 1902 they were renumbered 298 to 300 and 303 to 307. The renumbering only encompassed eight locomotives, the other two had most likely been borrowed to the Dirección de Obras Públicas. With the next renumbering to 3081 to 3090, the ten were again complete under the same operator. They spent most of their life on the La Calera to Palquico section and came under the supervision of the Ferrocarril de Coquimbo in 1951. Today only 3087 survives on static display in the Parque Quinta Normal in the Santiago area.

General
Built1897, 1900
ManufacturerRogers
Wheel arr.2-8-0 (Consolidation)
Gauge3 ft 3 3/8 in (Meter gauge)
Dimensions and Weights
Wheelbase18 ft 1 in
Rigid wheelbase12 ft 2 in
Service weight74,000 lbs
Adhesive weight68,000 lbs
Axle load17,000 lbs
Water capacity1,500 us gal
Fuel capacitycoal
Boiler
Grate area12.6 sq ft
Firebox area75.1 sq ft
Tube heating area859.9 sq ft
Evaporative heating area935 sq ft
Total heating area935 sq ft
Power Plant
Driver diameter39 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 16 x 18 in
Power
Power sourcesteam
Estimated power350 hp (261 kW)
Starting effort20,086 lbf
Calculated Values
steam locomotive
freight
narrow gauge
last changed: 07/2025

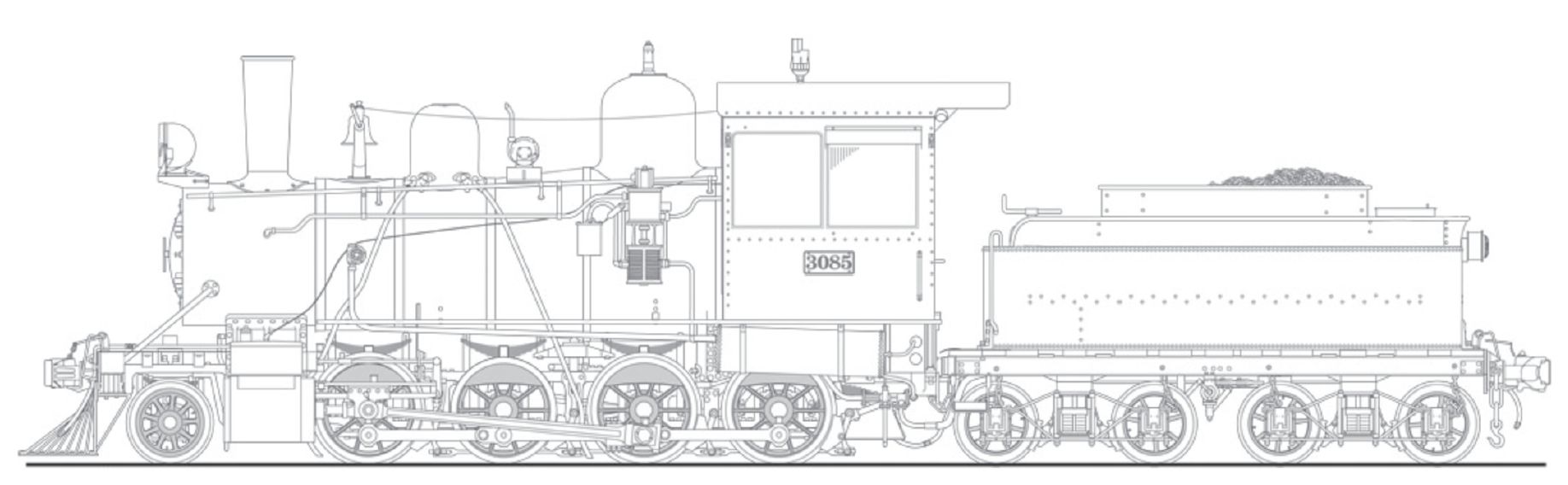

Image of locomotive
