Benguela 11th class
go back
Angola | 1951
6 produced
No. 403 on a works photo
No. 403 on a works photo
flickr/Historical Railway Images

In 1951, North British built six 4-8-2 for the Benguela Railway which were intended for express mail trains along the Atlantic coast and in the inland between Silva Porto and Luau. In most respects they were based on the South African class 19D and were specified for hauling 500-ton trains on 1.25 percent inclines, while being suited for curve radii of 300 feet. The Benguela usually used eucalyptus wood as fuel, with bars on the tender to increase the capacity. When coal was available, it was used as fuel instead. A Kylchap blast pipe was used to increase power and decrease consumption. Their careers ended in the seventies with the civil war.

General
Built1951
ManufacturerNorth British
Wheel arr.4-8-2 (Mountain)
Gauge3 ft 6 in (Cape gauge)
Dimensions and Weights
Wheelbase32 ft 3 in
Rigid wheelbase14 ft 6 in
Total wheelbase76 ft 8 in
Service weight178,394 lbs
Adhesive weight123,984 lbs
Total weight342,608 lbs
Axle load31,248 lbs
Water capacity6,005 us gal
Fuel capacity34,720 lbs (wood)
Boiler
Grate area36 sq ft
Firebox area139 sq ft
Tube heating area1,700 sq ft
Evaporative heating area1,839 sq ft
Superheater area390 sq ft
Total heating area2,229 sq ft
Power Plant
Driver diameter54 in
Boiler pressure205 psi
Expansion typesimple
Cylinderstwo, 21 x 26 in
Power
Power sourcesteam
Estimated power1,200 hp (895 kW)
Starting effort36,999 lbf
Calculated Values
steam locomotive
express
last changed: 09/2025

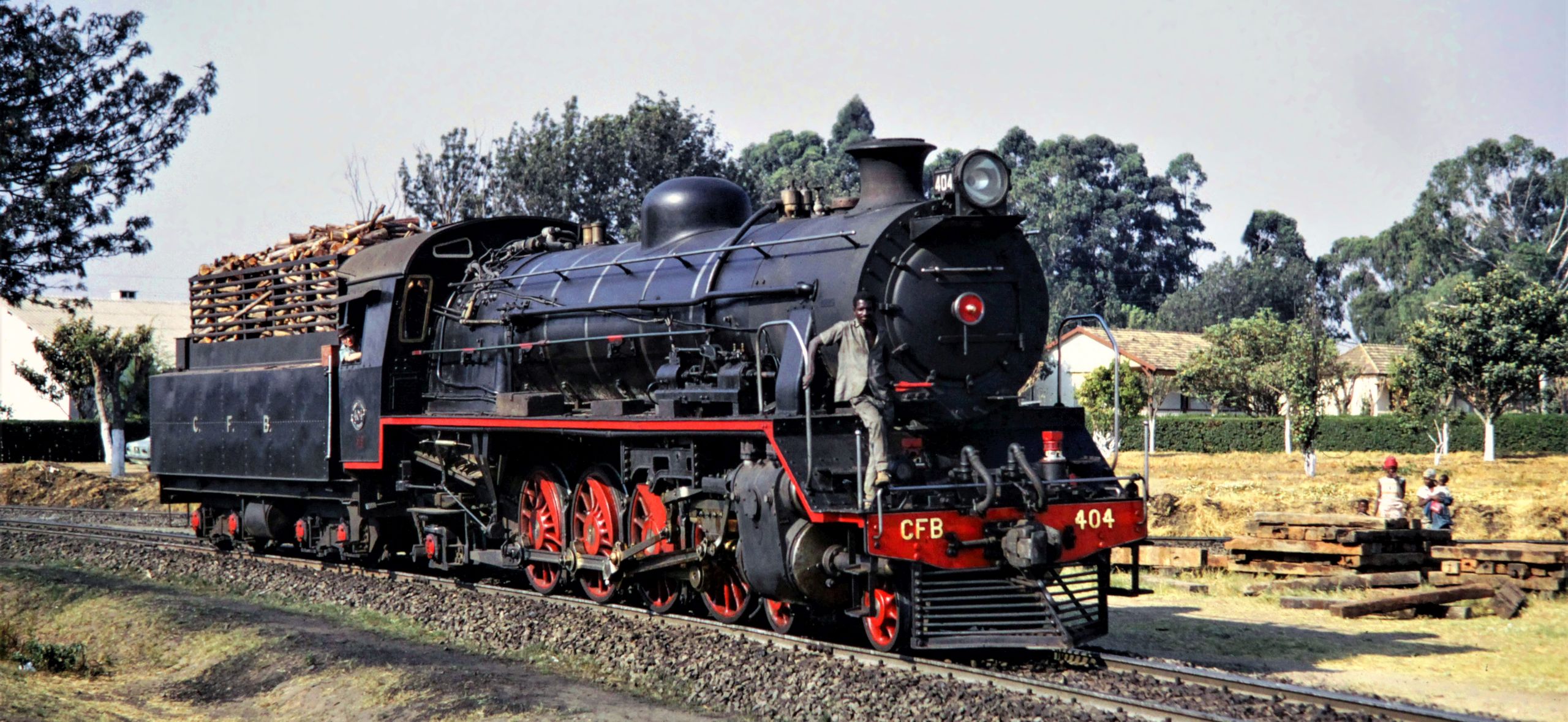

No. 404 with a large heap of eucalyptus wood in the tender
No. 404 with a large heap of eucalyptus wood in the tender
flickr/Historical Railway Images
