Baden and Württemberg steam locomotives
go back
A train exiting Heidelberg station, 1840
A train exiting Heidelberg station, 1840
J. Schütz

In the southwest of the German Confederation were the Grand Duchy of Baden and the Kingdom of Württemberg. Although these two states form one federal state today, their state railways were in fierce competition with each other until the establishment of the Deutsche Reichsbahn and competed for the transit traffic across the Alps.

After Braunschweig, Baden was the second German state to establish a state railway. The motivation to do so began in 1837, when a railway line was opened on the left bank of the Rhine in Alsace, France, and the intention was to build a separate line on the right bank as a competitor. The administration of the railway was assigned to the Ministry of Foreign Affairs, which handed over the implementation to the Oberpostdirektion (main post directorate).

Thus, in 1838, the construction of the Baden Main Line began, which was to go from Mannheim to Basel in Switzerland. It was designed with a gauge of 1,600 mm, which gave it a unique position in a large area. The first section of this line was opened in September 1840 and went to Heidelberg. It arrived Haltingen just before the Swiss border in 1851 and first needed negotiations with Switzerland about the continuation to Basel. There were also tough negotiations with Württemberg, as initially it was not possible to agree on the position of another transit corridor further to the east.

They stuck to the broad gauge for a long time because future traffic across national borders was considered unrealistic and so most of the main line was built in this gauge. Re-gauging did not take place until 1854 and 1855, when they noticed that all neighboring countries, without exception, were running their networks in the standard gauge of 1,435 mm. Basel was also reached in 1855 and the main line was extended to Constance by 1863. After this was considered complete with a length of 414.3 km or 257.5 miles, the regional development was brought further with branch lines.

In addition, more and more lines were opened to the neighboring German states, as well as to Switzerland and France. A masterpiece of its time came with the Black Forest Railway, which was built between 1863 and 1873 and climbed 650 meters over a length of 149 km and traversed 39 tunnels. When the post was dis-incorporated into the Reichspost in 1872, the independent Grand Duchy of Baden State Railways were founded.

As in many places on the European mainland, when it came to vehicles, the focus was initially set on England and the first locomotives were ordered from Sharp, Roberts & Co. in Manchester. In 1841, Emil Kessler founded the mechanical engineering company in Karlsruhe to supply the state railway with vehicles. Karlsruhe remained the main supplier for a long time, and many locomotives were also procured from Grafenstaden in Alsace and Maffei in Munich. While international trends were picked up with Crampton locomotives in the early years, locomotives with wind cutter fairings and four-cylinder compounds were later put into service. On the Höllentalbahn in the Black Forest, the rack system based on the Bissinger-Klose system was used.

Concerning the neighbors in the Kingdom of Baden, as early as 1834 private businessmen had plans for railway lines. However, since the state wanted to keep the lucrative main lines and especially the border crossings under control of itself, these plans were initially rejected. Finally, in 1843, the Royal Württemberg State Railways were founded and it was stipulated by law that private companies could build branch lines.

The main lines were opened in sections starting from Stuttgart between 1845 and 1854. It all started with the Eastern Line, which led to Ulm and from there was continued by the Southern Line to Friedrichshafen on Lake Constance. In addition, the Western Line was built from Stuttgart to Bruchsal in Baden and the Northern Railway to Heilbronn. It was not until 1959 that the construction of branch lines began on a larger scale.

In contrast to the neighbors, American models were used for the vehicles in Württemberg. So one could not only recognize clear American lines on the locomotives of the 1840s, but also find heavy large-capacity passenger cars with bogies. Over time, Prussian influences prevailed, while the vehicles continued to be mainly manufactured in Esslingen. From 1885 Adolf Klose, who introduced achievements such as compound engines and rack locomotives, was in charge as chief engineer. He was followed in 1896 by Eugen Kittel, who introduced superheated steam in Württemberg and was one of the first in Germany to procure steam railcars. With the K, he introduced the only twelve-coupled steam locomotive in Germany.

After the First World War, both railways met the same fate as all state railways. When the Grand Duke of Baden abdicated on November 9, 1918, the name was changed to “Baden State Railways”. At this point the inventory consisted of 915 locomotives, 2,500 passenger cars and 27,600 freight cars. In Württemberg, the king abdicated on November 30 of the same year, so the term “Royal” was removed from the name here as well. Before the war, the rolling stock consisted of around 850 locomotives, 2,500 passenger cars and 15,300 freight cars. In 1920 both were merged into the Deutsche Reichsbahn and their networks formed the Reichsbahn divisions in Karlsruhe and Stuttgart.

Extent of the Baden network in 1870
Extent of the Baden network in 1870
MCMC
State of the Württemberg main routes from 1854
State of the Württemberg main routes from 1854
Ssch
The twelve-coupled Württemberg K
The twelve-coupled Württemberg K
Die Lokomotive, January 1919
Baden I d
Germany | 1882
3 produced
“Aurelia” on a factory photo
“Aurelia” on a factory photo
General
Built1882, 1885
ManufacturerMBG Karlsruhe
Axle config2-2-0T (Planet)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length23 ft 7 1/16 in
Wheelbase11 ft 5 13/16 in
Rigid wheelbase11 ft 5 13/16 in
Empty weight40,785 lbs
Service weight51,588 lbs
Adhesive weight26,015 lbs
Axle load26,015 lbs
Water capacity528 us gal
Fuel capacity1,984 lbs (coal)
Boiler
Grate area8.1 sq ft
Firebox area48.4 sq ft
Tube heating area299.2 sq ft
Evaporative heating area347.7 sq ft
Total heating area347.7 sq ft
Power Plant
Driver diameter48.82 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 10 1/4 x 17 11/16 in
Power
Power sourcesteam
Estimated power121 hp (90 kW)
Top speed37 mph
Starting effort4,218 lbf
Calculated Values
Optimal speed18 mph
steam locomotive
passenger
tank locomotive
secondary line
Baden I e
German Reichsbahn class 8875
Germany | 1887
30 produced

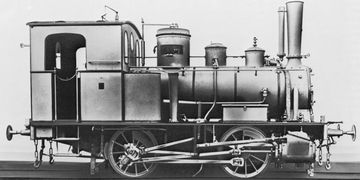

No. 446
No. 446
Lokarchiv Baden/archive Töpelmann

In order to do something about the inefficient use of old steam locomotives in shunting service, the I e was designed for the Württemberg State Railway as a four-coupled tank locomotive. During development, however, attention was also paid to the fact that the engines could be used in line service on branch lines if required. They were designed as a cost-effective and purposeful construction. By using the 20 mm thick plate frame as a water tank, the coal bunker could be moved in front of the driver's cab, which reduced the overall length of the locomotive.

On the boiler barrel, the steam dome and the regulator were separate from each other, with a sandbox between them. The Allan valve gear had to be on the outside and the drive was on the second axle. With a driving wheel diameter of 1,235 mm, speeds of up to 60 km/h could be reached. In addition to a modern air brake, some of the machines also had a countersteam brake.

30 were delivered in several batches, of which 25 units were taken over by the Reichsbahn in 1925. Together with the I b taken over from the Pfalzbahn, they were classified in the class 8875. By 1930 all were retired or sold to private operators. One example was on Austrian territory after the end of the Second World War after it had been used by a construction company. It was taken over by the ÖBB and used until 1956, making it the last representative of the I e.

Variantbatches 1-4batches 5 and 6
General
Built1887-1893
ManufacturerMBG Karlsruhe
Axle config0-4-0WT (Four-coupled)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length25 ft 4 3/4 in
Wheelbase8 ft 2 7/16 in
Rigid wheelbase8 ft 2 7/16 in
Empty weight49,383 lbs
Service weight63,273 lbs62,170 lbs
Adhesive weight63,273 lbs62,170 lbs
Axle load31,636 lbs31,085 lbs
Water capacity660 us gal
Fuel capacity2,205 lbs (coal)
Boiler
Grate area8.7 sq ft
Firebox area44.5 sq ft
Tube heating area488 sq ft535.6 sq ft
Evaporative heating area532.5 sq ft580.1 sq ft
Total heating area532.5 sq ft580.1 sq ft
Variantbatches 1-4batches 5 and 6
Power Plant
Driver diameter48.62 in
Boiler pressure145 psi
Expansion typesimple
Cylinderstwo, 12 13/16 x 21 5/8 in
Power
Power sourcesteam
Estimated power174 hp (130 kW)
Top speed37 mph
Starting effort8,986 lbf
Calculated Values
Optimal speed12 mph
steam locomotive
passenger
freight
switcher
secondary line
tank locomotive
last changed: 01/2022
Baden II a
Germany | 1888
24 produced

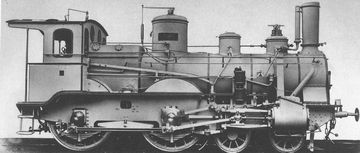

II a on a works photo of MBG Karlsruhe
II a on a works photo of MBG Karlsruhe

When the Crampton locomotives used for express trains on the Grand Duchy of Baden State Railways were no longer state of the art, a new express locomotive was developed from the class III passenger locomotives.

Special features of the II a were the Belpaire firebox and an outer plate frame. The power was transmitted via Hall cranks to the drivers located within the frame. Because the cylinders were located in front of the pivot of the lead bogie, the running smoothness was not entirely convincing. Especially under full load, the overhanging masses of the cylinders generated unwanted vibrations.

Despite this, the locomotive performed well and was used on the international trains that traversed the Baden region. The locomotives were able to pull a 220-tonne train with 16 cars on the flat at up to 84 km/h and thus still reached 60 km/h on a gradient of 0.5 percent. At 1.25 percent, 150 tonnes could still be pulled at 50 km/h.

Another delivery of ten locomotives in 1891 saw the need to lengthen the boiler tubes and increase the diameter of the cylinders to 457 mm. To improve the running characteristics, the wheel base of the bogie was also increased from 1,400 to 2,000 mm.

After the founding of the Reichsbahn, the II a met the same fate as other older Länderbahn locomotives. Of the 24 units built, ten were still included in the renumbering plan as class 3673. Eventually all were retired by 1925.

Variant1888 variant1891 variant
General
Built1888-18901891
ManufacturerMBG Karlsruhe
Axle config4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length50 ft 5 7/8 in
Wheelbase18 ft 0 9/16 in
Rigid wheelbase8 ft 0 7/8 in
Total wheelbase38 ft 0 11/16 in
Empty weight92,594 lbs
Service weight101,413 lbs103,176 lbs
Adhesive weight61,729 lbs64,375 lbs
Axle load30,865 lbs32,187 lbs
Water capacity3,038 us gal
Fuel capacity8,818 lbs (coal)
Boiler
Grate area19.7 sq ft
Firebox area89.3 sq ft
Tube heating area1,190.5 sq ft1,217.4 sq ft
Evaporative heating area1,279.8 sq ft1,306.7 sq ft
Total heating area1,279.8 sq ft1,306.7 sq ft
Variant1888 variant1891 variant
Power Plant
Driver diameter73.23 in
Boiler pressure145 psi
Expansion typesimple
Cylinderstwo, 17 1/8 x 24 intwo, 18 x 24 in
Power
Power sourcesteam
Estimated power503 hp (375 kW)
Top speed56 mph
Starting effort11,856 lbf13,085 lbf
Calculated Values
Optimal speed27 mph25 mph
steam locomotive
express
last changed: 01/2022
Baden II c
Germany | 1892
35 produced
Image of locomotive
Die Lokomotive, December 1904

The class II c designated express locomotives which, contrary to usual practice, had been developed based on the English practice. They were the first locomotives in Germany to be certified for a maximum operational speed of 110 km/h. The clearest distinguishing feature was the inside plate frame with wheel housings, which partially covered the 2,100 mm large coupled wheels and started at the level of the very low running board. In addition, the cylinders were on the inside, which was very rare in Germany for two-cylinder steam locomotives.

Due to the long wheelbase of the bogie and the low-lying boiler, the running characteristics were very good, so that the locomotives even ran smoothly at 120 km/h during test drives. The large wheels also helped maintain higher speeds for longer periods, and thus the 110 km/h certification was granted.

The development and production of the first series models took place at Grafenstaden in Alsace, but further vehicles followed from the Karlsruhe Engineering Society and the Saxon Machine Factory Hartmann. A total of 35 pieces were made between 1892 and 1900.

In order to reduce the effort required at high speeds, two modifications were made to the last five machines, as would also be found on later locomotives. One was a wind-cutter cab, i.e. the front wall of the cab was divided vertically in two and both halves were pulled back at a sharp angle in a V-shape. The other adjustment was an aerodynamically clad smokebox door. Instead of being conical like other German express locomotives from the beginning of the century, the tip was pulled down almost to the bottom of the boiler and the fairing formed a transition to the cylinders. Along with these modifications came an increase in boiler pressure from 12 to 13 bar.

Despite their good running characteristics, the tractive power of the locomotives was soon no longer sufficient for lighter express trains, as these could pull a maximum of 260 tons at top speed. In addition, higher demands were now placed on the acceleration of trains, which gradually reduced them to lower services. After the First World War, nine examples came to France and were operated there by the État state railway as class 220.9. In the period that followed, the number of locomotives remaining in Germany decreased, which meant that the planned takeover of the last machines by the Reichsbahn and re-designation to the class 3673 did not occur.

Variantvariant 1892variant 1900
General
Built1892-18991900
ManufacturerGrafenstaden, MBG Karlsruhe, Hartmann
Axle config4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length55 ft 11 7/16 in
Wheelbase22 ft 5 11/16 in
Rigid wheelbase8 ft 4 3/8 in
Empty weight92,815 lbs94,799 lbs
Service weight100,641 lbs102,868 lbs
Adhesive weight65,257 lbs68,123 lbs
Axle load32,628 lbs34,304 lbs
Water capacity4,095 us gal4,042 us gal
Fuel capacity9,921 lbs (coal)11,023 lbs (coal)
Boiler
Grate area22.2 sq ft
Firebox area98.2 sq ft
Tube heating area1,028 sq ft
Evaporative heating area1,126.1 sq ft
Total heating area1,126.1 sq ft
Variantvariant 1892variant 1900
Power Plant
Driver diameter82.68 in
Boiler pressure174 psi188 psi
Expansion typesimple
Cylinderstwo, 18 1/8 x 23 5/8 in
Power
Power sourcesteam
Indicated power730 hp (544 kW)
Estimated power697 hp (520 kW)
Top speed68 mph
Starting effort13,859 lbf15,014 lbf
Calculated Values
Optimal speed32 mph31 mph
steam locomotive
express
last changed: 01/2022
Baden II d
German Reichsbahn class 144
Germany | 1902
18 produced
No. 747 when delivered in 1905
No. 747 when delivered in 1905
works photo MBG Karlsruhe

In view of the increasing loads in express train service around the turn of the century, the Grand Duchy of Baden State Railways launched a tender for a heavy express locomotive, in which seven designs took part. The requirement was to transport trains weighing 200 tonnes up gradients of 0.33 percent at a speed of 100 km/h. The contract went to Maffei, which also later developed the express trains for Baden.

In 1902, at the time of delivery, they were the largest of their kind in Europe with an operating weight of around 75 tonnes, which rested on a chassis with the axle configuration 4-4-2 (Atlantic). They were powered by a saturated compound engine, the four cylinders of which all acted on the first coupled axle. In contrast to the later Maffei express locomotives, the frame was not yet designed as a bar construction, but as a plate frame, as was usual at the time. Due to the elongated firebox, the distance between the rear coupled axle and the trailing axle was very large. The latter was designed as an Adam's axle, since the ash pan would not have allowed space for a drawbar.

Due to the long wheelbase and a large driving wheel diameter of 2,100 mm, the locomotives were remarkably smooth running right from the start. During test runs in 1904 with a train of four cars, top and average speeds of 144 and 116 km/h were reached. The first was broken three years later by the Bavarian S 2/6, which was also a Maffei design, but unlike the II d it was only developed as a one-off for test purposes.

The first production batch of twelve engines was manufactured by Maffei and delivered in 1902, another came in 1905 from the Karlsruhe mechanical engineering company and comprised six units. After the First World War, a total of ten engines had to be handed over to France. This left only seven units, as one engine had to be scrapped as early as 1903 due to an accident. The locomotives that remained in Germany were still intended to be redesignated as class 144, but they could not expect a long life due to their only two coupled axles and were therefore retired in 1925. The now French locomotives remained in service for another nine years.

General
Built1902, 1905
ManufacturerMaffei, MBG Karlsruhe
Axle config4-4-2 (Atlantic)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length68 ft 7 1/16 in
Wheelbase34 ft 2 1/4 in
Rigid wheelbase7 ft 2 5/8 in
Empty weight147,269 lbs
Service weight166,890 lbs
Adhesive weight73,414 lbs
Axle load36,817 lbs
Water capacity5,283 us gal
Fuel capacity13,228 lbs (coal)
Boiler
Grate area41.7 sq ft
Firebox area146.6 sq ft
Tube heating area2,114.9 sq ft
Evaporative heating area2,261.5 sq ft
Total heating area2,261.5 sq ft
Power Plant
Driver diameter82.68 in
Boiler pressure232 psi
Expansion typecompound
Cylindersfour, HP: 13 3/16 x 24 7/16 in
and LP: 22 7/16 x 24 7/16 in
Power
Power sourcesteam
Estimated power1,207 hp (900 kW)
Top speed68 mph
Starting effort15,061 lbf
with start valve18,073 lbf
Calculated Values
Optimal speed51 mph
steam locomotive
express
Von Borries compound
last changed: 01/2022
Baden IV b
Germany | 1873
20 produced

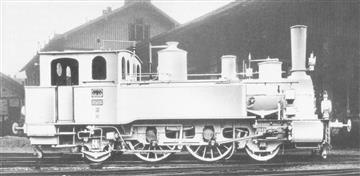

Factory photo of one of the machines after the conversion
Factory photo of one of the machines after the conversion

Since the locomotives from the early days were no longer powerful enough, newer ones with an 2-4-0 wheel arrangement were procured from Maffei in Munich. 20 of these were delivered from 1873 and were based on the Bavarian locomotives. It is noteworthy that from 1888 all of them were converted to tank locomotives with an 2-4-2T wheel arrangement and remained in use as such.

In order to increase the output, following the trend of the time, the grate area was enlarged without significantly increasing the dimensions of the boiler. A further increase in power was achieved through a higher boiler pressure, which had become possible due to new materials and production techniques. The locomotives had an external frame and external cylinders, but internal Stephenson-type valve gear. Braking, as was usual at the time, was done with mechanical transmission only to the wheels of the locomotive.

After a few years of operation, it became apparent that the adhesive weight was too low and the running characteristics with the long rear overhang were no longer up to date. Therefore, the locomotives were equipped with a trailing axle and turned into tank locomotives, while most parts remained the same. Because the weight of the boiler feed water was now acting on the couple axles, the adhesive weight increased. In addition, more powerful boilers of the Baden type were used later and the brakes were replaced with a modern air brake system of the Westinghouse type.

The conversion was completed on all locomotives in 1892 and extended their operating life beyond what the original tender locomotives would have achieved. The decommissioning began in 1901, the last locomotive was taken out of service in 1910.

Variantas builtrebuilt tank locomotive
General
Built1873-18741888-1892
ManufacturerMaffei
Axle config2-4-0 (Porter) 2-4-2T (Columbia)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length46 ft 11 in34 ft 4 11/16 in
Wheelbase11 ft 2 1/16 in17 ft 0 3/4 in
Rigid wheelbase11 ft 2 1/16 in
Empty weight63,493 lbs
Service weight72,752 lbs118,829 lbs
Adhesive weight48,502 lbs60,407 lbs
Axle load24,251 lbs30,203 lbs
Water capacity1,783 us gal1,585 us gal
Fuel capacitycoal6,614 lbs (coal)
Boiler
Grate area16.5 sq ft
Firebox area73.7 sq ft
Tube heating area1,093.1 sq ft
Evaporative heating area1,166.8 sq ft
Total heating area1,166.8 sq ft
Variantas builtrebuilt tank locomotive
Power Plant
Driver diameter65.95 in
Boiler pressure130 psi
Expansion typesimple
Cylinderstwo, 17 1/8 x 24 in
Power
Power sourcesteam
Estimated power369 hp (275 kW)
Top speed37 mph
Starting effort11,848 lbf
Calculated Values
Optimal speed20 mph
steam locomotive
passenger
tank locomotive
last changed: 01/2022
Baden IV e
German Reichsbahn class 3870
Germany | 1894
83 produced

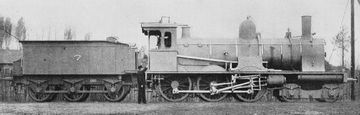

Image of locomotive
Locomotive Magazine, October 1903

The IV e was developed for passenger and express trains in order to supplement or replace the older, predominantly four-coupled locomotives in this role. It was all about the steep Black Forest Railway, where the existing locomotives could no longer cope with the increasing number of passengers. Thus, from 1894, Grafenstaden from Alsace supplied six-coupled engines with four-cylinder compound engines. They were the first locomotives with a 4-6-0 wheel arrangement in Germany, and they were also the first to use a de Glehn type engine on a locomotive with three coupled axles, i.e. with drive on two axles.

The running gear was built on an inside plate frame, while the bogie was designed with the outside frame known from Grafenstaden, despite the problematic running characteristics. The special feature of this engine rarely used in Germany was that the high-pressure cylinders were on the outside and the low-pressure cylinders on the inside, although the latter had a larger diameter. In order to achieve sufficient traction, the coupling wheels had a diameter of just 1,600 mm, which limited the speed to 90 km/h. During test runs, power of around 800 hp was measured and a 250-tonne train could be transported on the flat at 75 km/h.

Production comprised a total of 83 units up to 1901, which were also supplied by MBG Karlsruhe. Shortly after the turn of the century, the more powerful engines of classes II d and IV f pushed the IV e out of express service, and as a result it was only used in front of regular passenger trains. With the beginning of the First World War, decommissioning began, so that the Reichsbahn was able to take over 35 more units in 1925 and classify them as the class 3870. The last were retired in 1932. Today, none of the locomotives remain, as the only existing one kept as a cutaway model in a museum burned down with the museum during World War II.

General
Built1894-1901
ManufacturerGrafenstaden, MBG Karlsruhe
Axle config4-6-0 (Ten-wheeler)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length57 ft 5 3/4 in
Wheelbase24 ft 5 5/16 in
Rigid wheelbase11 ft 9 3/4 in
Total wheelbase45 ft 6 1/16 in
Empty weight116,404 lbs
Service weight128,529 lbs
Adhesive weight89,287 lbs
Total weight222,887 lbs
Axle load29,762 lbs
Water capacity3,566 us gal
Fuel capacity8,818 lbs (coal)
Boiler
Grate area22.6 sq ft
Firebox area120 sq ft
Tube heating area1,262.6 sq ft
Evaporative heating area1,382.6 sq ft
Total heating area1,382.6 sq ft
Power Plant
Driver diameter62.99 in
Boiler pressure174 psi
Expansion typecompound
Cylindersfour, HP: 13 3/4 x 25 3/16 in
and LP: 21 5/8 x 25 3/16 in
Power
Power sourcesteam
Indicated power799 hp (596 kW)
Top speed56 mph
Starting effort15,992 lbf
with start valve19,190 lbf
Calculated Values
Optimal speed32 mph
steam locomotive
express
passenger
De Glehn compound
last changed: 01/2022
Baden IV f
Germany | 1907
35 produced
Side view of No. 763 (company photo)
Side view of No. 763 (company photo)

The IV f was an express locomotive with which the Munich company Maffei had won a competition held by the Grand Duchy of Baden State Railways in 1905. After three pre-series models built by Maffei, 32 more machines followed from the Karlsruhe mechanical engineering company. It was the first locomotive in Germany with the axle configuration 4-6-2, which is also known internationally under the American designation “Pacific”. The well-known Bavarian S 3/6 was later to become a development of the IV f.

The Pacific design and the bar frame instead of a plate frame were approaches that had been taken over from American locomotive construction. Nevertheless, the entire locomotive received a filigree and streamlined appearance, which was in contrast to the bulky American locomotives. In addition, the four-cylinder compound engine based on the Von Borries design was a typical feature of southern German express train locomotives.

Since the IV f was also to be used in mountainous areas away from the main Rhenish route, its 1,800 mm diameter coupled wheels were relatively small. As a result, a higher tractive force could be achieved on inclines than with larger wheels, but the entire engine reached high rotational speeds on flat land at high speeds, which also led to increased wear and consumption. To enlarge the grate area, the firebox was pulled behind the driving wheels and widened so that it is clearly visible from the outside. It was only because of this change and the resulting increased overhang that the 2'C wheel arrangement had to be abandoned and the trailing axle added. By balancing the load between the two rear axles, it was possible to increase the adhesive weight by around three tons on well-developed routes.

When it was taken over by the Reichsbahn in 1925, 22 of the 35 engines were still in use, which became the class 182. While the more numerous former S 3/6 remained in service for a long time despite the high-maintenance power plant, all examples of the former IV f were retired by 1930.

Variant1907 variant1912 variant1913 variant
General
Built1907-191119121913
ManufacturerMaffei, MBG Karlsruhe
Axle config4-6-2 (Pacific)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length69 ft 3 9/16 in
Wheelbase36 ft 9 5/16 in
Rigid wheelbase12 ft 8 3/4 in
Total wheelbase60 ft 2 7/16 in
Empty weight179,015 lbs174,606 lbs175,488 lbs
Service weight194,668 lbs197,754 lbs189,597 lbs
Adhesive weight109,129 lbs108,688 lbs108,467 lbs
Axle load36,376 lbs36,156 lbs
Water capacity3,963 us gal5,283 us gal
Fuel capacity11,023 lbs (coal)15,432 lbs (coal)
Boiler
Grate area48.4 sq ft
Firebox area157.7 sq ft
Tube heating area2,089 sq ft
Evaporative heating area2,246.6 sq ft
Superheater area538.2 sq ft
Total heating area2,784.8 sq ft
Variant1907 variant1912 variant1913 variant
Power Plant
Driver diameter70.87 in
Boiler pressure232 psi
Expansion typecompound
Cylindersfour, HP: 16 3/4 x 24 in
and LP: 25 9/16 x 26 3/8 in
Power
Power sourcesteam
Indicated power1,746 hp (1,302 kW)
Top speed62 mph
Starting effort26,947 lbf
with start valve32,336 lbf
Calculated Values
Optimal speed41 mph
steam locomotive
express
Von Borries compound
last changed: 01/2022
Baden IV g
Germany | 1912
5 produced
No. 830
No. 830
Die Lokomotive, April 1913
General
Built1912
ManufacturerMBG Karlsruhe
Axle config2-6-2 (Prairie)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length64 ft 8 1/8 in
Wheelbase30 ft 10 1/16 in
Rigid wheelbase12 ft 1 11/16 in
Total wheelbase54 ft 11 7/16 in
Empty weight143,080 lbs
Service weight158,733 lbs
Adhesive weight102,735 lbs
Axle load34,172 lbs
Fuel capacitycoal
Boiler
Grate area40.4 sq ft
Firebox area143.7 sq ft
Tube heating area1,653.7 sq ft
Evaporative heating area1,797.4 sq ft
Superheater area462.8 sq ft
Total heating area2,260.2 sq ft
Power Plant
Driver diameter66.93 in
Boiler pressure232 psi
Expansion typecompound
Cylindersfour, HP: 14 3/16 x 25 3/16 in
and LP: 23 1/4 x 25 3/16 in
Power
Power sourcesteam
Estimated power1,408 hp (1,050 kW)
Top speed62 mph
Starting effort21,744 lbf
with start valve26,093 lbf
Calculated Values
Optimal speed41 mph
steam locomotive
passenger
Von Borries compound
Baden IV h
German Reichsbahn class 183
Germany | 1918
20 produced

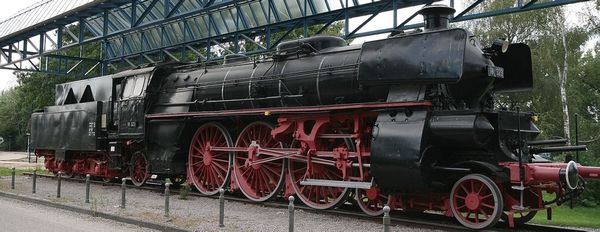

18 323 as a memorial in front of the University of Applied Sciences in Offenburg
18 323 as a memorial in front of the University of Applied Sciences in Offenburg
Peter Buck

The Grand Duchy of Baden State Railways used the IV f from 1907 on its 413 km long main line from Mannheim to Constance. However, this was unable to cope with long, fast routes with its driving wheels, which were only 1,800 mm large. Thus, in 1915, the IV h was ordered from Maffei in Munich, where the IV f and the S 3/6 had already been manufactured. Since only use on flat routes was planned, the IV h received driving wheels with a diameter of 2,100 mm. This negatively affected acceleration, but made it possible to maintain high speeds for a long time. The certification was only for 110 km/h, which was 10 km/h faster than its predecessor series. It was only in the thirties that it proved on test drives at speeds of up to 155 km/h that it ran very smoothly even at higher speeds. It was therefore equipped with more powerful brakes and approved for 140 km/h.

The locomotive was powered by a four-cylinder compound engine, which combined characteristics of the De Glehn and Von Borries types. The low-pressure cylinders drove the second coupled wheel set and had to be located on the outside due to their large diameter. While the outer high-pressure cylinders on the De Glehn type were pulled back to achieve shorter connecting rods, the outer cylinders were at the height of the smoke chamber. Thus, the high-pressure cylinders were on the inside and drove the first set of coupled wheels. Since they were also pulled very far forward, they could be clearly seen from the outside.

When they were taken over by the Reichsbahn, they became the class 183. After about ten years of service on the Baden trunk line, the 20 built IV h were replaced by class 01 standard locomotives and relocated to other locations. Although they had a higher fuel consumption than the newer locomotives, it later turned out that they could almost keep up with the 01 and even surpassed the 03 in terms of power. After all, the power measurements were in a range from 1,950 to 2,200 hp

After the war, all 19 remaining examples went to the Bundesbahn and only road number 18 314 ended up being traded for an S 3/6 to the Reichsbahn, where it was fundamentally rebuilt. All others were initially retired because their Number was very small. However, three were subsequently reactivated and modernized for use as brake locomotives or for other trials. The 18 316 was preserved and was again in running condition between 1995 and 2002, but was parked again after damage.

Variantas builtimproved running gear
General
Built1918-1920
ManufacturerMaffei
Axle config4-6-2 (Pacific)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Length76 ft 2 9/16 in
Wheelbase40 ft 4 5/8 in
Rigid wheelbase14 ft 3 5/8 in
Total wheelbase64 ft 4 5/8 in
Empty weight192,133 lbs
Service weight211,644 lbs
Adhesive weight119,049 lbs
Total weight350,535 lbs
Axle load39,683 lbs
Water capacity7,819 us gal
Fuel capacity19,842 lbs (coal)
Boiler
Grate area53.8 sq ft
Firebox area167.9 sq ft
Tube heating area2,251.8 sq ft
Evaporative heating area2,419.7 sq ft
Superheater area835.3 sq ft
Total heating area3,255 sq ft
Variantas builtimproved running gear
Power Plant
Driver diameter82.68 in
Boiler pressure232 psi
Expansion typecompound
Cylindersfour, HP: 17 5/16 x 26 3/4 in
and LP: 26 3/4 x 26 3/4 in
Power
Power sourcesteam
Indicated power2,172 hp (1,620 kW)
Top speed68 mph87 mph
Starting effort27,026 lbf
with start valve32,431 lbf
Calculated Values
Optimal speed51 mph
steam locomotive
express
two-axle compound
last changed: 01/2022
Image of locomotive
Die Lokomotive, August 1925
Showing 1 to 10 of 45
Search
