After the end of the First World War, in the course of the founding of the Weimar Republic, it was decided to place the Länderbahnen (state railways) under a joint administration. Thus, on April 1, 1920, the “Deutsche Reichseisenbahnen” (“German Imperial Railways”) were officially founded, which was soon renamed the “Deutsche Reichsbahn”. Due to the Dawes Plan, the Reichsbahn was privatized in 1924 and called the “Deutsche Reichsbahn Gesellschaft” so that its profits could be paid to the victorious powers as reparations.
A major challenge was to manage and effectively use the large number of different steam locomotives of the state railways. Although many of the locomotives were still state-of-the-art, their different properties made planning the ongoing operation more difficult. In the long term it was therefore necessary to standardize the vehicle fleet.

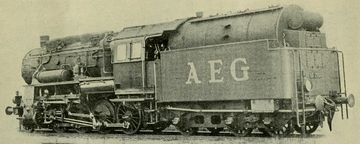

First, some particularly successful Länderbahn locomotives were procured by several Reichsbahn departments, such as the Prussian G 12. The Prussian P 8 and the Bavarian S 3/6 were also built for a few more years. When there were surplus locomotives in certain areas of work, the oldest machines of the Länderbahnen or those that were only available in small numbers were taken out of service first.
To manage the individual types, a class scheme was drawn up that assigned a number from 01 to 99 and possibly a sub-class to each type. The lowest numbers in each area were reserved for the new locomotives. On the other hand, many older locomotives were assigned a number, but they were no longer re-numbered on the key date in 1925 because they had already been retired.
View through the bar frame of the 01
Christian Gebhardt The following numbers were assigned for different categories:
ClassesCategory01-19Express tender locomotives20-39Passenger tender locomotives40-59Freight tender locomotives60-79Passenger tank locomotives80-96Freight tank locomotives97Rack tank locomotives98Local railway tank locomotives99Narrow gauge locomotives
Express train tender locomotives of the regional railways with the wheel arrangement 4-6-2 (Pacific) were sorted into the class 18. For example, the Saxon XVIII H became the class 180, i.e. with numbers from 18.001. The Bavarian S 3/6, which was available in large numbers, was given the number range 184-5, i.e. with numbers between 18 401 and 18 548. The Reichsbahn received almost 3,000 units of the Prussian P 8, these were given running numbers from 1001 and became the class 3810-40.
The standard locomotive program was created for the construction of new locomotives. The aim was to develop the largest possible number of classes for different fields of application with a large number of identical parts, economical production, simple maintenance and a long service life. Richard Paul Wagner, who was head of the design department from 1922, was in charge here and shaped many of the basic features of the standard locomotives.
The class 24 was developed with a low axle load for the steppes to be conquered in the Soviet Union
Christian Gebhardt A central element was the bar frame, which Wagner was able to experience on his study trips to the USA and which the Bavarian State Railway had also used. Due to its lower overall height, one had a freer hand in the design of the boiler and could use a firebox with more advantageous proportions. Even the driver's cabs, smoke deflectors and other externally visible assemblies showed at first glance that this was a standard locomotive of the Reichsbahn. Inside, for example, the steam paths were optimized in order to optimize performance and consumption without much effort.
In order to reduce production costs and simplify maintenance, compound engines were not used and the higher consumption was accepted. This was preceded by test runs with the class 01 express locomotives with two-cylinder engine and class 02 with four-cylinder compound engine. Since the 02 was only marginally more fuel efficient, the additional cost of the engine was not considered justified. Some have argued that the 02's engine was deliberately under-designed to achieve the desired result. The use of a third inner cylinder with simple expansion was also avoided as far as possible and only implemented in locomotives that required particularly smooth running at high speeds or high loads.
It was noticeable that the boilers of the standard locomotives were very long. The lack of a combustion chamber resulted in excessively long smoke tubes, which caused problems due to stresses with temperature differences. Later, the boilers were made of the harder steel alloy St 47k, so that they could be operated at 20 or even 25 bars instead of 16 bars. Later, the pressure had to be reduced again, as it was only recognized later that this steel became brittle over time and dangerous hairline cracks formed.

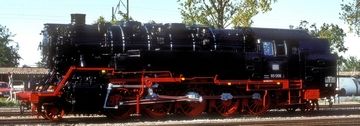

In general, innovations in steam locomotive construction often did not catch on with the standard locomotives in order not to have to modify the production facilities designed for mass production too much. Especially with the induced draft system, the traditional design was retained and no variable, cloverleaf-shaped or Kylchap blastpipes were used. They refused to install mechanical stokers to feed the grate and therefore relied on the muscle power of the firemen. With the most powerful locomotives, it was not uncommon for two firemen to be used at the same time in order to be able to shovel enough coal.

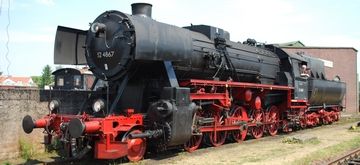

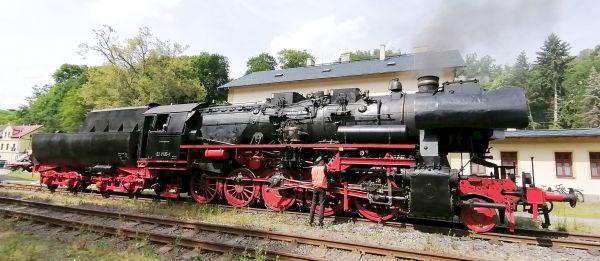

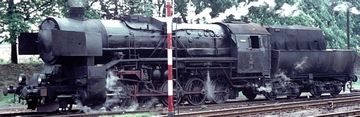

The wartime locomotives of the class 52 came to many countries after the Second World War, here as the class 555 of the Czechoslovakian ČSD

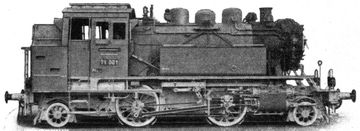

Jan Kratochvíl In the 1930s, the steam locomotives had to prove themselves against the new multiple units such as the “Flying Hamburger”, which easily reached high average speeds on routes with low traffic volumes. One result was the class 61 tank locomotive, which was designed to haul light passenger trains at speeds of up to 160 km/h. In general, many streamlined locomotives were built in the 1930s, which should consume less at high speeds. The fairing soon proved to be a hindrance to maintenance and caused some chassis components to overheat, which is why it was later removed.

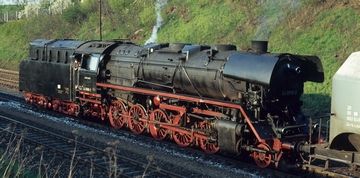

In 1937 the Reichsbahn was nationalized by the National Socialists so that they could better use it for their own war plans. With the beginning of the Second World War, development in the area of express locomotives was virtually stopped and greater emphasis was placed on the mass production of freight locomotives. On the one hand, production of the heavy class 44 was only really getting going at this point, on the other hand, locomotives with low axle loads were being developed for use in the conquered territories.
One of the central points was the simplification of the production of existing locomotive types and the rationalization of production. The Gemeinschaft Großdeutscher Lokomotivfabriken (“Association of Greater-German Locomotive Builders”) was founded in order to manufacture different assemblies in individual plants and then assemble them in another plant. The simplification of the locomotives led first to the transitional wartime locomotives (“Übergangskriegslokomotiven”) and then to the wartime locomotives (“Kriegslokomotiven”), in which many parts were made more simply and other parts that were not necessary for operation were omitted. The resulting higher consumption was accepted. The service life of the individual locomotives could also be shorter, since they were considered dispensable after the expected victorious end of the war.
After the German defeat, it quickly became apparent that the railways in the western and eastern zones of occupation would soon separate. In the GDR, the name “Deutsche Reichsbahn” was continued, while in the FRG the Deutsche Bundesbahn was founded. Both sides first had to make ends meet with the material they had and repair the damaged infrastructure and vehicles. Only after a delay was it possible to produce new locomotives in large numbers.

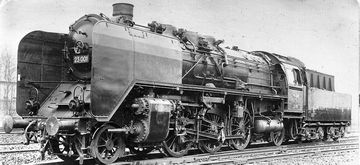

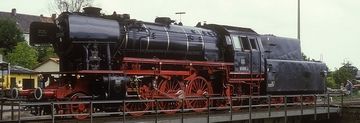

The class 23 was one of the few new-built steam locomotives on the Bundesbahn

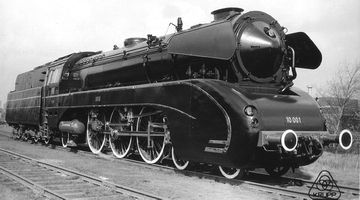

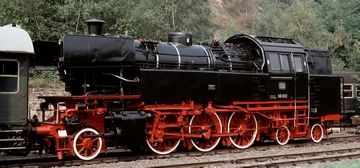

Klaus Nahr Due to the accommodation of the victorious powers, the Bundesbahn was able to decide early on to switch to diesel and electric locomotives on a large scale. As a result, only a few new steam locomotives were developed and manufactured. Nevertheless, for some time one was dependent on the existing steam locomotives and had to extend their service life. Major work was needed on the wartime locomotives, which were of inferior quality, and on the boilers made of the problematic St 47k alloy. Many locomotives received completely new, welded boilers with combustion chambers, which increased performance.
The Reichsbahn in the GDR was in a much worse situation, as the Soviet Union demanded large reparation payments. For example, all functioning electric locomotives had to be handed in and all overhead lines were dismantled and taken to the Soviet Union. The second track was also dismantled and removed from double-track lines, and many industrial plants were generally dismantled as reparations. Thus, the Reichsbahn had a much more difficult start and a large-scale electrification or the construction of diesel locomotives was not foreseeable.

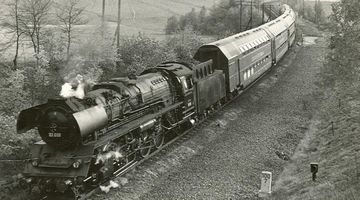

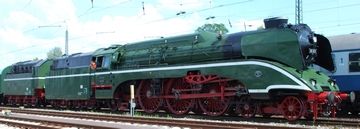

The focus was now on keeping the existing steam locomotives operational for several decades. After many locomotives had already undergone major modernizations, the Rekolok (“reconstructed locomotive”) program was launched in 1957. The locomotives were rebuilt from scratch, with new high-performance boilers also being used. Since the GDR could not obtain high-quality hard coal in large quantities, the boilers had to be designed for the use of lignite. This resulted in the 015 class, for example, which achieved significantly increased performance compared to the original 01.

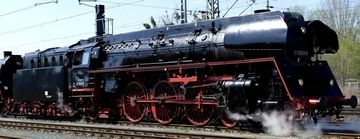

The express locomotives of the class 01 were the first standard locomotives that the Reichsbahn purchased from 1925. These were Pacific locomotives with a two-cylinder engine. In contrast to the sister class 03, which was developed later, it had an axle load of 20 tonnes, which a high power possible, but limited the area of application to the few routes that had already been upgraded at the time. Before series production began, a comparison was made with the otherwise almost identical class 02 with a four-cylinder compound engine, which the 01 was able to claim for itself.
The features that all standard locomotives later had in common could be observed for the first time. In part, modern advances in steam locomotive design were ignored to allow for a simpler, standardized design. These included the abandonment of a combustion chamber and using two- and three-cylinder engines with simple steam expansion instead of compound engines. Due to the long boiler without a combustion chamber, the pipes were 6,800 mm long, which led to stresses in the material under heavy loads. These problems were also encountered with other large standard locomotives and they were only solved after the war when new boilers with a combustion chamber and thus shorter pipes were installed.
At the front, the large Wagner smoke deflectors and skirts were used, which led to a characteristic appearance. The top speed was initially 120 km/h, but was increased from 01 102 to 130 km/h by increasing the diameter of the front wheels from 850 to 1,000 mm and strengthening the brakes. The first series used the shorter 2'2 T 30 with ten tonnes of coal and 30 cubic meters of water as a tender. Later the 2'2 T 32 was used with the same amount of coal and 32 cubic meters of water and over the years many machines were given the 2'2 T 34 from the class 44.
Series production in larger numbers did not begin until 1930, but a total of 231 machines were built by 1938 and another ten were created from the conversion of the test locomotives of the class 02. After the war, the 01 remained a very important flagship for express trains for both German railway administrations for a long time. However, their condition made some modifications necessary, which were carried out on both sides. At the Bundesbahn they mainly received welded boilers with a combustion chamber, and at the Reichsbahn the changes were much more extensive. The resulting class 015 will be described in a separate article. The latter remained in use until 1982, while the decommissioning in the Bundesbahn was completed in 1973.
Variant | 1926 prototypes | 1927 variant | 1934 variant |
---|
General |
Built | 1926 | 1927-1933 | 1934-1938 |
Manufacturer | AEG, BMAG, Borsig, Henschel, Hohenzollern, Krupp |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 75 ft 7 1/2 in | | 78 ft 6 1/2 in |
Wheelbase | 39 ft 4 7/16 in |
Rigid wheelbase | 15 ft 1 1/8 in |
Service weight | 240,083 lbs | 244,933 lbs |
Adhesive weight | 130,514 lbs |
Axle load | 44,533 lbs |
Water capacity | 7,925 us gal | 8,454 us gal | 8,982 us gal |
Fuel capacity | 22,046 lbs (coal) |
Boiler |
Grate area | 47.5 sq ft | 46.5 sq ft |
Firebox area | 183 sq ft |
Tube heating area | 2,374.1 sq ft | 2,660.3 sq ft |
Evaporative heating area | 2,557.1 sq ft | 2,843.3 sq ft |
Superheater area | 1,076.4 sq ft | 914.9 sq ft |
Total heating area | 3,633.5 sq ft | 3,758.2 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 232 psi |
Expansion type | simple |
Cylinders | two, 23 5/8 x 26 in | two, 25 9/16 x 26 in |
Power |
Power source | steam |
Indicated power | 2,210 hp (1,648 kW) |
Optimal speed | 39 mph | 33 mph |
Top speed | 75 mph | 81 mph |
Starting effort | 36,328 lbf | 42,636 lbf |
Calculated Values |
Factor of adhesion | 1 : 3.59 | 1 : 3.06 |
Power-to-weight ratio | 0.0092 hp/lb | 0.0090 hp/lb |
Heating Area Equivalent | 5,624.8 sq ft | 5,588.1 sq ft |
Cylinder volume/HAE | 1 : 714.22 | 1 : 718.91 |
Adhesive weight/Total | 1 : 1.84 | 1 : 1.88 |
Tractive force/Heating area | 1 : 2247.68 | 1 : 2550.40 |
Grate area/Heating area | 1 : 72.69 | 1 : 76.89 |
Firebox/Tube area | 1 : 18.86 | 1 : 19.54 |
Total/Superheater | 1 : 2.38 | 1 : 3.11 |

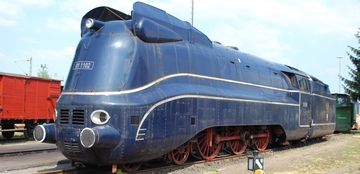

In order to develop a new express locomotive for speeds of up to 150 km/h, the design of the proven class 01 was used. These were already designed for 140 km/h and now they wanted to increase the usable speed range by means of a streamlined fairing. The fairing encompassed the entire locomotive, including the tender, and reached down to 400 mm above the railheads. Only on the coupling wheels was there a cut-out, e.g. to make it easier to lubricate the drive and coupling rods. The fairing had no effect at low speeds, but at over 120 km/h the drawbar power could be significantly increased.
Since the running smoothness of the original two-cylinder engine of the 01 left a lot to be desired even at its top speed, an engine with three cylinders was used for the 0110. Since the original engine was designed for only two cylinders, it was not entirely possible to ensure optimal steam distribution between the three cylinders. Although the locomotives thus achieved a lower indicated power than the 01, the advantages were the smoother running and the cladding. Instead of the initially required 550 tonnes of towing capacity at 120 km/h on the level, in reality they reached up to 660 tonnes at this speed.
In 1939 it was assumed that more than 400 locomotives would be required and initially a total of 204 units were ordered from several factories. Due to the outbreak of war, only 55 0110 were built. In everyday use, it became apparent that the streamlined fairing only had a positive effect at the rarely achieved high speeds, and it was also an obstacle to maintenance. Over time, the fairing was completely or partially removed from many locomotives.
After the war, all remaining pieces came to the Bundesbahn. They were mostly in very bad condition and were to be be retired, but due to the lack of locomotives they were rebuilt. All parts of the cladding were removed and boilers made of the problematic steel alloy St 47 K were replaced with new welded ones with a combustion chamber. The indicated power now reached 2,350 hp, and even 2,470 hp for oil-fired engines.
When the Bundesbahn switched to the computer numbering system in 1968, they renumbered the coal-fired units as class 011 and the oil-fired units as class 012. They remained indispensable until the electrification of the last main lines was completed and were retired by May 31, 1975.
Variant | as built | new boiler coal-fired | new boiler oil-fired |
---|
General |
Built | 1939 |
Manufacturer | BMAG |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 79 ft 2 in |
Wheelbase | 40 ft 8 3/16 in |
Rigid wheelbase | 15 ft 1 1/8 in |
Total wheelbase | 66 ft 8 in |
Empty weight | 227,296 lbs | 219,580 lbs | 222,667 lbs |
Service weight | 251,988 lbs | 244,272 lbs | 246,036 lbs |
Adhesive weight | 132,718 lbs |
Total weight | 433,649 lbs | 423,287 lbs | 433,208 lbs |
Axle load | 44,313 lbs |
Water capacity | 10,039 us gal |
Fuel capacity | 22,046 lbs (coal) | 3,566 us gal (oil) |
Boiler |
Grate area | 46.5 sq ft | 42.6 sq ft | |
Firebox area | 181.9 sq ft | 236.8 sq ft |
Tube heating area | 2,478.4 sq ft | 1,986 sq ft |
Evaporative heating area | 2,660.3 sq ft | 2,222.9 sq ft |
Superheater area | 925.7 sq ft | 1,034.9 sq ft |
Total heating area | 3,586 sq ft | 3,257.8 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 232 psi |
Expansion type | simple |
Cylinders | three, 19 11/16 x 26 in |
Power |
Power source | steam |
Indicated power | 2,091 hp (1,559 kW) | 2,317 hp (1,728 kW) | 2,437 hp (1,817 kW) |
Optimal speed | 35 mph | 39 mph | 41 mph |
Top speed | 93 mph | 87 mph |
Starting effort | 37,841 lbf |
Calculated Values |
Factor of adhesion | 1 : 3.51 |
Power-to-weight ratio | 0.0083 hp/lb | 0.0095 hp/lb | 0.0099 hp/lb |
Heating Area Equivalent | 5,421.2 sq ft | 5,476.8 sq ft |
Cylinder volume/HAE | 1 : 771.91 | 1 : 764.08 |
Adhesive weight/Total | 1 : 1.90 | 1 : 1.84 | 1 : 1.85 |
Tractive force/Heating area | 1 : 2372.28 | 1 : 2611.27 |
Grate area/Heating area | 1 : 73.21 | 1 : 70.87 | |
Firebox/Tube area | 1 : 18.71 | 1 : 12.76 |
Total/Superheater | 1 : 2.87 | 1 : 2.15 |
As already described for the 01, when the first standard express locomotive was being constructed, it was not yet certain which type of engine would be the best. Thus the 02 was created as an alternative to the 01 in order to be able to compare different designs. While the 01 featured a simple two-cylinder engine, the 02 was powered by four compound cylinders. The 02 was operational even before the 01 and was therefore the Reichsbahn's first standard steam locomotive. With it, the use of bar frames at the Reichsbahn began, with which the Bavarian State Railways had already made good experiences.

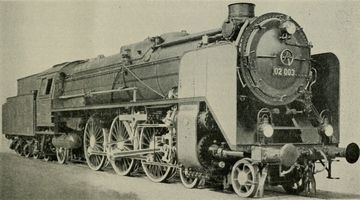

Henschel works photo
Die Lokomotive, February 1926
Except for the engine, the two classes were almost identical in order to create the optimal conditions for a comparison. Instead of the two cylinders with a diameter of 600 mm each on the 01, the 02 got two cylinders each with a diameter of 720 and 460 mm. Due to the tendency of this engine to run more smoothly, they were approved for 130 km/h from the start, which was only the case with their sister after modifications.
Schematic drawing with dimensions
Locomotive Magazine, January 1931
In 1925 and 1926, ten of each variant were built, which were then compared in day-to-day operations at the Erfurt, Hamm and Hof divisions. As expected, the 02 was smoother at higher speeds and slightly more powerful. At cruising speed, consumption was lower than that of the simple engine, but contrary to expectations it was higher at lower speeds.
However, some experts argue that the steam paths of the two locomotives were designed in a way that their characteristics were more favorable for two-cylinder engines. Ultimately, it was concluded that the 01, with its two cylinders, was the better choice for series production. Today it is known that Wagner, who was head of the design department at the time, had a personal dislike for compound steam locomotives and, in his opinion, the more difficult maintenance negated the advantages of lower consumption. With a different design of the steam engine, significantly better power could probably have been achieved, after which the disadvantages of the four cylinders could have been accepted.
Despite the lack of series production, the ten units of the class 02 were still used. However, since they were identical in construction to the 01 except for the engine, all of them were also rebuilt to two cylinders between 1937 and 1942. Up to this point, the locomotives had been in use in the Hof area, where the tests had also taken place. So after the war they remained on the territory of the Bundesbahn and no distinction was made to the actual 01 in operation. The last to be retired was 01 234, former 02 003, on May 8, 1972.
General |
Built | 1925-1926 |
Manufacturer | Henschel, Maffei |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 77 ft 11 1/16 in |
Length loco | 48 ft 10 5/8 in |
Wheelbase | 40 ft 8 3/16 in |
Rigid wheelbase | 15 ft 1 1/8 in |
Total wheelbase | 66 ft 8 in |
Empty weight | 229,060 lbs |
Service weight | 250,224 lbs |
Adhesive weight | 132,939 lbs |
Total weight | 400,139 lbs |
Axle load | 44,533 lbs |
Water capacity | 8,454 us gal |
Fuel capacity | 22,046 lbs (coal) |
Boiler |
Grate area | 47.5 sq ft |
Firebox area | 183 sq ft |
Tube heating area | 2,374.1 sq ft |
Evaporative heating area | 2,557.1 sq ft |
Superheater area | 1,076.4 sq ft |
Total heating area | 3,633.5 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 232 psi |
Expansion type | compound |
Cylinders | four, HP: 18 1/8 x 26 in and LP: 28 3/8 x 26 in |
Power |
Power source | steam |
Indicated power | 2,269 hp (1,692 kW) |
Optimal speed | 48 mph |
Top speed | 81 mph |
Starting effort | 30,326 lbf |
with start valve | 36,391 lbf |
Calculated Values |
Factor of adhesion | 1 : 3.65 |
Power-to-weight ratio | 0.0091 hp/lb |
Heating Area Equivalent | 5,624.8 sq ft |
Cylinder volume/HAE | 1 : 934.04 |
Adhesive weight/Total | 1 : 1.88 |
Tractive force/Heating area | 1 : 2251.59 |
Grate area/Heating area | 1 : 72.69 |
Firebox/Tube area | 1 : 18.86 |
Total/Superheater | 1 : 2.38 |
HP/LP cylinders | 1 : 2.45 |
In the 1920s, Stephan Löffler developed the basics for a steam locomotive boiler at the TH Berlin-Charlottenburg that worked at a pressure of 120 bars (1,740 psi). The BMAG took advantage of this and built the H 02 1001 for the Reichsbahn in 1930. It was hoped that a coal saving of 42 percent would be achieved. It used the chassis of a class 01 locomotive, but was classified into class 02 due to the compound engine.

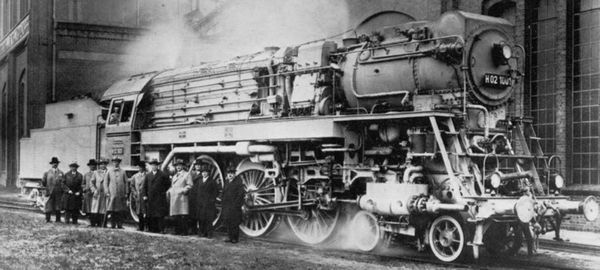

The H 02 1001 had a firebox made of parallel tubes. The two outside high-pressure cylinders had a diameter of only 220 mm and were fed by steam that had passed through a three-stage superheater. Before the steam was fed into the inner low-pressure cylinder with a diameter of 600 mm, it passed through another reheater and so still had a pressure of 13 or 14 bars.
However, various problems arose again and again during the trials. These included burst superheater tubes or leaks in the high-pressure cylinders. In reality, only about 20 percent of coal was saved, which did not justify the complicated design and the many problems. The locomotive was therefore returned to the BMAG in 1934. After sitting there unused for eleven years, it was scrapped.
General |
Built | 1930 |
Manufacturer | BMAG |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 77 ft 11 1/16 in |
Empty weight | 245,815 lbs |
Service weight | 253,531 lbs |
Adhesive weight | 132,277 lbs |
Axle load | 44,092 lbs |
Water capacity | 8,454 us gal |
Fuel capacity | 22,046 lbs (coal) |
Boiler |
Grate area | 25.8 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 1740 psi |
Expansion type | compound |
Cylinders | three, HP: 8 11/16 x 26 in and LP: 23 5/8 x 26 in |
Power |
Power source | steam |
Indicated power | 2,561 hp (1,910 kW) |
Optimal speed | 32 mph |
Top speed | 68 mph |
Starting effort | 51,473 lbf |
with start valve | 61,768 lbf |
Calculated Values |
Factor of adhesion | 1 : 2.14 |
Power-to-weight ratio | 0.0101 hp/lb |
Adhesive weight/Total | 1 : 1.92 |
HP/LP cylinders | 1 : 14.88 |

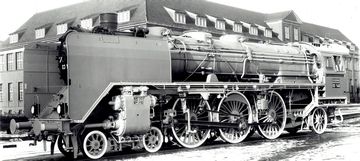

With its 20-tonne axle load, the class 01 could not be used on many routes. Although the plans provided for the upgrading of all main routes for these loads, this project could not be implemented due to the economic crisis, and it could not have been completed within a few years. Thus, the class 03 was developed, which was almost identical in construction to the 01, but lighter.
The main changes consisted in the fact that the bar frame was now only 90 mm thick instead of 100 mm, the diameter of the cylinders was reduced from 650 to 600 mm and the pressure of the slightly smaller boiler was reduced to 14 bar. With almost identical external dimensions, an axle load of 17.7 and later 18.1 tonnes was achieved, thus significantly expanding the range of routes that could be used. After the first three examples, the boiler pressure was increased to 16 bar, analogous to most standard locomotives, but in return the diameter of the cylinders was further reduced to 570 mm.
03 001 in the year 2000 on the turntable in Dresden-Altstadt
Olaf1541 As with the 01, the top speed was initially 120 km/h and later from the 03 163 130 km/h after the diameter of the leading wheels had been increased. Since the series was even designed for 140 km/h, some examples could also be approved for this speed after adapting the braking equipment. With a few engines, the performance in the high speed ranges could be significantly improved by using a complete or partial streamlined fairing, but this was later removed again, as was the case with the development 0310. The series machines could pull trains of 430 tonnes at 120 km/h and 790 tonnes at 100 km/h on the flat.
The three coupled axles were fixed in the frame and only the middle driven axle had wheel flanges that were 15 mm weaker. The front bogie could be moved sideways by 100 mm, the trailing axle behind the firebox was an Adams axle and had 140 mm of play. As with its heavier sister, the wheels of the bogie were 850 or 1,000 mm depending on the year of manufacture, the coupled wheels were 2,000 mm and the wheels of the trailing axle were 1,250 mm.
With a total of 298 locomotives built between 1930 and 1938, the 03 reached a larger number than the 01. After the Second World War, the West German Federal Railways received 154, the East German Reichsbahn 86 and the Polish PKP around 40 units. In the case of the latter, the engines were called Pm 2. In 1968, only 45 units were still in use on the Bundesbahn, all of which were in storage by 1972. The Reichsbahn equipped damaged locomotives with a welded firebox and feedwater heaters. The larger part of 55 engines was even completely reconstructed and provided with completely welded new boilers between 1969 and 1975. Due to the combustion chamber, they only had 5,700 mm long heating pipes instead of the 6,800 mm of the original boilers, which was already in the problematic area. They had an output increased by around 100 kW and were still used in the 1980s.
Variant | 03 001-122 | 03 123-298 |
---|
General |
Built | 1930-1938 |
Manufacturer | Borsig, Krupp, Henschel, BMAG |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 78 ft 5 1/8 in |
Wheelbase | 39 ft 4 7/16 in |
Rigid wheelbase | 14 ft 9 3/16 in |
Total wheelbase | 66 ft 4 7/16 in |
Empty weight | 199,298 lbs | 200,620 lbs |
Service weight | 219,580 lbs | 221,123 lbs |
Adhesive weight | 116,845 lbs | 119,711 lbs |
Axle load | 39,022 lbs | 39,904 lbs |
Water capacity | 7,925 us gal | 8,982 us gal |
Fuel capacity | 22,046 lbs (coal) |
Boiler |
Grate area | 42.7 sq ft | 41.9 sq ft |
Firebox area | 173.3 sq ft | 171.1 sq ft |
Tube heating area | 2,000.6 sq ft | 2,015.5 sq ft |
Evaporative heating area | 2,173.9 sq ft | 2,186.7 sq ft |
Superheater area | 753.5 sq ft | 777.4 sq ft |
Total heating area | 2,927.4 sq ft | 2,964.1 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 232 psi |
Expansion type | simple |
Cylinders | two, 22 7/16 x 26 in |
Power |
Power source | steam |
Indicated power | 1,953 hp (1,456 kW) |
Optimal speed | 38 mph |
Top speed | 75 mph | 81 mph |
Starting effort | 32,786 lbf |
Calculated Values |
Factor of adhesion | 1 : 3.57 | 1 : 3.65 |
Power-to-weight ratio | 0.0089 hp/lb | 0.0088 hp/lb |
Heating Area Equivalent | 4,547.3 sq ft | 4,597.2 sq ft |
Cylinder volume/HAE | 1 : 797.31 | 1 : 788.67 |
Adhesive weight/Total | 1 : 1.88 | 1 : 1.85 |
Tractive force/Heating area | 1 : 2517.83 | 1 : 2486.65 |
Grate area/Heating area | 1 : 64.45 | 1 : 66.70 |
Firebox/Tube area | 1 : 15.89 | 1 : 16.32 |
Total/Superheater | 1 : 2.89 | 1 : 2.81 |

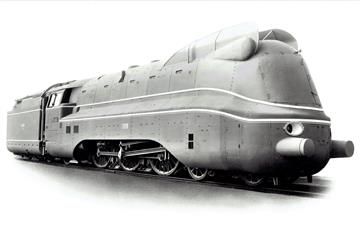

In addition to the class 01, the 03 was also taken on in order to develop a variant with streamlined fairing and three cylinders. The result was the class 0310, which was designed for 150 km/h and was only certified for 140 from 1940. Instead of the 140 units ordered, only 60 were finally completed, as production had been focused on freight locomotives since the outbreak of war. In the case of locomotives supplied by Borsig and Krauss-Maffei, the fairing was pulled over the entire drive train and running gear to just above the upper edge of the rails, while Krupp left a cutout in the area of the coupled axles just above the axles. Since the original locomotive was only designed for two cylinders, the steam of the 0310 could not be optimally distributed between the three cylinders and the indicated power fell by almost 200 hp compared to the 03.
Although streamlined locomotives had about 50% less drag, the fairing not only restricted accessibility for maintenance, but also limited engine cooling. As early as 1942, the fairing was gradually removed from the fully encased locomotives up to the top of the coupled wheels. For the time being, the Krupp locomotives continued to run with their incised fairings. After the war, traffic on both sides of the Iron Curtain was initially not possible at the speeds at which streamlining offered advantages over conventional locomotives. Since these were also often in very poor condition, they were completely removed from all locomotives. From now on, a striking feature of these engines was the slanted top smoke box, but some conversions also included a new smoke box with a round door.
In the case of the 26 locomotives of the Bundesbahn, the later conversions were mainly limited to replacing the non-ageing St 47 K boilers with new ones made of a more durable alloy. Although the new boilers had a combustion chamber, the output was only slightly higher than before. They were retired between the end of 1965 and the end of 1966 and finally scrapped without exception.
03 1010 without fairing in 2002
Olaf1541 Since the shortage of locomotives at the Reichsbahn was more serious, 16 of the 17 units of the 0310 were included in the reconstruction program. The most modern construction principles were used in the subsequent fundamental rebuilding in order to be able to use the locomotives for a few more years in front of the highest-quality express trains. In the period when their sisters were already being phased out by the Bundesbahn, almost all engines in the GDR were given oil firing. Especially with the latter, a significant increase in performance was possible, some claims of 2,350 hp are given. After some of the reconstructed engines had achieved monthly mileages of more than 20,000 km, they were retired by 1980.
Variant | as built | reduced boiler pressure | DR Rekolok |
---|
General |
Built | 1939-1941 | 1959 |
Manufacturer | Borsig, Krupp, Krauss-Maffei |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 78 ft 5 1/8 in |
Wheelbase | 39 ft 4 7/16 in |
Rigid wheelbase | 14 ft 9 3/16 in |
Empty weight | 206,793 lbs | 204,368 lbs |
Service weight | 227,517 lbs | 229,280 lbs |
Adhesive weight | 121,034 lbs | 124,341 lbs |
Total weight | 400,579 lbs | 402,343 lbs |
Axle load | 40,345 lbs | 41,447 lbs |
Water capacity | 8,982 us gal |
Fuel capacity | 22,046 lbs (coal) | 3,566 us gal (oil) |
Boiler |
Grate area | 41.9 sq ft | 45.5 sq ft |
Firebox area | 171.1 sq ft | 229.3 sq ft |
Tube heating area | 2,019.3 sq ft | 1,991.3 sq ft |
Evaporative heating area | 2,190.5 sq ft | 2,226 sq ft |
Superheater area | 777.4 sq ft | 902 sq ft |
Total heating area | 2,967.8 sq ft | 3,128 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 290 psi | 232 psi |
Expansion type | simple |
Cylinders | three, 18 1/2 x 26 in |
Power |
Power source | steam |
Indicated power | | 1,844 hp (1,375 kW) | 2,319 hp (1,729 kW) |
Estimated power | 2,146 hp (1,600 kW) | |
Optimal speed | 33 mph | 35 mph | 44 mph |
Top speed | 93 mph | 87 mph |
Starting effort | 41,793 lbf | 33,437 lbf |
Calculated Values |
Factor of adhesion | 1 : 2.90 | 1 : 3.62 | 1 : 3.72 |
Power-to-weight ratio | 0.0094 hp/lb | 0.0081 hp/lb | 0.0101 hp/lb |
Heating Area Equivalent | 4,600.9 sq ft | 5,171 sq ft |
Cylinder volume/HAE | 1 : 803.67 | 1 : 715.07 |
Adhesive weight/Total | 1 : 1.88 | 1 : 1.84 |
Tractive force/Heating area | 1 : 3165.77 | 1 : 2532.81 | 1 : 2403.12 |
Grate area/Heating area | 1 : 66.79 | 1 : 63.55 |
Firebox/Tube area | 1 : 16.34 | 1 : 12.62 |
Total/Superheater | 1 : 2.82 | 1 : 2.47 |
In order to increase the power of the standard locomotives while at the same time reducing the specific consumption, two medium-pressure test locomotives were built on the basis of the class 03 and designated as class 04. The aim was to run production locomotives with a boiler pressure of 25 instead of 16 bars in the future. The most important change to implement the plans was the use of high-strength steel alloys in the two examples built. The 04 001 was equipped with a boiler made of copper-manganese steel, while the 04 002 got one made of chrome-molybdenum steel. In addition, a compound engine with four cylinders was chosen in order to be able to better utilize the higher steam pressure.
First test runs showed that the power increased from 1,980 hp on the 03 to around 2,320 hp. At the same time, the specific consumption of steam and coal fell significantly, although the 03 was also considered to be very economical. The specific steam consumption was reduced from 6.3 to 5.2 kg per hp hour, while the specific coal consumption based on the drawbar power fell from 1.13 to 0.96 kg per hp hour. Although the boiler itself was able to withstand the higher loads, leaks soon became apparent in the area of the firebox at the seams and stay bolts. Attempts were subsequently made to get this under control by means of rebuilds, but this was unsuccessful. As a result, the boiler pressure was initially reduced to 20 bars and later even to 16 bars.
04 001 in 1932
Werner Hubert / Eisenbahnstiftung - Bildarchiv The two locomotives were now structurally very similar to the prototypes of the somewhat heavier class 02, which is why they were used as 02 101 and 02 102 from now on. With only 2,100 hp, they no longer had any major advantages compared to the 03, which was easier to maintain. The use of other production locomotives from other classes with 20 bars was not convincing either, since the stronger steel alloys showed much more signs of aging than the conventional steels. In the end, all standard locomotives continued to be operated with a boiler pressure of 16 bars. The outbreak of war prevented further promising developments in terms of boiler pressure. There were only isolated attempts with extremely high pressures, but these were also unsuccessful.
Variant | as built | reduced boiler pressure |
---|
General |
Built | 1932 |
Manufacturer | Krupp |
Axle config | 4-6-2 (Pacific) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 78 ft 5 1/8 in |
Wheelbase | 39 ft 4 7/16 in |
Rigid wheelbase | 14 ft 9 3/16 in |
Total wheelbase | 66 ft 4 7/16 in |
Empty weight | 214,399 lbs |
Service weight | 234,351 lbs |
Adhesive weight | 131,175 lbs |
Axle load | 41,447 lbs |
Water capacity | 8,454 us gal |
Fuel capacity | 22,046 lbs (coal) |
Boiler |
Grate area | 44.1 sq ft |
Firebox area | 215.3 sq ft |
Tube heating area | 2,010.7 sq ft |
Evaporative heating area | 2,226 sq ft |
Superheater area | 947.2 sq ft |
Total heating area | 3,173.2 sq ft |
Power Plant |
Driver diameter | 78.7 in |
Boiler pressure | 363 psi | 232 psi |
Expansion type | compound |
Cylinders | four, HP: 13 3/4 x 26 in and LP: 20 1/2 x 26 in |
Power |
Power source | steam |
Indicated power | 2,288 hp (1,706 kW) | 2,072 hp (1,545 kW) |
Optimal speed | 55 mph | 78 mph |
Top speed | 81 mph |
Starting effort | 26,582 lbf | 17,015 lbf |
with start valve | 31,898 lbf | 20,418 lbf |
Calculated Values |
Factor of adhesion | 1 : 4.11 | 1 : 6.43 |
Power-to-weight ratio | 0.0098 hp/lb | 0.0088 hp/lb |
Heating Area Equivalent | 5,196.8 sq ft |
Cylinder volume/HAE | 1 : 553.36 |
Adhesive weight/Total | 1 : 1.79 |
Tractive force/Heating area | 1 : 2259.88 | 1 : 1446.54 |
Grate area/Heating area | 1 : 67.02 |
Firebox/Tube area | 1 : 13.74 |
Total/Superheater | 1 : 2.35 |
HP/LP cylinders | 1 : 2.21 |

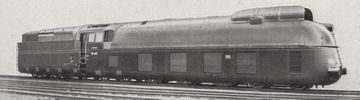

In addition to the tank locomotives of the class 61, the need for more powerful express locomotives was also recognized in order to be able to transport regular, heavier express trains at higher speeds. A tender followed among various companies, the winner of which was a streamlined 4-6-4 locomotive from Borsig. In contrast to its competitors, some of which were also designed as steam turbine locomotives, the class 05 was created as a conventional three-cylinder steam locomotive, which was based as far as possible on the design of the standard locomotives. In 1935 road numbers 05 001 and 05 002 were built in the regular design, followed in 1937 by the different 05 003.
The locomotives had coupling wheels measuring 2,300 mm and a two-axle bogie at the front and rear. The streamlining completely covered the running gear, it had a straight lower edge and went down to a few centimeters above the rail heads. The five-axle 2'3 T37 tender was also paneled, but otherwise mostly compatible with the standard design. The tender's paneling was flush with the locomotive's paneling, removable, and closed off the cab at the rear.
Test drives showed an indicated power of around 2,360 hp, but significantly more was possible for a short time. The regular maximum speed was 150 km/h, and 175 km/h was approved to make up for delays. A typical train mass for these speeds was given as 250 tonnes.
Calculations had shown that at 140 km/h a performance increase of 385 hp at the towing hook had been achieved through the fairing. As with all large standard locomotives, the problem was the large length of the heating pipes, which here reached 7,000 mm and tended to lead to tension. In contrast to most other locomotives of this time, the coupling wheels were braked on both sides and, in addition, a speed-dependent control of the brake was achieved by means of a centrifugal governor. This allowed the usual train weight to come to a standstill at a distance of 1,200 meters from the distant signal within a defined time.
During the test drives and in the subsequent scheduled use of the first two engines, they often exceeded the requirements. The rule were trains consisting of five heavy express cars and together weighing almost 250 tonnes. In the process, speeds were kept above the permitted maximum speed over longer distances on several occasions. On May 11, 1935, road number 05 002 drove between Hamburg and Berlin with only four cars. Although no record run was planned, the speedometer needle reached its stop at 200 km/h and stayed there for a long time. Using the milestones and time measurements, an average of 200.4 km/h was calculated over 5 km and 201 km/h for a short time.
In addition to a calculated output of 3,400 hp, this meant a speed record for steam locomotives, which is still disputed today. The record is often attributed to the English “Mallard” with 201.2 km/h, but not only did this trip take place on a slight downward gradient, it also resulted in damage from an overheated bearing on the connecting rods and it is usually claimed that the trip was not adequately documented. Some American locomotives also allegedly reached over 220 km/h, but in these cases there is no reliable documentation.
The third locomotive followed in a very unusual configuration, since at these speeds there were advantages in moving the driver's cab forward. In order to avoid separating the fireman and driver, the boiler was installed backwards. Since the firebox was now on the opposite side of the tender, pulverized coal firing was installed. The coal dust was transported through a pipe that ran through the entire frame and also had bends due to the inner cylinder. Another difference was the installation of a combustion chamber to allow the gases, which were very hot after the rapid combustion, to cool down a little before hitting the heating tubes. The design of 05 003 did not work, as there was a lack of combustion air in many situations and there were frequent blockages due to slag deposits. Finally in 1944, the boiler was rotated to the conventional position and converted to fire regular coal while the cladding was removed.
In contrast to almost all locomotives available in small numbers, the German Federal Railroad did not decommission the three 05s because they could not do without these fast and more powerful engines. During the rebuild in 1950, the remnants of the paneling, which had already been damaged during the war, were also removed from 05 001 and 002. This did not result in any noticeable disadvantages because the network no longer allowed the highest speeds. However, the boiler pressure was reduced from 20 to 16 bars to reduce the wear.
In 1957 and 1958, the three units were replaced by class V 200 diesel locomotives. Road numbers 002 and 003 were then scrapped by 1960, with only the 001 remaining. The paneling of the latter was then largely restored and the locomotive was taken to the Nuremberg Transport Museum.
Variant | as built | reduced boiler pressure | 05 003 (coal dust) |
---|
General |
Built | 1935 | 1937 |
Manufacturer | Borsig |
Axle config | 4-6-4 (Hudson) |
Gauge | 4 ft 8 1/2 in (Standard gauge) |
Dimensions and Weights |
Length | 86 ft 2 1/16 in | 88 ft 7 in |
Wheelbase | 45 ft 7 1/4 in |
Rigid wheelbase | 72 ft 4 7/8 in | 73 ft 0 3/4 in | 73 ft 5 7/8 in |
Total wheelbase | 16 ft 8 13/16 in |
Empty weight | 253,090 lbs | |
Service weight | 279,325 lbs | 285,498 lbs |
Adhesive weight | 124,341 lbs | 130,073 lbs |
Axle load | 41,447 lbs | 43,211 lbs |
Water capacity | 9,774 us gal | 9,246 us gal |
Fuel capacity | 22,046 lbs (coal) | 26,455 lbs (coal dust) |
Boiler |
Grate area | 50.7 sq ft | 47.4 sq ft |
Firebox area | 199.1 sq ft | 243.9 sq ft |
Tube heating area | 2,556.4 sq ft | 2,209.2 sq ft |
Evaporative heating area | 2,755.6 sq ft | 2,453.1 sq ft |
Superheater area | 968.8 sq ft | 881.6 sq ft |
Total heating area | 3,724.3 sq ft | 3,334.7 sq ft |
Power Plant |
Driver diameter | 90.6 in |
Boiler pressure | 290 psi | 232 psi | 290 psi |
Expansion type | simple |
Cylinders | three, 17 11/16 x 26 in |
Power |
Power source | steam |
Indicated power | 3,353 hp (2,500 kW) | 2,328 hp (1,736 kW) | 3,412 hp (2,544 kW) |
Optimal speed | 64 mph | 56 mph | 65 mph |
Top speed | 109 mph |
Starting effort | 33,316 lbf | 26,655 lbf | 33,316 lbf |
Calculated Values |
Factor of adhesion | 1 : 3.73 | 1 : 4.67 | 1 : 3.91 |
Power-to-weight ratio | 0.0120 hp/lb | 0.0083 hp/lb | 0.0119 hp/lb |
Heating Area Equivalent | 5,688.7 sq ft | 5,435.8 sq ft |
Cylinder volume/HAE | 1 : 595.85 | 1 : 623.58 |
Adhesive weight/Total | 1 : 2.25 | 1 : 2.19 |
Tractive force/Heating area | 1 : 2011.04 | 1 : 1608.96 | 1 : 2246.03 |
Grate area/Heating area | 1 : 69.53 | 1 : 65.26 |
Firebox/Tube area | 1 : 17.70 | 1 : 12.67 |
Total/Superheater | 1 : 2.84 | 1 : 2.78 |
