Cananea, Rio Yaqui & Pacifico class EG, later E-1
Southern Pacific classes M-9 and M-11
go back
Mexico | 1908
30 produced
Image of locomotive

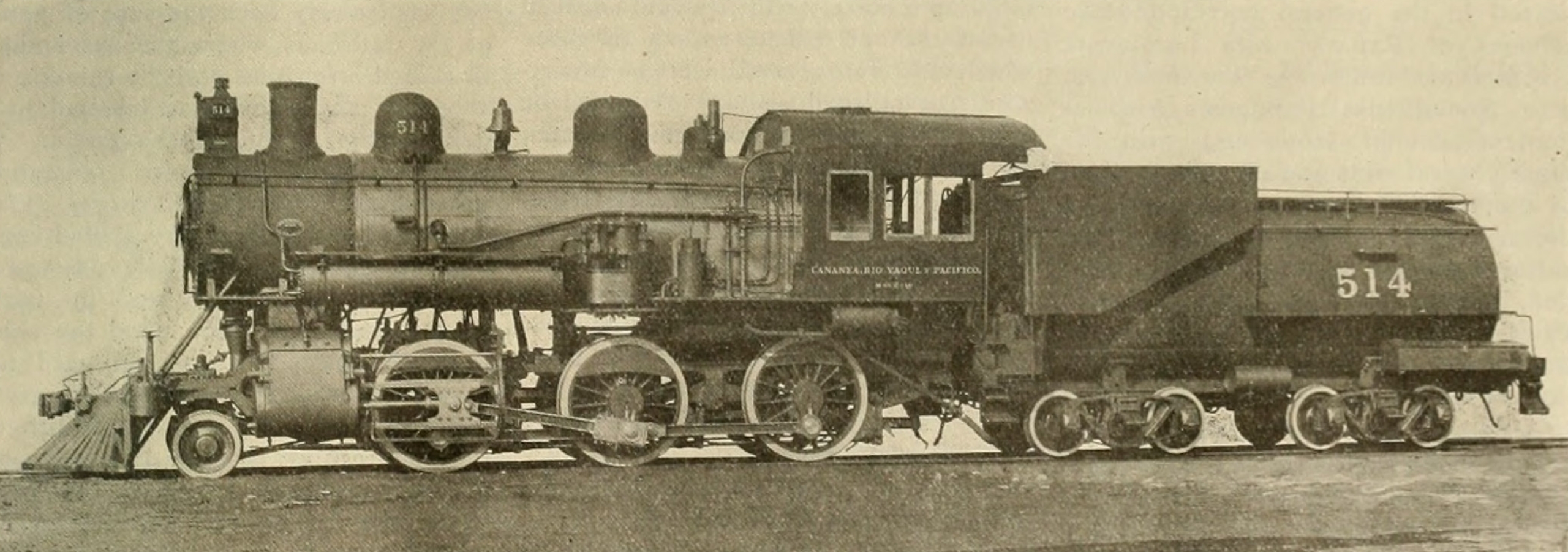

Railway and Locomotive Engineering, December 1908

The CRY&P had been built to haul mineral resources and agricultural products over the mountains in Sonora. For this task, they ordered 30 2-6-0 locomotives which had been derived from the Harriman Common Standard design. The first 15 were built in 1908 by ALCO-Brooks and numbered 500 to 514. Although they were operated with saturated steam, they had piston valves. The second half of the order was built by Baldwin in 1909. Their owner was now owned by the Ferrocarril de Sud Pacifico de México, a subsidiary of the Southern Pacific from the US. They were numbered 515 to 529 and had a larger grate to burn local low-calorie lignite.

In 1912 a part of the class came to other Southern Pacific subsidiaries. The locomotives of the ALCO batch became SP class M-9 and the Baldwin locomotives became class M-11. The Houston & Texas Central received seven M-9 and numbered them 550 to 556. They also received five M-11 and numbered them 560 to 564 and 576. Three M-9 came to the Arizona Eastern and became numbers 567 to 569, while their six M-11 got the numbers 570 to 574 and 576. Some years later, many got a superheater. They were retired between 1949 and 1957.

Variant500-514515-529M-11 superheated
General
Built19081909
ManufacturerALCOBaldwin
Wheel arr.2-6-0 (Mogul)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase24 ft
Rigid wheelbase15 ft 2 in
Total wheelbase53 ft 3 in
Service weight196,200 lbs175,000 lbs180,440 lbs
Adhesive weight152,500 lbs150,000 lbs153,000 lbs
Total weight313,000 lbs308,095 lbs313,535 lbs
Axle load50,835 lbs50,000 lbs
Water capacity7,000 us gal
Fuel capacity28,000 lbs (coal)
Boiler
Grate area49.5 sq ft72 sq ft49.5 sq ft
Firebox area146 sq ft170 sq ft163 sq ft
Tube heating area1,956 sq ft2,036 sq ft1,758 sq ft
Evaporative heating area2,102 sq ft2,206 sq ft1,921 sq ft
Superheater area353 sq ft
Total heating area2,102 sq ft2,206 sq ft2,274 sq ft
Variant500-514515-529M-11 superheated
Power Plant
Driver diameter63 in
Boiler pressure200 psi
Expansion typesimple
Cylinderstwo, 20 x 28 intwo, 21 x 28 intwo, 22 x 28 in
Power
Power sourcesteam
Estimated power1,250 hp (932 kW)1,300 hp (969 kW)1,500 hp (1,119 kW)
Starting effort30,222 lbf33,320 lbf36,569 lbf
Calculated Values
steam locomotive
freight
