Unidos de Yucatan No. 62 and 75 to 79
go back
Mexico | 1903
6 produced

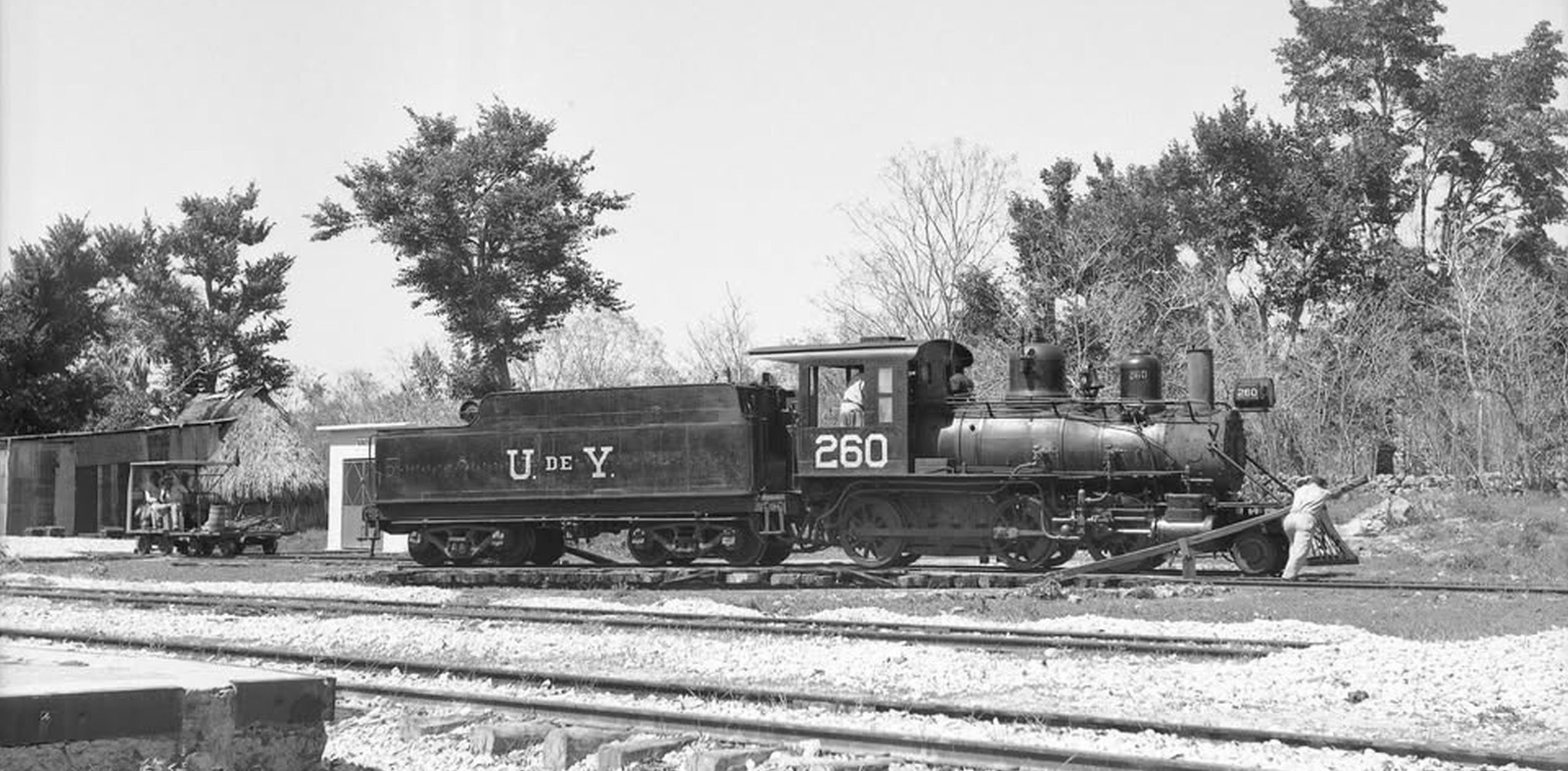

No. 260, formerly 76, in February 1965 in Sotuta
No. 260, formerly 76, in February 1965 in Sotuta
Robert W. Richardson

In 1903, Baldwin built a light three-foot gauge 2-6-0 for the Merida a Peto in Mexico that was numbered 12 and named “Catalina A de Casasus”. It carried the works number 21935 and belonged to the Baldwin type 8-20 D 115. The wood burner weighed 52,000 pounds, of which 43,000 rested on the drivers. At 45,000 pounds, the tender was not much lighter than the locomotive. The railroad became part of the Unidos de Yucatan in 1908 and the locomotive was renumbered to 62.

Five more locomotives were built in 1928 which were nearly identical, but burned oil and were 5,000 pounds heavier. They carried the numbers 75 to 79. 62 was retired in 1948 and 75 and 79 followed in 1962. The other three were sold to the Unidos de Sureste. No. 260, the earlier No. 76, was sold to Disney in 1969 for service at Disneyland in Anaheim, California. For this it was rebuilt in 1971, renamed to “Lilly Belle” and received the number 2.

Variant6257-79
General
Built19031928
ManufacturerBaldwin
Wheel arr.2-6-0 (Mogul)
Gauge3 ft (Three feet)
Dimensions and Weights
Wheelbase17 ft 11 in
Rigid wheelbase12 ft
Service weight52,000 lbs57,000 lbs
Adhesive weight43,000 lbs47,000 lbs
Total weight97,000 lbs102,000 lbs
Water capacity2,200 us gal3,000 us gal
Fuel capacitywood1,580 us gal (oil)
Boiler
Grate area8.9 sq ft
Firebox area60 sq ft
Tube heating area485 sq ft
Evaporative heating area545 sq ft
Total heating area545 sq ft
Variant6257-79
Power Plant
Driver diameter40 in
Boiler pressure160 psi
Expansion typesimple
Cylinderstwo, 13 x 18 in
Power
Power sourcesteam
Estimated power220 hp (164 kW)300 hp (224 kW)
Starting effort10,343 lbf
Calculated Values
steam locomotive
freight
