Lorca a Baza y Águilas No. 1 to 25
Spanish State Railways 130-2121 to 2145
go back
Spain | 1889
25 produced

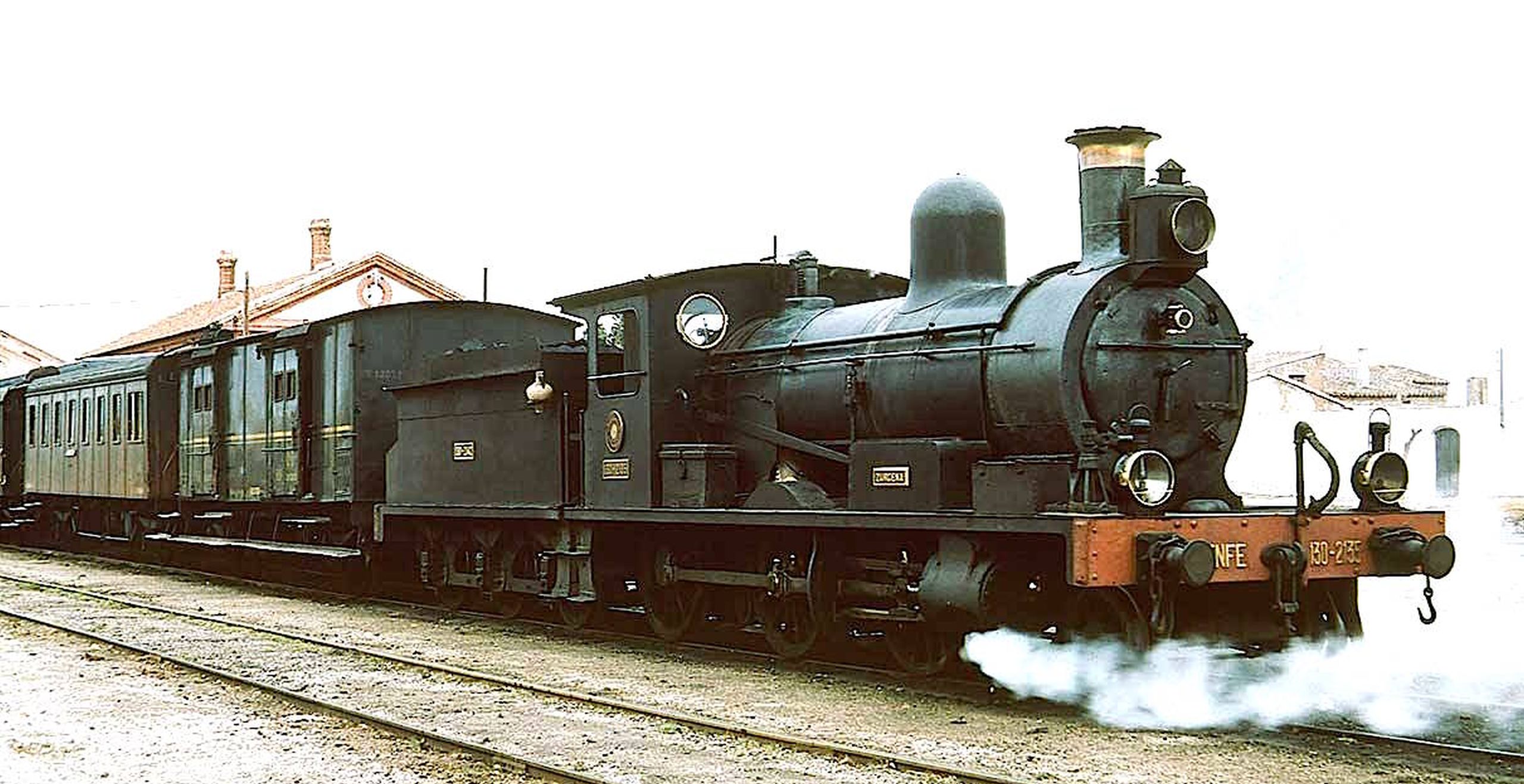

130.2135 at Almendricos
130.2135 at Almendricos
P. Willen / trenesytiempos.blogspot.com

The Compañía de los Ferrocarriles de Lorca a Baza y Águilas, also called Great Southern Railway of Spain, was mainly built to haul iron ore from the Sierras to the port of Águilas. They received the first six Moguls in 1889 from Neilson in Scotland. These locomotives had a large grate and a high boiler pressure for this time. They were built for mixed traffic with a driver diameter of 57 inches (1,448 mm) and had an output of around 700 hp.

Neilson delivered six more in 1890, followed by two from Kitson in 1894, five from Sharp, Stewart in 1901 and six from North British in 1905. When RENFE was founded in 1941, all were still in service and got the numbers 130.2121 to 130.2145. They started to be withdrawn in 1966. Only 130.2124 was preserved, today it is on static display at Águilas.

General
Built1889-1905
ManufacturerNeilson & Co., Kitson & Co., Sharp, Stewart & Co., North British
Wheel arr.2-6-0 (Mogul)
Gauge5 ft 6 in (Indian broad gauge)
Dimensions and Weights
Length50 ft 10 in
Wheelbase22 ft 7 in
Rigid wheelbase15 ft
Total wheelbase42 ft 3 in
Service weight109,129 lbs
Adhesive weight91,492 lbs
Total weight181,771 lbs
Axle load30,644 lbs
Water capacity2,925 us gal
Fuel capacity13,440 lbs (coal)
Boiler
Grate area23.8 sq ft
Firebox area163.9 sq ft
Tube heating area879.1 sq ft
Evaporative heating area1,043 sq ft
Total heating area1,043 sq ft
Power Plant
Driver diameter57 in
Boiler pressure215 psi
Expansion typesimple
Cylinderstwo, 18 x 24 in
Power
Power sourcesteam
Indicated power700 hp (522 kW)
Starting effort24,931 lbf
Calculated Values
steam locomotive
passenger
freight
last changed: 06/2026

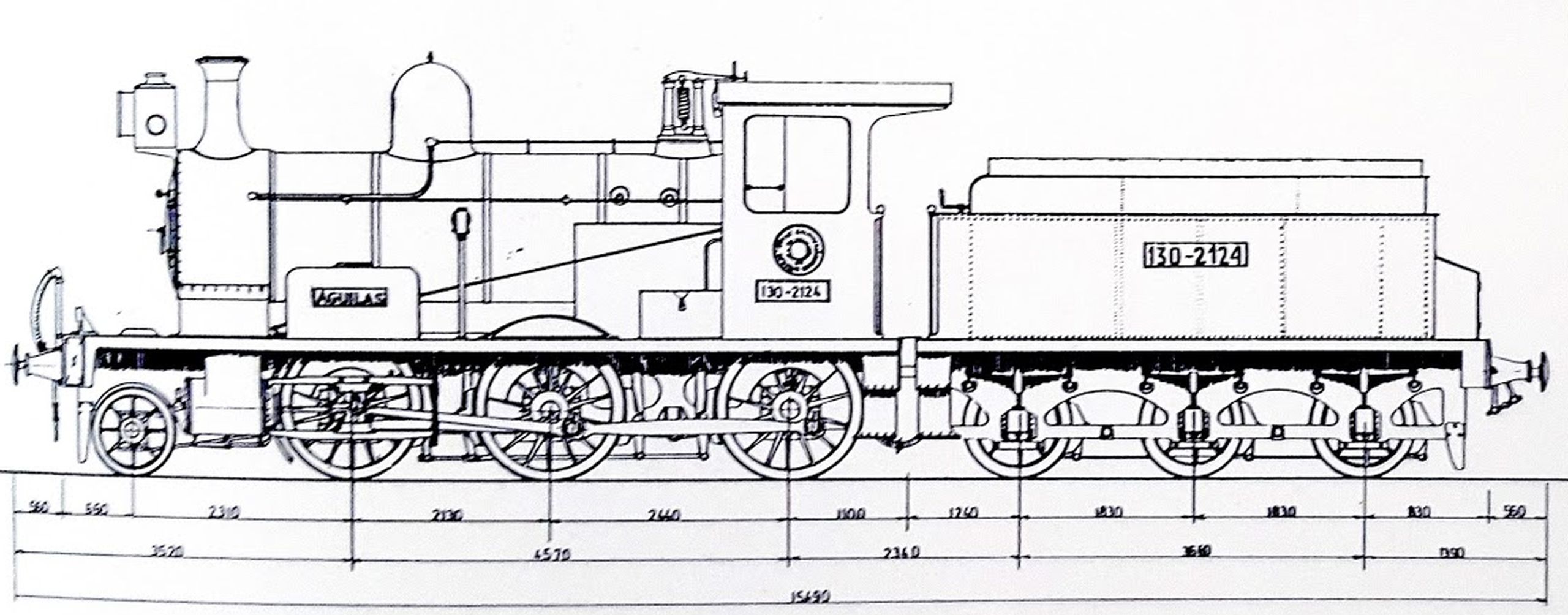

Schematic drawing
Schematic drawing
Carmelo Zaita / trenesytiempos.blogspot.com
