Pennsylvania class P (later D14a)
go back
United States | 1894
16 produced

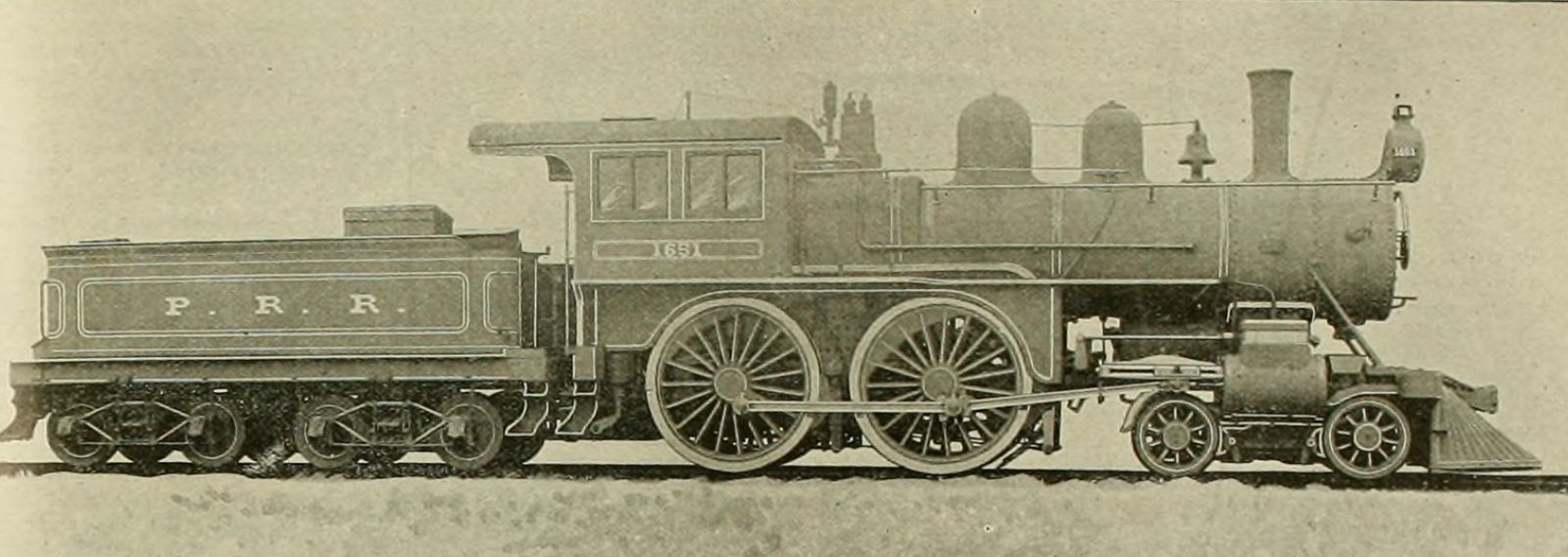

Image of locomotive
collection Taylor Rush

In the long line of PRR 4-4-0 locomotives which were originally designated class P, the last 16 were built in the Juniata shops at Altoona in 1894. Compared to the previous ones, the drivers had been enlarged to 80 inches or 2,032 mm and the cylinders had been enlarged to 19 inches or 483 mm. With a smaller diameter stack, the exhaust beats were reported to be much sharper. The boiler still had a Belpaire firebox typical for the PRR.

In 1895, the different types of the former class P were designated D11 to D14 to distinguish them from each other. The 16 locomotives shown here were designated class D14a. When they were not needed anymore for express service at the beginning of the 20th century, they got 68 inch (1,727 mm) drivers for use on branch line service. No. 88 shown in the picture was scrapped in 1917.

General
Built1894
ManufacturerAltoona
Axle config4-4-0 (American)
Gauge4 ft 8 1/2 in (Standard gauge)
Dimensions and Weights
Wheelbase22 ft 9 1/2 in
Rigid wheelbase7 ft 9 in
Total wheelbase49 ft 3 1/4 in
Service weight127,650 lbs
Adhesive weight87,300 lbs
Total weight197,650 lbs
Axle load43,500 lbs
Water capacity3,000 us gal
Fuel capacity15,000 lbs (coal)
Boiler
Grate area33.3 sq ft
Firebox area148 sq ft
Tube heating area1,435 sq ft
Evaporative heating area1,583 sq ft
Total heating area1,583 sq ft
Power Plant
Driver diameter80 in
Boiler pressure175 psi
Expansion typesimple
Cylinderstwo, 19 x 24 in
Power
Power sourcesteam
Estimated power825 hp (615 kW)
Optimal speed33 mph
Starting effort16,110 lbf
Calculated Values
steam locomotive
express
last changed: 01/2025
